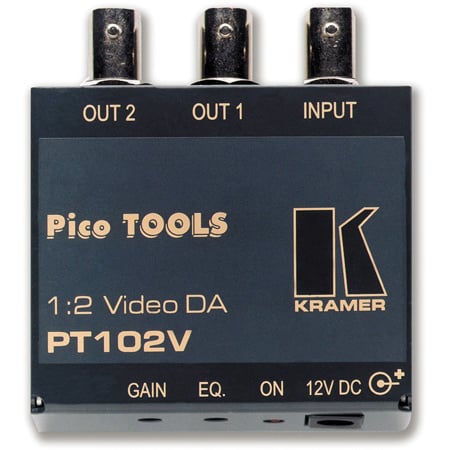

Kramer PT-102VN 1X2 Video Distribution Amplifier
  • Kramer PT-102VN 1X2 Video Distribution Amplifier
  • Kramer PT-102VN 1X2 Video Distribution Amplifier


Kramer PT-102VN 1X2 Video Distribution Amplifier

Manufacturer: Kramer

Item #: PT102V   •   MFG #: PT-102VN



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the PT102V

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

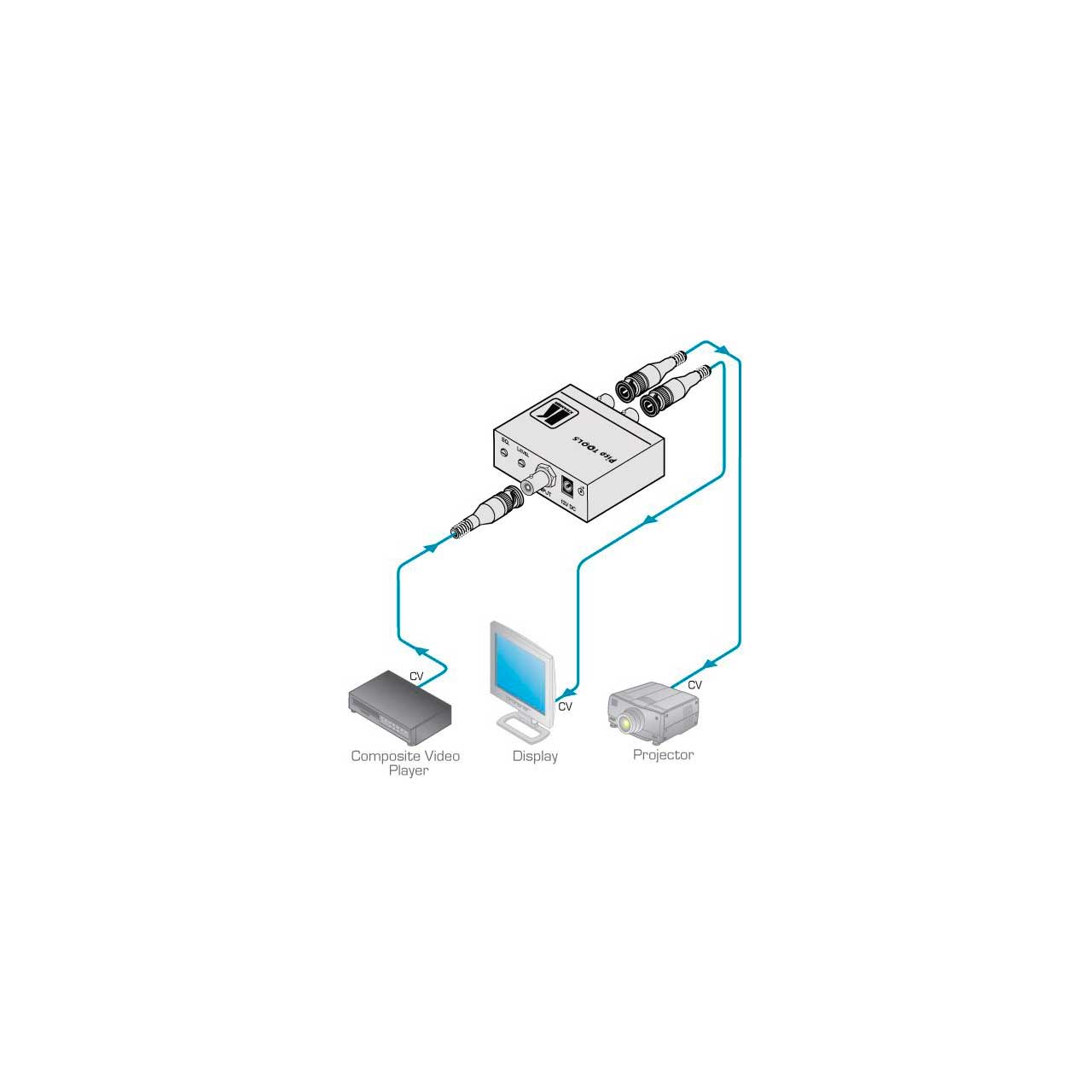

The Kramer PT-102VN is a distribution amplifier for composite video or SDI signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs.


  • Features

    • High Bandwidth - 430MHz (-3dB).
    • Level (Gain) and EQ (Peaking) Controls.
    • Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.

  • Specifications

    • Inputs: 1 composite or SDI video, 1Vpp/75Ω on a BNC connector
    • Outputs: 2 composite or SDI video, 1Vpp/75Ω on BNC connectors
    • Max. Video Output: 2Vpp
    • Video Bandwidth (-3dB): 430MHz
    • Diff. Gain: 0.05%
    • Diff. Phase: 0.05Deg
    • K-Factor: <0.05%
    • S/N Ratio: 76.1dB
    • Control: Gain: -1.2 to +6dB; EQ: 0 to +7.5dB @50MHz via trimmers accessible from the front panel
    • Power Consumption: 12V DC, 30mA
    • Dimensions: 6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1") W, D, H
    • Weight: 0.14kg (0.31lbs) approx
    • Accessories: Power supply
    • Options: RK-4PT 19" rack adapter

  • GTIN:

    7290012307065
