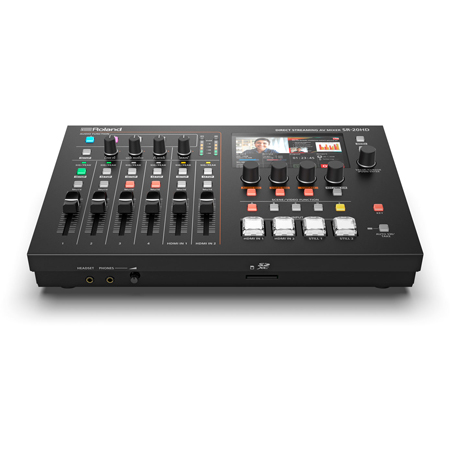

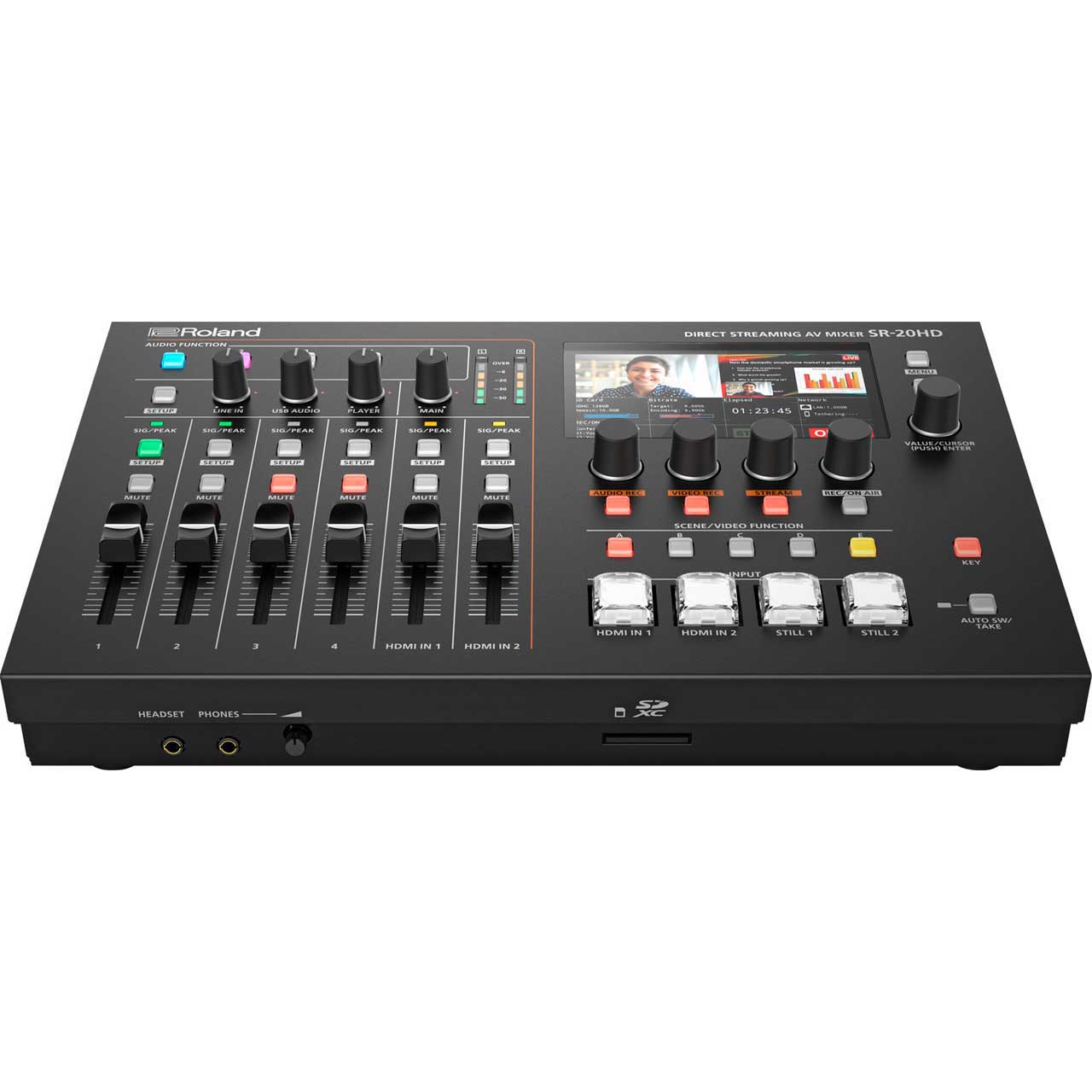

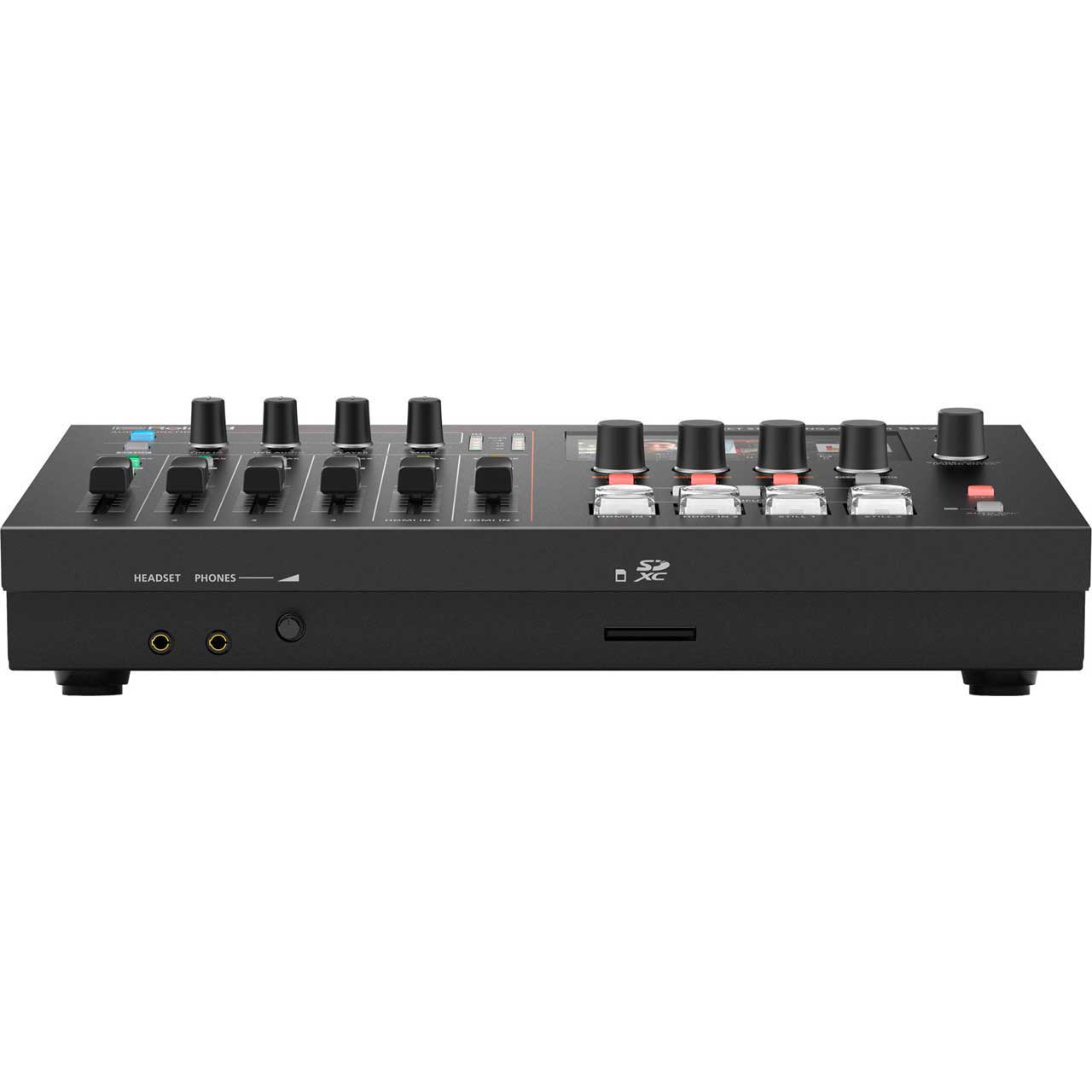

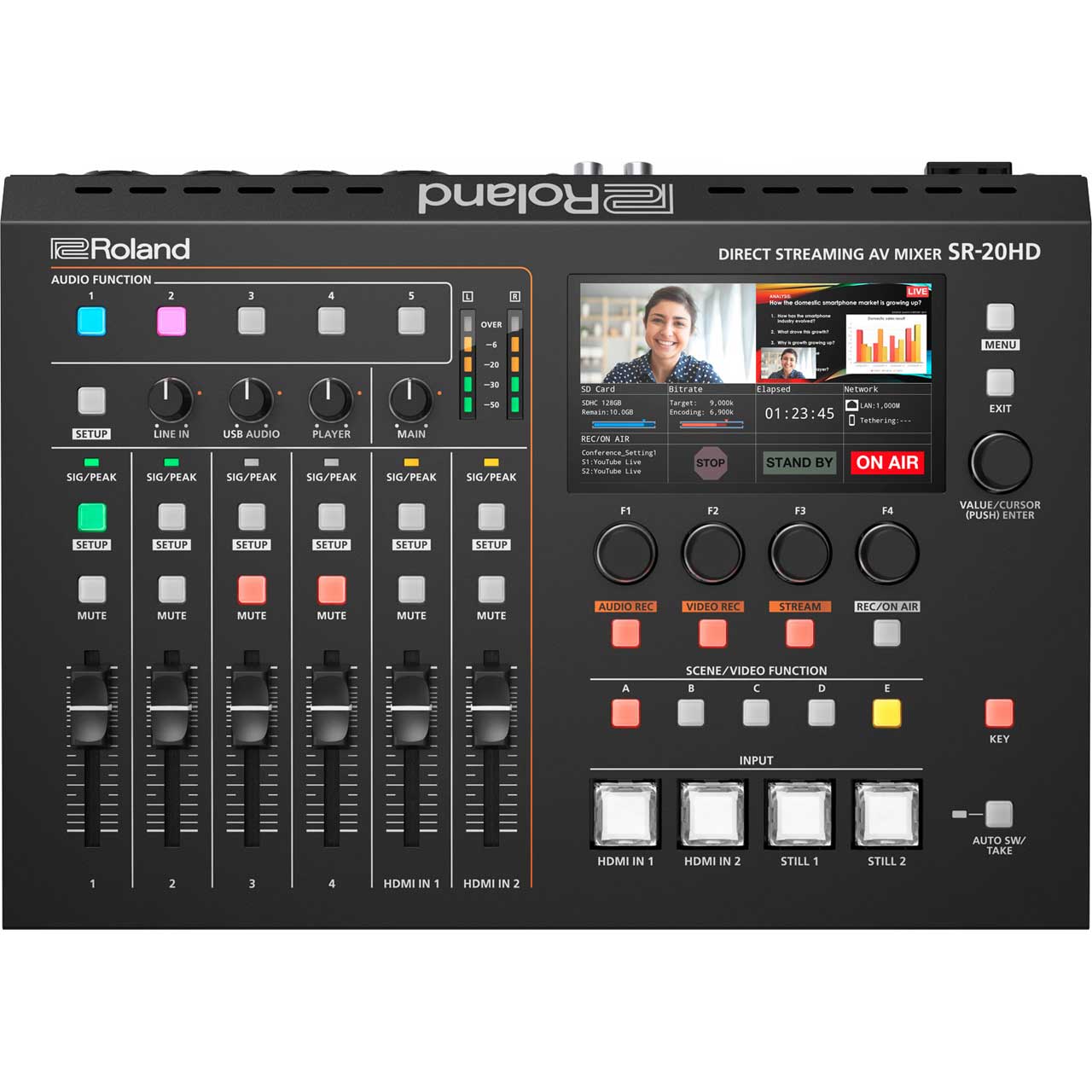

Roland SR-20HD All-In-One Direct Switching and Streaming AV Mixer

ITEM #: ROL-SR-20HD MFG #: SR-20HD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$995.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SR-20HD - Overview

    The Complete All-In-One Switching and Streaming Solution
    Powerful, portable, and simple to operate, the SR-20HD Direct Streaming AV Mixer makes it easy to manage the modern livestreaming requirements of your business or organization. No computer is required, and everything needed to switch and stream is integrated into a single unit that anyone can use with minimal training. When consistency, dependability, and network security are top priorities, the SR-20HD delivers professional results every time.

    Built for Success
    The SR-20HD is designed to make everyone successful with livestream operation and management, regardless of experience. It combines an easy-to-use video switcher, audio mixer, preview screen, recorder/player, and streaming encoder in one unit, simplifying the process and reducing points of failure.

    Plug in and Stream
    Using the two HDMI inputs, you can connect common video sources such as cameras, smartphones, tablets, and computers running presentation software. There's also a USB video input for a Roland UVC device or compatible webcam. In addition, a wide range of audio inputs are available for mics, music players, electronic musical instruments, and more.

    Once everything is plugged in, simply connect to your network router and begin livestreaming with team members, clients, or students on Facebook, YouTube Live, Twitch, or by RTMP to your CDN.

    Secure and Reliable Operation
    Packed with advanced Roland A/V technologies, the SR-20HD reduces the need for technical support and experienced staff members. Automatic functions run in the background to eliminate dropped streams and help protect your organization from broadcasting inappropriate content. And since all streaming tasks are handled within the SR-20HD, there's no risk of malware and other issues that come with computer-based streaming on your enterprise network.

    Adaptive Bitrate
    The SR-20HD's unique Adaptive Bitrate function monitors the quality of the network connection and automatically adjusts the streaming rate to reduce interruptions due to bandwidth issues.

    Mobile Phone Tethering
    A mobile phone with a 4G or 5G data plan can be used as the primary streaming connection or a redundant backup. Should anything happen to your main hardwired network connection, the SR-20HD will automatically switch to the tethered mobile phone over USB.

    Safety Delay
    With the SR-20HD, you can confidently stream unscripted events and prevent offensive content from being broadcast to your audience. The Safety Delay function buffers up to 60 seconds of video and audio, allowing you switch to a still image or mute the sound if anything goes wrong.

    • Features:

      • All-in-one enterprise solution for direct livestreaming without a computer
      • Built-in encoders for transmitting two simultaneous livestreams up to 1080p/60 FPS
      • Adaptive Bitrate function reduces freezing and dropouts due to bandwidth issues
      • Safety Delay function to keep accidental moments from being broadcast
      • Scene function for executing multiple tasks with a single touch
      • Record streams directly to an SDXC card for archiving, editing, and distribution
      • Ease your workflow with Video Auto Switching and Auto Mixing functions
      • Play sound effects, still images, and video sources from an SDXC card to enhance your livestreams
      • LCD monitor for checking video I/O and delivery status in real time
      • Three video inputs: two HDMI and one USB video class
      • Two HDMI outputs: Main and Preview
      • High-quality audio mixer with eight input channels for mics and line-level devices

    • Specifications:

      • Video
      • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
      • Input Formats: 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, SVGA (800x600/60Hz), XGA (1024x768/60Hz), WXGA (1280x800/60Hz), FWXGA (1366x768/60Hz), SXGA (1280x1024/60Hz), SXGA+ (1400x1050/60Hz), UXGA (1600x1200/60Hz), Full HD (1920x1080/60Hz), WUXGA (1920x1200/60Hz) The refresh rate is the maximum value of each resolution. Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11. 1920x1200/60 Hz: Reduced blanking
      • Output Formats: HDMI OUT MAIN, PVW connectors: 1080/59.94p, 1080/50p * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
      • Stream and Video Recorder Formats: File Format: MP4, Codec: H.264, target bitrate up to 20 Mbps, AAC LC 48kHz 16bit Stereo, target bitrate up to 384k bps
      • Video Player: File Format: MP4 (H.264, AAC)
      • Still Image: PNG File (.png), Maximum 1920x1080 pixels, 24-bit color, JPEG File (.jpg .jpeg), Maximum 1920x1080 pixels, 24-bit color
      • Video Effects: Scene: Picture in Picture, Split, Picture by Picture, Transition: Black fade, Mix fade, Key Composition: Luminance key, Chroma key, Other: Output fade, Test pattern output, Stream Delay

        Audio
      • Audio Processing: 24 bits/48 kHz
      • Audio Formats: HDMI IN/OUT connectors: Linear PCM, 24 bit/48 kHz, stereo
      • Audio Effects: Delay, High Pass Filter, Gate, Compressor, Equalizer, Limiter, Test tone output
      • Audio Player: File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)

        Common Section
      • Recording Media: SDHC/SDXC card (sold separately)
      • Other Functions: Panel lock function, EDID emulator

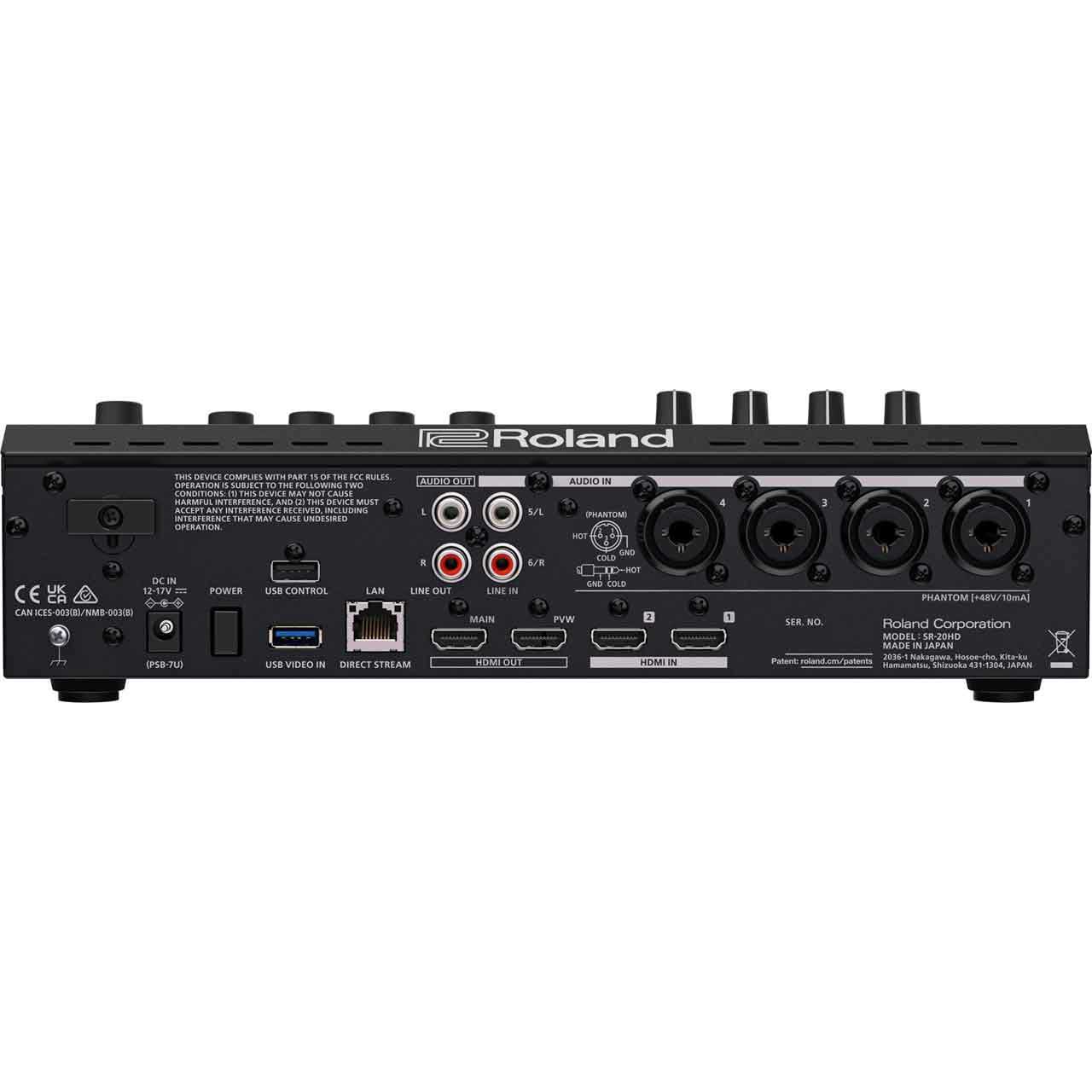

        Connectors
      • Input ConnectorsHDMI IN 1--2 connectors: HDMI type A (Multi-format supported), AUDIO IN 1--4 jacks: Combo type, XLR type: balanced, phantom power (DC 48 V, 10 mA), (1 GND, 2 HOT, 3 COLD), 1/4-inch TRS phone: balanced
      • Output Connectors: HDMI OUT MAIN, PVW connectors: HDMI type A, LINE OUT jack: RCA phono type, PHONES jack: Stereo miniature phone type
      • Input/Output Connector: HEADSET jack: Stereo miniature phone type (3.5 mm, 1/8-inch, TRRS 4-pole, CTIA)
      • Other Connectors: USB VIDEO IN port: USB A (USB 3.0), USB CONTOL port: USB A (USB 2.0), LAN (DIRECT STREAM) port: RJ-45, 1000BASE-T, DC IN jack

        Audio Input/Output Characteristics
      • Nominal Input Level: AUDIO IN 1--4 jacks: -52 to +4 dBu (Maximum Input level: +24 dBu), LINE IN jack: -10 dBu (Maximum Input level: +10 dBu)
      • Input Impedance: AUDIO IN 1--4 jacks (XLR type, with phantom power): 5 k ohms, AUDIO IN 1--4 jacks (XLR type, without phantom power): 7 k ohms, AUDIO IN 1--4 jacks (TRS 1/4-inch phono type): 7 k ohms, LINE IN jack: 18 k ohms
      • Nominal Output Level: AUDIO OUT jack: -10 dBu (Maximum Output level: +10 dBu), PHONES jack: 72 mW + 72 mW (32 ohms)
      • Output Impedance: AUDIO OUT jack: 1 k ohm

        Others
      • Display: 4.3 inches TFT color LCD: 480x272 dots
      • Power Supply: AC adaptorCurrent Draw3.5 A
      • Power Consumption: 42 W
      • Operation Temperature: +0 to +40 degrees Celsius, +32 to +104 degrees Fahrenheit
      • Dimensions: 11-13/16 (W) x 8-1/2 (D) x 3-7/16 (H) inches
      • Weight (excluding AC adaptor): 5 lbs 5 oz

    • Item Includes:

      • 1x Startup Guide
      • 1x Leaflet "USING THE UNIT SAFELY"
      • 1x AC adaptor
      • 1x Power cord

    • GTIN:

      0761294517925
