Roland Systems Group V-60HD Video Switcher & UVC-01 Encoder Streaming Bundle

ITEM #: ROL-V-60HD-STR MFG #: V-60HD-STR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$3,195.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    V-60HD-STR - Overview

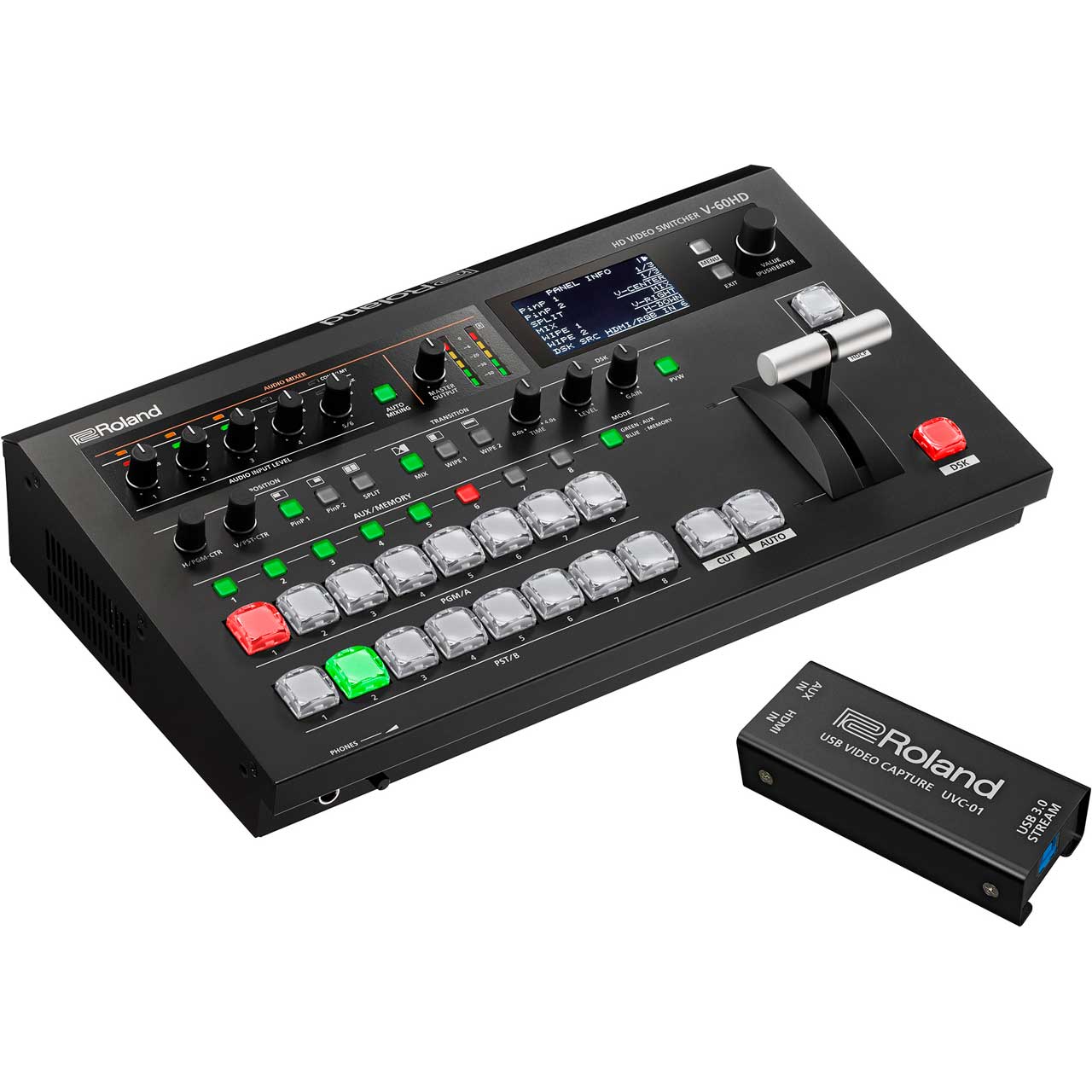

    The Roland V-60HD is ideal for Live Streaming, Corporate Events, and Live Performances. It supports four SDI camera inputs plus two scaled HDMI inputs for data, computer, tablet and other video sources using a variety of video connections, plus a Program and independent Aux bus for confidence, downstage monitor or side screens. The V-60HD also offers advanced audio functionality including multi-channel embedded audio, XLR/TRS and RCA analog inputs, and multichannel embedded audio to two SDI outputs, plus comprehensive dynamics and automixing. In addition to the switcher, the streaming bundle includes a Roland UVC-01"Plug and Play" Encoder for efficient and simple streaming application.

    Plug-and-Play for Flawless Recordings and Livestreams
    For online content creators, musicians, and gamers to businesses, schools, and houses of worship, livestreaming is an essential medium for communicating with people around the world. With the UVC-01, it's never been easier to add high-quality livestreaming capabilities to your Roland V-series video switcher or favorite HDMI-equipped camera or camcorder. Just connect to the UVC-01 via HDMI, plug into your computer's USB 3.0 port, and start streaming to Facebook Live, YouTube, and other popular platforms. Offering plug-and-play operation in a rugged, pocket-size design, the UVC-01 is ready for action everywhere you go.

    • Features:

      • V-60HD Features
      • Cut, Mix with cross dissolve and NAM, FAM transitions. Use up to 30 different wipe patterns. Time based corrected and frame synched provides seamless transitions between 6 video sources and 2 still images instead of buses. Auto-Scan (Ver.2.0) enables to switch automatically to reduce operator work.

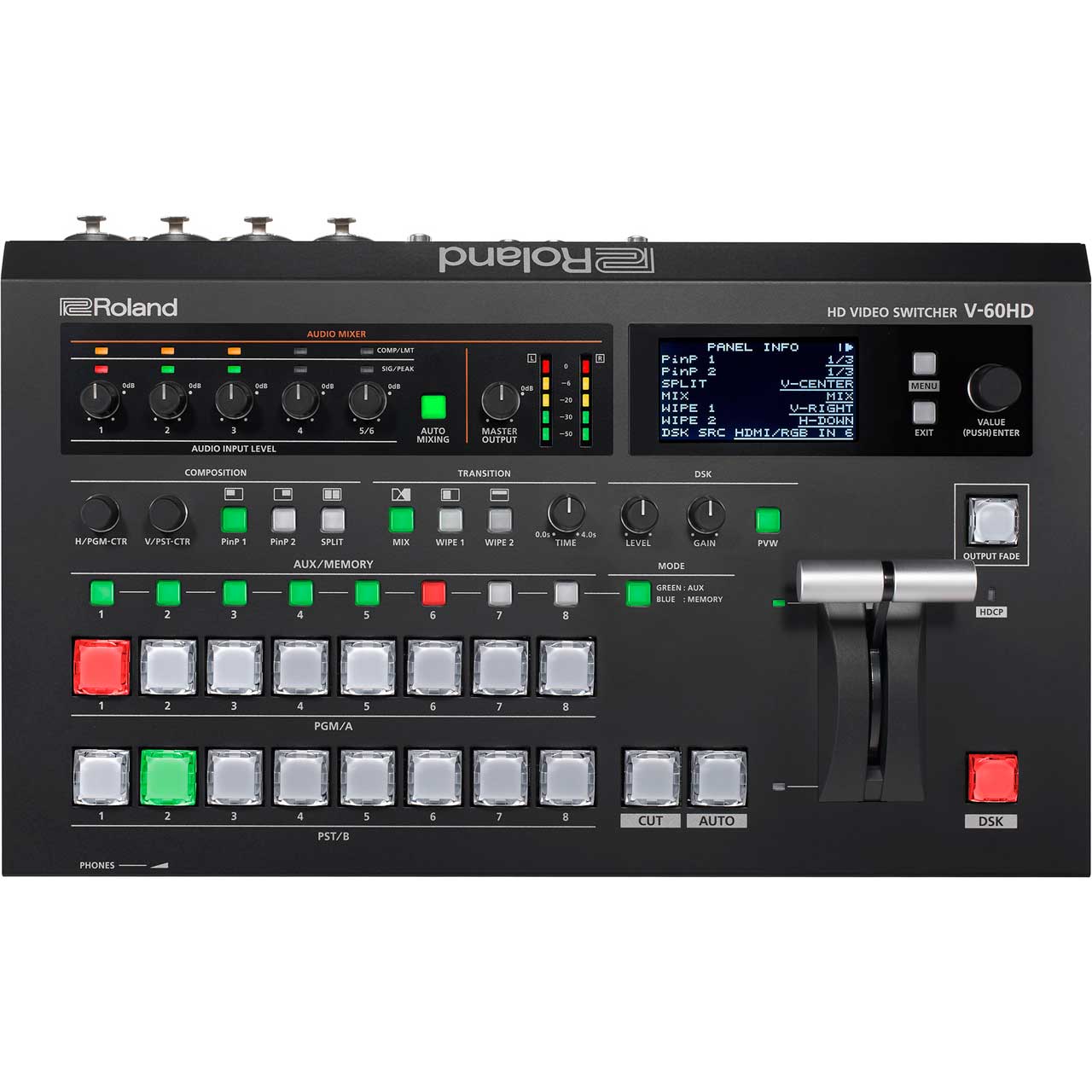

      • Professional broadcast cross point buttons with PGM/PST LED color indicators. Rugged T-Bar, DSK quick edit knobs for key level and gain
      • V-60HD includes a DSK (downstream keyer), Picture-in-Picture (PinP), Split composition effects ideal for creating news style broadcasts and corporate presentations
      • Live streams, HD recording, and confidence monitors often have different visual needs from the main program output
      • V-60HD can preview all six video inputs and two still images, PGM and PVW to a single preview monitor via the Multi-view output
      • V-60HD features an 18-channel audio mixer which includes four XLR/TRS Combo jacks with 48v phantom power, RCA stereo Pair, plus audio de-embed from the six video inputs
      • Audio Mixer with preamp and dynamics (compressor)
      • Auto-Mixing function ensures the correct mix for multiple panel participants at conferences by automatically adjusting levels across multiple audio sources
      • Discreet Multi-Channel Audio Embedding

        UVC-01 Features
      • Please Note: The UVC-01 is only available with the bundle.
      • High-quality HDMI to USB 3.0 video encoder
      • Plug-and-play USB webcam operation for Mac and Windows computers
      • Seamlessly works with all Roland V-series switchers with an HDMI output
      • Also works with most HDMI-equipped cameras and camcorders
      • Uncompressed 1080p HD at 60 FPS for engaging livestreams
      • Dedicated analog audio line input for live music versatility
      • Powered via USB

    • Specifications:

      • V-60HD Specifications
      • Video
      • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
      • Output Formats: SDI OUT 1--2: Conforms to SMPTE 296M, 274M; HDMI OUT 1--2
      • HDMI MULTI-VIEW: 1080/59.94p, 1080/50p
      • Video Effects: Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types) Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND), SPLIT (4 types), DSK (Luminance Key, Chroma Key) Others: Flip horizontal, Output fade, Still Image Capture, Still Image Playback, Test pattern output
      • Audio
      • Audio Processing: Sampling rate: 24 bits/48 kHz
      • Phantom Power: DC 48 V (unloaded maximum), 10 mA (maximum load) *Current value per channel
      • Audio Effects: Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter

        Others

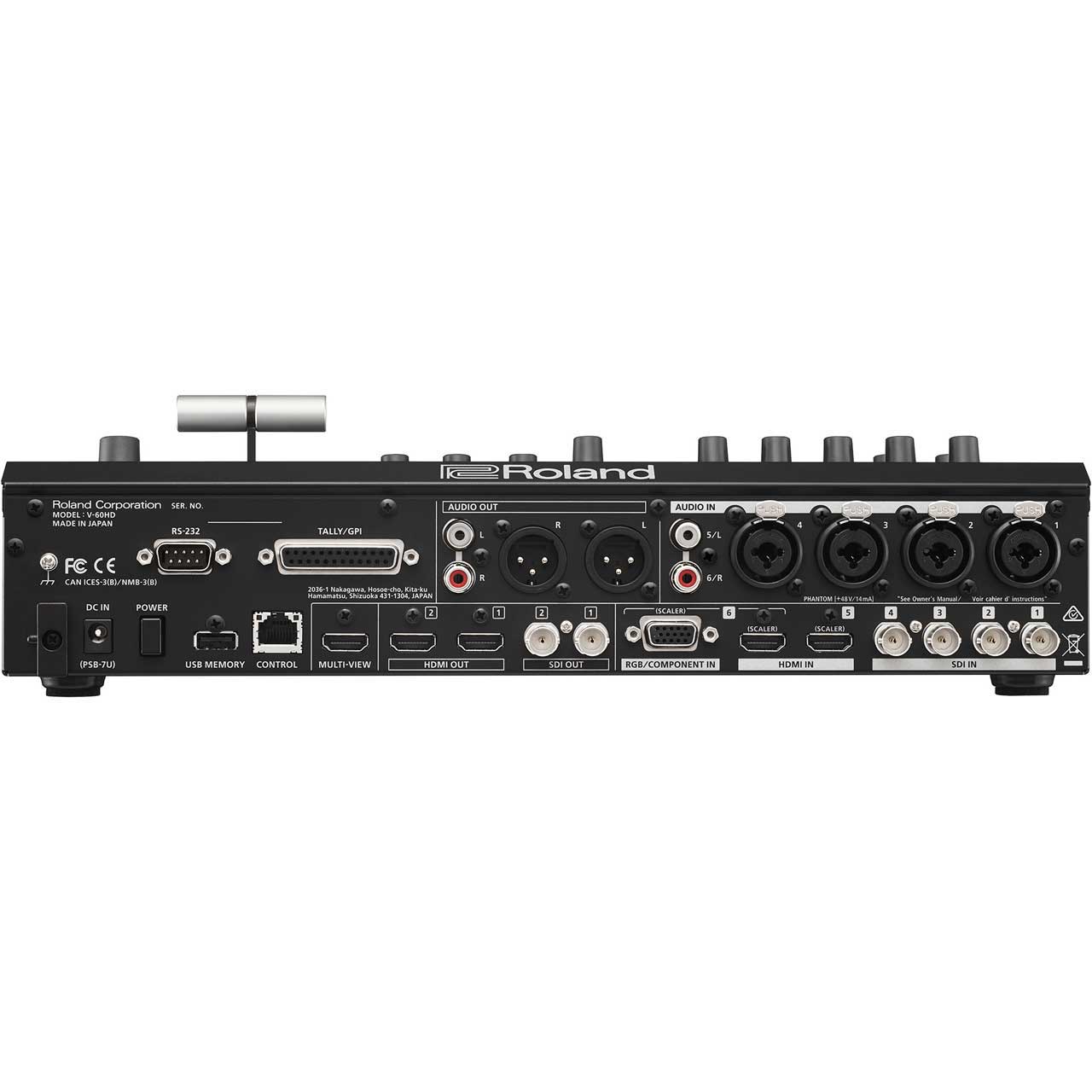

      • Other Connectors: USB MEMORY: USB A type (for USB flash drive) TALLY/GPI: DB-25 type (Female)(Tally: 12, GPI: 8) RS-232: DB-9 type (Male) (for Remote Control) CONTROL: RJ45 100 BASE-TX (for Remote Control)
      • Other Functions: Preset Memory (8 types), Panel lock function, EDID Emulator, Smart Tally, Auto Scan, Remote Camera Control
      • Display: Graphic LCD: 128 x 64 dots
      • Power Supply: AC Adapter
      • Current Draw: 3.1 A
      • Power Consumption: 37.0 W
      • For a full list of V-60HD specifications please visit the Data Sheets Tab

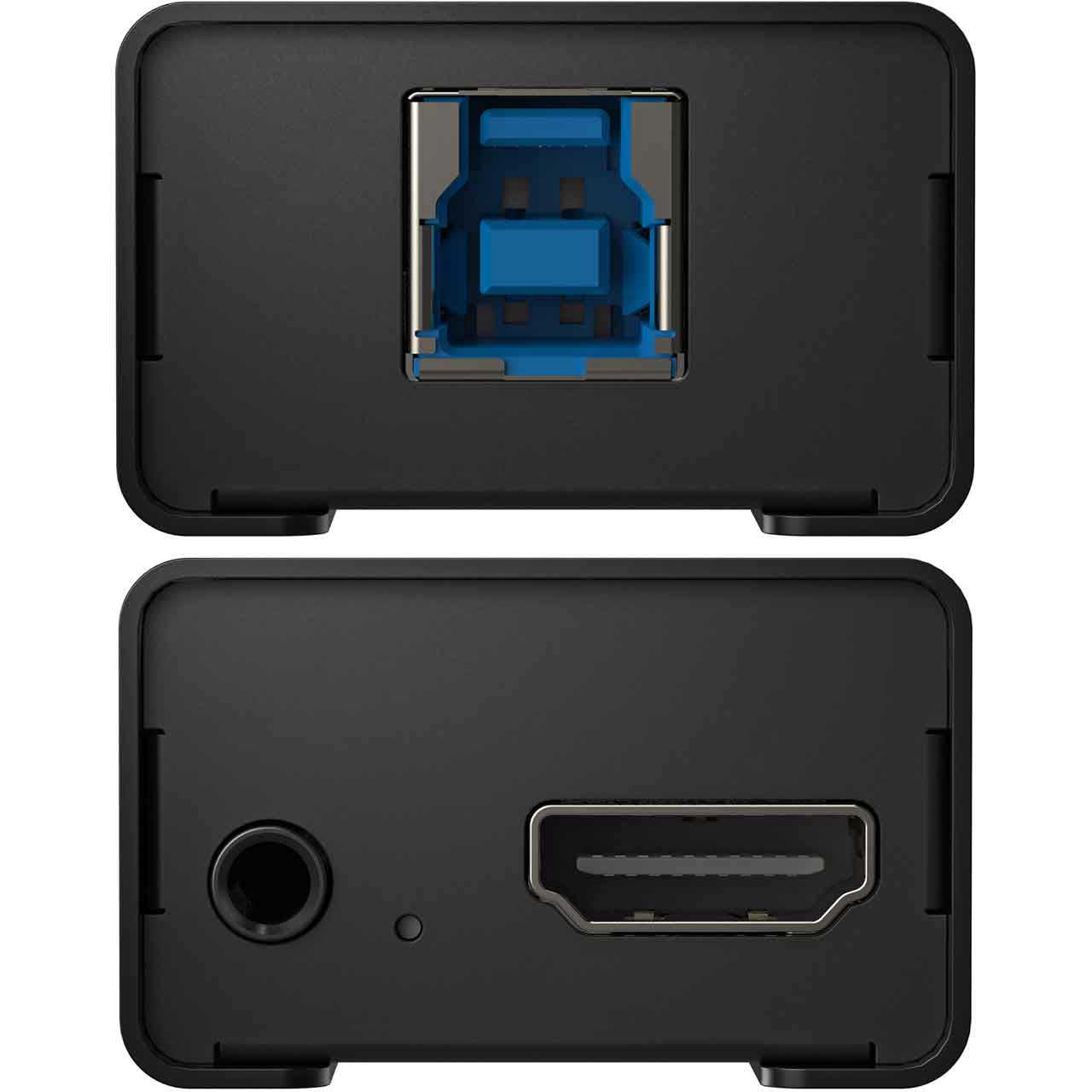

        UVC-01 Specifications
      • Video
      • Input Connectors: HDMI IN connector: HDMI type A *Multi-format Supported *HDCP Not Supported
      • Output Connectors: USB STREAM port: USB 3.0 B type
      • Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz) *The refresh rate is the maximum value of each resolution. *Conforms to VESA DMT Version 1.0 Revision 11.
      • USB Video Output Format/Resolution: YUY2 (Uncompressed)/1920x1200, 1920x1080, 1680x1050, 1600x1200, 1600x900, 1440x900, 1366x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1152x864, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360, 320x240 *The maximum frame rate is 60 fps.

        Audio
      • Audio Formats: HDMI IN connector: Linear PCM, 48kHz/44.1kHz, 24bits/20bits/16bits, stereo; USB STREAM port: Linear PCM, 48kHz, 16bits, stereo
      • Input Connectors: HDMI IN connector: HDMI type A
      • AUX IN jack: Stereo miniature phone type
      • Output Connectors: USB STREAM port: USB 3.0B type
      • Nominal Input Level: AUX IN jack: -10dBu (Maximum input level: +8dBu)
      • Input Impedance: AUX IN jack: 10kohms
      • Power Supply: Supplied from the computer via USB
      • Current Draw: 500mA
      • Operation Temperature: 32° to 104°F
      • Dimensions (WxDxH): 3.54 x 1.46 x 0.90"
      • Weight: 0.21Lbs

    • Item Includes:

      • 1x V-60HD Multi-Format Video Mixer
      • 1x UVC-01 Encoder
      • 1x Owner's Manual
      • 1x AC adapter
      • 1x Power cord

    • GTIN:

      0761294224434
