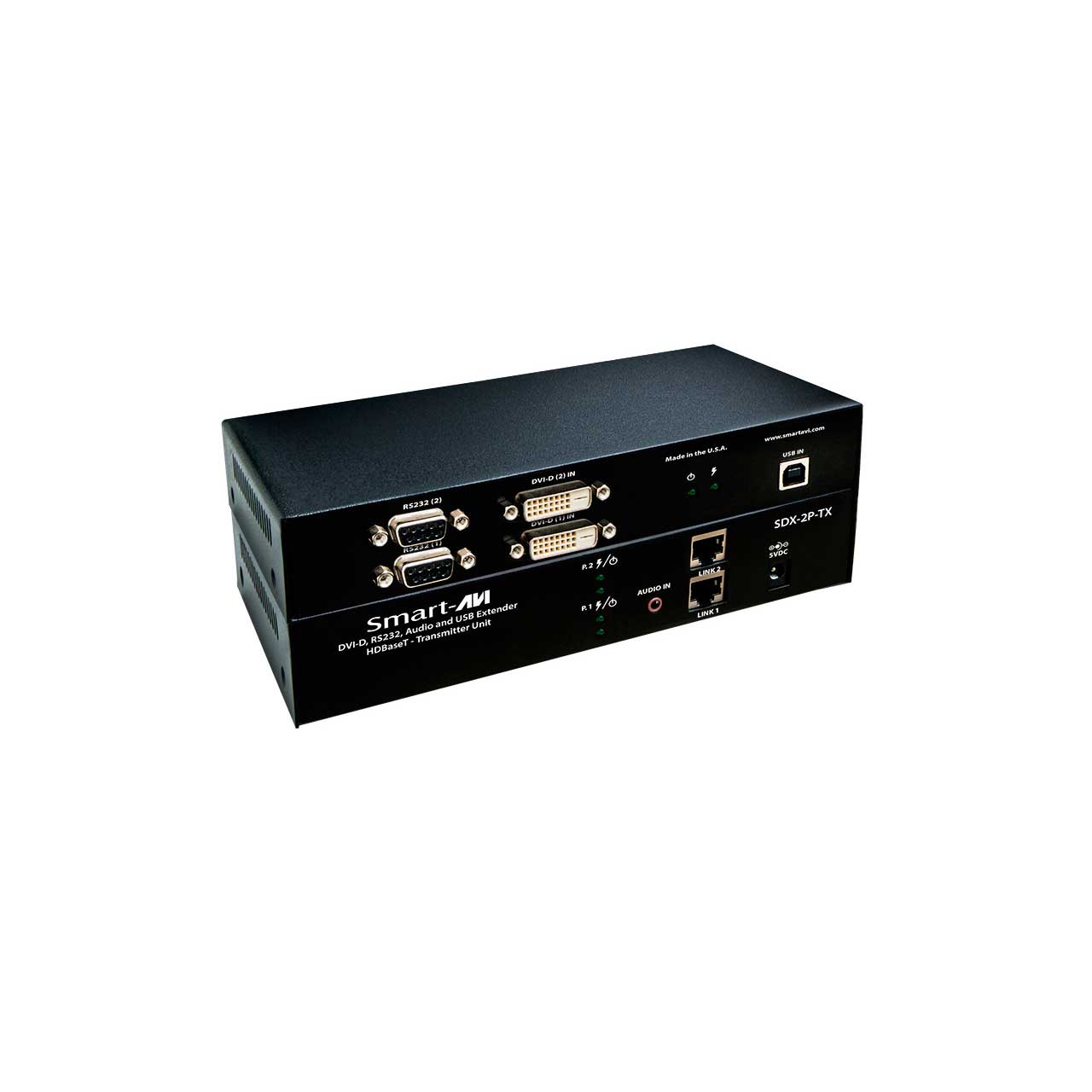

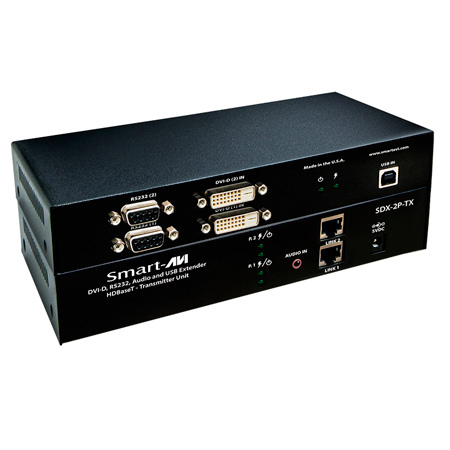

Smart-AVI SDX-2PS HDBaseT Dual DVI-D / USB 1.1 / RS232 & Audio Extender

SDX-2PS - Overview

• Features:

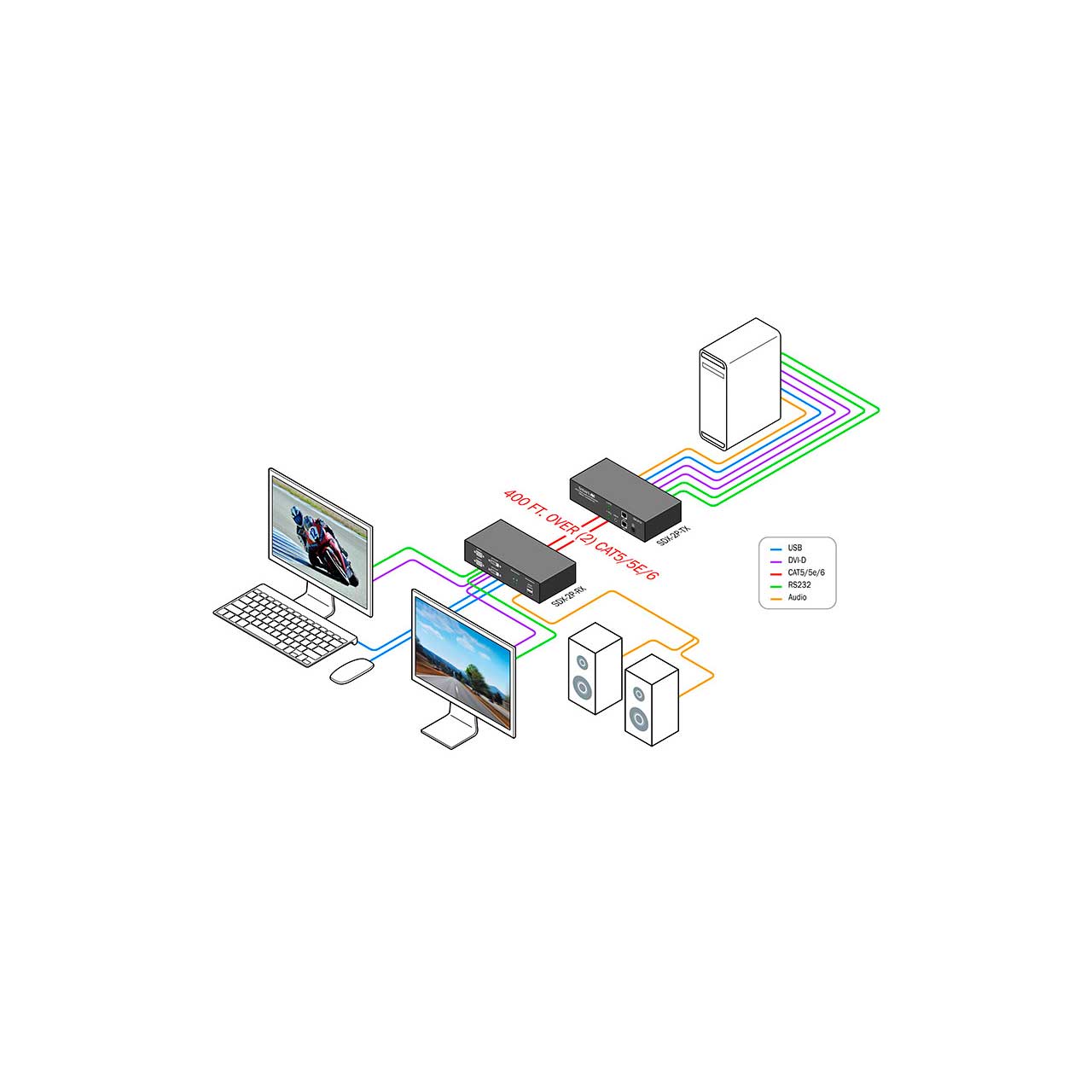

  • Extends dual DVI-D up to 400 feet (120m) from the source
  • HDCP Support
  • Supports up to 1920x1200 digital video resolution
  • Automatic DDC Learning
  • USB Keyboard and Mouse extension
  • Uncompressed Video HDBaseT
  • RS232 extension allows for remote control of displays
  • External power adapter for transmitter and receiver unit
  • Supports Stereo Sound
  • Compatible with Windows, Mac and Linux Operating Systems


• Specifications:

  • VIDEO
  • Format (2) DVI-D Single Line
  • Maximum Pixel Clock 165 MHz
  • Input Interface (TX) (2) DVI-D 29-pin (Female)
  • Output Interface (RX) (2) DVI-D 29-pin (Female)
  • Resolution Up to 1920 x 1200 @60Hz
  • DDC 5 volts p-p(TTL)
  • Input Equalization Automatic
  • Input Cable Length Up to 20 ft.
  • Output Cable Length Up to 20 ft.
  • AUDIO
  • Signal Type Stereo Audio
  • Bandwidth 15MHz, 0dB
  • Impedance 100 Ohm
  • Connector 3.5 mini jack, Female
  • USB
  • Signal Type USB 1.1
  • Input Interface (TX) (1) USB Type B (Female)
  • Output Interface (RX) (2) USB Type A (Female)
  • RS232
  • Input Interface (TX) DB9 (Female)
  • Output Interface (RX) DB9 (Female)
  • Speed @ 115 Kbps
  • OTHER
  • Power External 100-240 VAC/5VDC4A @20W
  • Dimensions 8.25 in W x 1.75 in H x 3.375 in D
  • Weight 4 lbs.
  • Operating Temp. 0-55 °C (32-131°F)
  • Storage Temp. -20-85 °C (-4-185 °F)
  • Humidity Up to 95%


• Item Includes:

  • [SDX-TX2P, SDX-RX2P, 2 X (PS5VD4A)]


• GTIN:

  0813280019194
