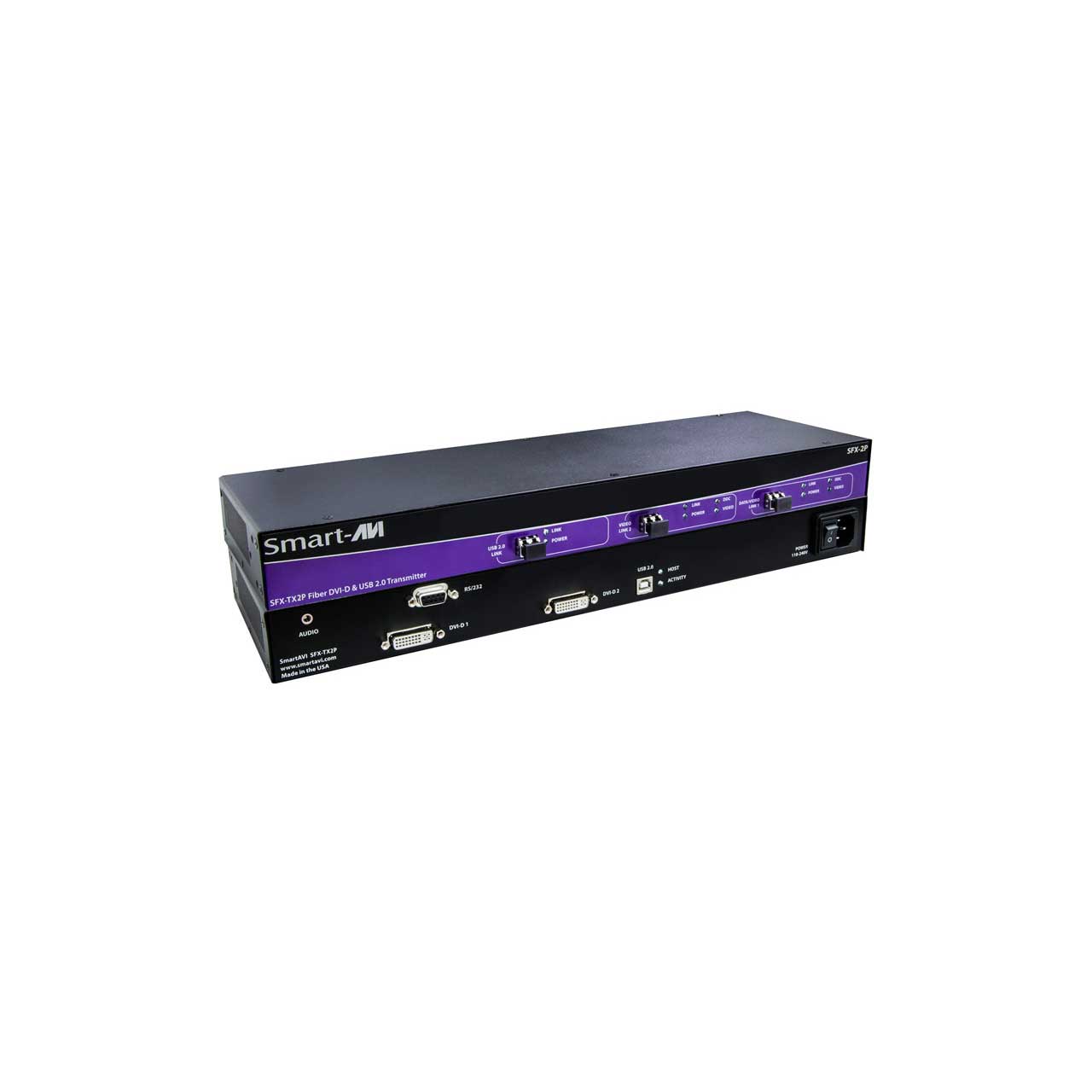

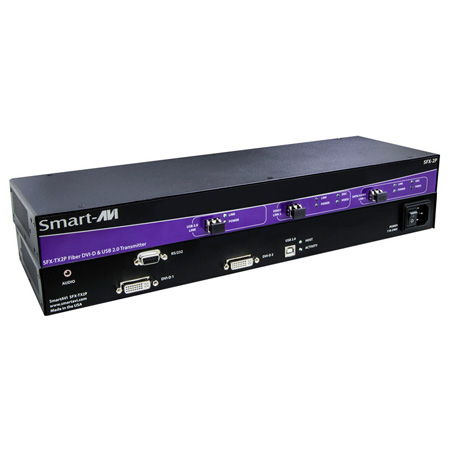

Smart-AVI SFX-2P-M-S 2DVI-D/USB2.0/Audio/RS232 Multimode Fiber Extender

ITEM #: SAVI-SFX-2P-M-S MFG #: SFX-2P-M-S

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SAVI-SFX-2P-M-S

SFX-2P-M-S - Overview

The SFX-2P is a perfect solution for extending 2 DVI-D and USB 2.0 signals from a computer in a remote location up to 1,500 feet away. It supports high-resolution DVI-D video and all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers. The SFX-2P is immune to electromagnetic interference, making it ideal for use in situations where there is considerable interference. The SFX-2P is also very secure because it’s fiber optic signals cannot be easily tapped.

  • Features:

    • Top Signal Quality at Maximum Extension
    • Over Multimode Fiber (1,500 ft.) Plug Type LC
    • DVI-D Video Resolutions up to 1920 x 1200 WUXGA at 60Hz
    • Automatic Learning DDC for Mac/PC
    • Supports USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) data rates
    • Supports all USB device types transparently (no emulation)from high-speed web cams,
    • hard drives, printers, scanners, audio devices, touch screens, game controllers and more
    • Integrated Four-Port Hub in the receiver
    • Compatible with all operating systems
    • Extends Stereo Audio
    • Extends RS-232
    • Plug and play


  • Specifications:

    • VIDEO
    • Format DVI-D Single Line
    • Maximum Pixel Clock 165 MHz
    • Input Interface (TX) (2) DVI-D 29-pin female
    • Output Interface (RX) (2) DVI-D 29-pin female
    • Resolution Up to 1920 x 1200 @60Hz
    • DDC 5 volts p-p(TTL)
    • Input Equalization Automatic
    • Input Cable Length Up to 20 ft.
    • Output Cable Length Up to 20 ft.
    • USB
    • Signal Type EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
    • Input Interface (TX) (1) USB Type B (Female)
    • Output Interface (RX) (4) USB Type A (Female)
    • AUDIO
    • Signal Type Stereo Audio
    • Bandwidth 15MHz, 0dB
    • Impedance 10K Ohm
    • Connector 3.5mm Stereo Mini Female
    • RS232
    • Input Interface (TX) DB9 Female
    • Output Interface (RX) DB9 Male
    • Speed Up to 115 Kbps
    • Operating Temp. 0-55 °C (32-131°F)
    • Storage Temp. -20-85 °C (-4-185 °F)
    • Humidity Up to 95%
    • RS232
    • Fiber Type Duplex, multi mode
    • Connector Type Duplex LC
    • Wavelength 1310 nm/1550 nm (Dual wavelength)
    • Data Rate 2x2.5 Gbps (2.5 Gbps per single wavelength)
    • Transmission Power -5 dB Min.
    • Receiver Sensitivity -21 dB Max
    • Distance 500 m Max.
    • OTHER
    • Power Internal 100-240 VAC
    • Dimensions 17 in W x 1.70 in H x 7 in D
    • Weight 8 lb
    • Operating Temp. 0-55 °C (32-131°F)
    • Storage Temp. -20-85 °C (-4-185 °F)
    • Humidity Up to 95%


  • Item Includes:

    • [SFX-2P-TX, SFX-2P-RX, 2 X (CCPWR06USA)]


  • GTIN:

    0813280019385
