Science Image FLOW4K 4K SDI HDMI Up-Down-Cross Converter with Optical Transceiver

ITEM #: SCI-FLOW4K MFG #: FLOW4K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$949.00

Availability: In Stock
iAvailability Description Popup


    FLOW4K - Overview

    FLOW 4K
    This is a set frequency conversion, optical end machine in one of the delicate small box. The built-in 12G-SDI and HDMI 4K60 optical modules can be used as bidirectional optical modules in the field. It's an up and down converter; Access to the optical fiber line can realize the function of optical terminal machine, can long-distance transmission of original signals, multi-purpose machine, reduce the cost of the system, can be fast, flexible, convenient response.

    UpdownCross Convertion
    NDIr Studio 4K.SH is also both 12G-SDI/HDMI2.0 Interface Up/Down/Cross converter. The conversion function and NDI codec function work at the same time and it supports at least 35 SMPTE standard formats, special formats customized by users can also be accepted.

    UHD Optical Transceiver
    Built-in 12G-SDI and HDMI 4K60 optical transceiver function, optical transceiver integrated, when using NDI in the field, can be used as a two-way optical transceiver, it can receive, also can send; Users can switch the Transmitting or Receiving function with one click according to the actual situation, automatic signal recognition, up to 20KM transmission; Optical terminal machine and NDI encoding and format up and down frequency conversion can work at the same time, one machine and three uses, you can set up flexible transmission mode anytime and anywhere according to the requirements of the field environment.

    Working Status at a Glance
    The OLED display displays vital operating status and information of the box in real time.Rich content, real-time display on OLED, the important working status and information of the box in OLED, easy to see.

    Flexible Deployment, Convenient and Practical
    Built-in 12G-SDI and HDMI 4K60 optical transceiver function, optical transceiver integrated, when using in the field, can be used as a two-way optical transceiver, it can receive, also can send; Users can switch the receiving or sending function with one key according to the actual situation, namely plug and play, support hot plug and plug, automatic signal recognition, up to 40 km transmission; Optical terminal machine and format up and down frequency conversion can work at the same time, one machine and three uses, you can set up flexible transmission mode anytime and anywhere according to the requirements of the field environment,

    Broadcast Quality
    Broadcast level broadcast level indicators and reliability, support 12G-SDI/HDMI 2.0 and SMPTE/ITU broadcast level international standard formats and specifications, support 444,422,420 and other sampling formats, accurate and rapid signal recognition, using Selinth FPGA SOC hardware and internal logic design, embedded Linux system, The program runs like a rock, impervious to the environment.

    Please Note! SFP Module Sold Separately

    • Features:

      • Aviation Technology - Aviation aluminum integrated design and milling, ultra-thin process, aviation process manufacturing
      • Broadcast Quality - Broadcast grade international standard formats and specifications, accurate and rapid signal recognition, the
        program runs like a rock, not affected by the environment.
      • Multiple Applications - It is widely used in many occasions, such as conference and stage live, remote connection, education live
        broadcast, and gives full play to its advantages in various fields.
      • Flexible Deployment - One machine multi-purpose, reduce the system cost, to be able to respond quickly, flexible, convenient

    • Specifications:

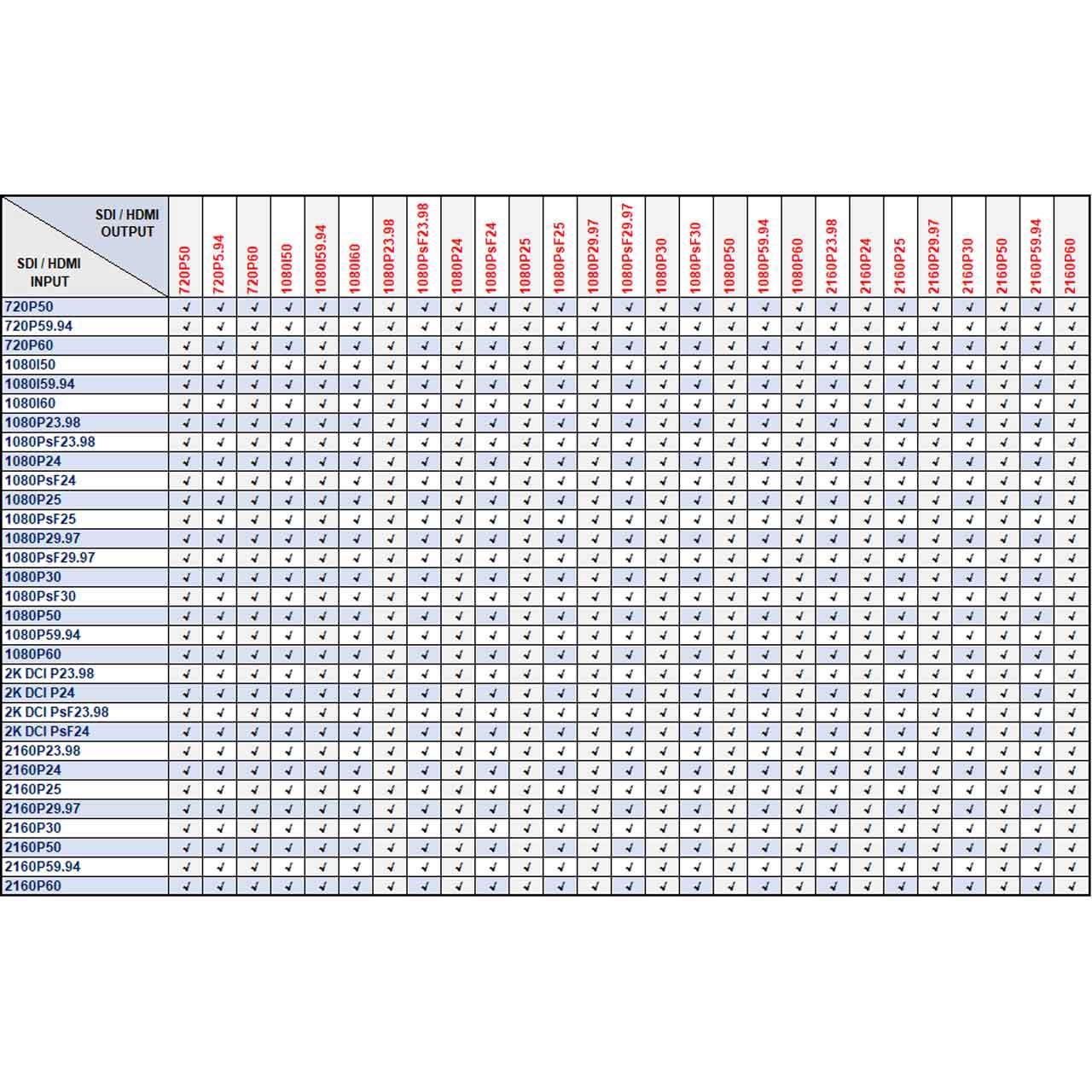

      • SDI Video Format
      • 1.5G/3G-SDI HD video format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97,
        1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94,
        1080p60
      • 6G/12G-SDI/Ultra HD Video Format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • SDI Specification: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and
        SMPTE 2082-10

        HDMI Video Format
      • HD Video Format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
        1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
      • 4K Video Format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling Rate: TV standard 48kHz
      • SDI Color Accuracy: 4:2:2 and 4:4:4
      • SDI Color Space: REC 709 BT2020
      • HDMI Color Space: REC 709 BT2020
      • HDMI Color Accuracy: YUV 4:2:2 and RGB 4:4:4

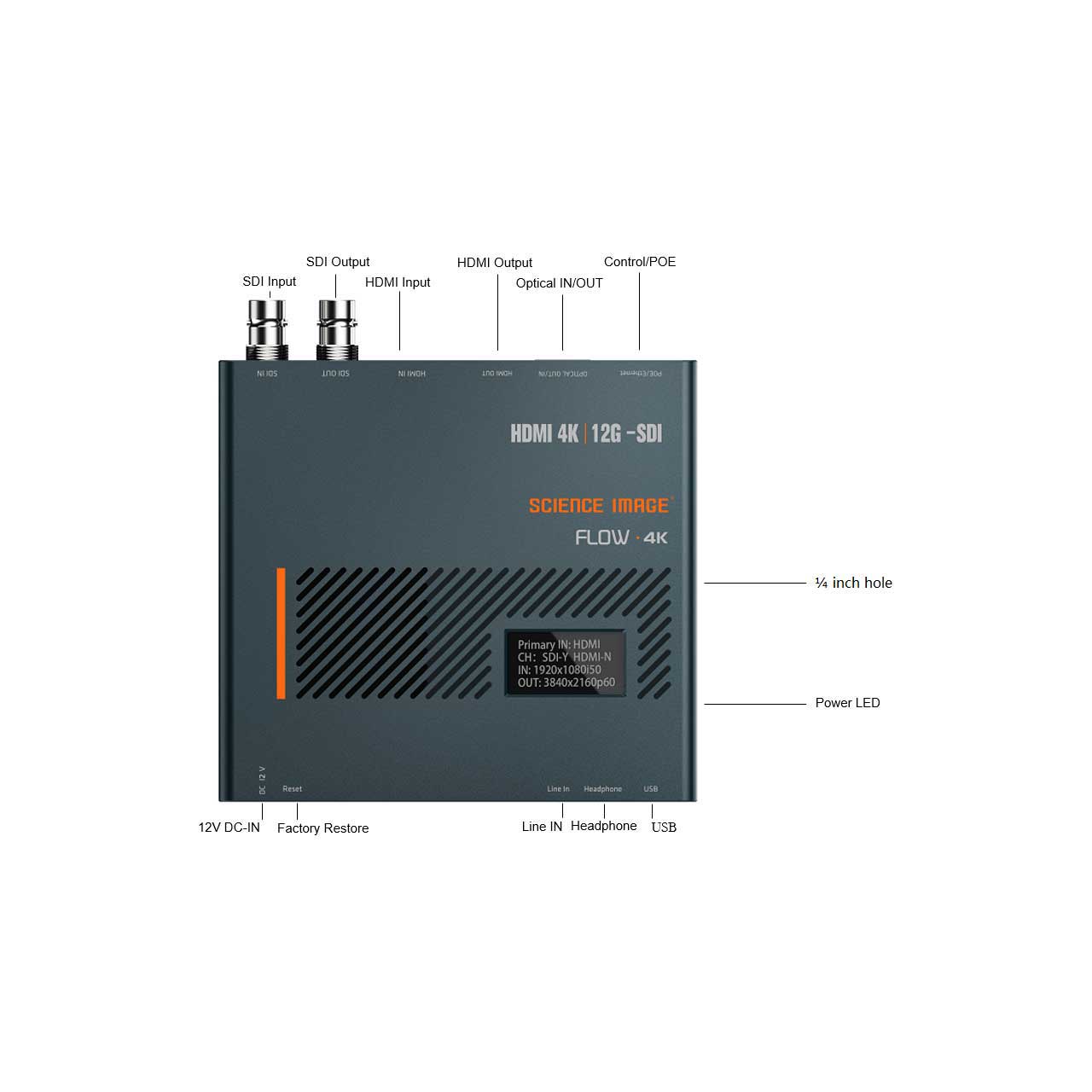

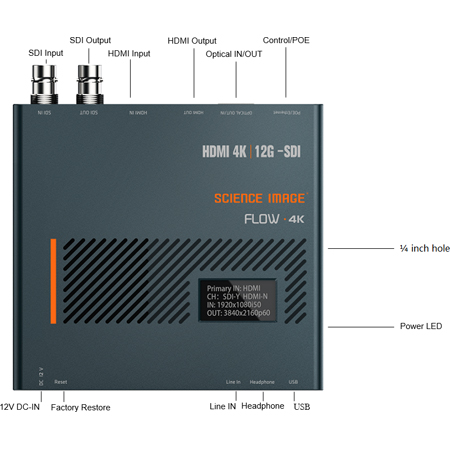

      • Interface
      • SDI Video Input: 1 x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching
      • SDI Video Output: 1 x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching
      • HDMI Video Input: 1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible
      • HDMI Video Output: 1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible
      • Optical Fiber Input and Output: 1 x SMPTE optical fiber SFP socket, used to connect different types of Gigabit/10 Gigabit/12G-SDI optical
        fiber modules

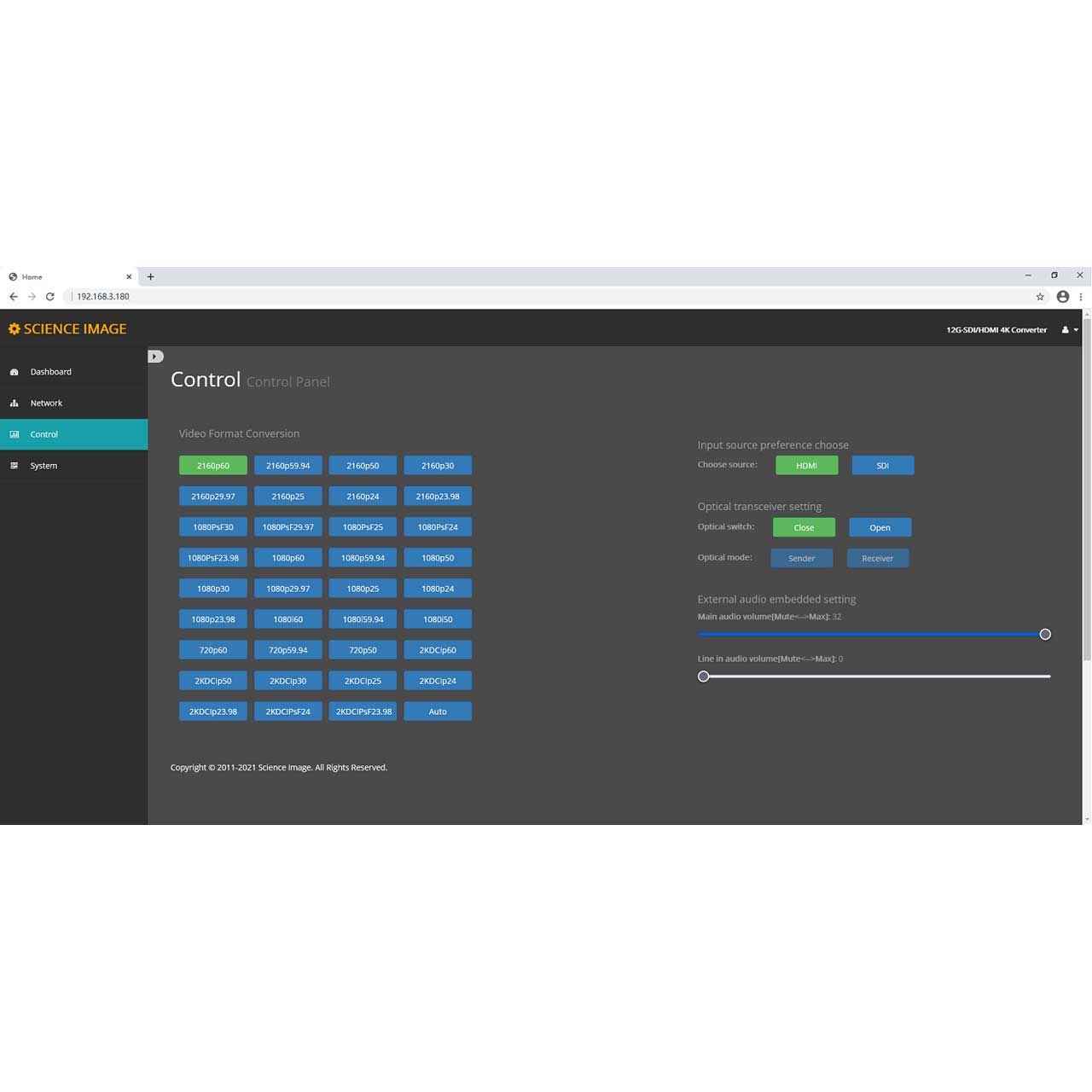

      • RJ45 Gigabit Ethernet Port: 1 x RJ45 Gigabit Ethernet interface, used to control and set equipment parameters and input and output NDI
        signals
      • LINE IN Audio Input Port: 1 x LINE IN 3.5mm audio input port for external analog audio embedding
      • MIC Intercom Input and Output Port: 1 x Mic 3.5mm audio input and output port, used for NDI Intercom (with Laudo software required)

        Display
      • 1.3 Inch Oled Screen: 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and
        other information, clear at a glance, easy to operate

        Specifications

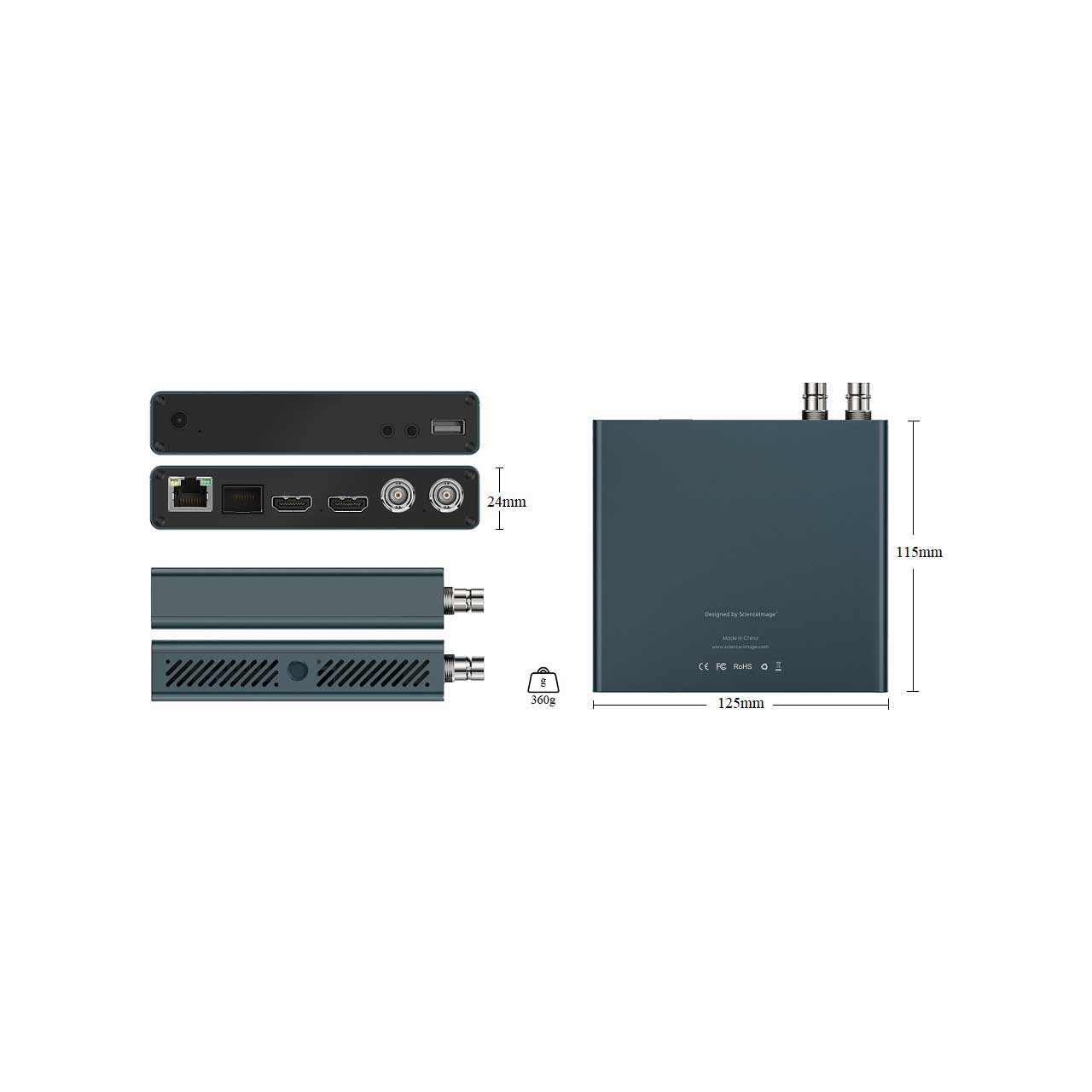

      • Size: 125mm x 115mm x 24mm
      • Weight: 360g
      • Material: All aviation aluminum milling

        Power Supply
      • Two Power Supply Modes: 5-18V DC power input and POE
      • Power Consumption: 10W

        Environmental Requirements
      • Operating Temperature: 5°C to 40°C
      • Storage Temperature: -20° to 60° C (-4° to 140° F)
      • Relative Humidity: 0% to 90% non-condensing

    • Item Includes:

      • 1x FLOW 4K
      • 1x Quick Start Manual

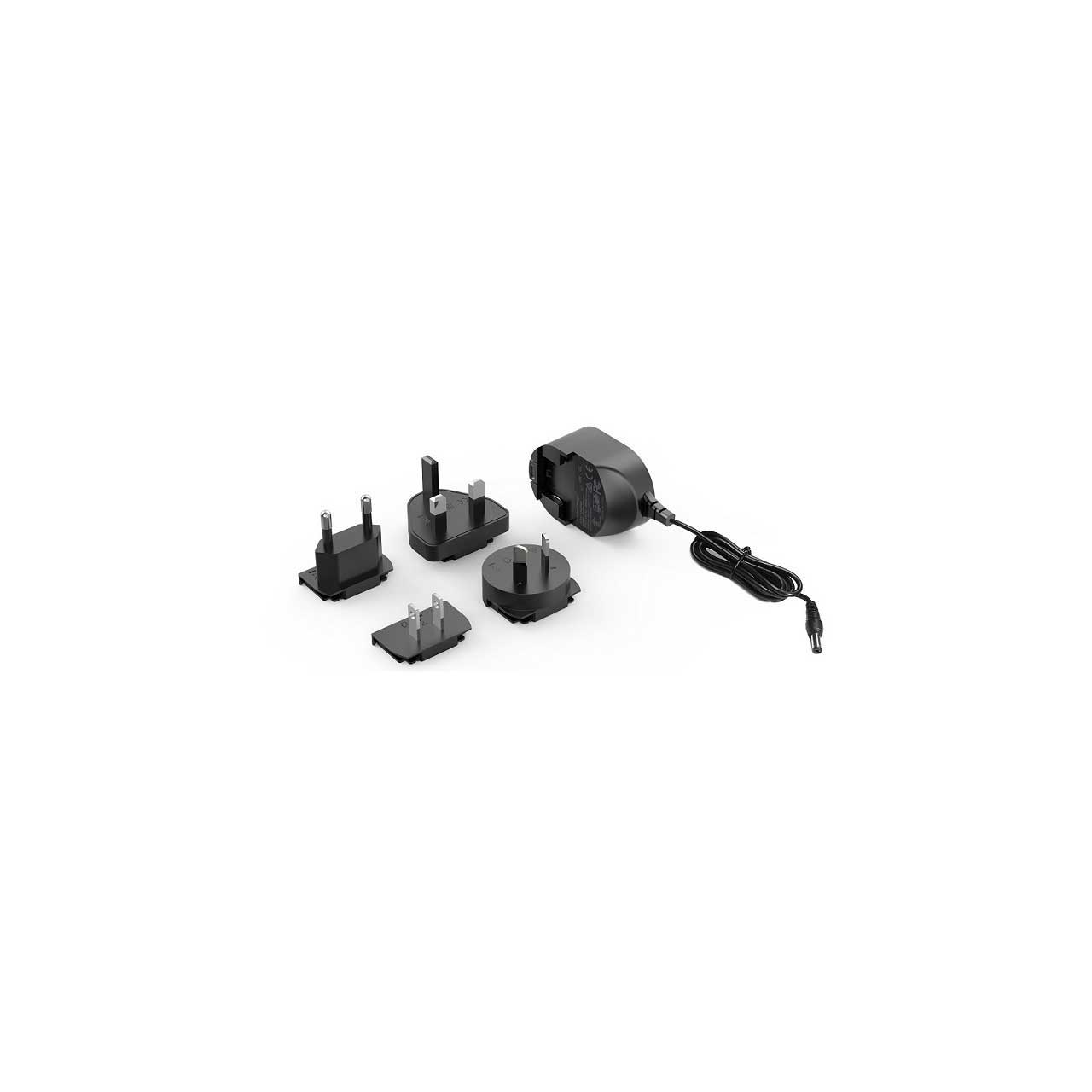

      • 1x 12v Universal Power Supply (Includes Four Sets Of International Conversion Plugs)

    • Warranty:

      • 1 Year Limited Manufacturer's Warranty
