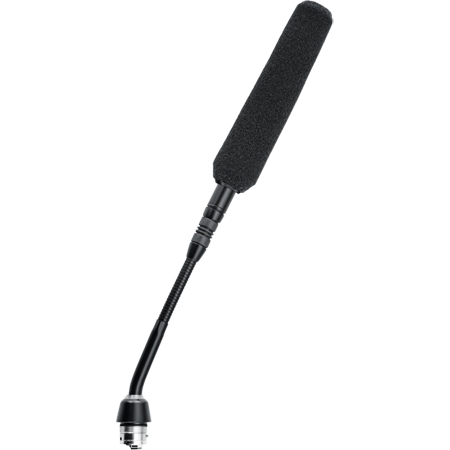

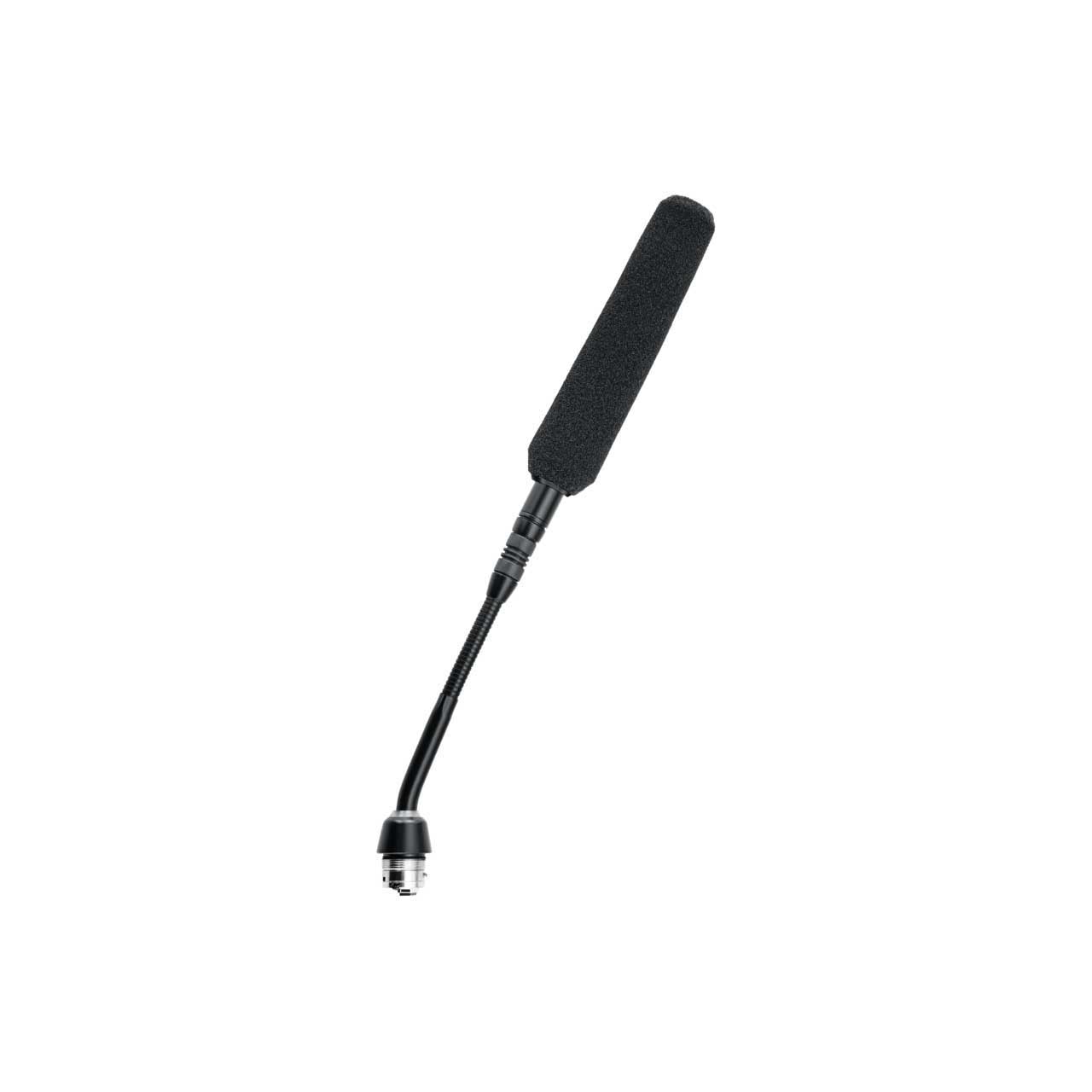

Shure MX405/MS 5 Inch Gooseneck Microphone with Mini-Shotgun Condenser Cartridge and Preamp - 5-Pin XLR Connector

ITEM #: SH-MX405-MS MFG #: MX405/MS

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$542.00

Our Price:

$387.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MX405/MS - Overview

    The MX405 is a gooseneck microphone with a Bi-Color LED or red light ring status display. It has a 12.7 cm / 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important.

    Flexible in more ways than one, Microflex Miniature Gooseneck microphones deliver unsurpassed style and performance for conference rooms and similar applications. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, it's easy to get the perfect fit for your conferencing installation. Fully compatible with SLXr wireless systems, including the SLX4L wireless receiver with logic output for applications requiring logic functionality.

    • Features:

      • Gooseneck length: 5 inch / 12.7 cm
      • Low profile, aesthetic design
      • Wide dynamic range and smooth frequency response
      • RF filtering with CommShield™ technology
      • Status indicator: Bi-Color LED at gooseneck bottom

    • Specifications:

      • Type: Condenser (electret bias)
      • Frequency Response: 50-17000 Hz
      • MX405/S, MX410/S: Supercardioid
      • Output Impedance: EIA Rated at 150 Ω (170 Ω actual)
      • Output Configuration: Active Balanced
      • Sensitivity (at 1 kHz , open circuit voltage): Supercardioid: -34 dBV/Pa (21 mV), 1 Pascal=94 dB SPL
      • Maximum SPL (1 kHz at 1% THD, 1 kW load): Supercardioid: 120 dB
      • Equivalent Output Noise (A-weighted): Supercardioid: 27 dB SPL
      • Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): Supercardioid: 68 dB
      • Dynamic Range (1 kΩ load at 1 kHz): 93 dB
      • Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum
      • Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V)
      • Polarity: 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
      • Weight: MX405: 0.054 kg (0.119 lbs)
      • Logic Connections: LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
      • LOGIC OUT: Active low (=1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
      • Mute Switch Attenuation: -50 dB minimum
      • Cable: MX400DP: 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control.
      • Operating Temperature: -18-57 °C (0-135 °F)
      • Storage Temperature: -29-74 °C (-20-165 °F)
      • Relative Humidity: 0-95%
      • Power Requirements: 48-52 VDC phantom, 8.0 mA

    • Item Includes:

      • 1x MX405/MS Microphone
      • 1x MX400SMP Surface Mount Preamp
      • 1x RK513WS Snap-Fit Foam Windscreen
      • 1x 65A2166 Rubber Isolation Rings
      • 1x 65A2190 Wing Nut
      • 1x 95A1118 5 Pin XLR-F
      • 1x 65A2166 Cap
