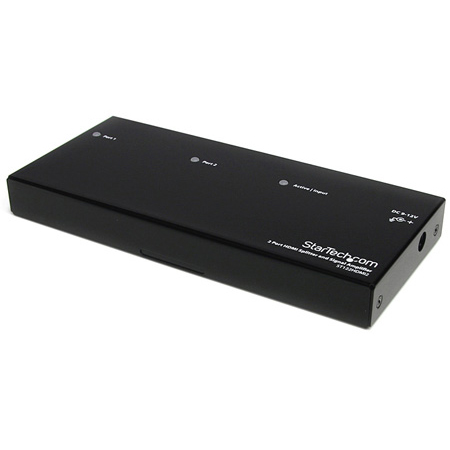

StarTech ST122HDMI2 2 Port High Speed HDMI Video Splitter

ITEM #: ST-122HDMI2 MFG #: ST122HDMI2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$94.99

Our Price:

$88.74

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ST122HDMI2 - Overview

    The StarTech ST122HDMI2 2-Port High Speed HDMI Splitter and Signal Amplifier lets you share a single HDMI source signal with audio between two HDMI or DVI (using HDMI to DVI adapter) enabled displays simultaneously.

    Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 50ft (15m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.

    The HDMI splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI output devices such as Blu-ray players or desktop/laptop computers.

    Backed by a StarTech 3-year warranty and free lifetime technical support.

    Applications
    Connect HDMI enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems
    Ideal for business conference rooms and trade show displays
    Great for digital signage applications displaying video advertisements with audio in retail environments
    Perfect for classrooms and business multimedia presentations
    Display information in waiting rooms or to patients in healthcare facilities
    Financial applications, including stock tickers or promotion of new products/services

    • Features:

      • Splits an HDMI source signal to two displays, with no loss of signal quality
      • Supports resolutions up to 1080p (1920x1200)
      • Supports HDMI audio or separate 3.5mm stereo audio connection
      • Rugged steel enclosure
      • Can be cascaded up to 3 layers
      • High Speed HDMI, HDCP and EDID Compliant
      • LED indicators for signal activity monitoring

    • Specifications:

      • Connector(s)
      • 1 - Connector A: HDMI (19 pin), 3.5 mm Mini-Jack (3 Position)
      • 2 - Connector B: 3.5 mm Mini-Jack (3 Position), HDMI (19 pin)

        Environmental
      • Operating Temperature: 0°C to 40°C (32°F to 104°F)
      • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
      • Humidity: 0~80% RH

        Hardware
      • Ports: 2
      • AV Input: HDMI
      • AV Output: HDMI
      • Audio: Yes

        Indicators
      • 3 - LED Indicators: Port Power/Input - Green indicates connection, Blue indicates activity

        Packaging Information
      • Package Height: 3.9 in [98.0 mm]
      • Package Length: 3.8 in [97.0 mm]
      • Shipping (Package) Weight: 25.3 oz [716.0 g]
      • Package Width: 8.7 in [22.1 cm]

        Performance
      • Maximum Cable Length: 49.2 ft [15 m]:
      • Maximum Digital Resolutions: HDTV 1080p
      • PC Resolution 1920x1200
      • Wide Screen Supported: Yes

        Physical Characteristics
      • Weight of Product: 13.4 oz [380.0 g]
      • Color: Black
      • Material: Steel
      • Product Length: 7.1 in [18.0 cm]
      • Product Width: 3.1 in [80.0 mm]
      • Product Height: 0.8 in [2.0 cm]

        Power
      • Power Source: AC Adapter Included
      • Input Voltage: 100 - 240 AC
      • Input Current: 0.6A
      • Output Voltage: 12V DC
      • Output Current: 1.5A
      • Center Tip Polarity: Positive
      • Plug Type: M
      • Power Consumption (In Watts): 13

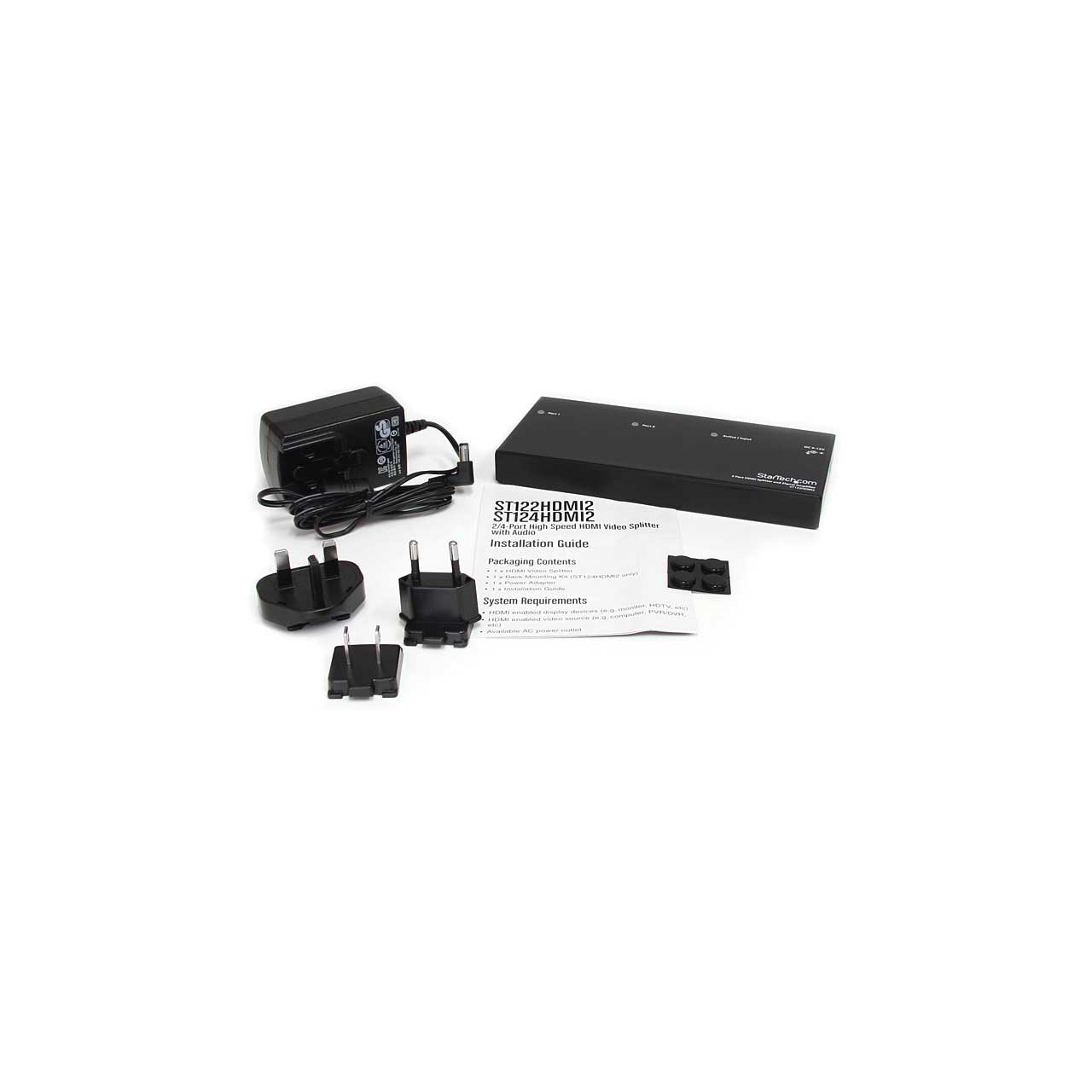

    • Item Includes:

      • 1x HDMI splitter
      • 1x Universal power adapter (NA / EU / UK / AU)
      • 1x Instruction manual

    • GTIN:

      0065030842457
