StarTech ST121HDBT20L HDMI Over CAT6 Extender - Power Over Cable - Up to 328 Feet (100m)

ITEM #: ST-ST121HDBT20L MFG #: ST121HDBT20L

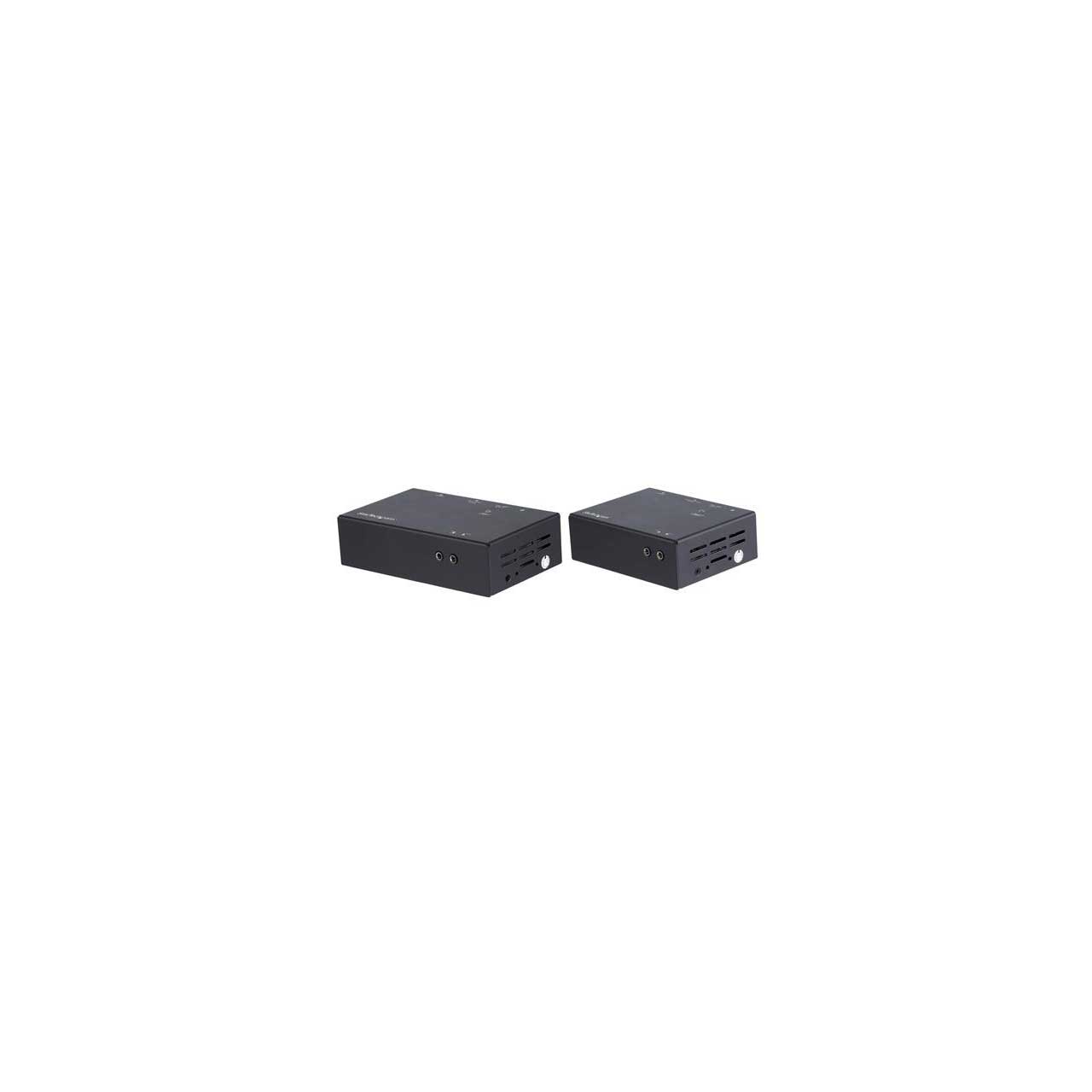

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$476.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ST121HDBT20L - Overview

    The StarTech ST121HDBT20L HDMI Over CAT6 extender transmits your HDMI audio/video signal to a remote location up to 100 m (328 ft.) away.

    Get 4K at 60Hz from 70 m (230 ft.) away
    This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 70 m (230 ft.) away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 100 m (328 ft.) from your HDMI source.

    With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.

    Simplify your setup
    The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you extend an HDMI signal using existing infrastructure that's already in your building. Plus, this HDMI extender supports Power Over Cable (POC), which means you'll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.

    Applications
    Distribute HDMI in large buildings such as commercial shopping centers, stadiums, schools, and hospitals
    Extend your HDMI audio/video signals to locations where power outlets are limited, such as industrial sites
    Integrators and system designers can use existing CAT5 or CAT6 infrastructure to create digital signage solutions

    The ST121HDBT20L is TAA compliant and backed by a 2-year StarTech warranty with free lifetime technical support.

    • Features:

      • Get astonishing video quality at impressive distances with UHD 4K 60Hz resolution at up to 70 m (230 ft.) and 1080p 60Hz resolutions at up to 100 m (328 ft.)
      • Hassle-free setup with video and power over a single CAT5e or CAT6 cable
      • Sleek professional installation with optional mounting hardware included
      • Remotely control your video source from the location of your remote display, with support for IR extension

    • Specifications:

      • Hardware
      • Audio: Yes
      • Cabling: Cat 5e UTP or better
      • Daisy-Chain: No
      • Ports: 1

        Performance
      • Audio Specifications: 7.1 Surround Sound
      • Max Distance: 100 m / 330 ft
      • Maximum Cable Length: 328.4 ft [100.1 m]
      • Maximum Digital Resolutions: Up to 70 m: 4096 x 2160 (4K) @ 60 Hz Up to 100 m: 1080p @ 60Hz
      • Supported Resolutions: 3840x2160 (4K) @ 60 Hz; 2560x1600; 1920x1200 @ 60 Hz; 1920x1080 (1080p); 1280x720 (720p)
      • Wide Screen Supported: Yes

        Connector(s)
      • Local Unit Connectors: 1 - HDMI (19 pin) Female Input
      • 1 - RJ-45 Female Output
      • Remote Unit Connectors: 1 - RJ-45 Female Input
      • 1 - HDMI (19 pin) Female Output

        LED Indicators
      • 1 - status LED (local)
      • 1 - status LED (remote)

        Power
      • Center Tip Polarity: Positive
      • Input Current: 0.6A
      • Input Voltage: 100 ~ 240 AC
      • Output Current: 1 A
      • Output Voltage: 18 DC
      • Plug Type: M
      • Power Consumption (In Watts): 18

        Physical Characteristics
      • Color: Black
      • Enclosure Type: Aluminum
      • Humidity: 0% - 80 % RH (non-condensing)
      • Operating Temperature: 0°C to 40°C (32°F to 104°F)
      • Storage Temperature: -10°C to 60°C (14°F to 140°F)
      • Product Height: 1 in [26 mm]
      • Product Length: 4 in [102 mm]
      • Product Weight: 3.9 oz [110 g]
      • Product Width: 3 in [76 mm]
      • Shipping (Package) Weight: 0.5 lb [0.2 kg]

    • Item Includes:

      • 1 - HDMI over CAT6 transmitter
      • 1 - HDMI over CAT6 receiver
      • 1 - universal power adapter (NA/JP, EU, UK, ANZ)
      • 1 - IR blaster
      • 1 - IR receiver
      • 2 - mounting brackets
      • 8 - rubber feet
      • 1 - quick-start guide

    • Warranty:

      • 2 Years

    • GTIN:

      0065030877879
