StarTech ST121HDBT20S HDMI Over CAT6 Extender - Power Over Cable - Up to 230 Feet

ITEM #: ST-ST121HDBT20S MFG #: ST121HDBT20S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$300.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ST121HDBT20S - Overview

    Get 4K at 60Hz from 35 m (115 ft.) away
    This Startech ST121HDBT20S HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 35 m (115 ft.) away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 70 m (230 ft.) from your HDMI source.

    With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.

    With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.

    Simplify your setup
    The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you can extend an HDMI signal using your building's existing infrastructure. Plus, this HDMI extender supports Power Over Cable (POC), which means you'll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.

    Applications
    Distribute HDMI in large buildings such as commercial shopping centers, stadiums, schools, and hospitals
    Extend your HDMI audio/video signals to locations where power outlets are limited, such as industrial sites
    Integrators and system designers can use existing CAT5 or CAT6 infrastructure to create digital-signage solutions

    The ST121HDBT20S is TAA compliant and backed by a 2-year StarTech warranty with free lifetime technical support.

    • Features:

      • Get astonishing video quality at impressive distances with UHD 4K 60Hz resolution at up to 35 m (115 ft.) and 1080p 60Hz resolutions at up to 70 m (230 ft.)
      • Hassle-free setup with video and power over a single CAT5e or CAT6 cable
      • Sleek professional installation with optional mounting hardware included
      • Remotely control your video source from the location of your remote display, with support for IR extension
      • Supports HDR for expanded contrast ratio and color accuracy

    • Specifications:

      • Connector(s)

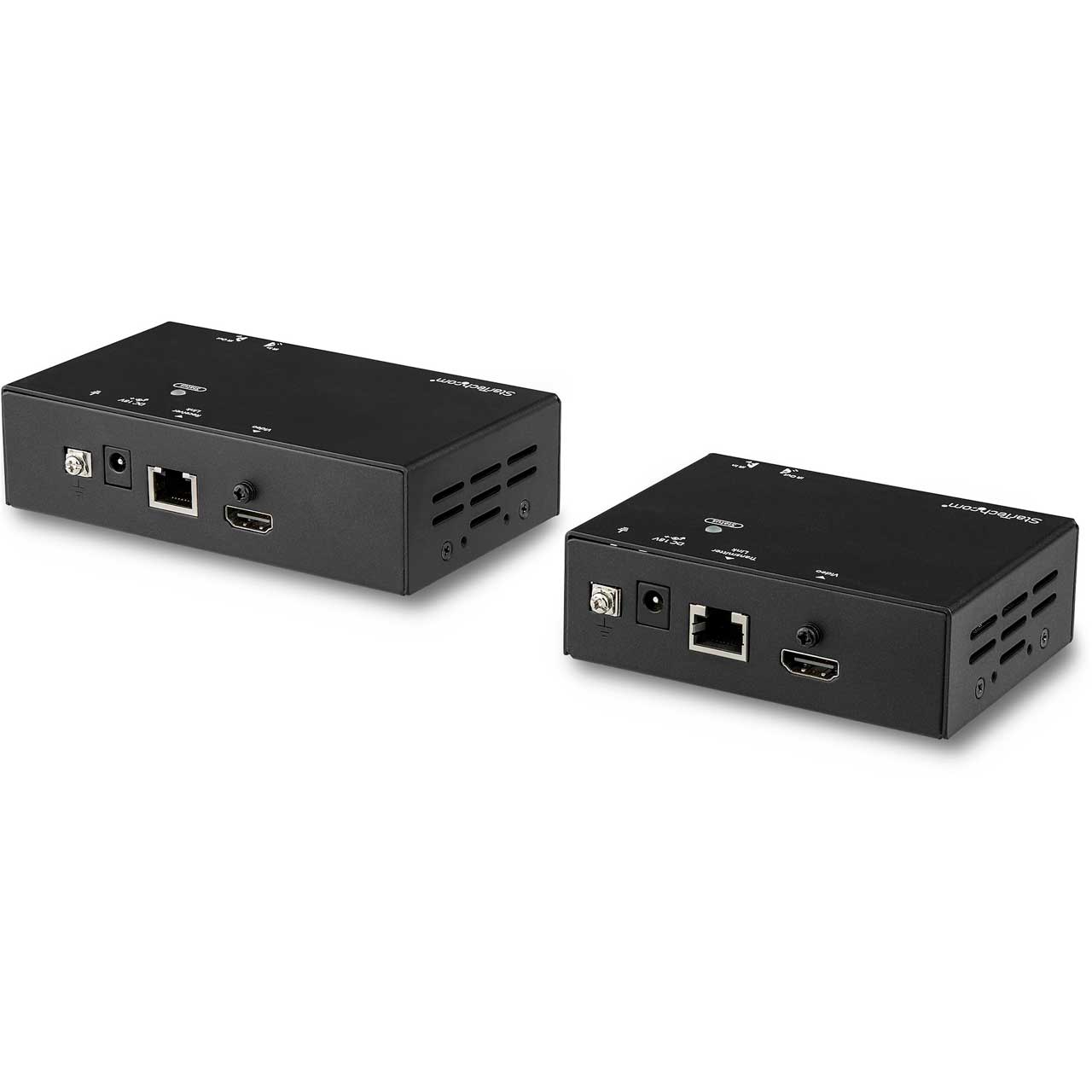

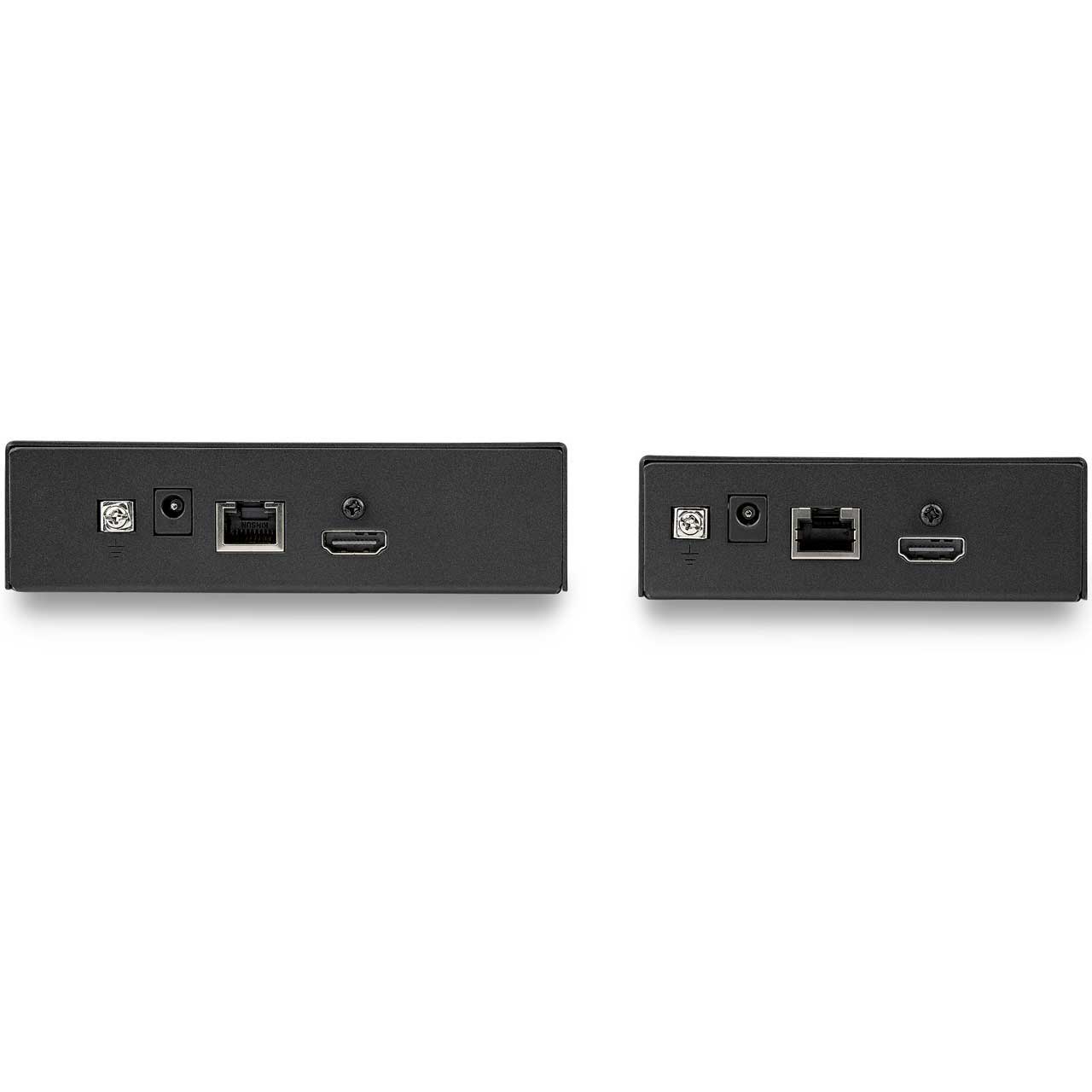

      • Local Unit Connectors: 1 - HDMI (19 pin), 1 - RJ-45
      • Remote Unit Connectors: 1 - RJ-45, 1 - HDMI (19 pin)

        Environmental
      • Operating Temperature: 32°F to 104°F
      • Storage Temperature: 14°F to 140°F
      • Humidity: 0% - 80 % RH (non-condensing)

        Hardware
      • Ports: 1
      • Cabling: Cat 5e UTP or better
      • Audio: Yes
      • Daisy-Chain: No

        Indicators
      • LED Indicators: 1 - status LED (local), 1 - status LED (remote)

        Packaging Information
      • Shipping (Package) Weight: 1.8 lb [0.8 kg]
      • Package Length: 11.0 in [28.0 cm]
      • Package Width: 8.1 in [20.6 cm]
      • Package Height: 2.4 in [6.2 cm]

        Performance
      • Maximum Cable Length: 230.0 ft [70.1 m]
      • Max Distance: 70 m / 230 ft
      • Maximum Digital Resolutions: Up to 35 m: 4K @ 60 Hz, Up to 70 m: 1080p @ 60Hz
      • Supported Resolutions: 3840x2160 (4K) @ 60 Hz, 2560x1600, 1920x1200 @ 60 Hz, 1920x1080 (1080p), 1280x720 (720p) / Wide Screen Supported
      • Yes: Audio Specifications

        Physical Characteristics
      • Color: Black
      • Material: Aluminum
      • Product Length: 11.5 in [29.3 cm]
      • Product Width: 3.0 in [7.6 cm]
      • Product Height: 1.0 in [2.6 cm]
      • Weight of Product: 3.5 lb [1.6 kg]

        Power
      • Power Source: AC Adapter Included
      • Input Voltage: 100 - 240 AC
      • Input Current: 0.6A
      • Output Voltage: 18 DC
      • Output Current: 1 A
      • Center Tip Polarity: Positive
      • Plug Type: M
      • Power Consumption (In Watts): 18

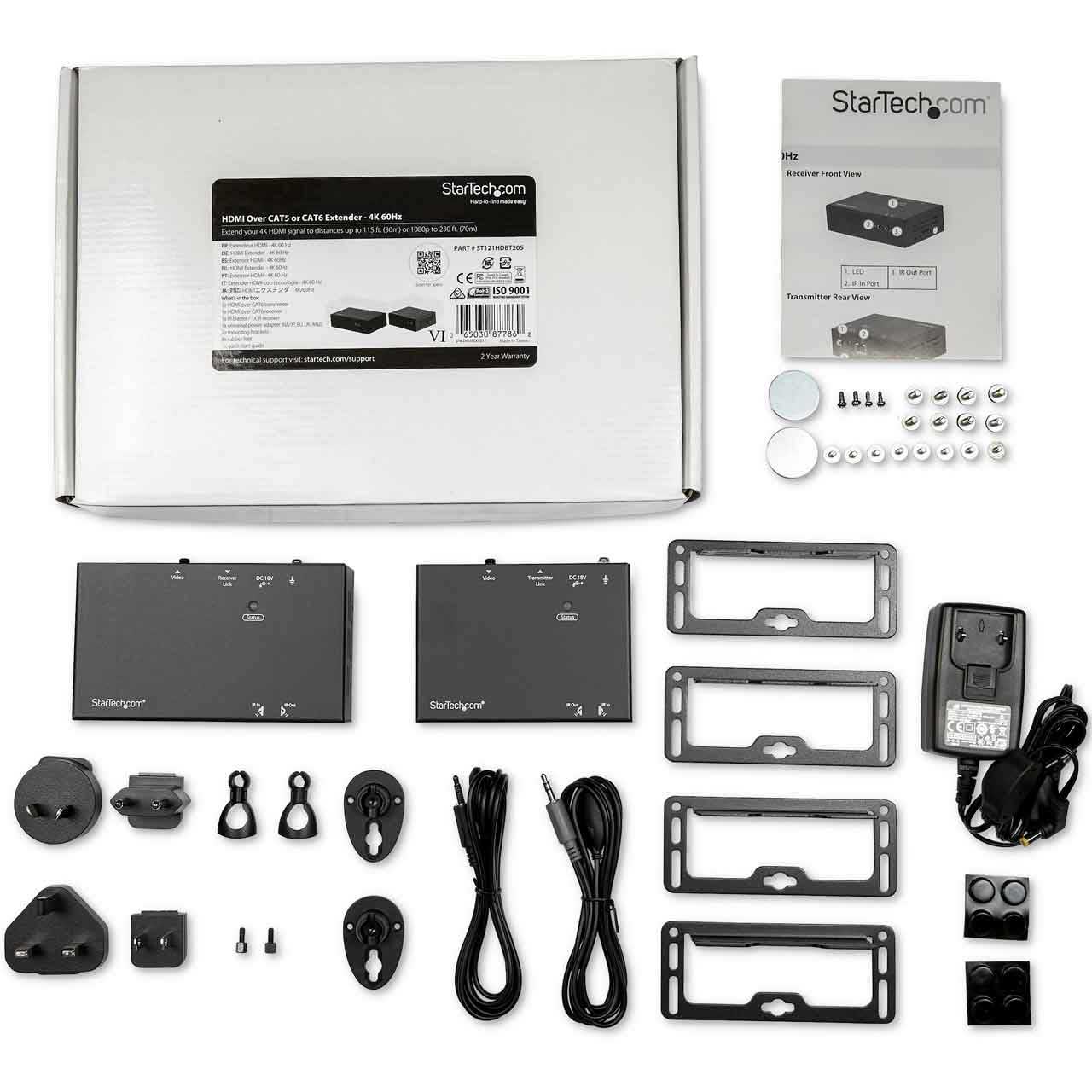

    • Item Includes:

      • 1x HDMI over CAT6 transmitter
      • 1x HDMI over CAT6 receiver
      • 1x IR blaster
      • 1x IR receiver
      • 1x Universal power adapter (NA/JP, EU, UK, ANZ)
      • 2x Mounting brackets
      • 8x Rubber feet
      • 1x Quick-start guide

    • GTIN:

      0065030877862
