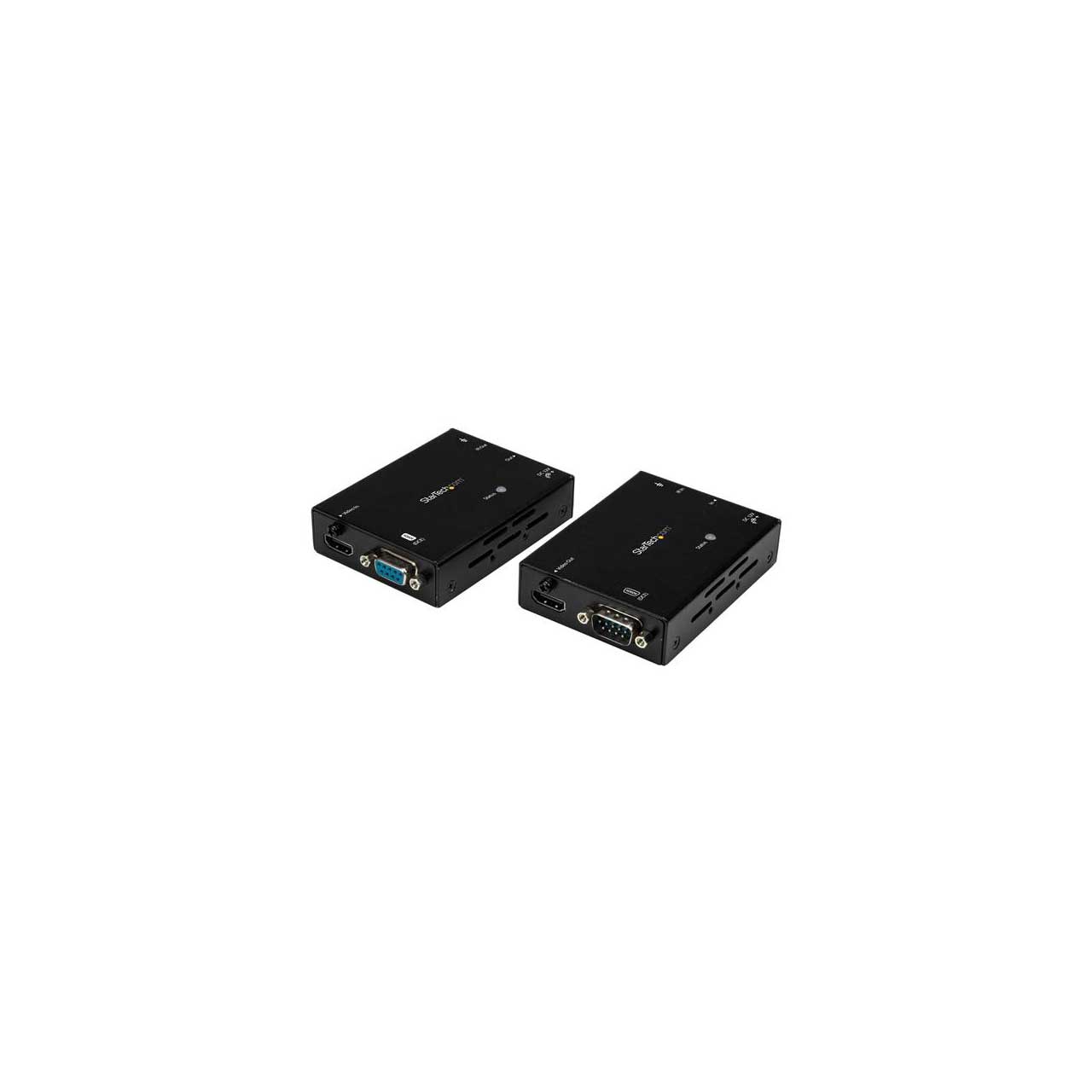

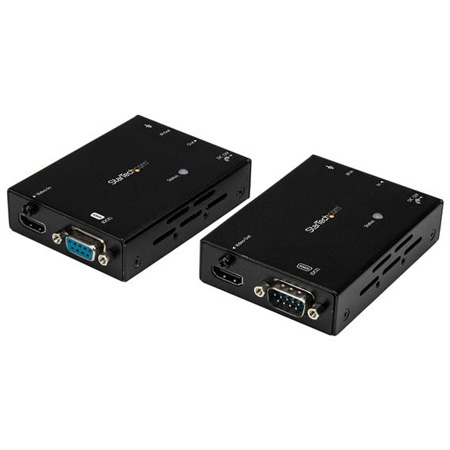

StarTech ST121HDBTL HDMI over Cat5 Cable Extender with IR and Serial - HDBaseT Extender - 4K

ITEM #: ST-ST121HDBTL MFG #: ST121HDBTL

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$369.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ST121HDBTL - Overview

    This HDBaseT™ ST121HDBTL extender kit can transmit your 4K HDMI signal up to 115 ft. (35 m) over a single CAT5e or CAT6 cable. At lower resolutions up to 1080p, the extender kit can transmit your signal up to 230 ft. (70 m).

    Extend video and more with HDBaseT
    The extender offers a complete end-to-end video and control solution, using HDBaseT technology to extend not just HDMI, but also DC power, IR and serial control over a single CAT5 cable. By extending so much over just one CAT5 or CAT6 cable, HDBaseT is the clear choice of every integrator and system designer.

    Maximize reliability with HDBaseT certification
    This HDBaseT extender has been certified via the HDBaseT Certification Program. This certification ensures the extender is compliant with HDBaseT technical standards, and maximizes reliability with your HDMI display and video source, by ensuring compliance with their established HDMI ecosystem.

    Astonishing 4K picture quality at an impressive distance
    With the A/V industry adopting 4K as the new high-resolution video standard, long-range video distribution can be a challenge over standard HDMI cables that become susceptible to signal degradation at 30 feet. This HDBaseT extender can maintain your Ultra HD 4K picture quality - four times the resolution of high-definition 1080p - even at 330 feet away from your video source. Plus, because the extender supports high-definition 1080p and lower resolutions, you can comfortably use this extender to make any video source look great, while future-proofing your setup for 4K implementation.

    Professional installation
    HDBaseT technology offers a single-cable installation, so you can integrate this solution seamlessly using your existing CAT5e or CAT6 infrastructure. Both the transmitter and receiver included with this HDBaseT extender kit are mountable, so you can keep the equipment out of sight in an equipment rack, or on a wall. This helps to reduce clutter and ensure a professional installation that doesn't draw your viewers' attention away from the content on your display. It's perfect for customer-facing displays in bars, restaurants or hotel lobbies.

    What is HDBaseT?
    HDBaseT is a standardized, zero-latency video technology that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable.

    Offering greater versatility than traditional HDMI extenders, and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer. It can do so much, with just a single cable.

    Note: When using Power over Cable (PoC) to power the transmitter or receiver, it is not recommended to pair the StarTech's transmitter or receiver with any other HDBaseT hardware. Power over Cable should only be used with the transmitter and receiver that are provided with this extender kit. If you want to add more displays, you can daisy chain this product with the HDBaseT repeater ST121HDBTRP.

    • Features:

      • Get hassle-free video and control extension with HDMI, IR, RS-232 and power extended over a single CAT5e or CAT6 cable
      • Ensure a reliable video extension with an HDBaseT certified extender kit
      • Maintain astonishing picture quality at up to 115 ft. (35 m) away, with support for Ultra HD 4K over non-proprietary CAT5e or CAT6 cabling
      • Also supports HD video resolutions such as 1920x1200 or 1080p at distances up to 230 ft (70m)
      • Includes mounting software for professional solutions

    • Specifications:

      • Hardware
      • Audio: Yes
      • Cabling: Cat 5e UTP or better
      • Daisy-Chain: Yes
      • Ports: 1

        Performance
      • Audio Specifications: 7.1 Surround Sound
      • Max Distance: 100 m / 330 ft
      • Maximum Cable Length: 328 ft [100 m]
      • Maximum Digital Resolutions: 4096 x 2160 (4K) @ 30 Hz (35 meters) 1920 x 1080 (1080p) @ 60 Hz (70 meters)
      • Supported Resolutions: 3840x2160 (4K); 2560x1600; 1920x1200; 1920x1080 (1080p); 1280x720 (720p)
      • Wide Screen Supported: Yes

        Connector(s)

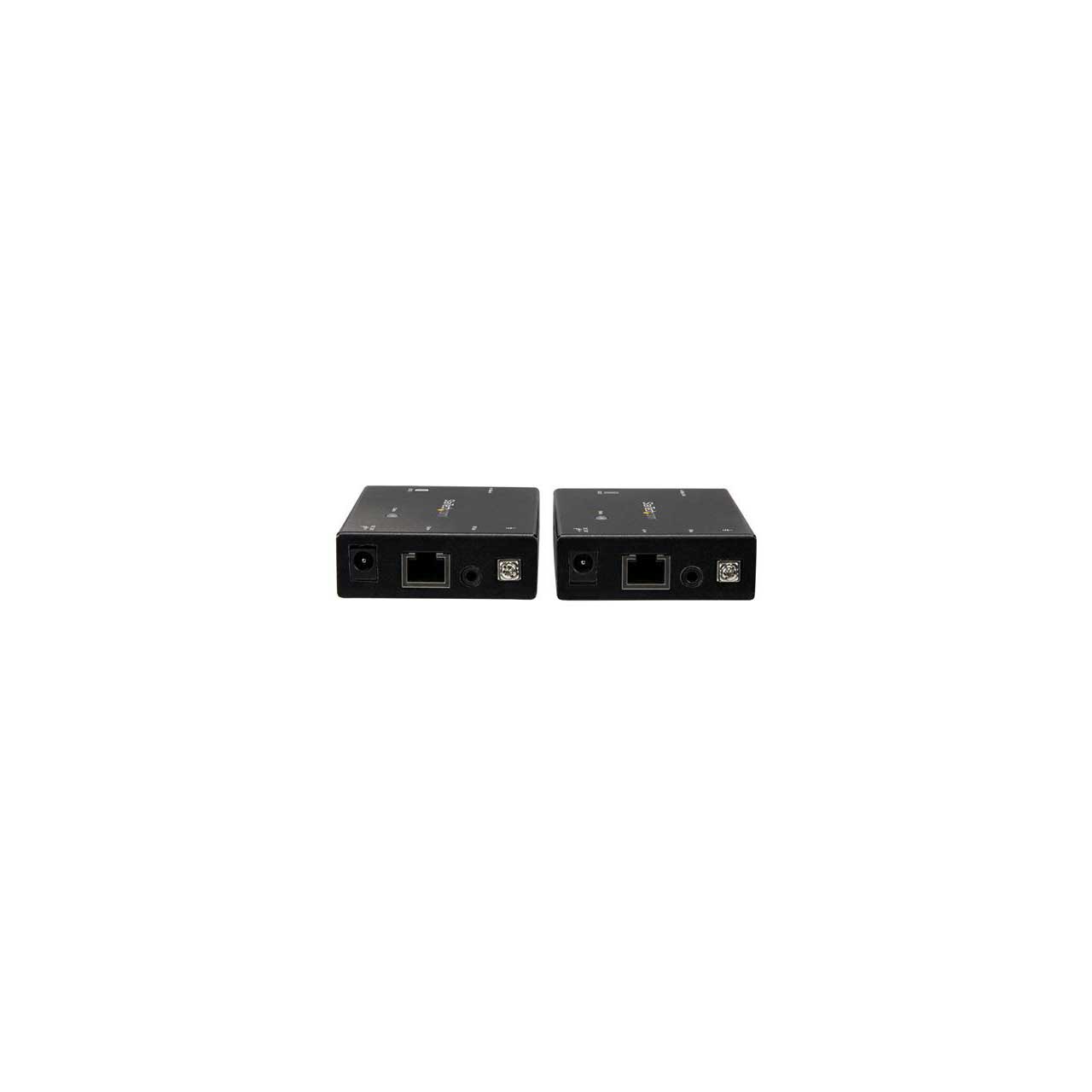

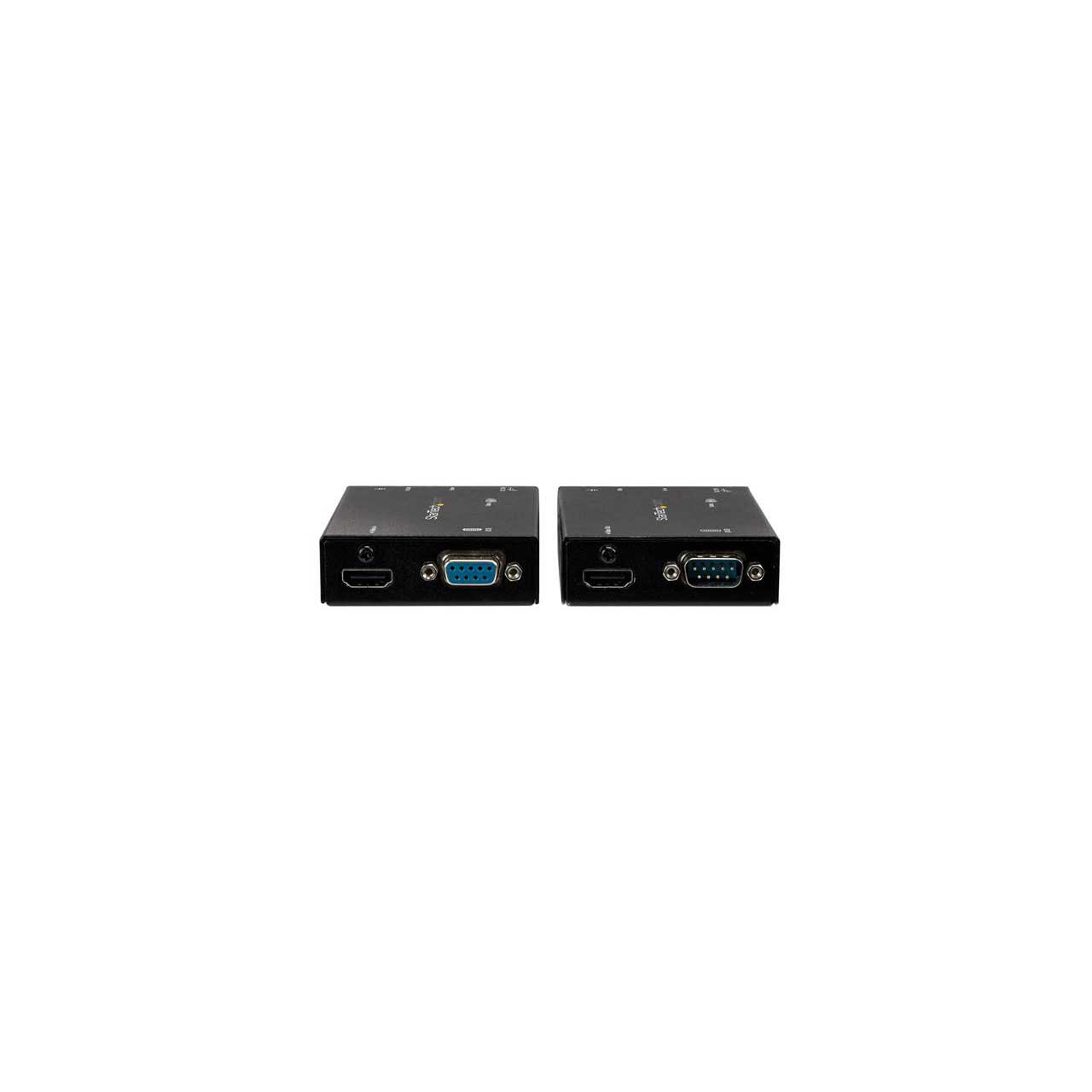

      • Local Unit Connectors: 1 - HDMI (19 pin) Female Input; 1 - DB 9-pin Serial Male; 1 - RJ-45 Female Output; 1 - 3.5 mm Mini-Jack (3 Position) Female
      • Remote Unit Connectors: 1 - HDMI (19 pin) Female Output; 1 - DB 9-pin Serial Female; 1 - RJ-45 Female; 1 - 3.5 mm Mini-Jack (3 Position) Female

        Power
      • Center Tip Polarity: Positive
      • Input Current: 0.6 A
      • Input Voltage: 100 ~ 240 AC
      • Output Current: 1.5 A
      • Output Voltage: 12 DC
      • Plug Type: M
      • Power Consumption (In Watts): 18
      • Power Source: AC Adapter Included

        Physical Characteristics
      • Color: Black
      • LED Indicators: 1 - status LED (transmitter); 1 - status LED (receiver)
      • Enclosure Type: Steel and Plastic
      • Humidity: 0% - 80 %
      • Operating Temperature: 0°C to 40°C (32°F to 104°F)
      • Storage Temperature: -10°C to 60°C (14°F to 140°F)
      • Product Height: 1.1 in [27 mm]
      • Product Length: 3.6 in [92 mm]
      • Product Weight: 16 oz [452 g]
      • Product Width: 2.6 in [66 mm]
      • Shipping (Package) Weight: 2.4 lb [1.1 kg]

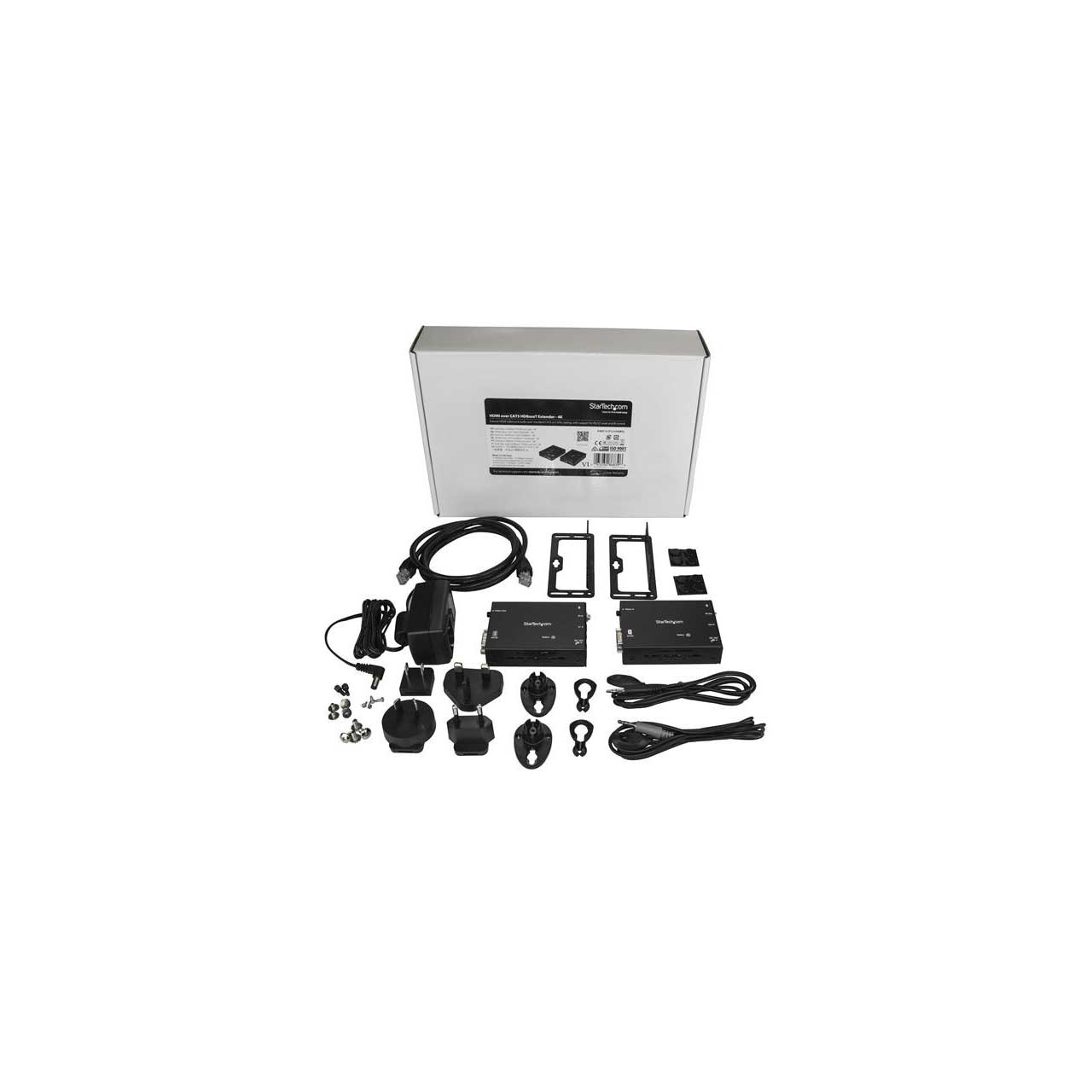

    • Item Includes:

      • 1 - HDBaseT transmitter
      • 1 - HDBaseT receiver
      • 1 - universal power adapter (NA, EU, UK, ANZ)
      • 1 - IR receiver
      • 1 - IR blaster
      • 1 - CAT5 cable
      • 2 - mounting brackets
      • 8 - foot pads

    • Warranty:

      • 2 Year

    • GTIN:

      0065030868396
