Studio Technologies Model 5304 Dante-Compatible Intercom Station

ITEM #: STCH-M5304 MFG #: MODEL 5304

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$995.00

Availability: In Stock
iAvailability Description Popup


    MODEL 5304 - Overview

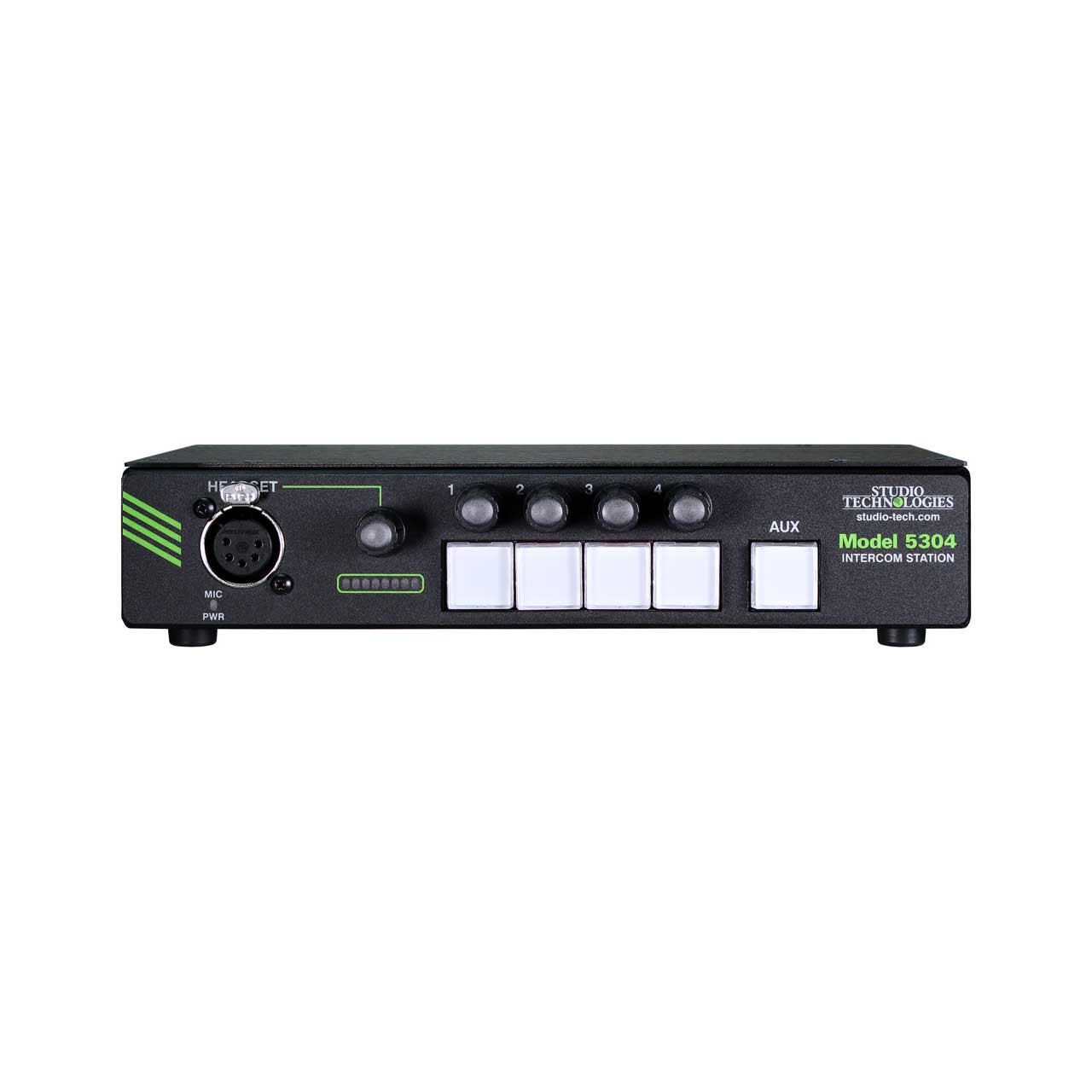

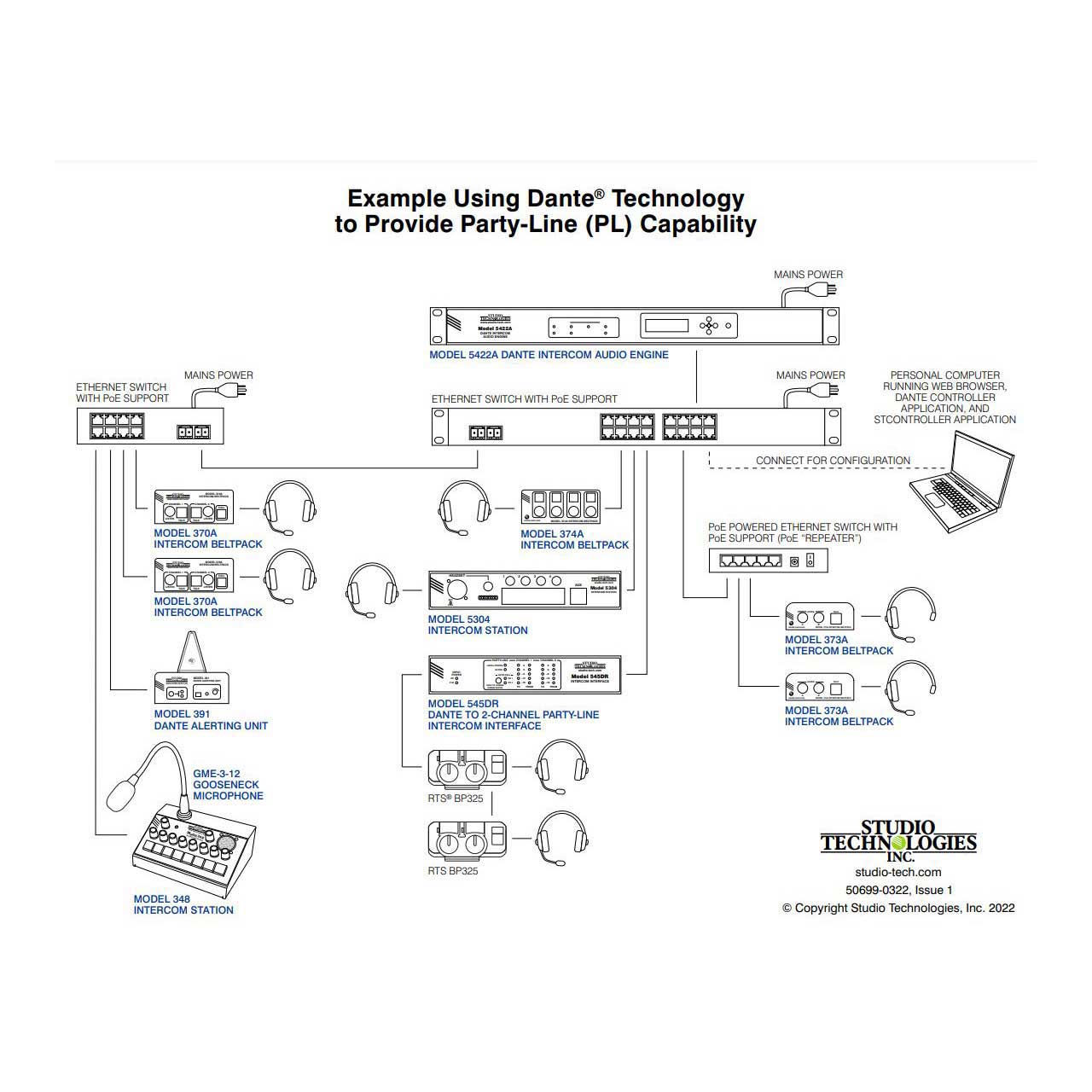

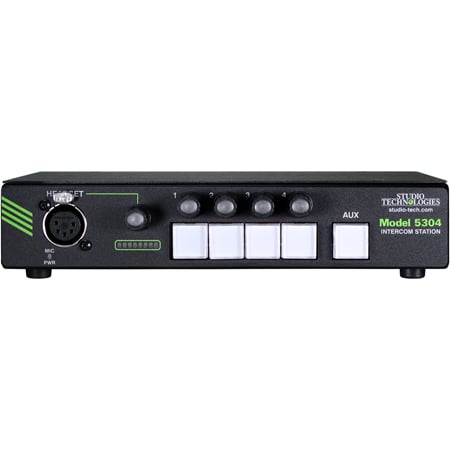

    The Model 5304 Intercom Station provides four independent talk and listen channels that are compatible with Dante® audio-over-Ethernet networks. An extensive range of configurable parameters allow the performance to be optimized for numerous intercom applications. The unit is designed to serve as a user station for production and support personnel in applications including on-air television broadcasting, live events, theater, industrial, aerospace, house of worship, and corporate AV. The Model 5304's four channels can be part of a virtual "party-line" intercom system created with other compatible devices. The unit's lightweight aluminum enclosure is intended for desktop or tabletop use. Optional mounting kits allow one or two Model 5304 units to be mounted in one space (1U) of a standard 19-inch rack enclosure.

    • Features:

      • Dante audio-over-Ethernet technology
      • Four independent talk and listen channels
      • Supports dynamic and electret microphones
      • 5-pin female XLR headset connector
      • Uses STcontroller for configuration
      • Two remote control inputs
      • Call send and receive functions
      • Excellent audio quality
      • AES67 and Dante Domain Manager support
      • Power-over-Ethernet (PoE) powered

    • Specifications:

      • Power Source:
      • Power-over-Ethernet (PoE): class 2 (low power, =6.49 watts) per IEEEr 802.3af

        Network Audio Technology:
      • Type: Dante audio-over-Ethernet
      • AES67-2018 Support: yes, selectable on/off
      • Dante Domain Manager (DDM) Support: yes
      • Bit Depth: up to 24
      • Sample Rate: 48 kHz
      • Pull-Up/Down Support: no
      • Dante Transmitter (Output) Channels: 4
      • Dante Receiver (Input) Channels: 4
      • Dante Audio Flows: 4; 2 transmitter, 2 receiver
      • Transmitter (Output) and Receiver (Input) Nominal Level: -20 dBFS

      • Audio Channels: 4 talk, 4 listen

        Network Interface:
      • Type: 100BASE-TX, Fast Ethernet per IEEE 802.3u (10BASE-T and 1000BASE-T (GigE) not supported)
      • Power-over-Ethernet (PoE): Per IEEE 802.3af
      • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s not supported)

        Microphone Input:
      • Compatibility: analog dynamic or electret microphones
      • Type: unbalanced
      • Electret Microphone Power: 3.3 volts DC via 2 k (2000) ohms series resistance, selectable on/off
      • Gain: 24, 30, 36, 42, or 48 dB, selectable
      • Frequency Response: 42 Hz to 18 kHz, -3 dB, nominal
      • Distortion (THD+N): <0.03%, 1 kHz, 24 dB gain
      • Noise Floor: -94 dBFS (A-weighted)

        Compressor:
      • Threshold: 1.5 dB above nominal level (-18.5 dBFS)
      • Slope: 2:1

        Headphone Output:
      • Type: 2-channel
      • Compatibility: intended for connection to stereo (dualchannel) or monaural (single-channel) headsets with nominal impedance of 50 ohms or
        greater
      • Maximum Output Voltage: 3.8 Vrms, 1 kHz, with 150 ohm load
      • Frequency Response: 20 Hz to 10 kHz, -3 dB
      • Distortion (THD+N): <0.002%
      • Dynamic Range: >100 dB

        Call Send Function:
      • Signaling Method: 20 kHz, within selected Dante
      • transmitter (output) audio channels
      • Send Level: -20 dBFS

        Call Receive Function:
      • Sources: Dante receiver (input) channels 1-4
      • Signaling Method: 20 kHz +/-800 Hz, nominal, within audio channels
      • Receive Level: -27 dBFS minimum
      • Detect Time: 10 milliseconds, minimum
      • Remote Control Inputs: 2
      • Function: configurable, can mimic the action of any of the five button functions
      • Type: active low, 1 mA maximum, inputs pulled up to
      • 3.3 volts DC via 3.4 k (3400) ohm resistors

        Connectors:

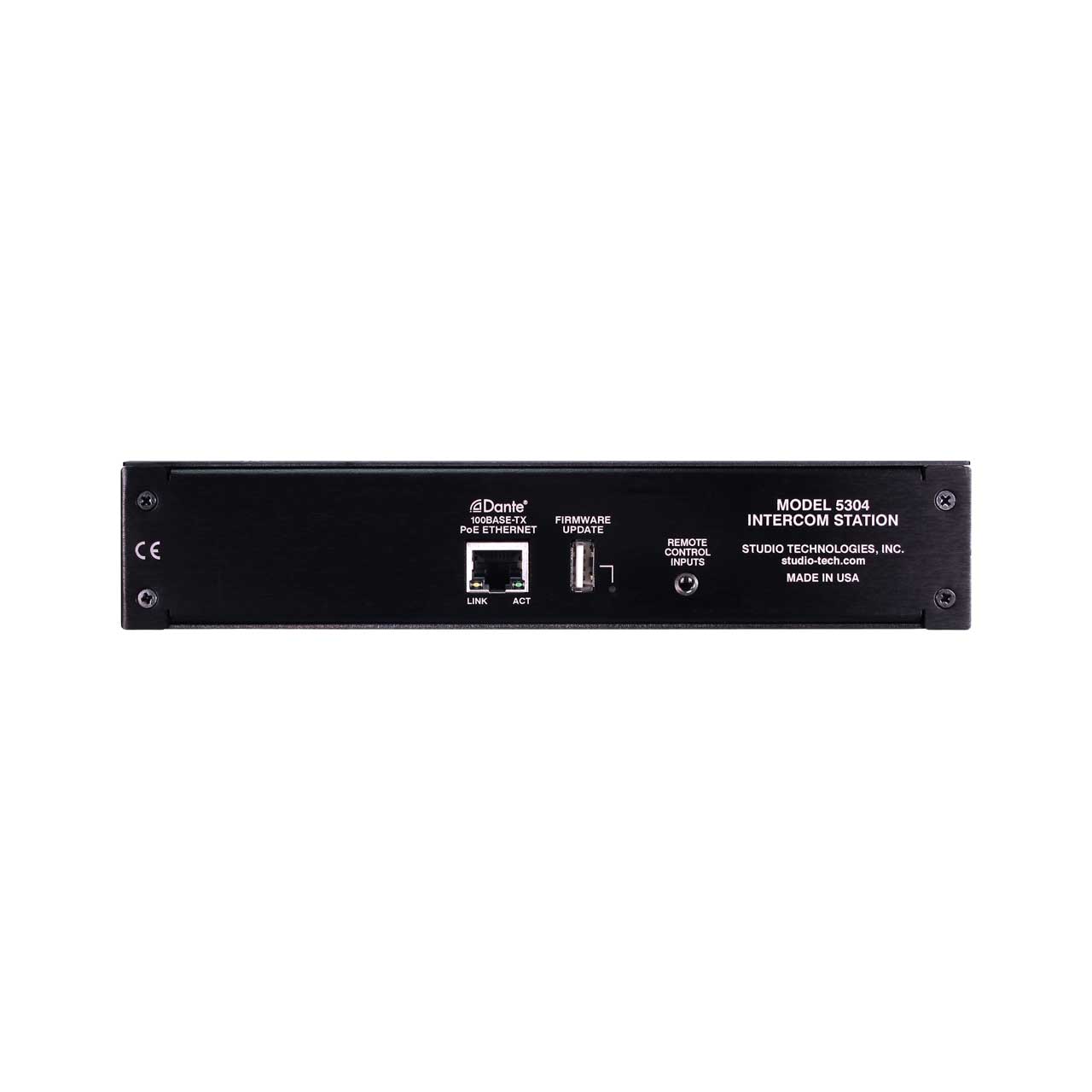

      • Ethernet: Neutrikr NE8FBH etherCONr RJ45 receptacle
      • Headset: 5-pin female XLR
      • Remote Control Inputs: 3-conductor (TRS) 3.5 mm jack
      • USB: type A receptacle (used only for updating application firmware)
      • Configuration: requires Studio Technologies' STcontroller software application
      • Software Updating: USB flash drive used for updating application firmware; Dante Updater application for updating Dante interface firmware

        Environmental:
      • Operating Temperature: 0 to 50 ° C (32 to 122 ° F)
      • Storage Temperature: -40 to 70 ° C (-40 to 158 ° F)
      • Humidity: 0 to 95%, non-condensing
      • Altitude: not characterized

        Dimensions (Overall):
      • 8.7 inches wide (22.1 cm)
      • 1.72 inches high (4.4 cm)
      • 4.45 inches deep (11.3 cm)
      • Weight: 0.95 pounds (0.42 kg); rack-mounting installation
