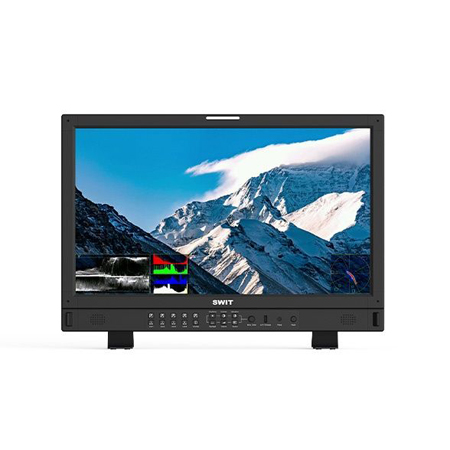

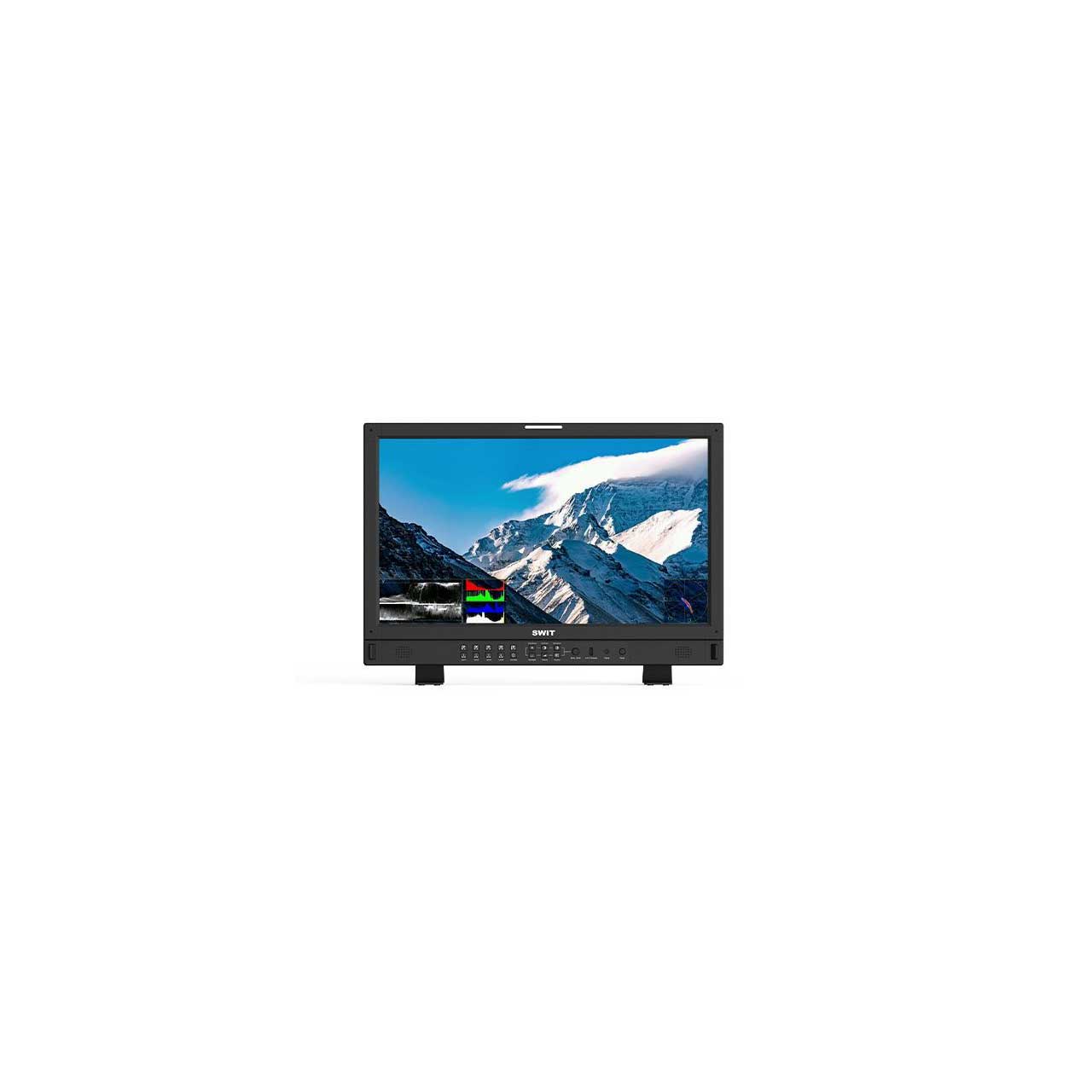

SWIT BM-U245 23.8-Inch UHD 4K 12G-SDI Reference Monitor - Gold Mount

ITEM #: SWIT-BM-U245GM MFG #: BM-U245 GOLD MOUNT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
SWIT Electronics
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$6,000.00

Our Price:

$5,900.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    BM-U245 GOLD MOUNT - Overview

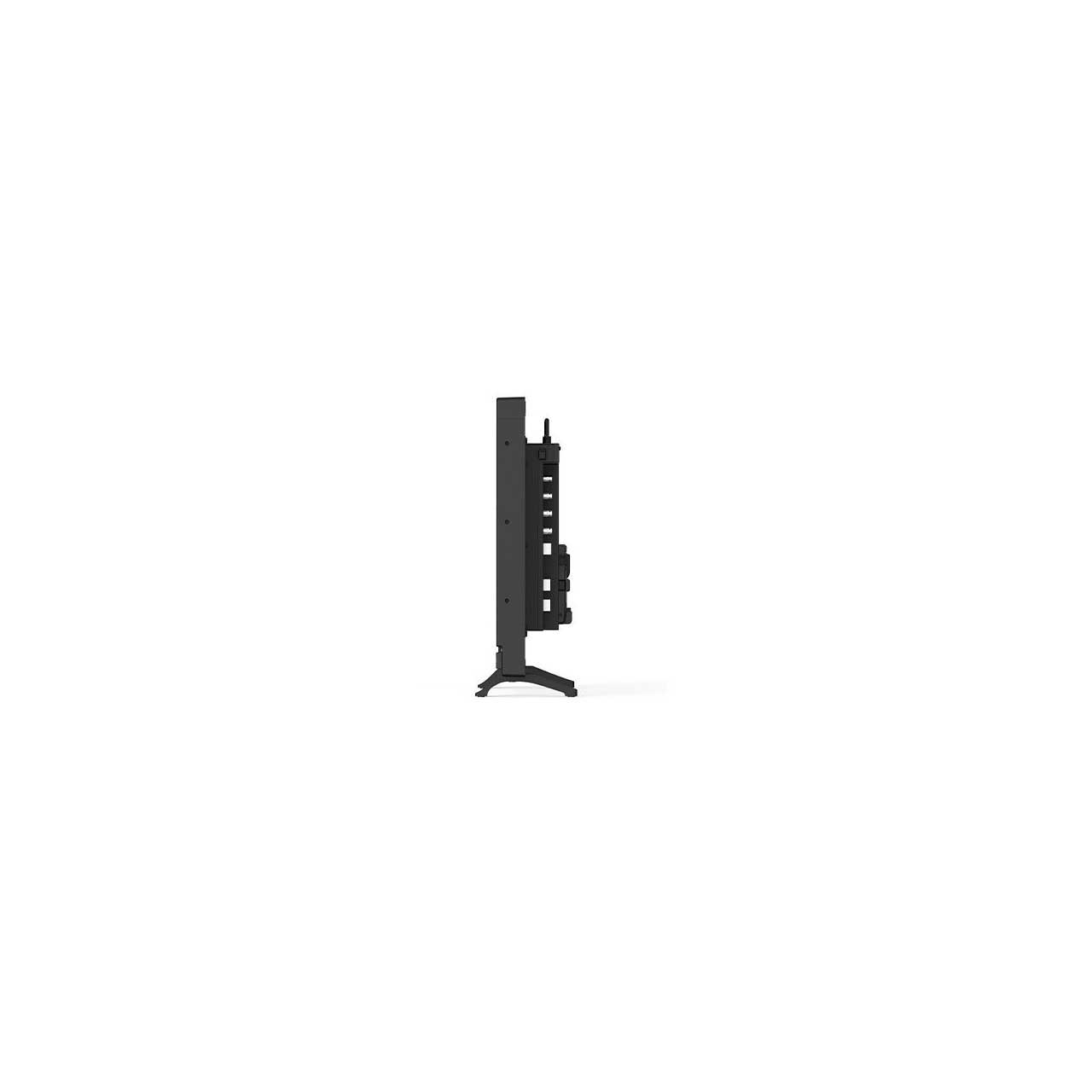

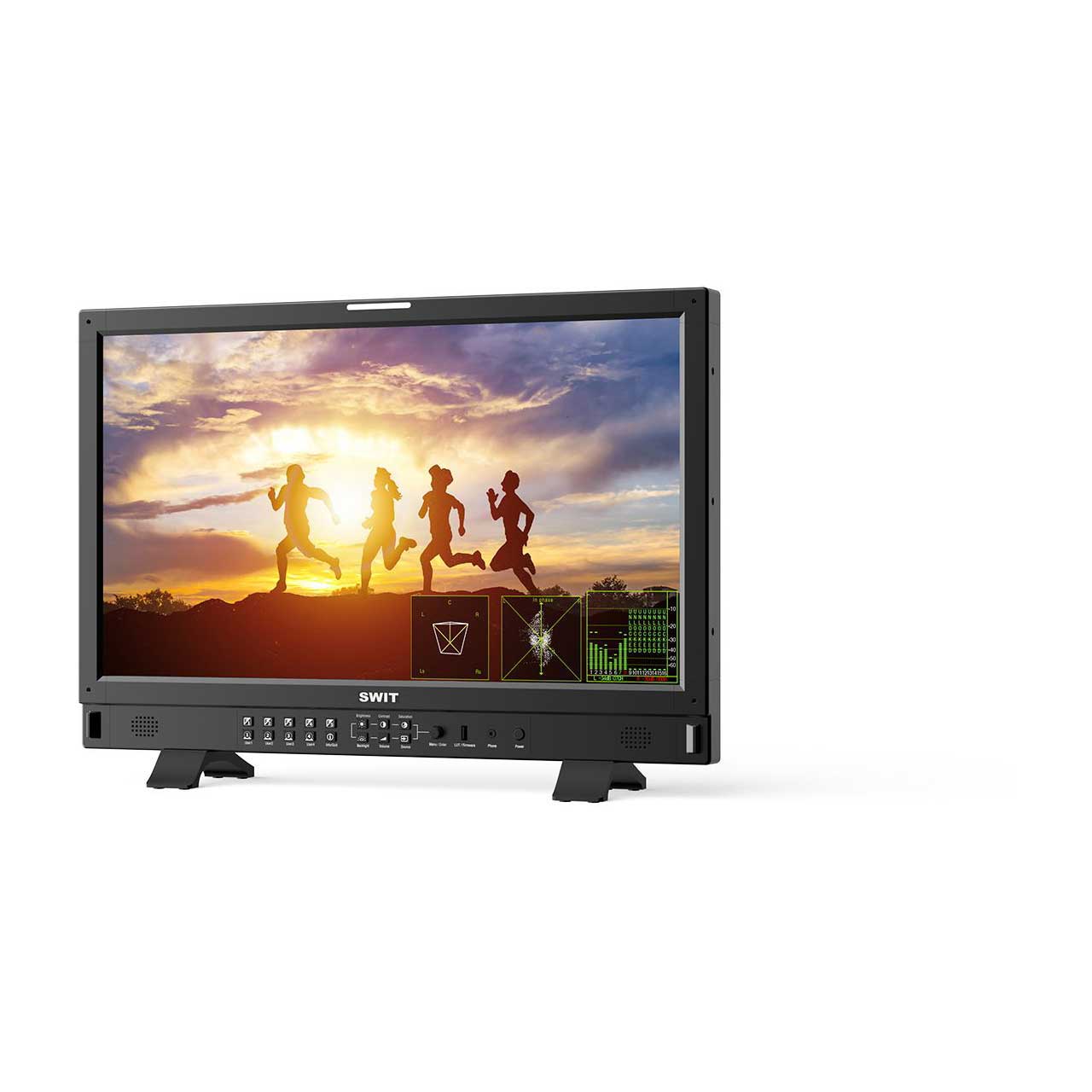

    SWIT BM-U245 is a 23.8-Inch UHD 4K 12G-SDI Reference Monitor with a Gold Mount battery plate. The BM-U245 adopts a 23.8-inch 10bit LCD panel, UHD 3840 x 2160 resolution, 300nits LED backlight, 1000:1 contrast, and 94.1% DCI-P3 color gamut. The viewing angle for the BM-U245 is H178° / V178°.

    • Features:

      • 23.8-inch LCD Panel, 3840x2160 resolution
      • 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
      • 12GSDI via SFP Fiber input (Optional)
      • ST2110 IP via SFP Fiber input (Optional)
      • 3DLUT Auto Self-calibration without PC
      • Audio/Video 0 latency for lip-sync
      • HLG/PQ/S-log3 HDR EOTF
      • Payload ID auto setting
      • Built-in Multi camera Delog LUTs
      • User 3DLUTs upload via USB
      • Waveform / Vector / Histogram
      • Focus assist / False color / Zebra
      • 16-ch audio meters / Lissajous
      • IP webserver remote control
      • TSL UMD and text TALLY display
      • USB firmware upgrade


    • Specifications:

      • LCD Performance
      • Size: 23.8 inches
      • Display Area: 527.04x296.46mm
      • Resolution: 3840x2160
      • Aspect Ratio: 16:9
      • Brightness: 300nits
      • Contrast: 1000:1
      • Color Depth: 1.073G colors, 10-bit
      • Signal Process: 18-bit
      • Viewing Angle: 178°(H) /178°(V)

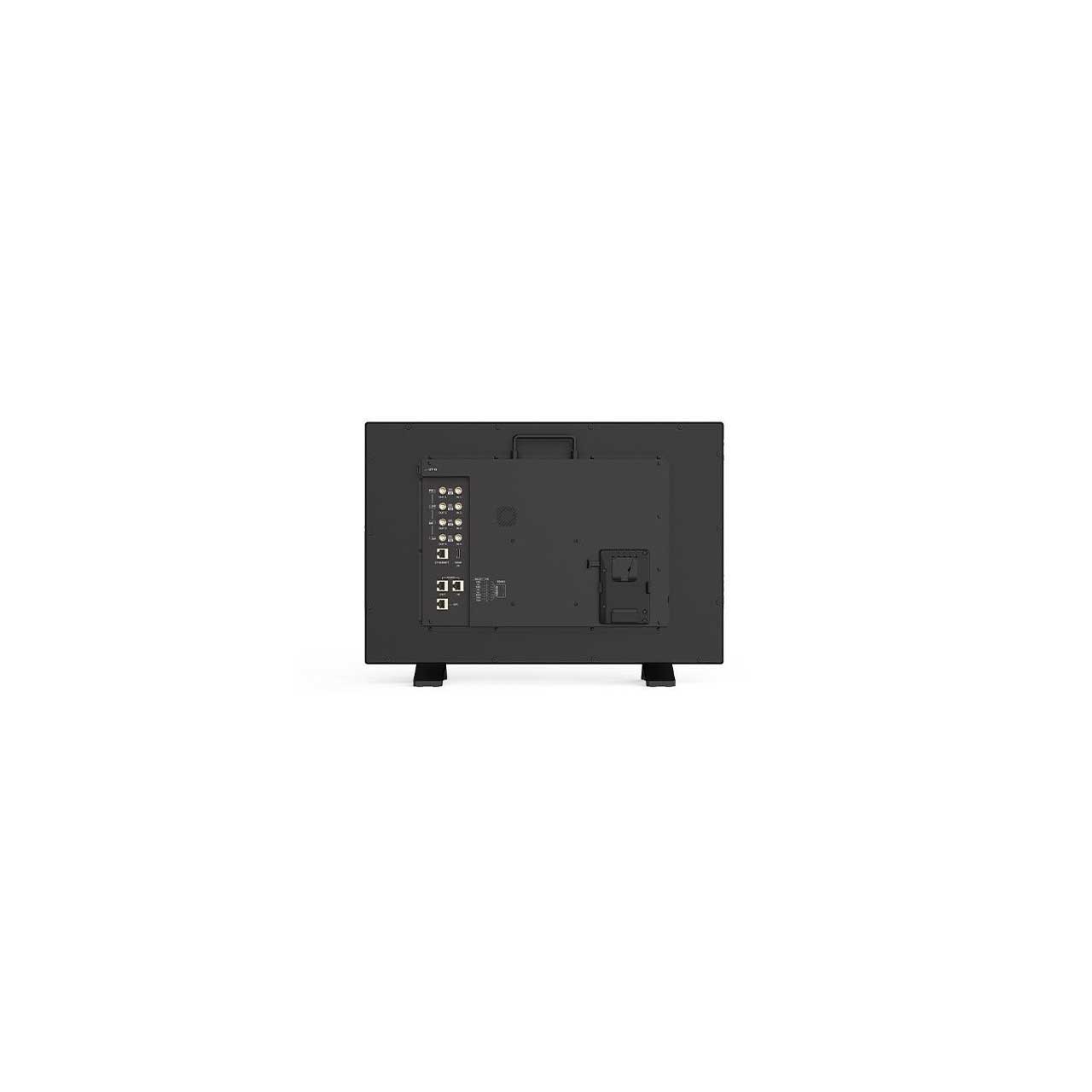

        Input
      • BNC x4: 12G/6G/3G/HD/SD-SDI input
      • HDMI x1: HDMI 2.0 input
      • SFP x1: Optical Fiber input (By optional SFP adapter)
      • RS485 x1: TSL 3.1/4.0 UMD input
      • RS485 x1: GPI (Tally) input
      • RJ45 x1: 1000M Ethernet input for Webserver IP control

        Output
      • BNC x4: 12G/6G/3G/HD/SD-SDI loop output
      • RS485 x1: TSL 3.1/4.0 UMD output
      • Analog Audio: 3.5mm headphone and speaker

        Video Format
      • SDI 1/2/3/4
        4096x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        3840x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        2048x1080i (50 / 59.94 / 60)
        1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        1080i (60 / 59.94 / 50)
        1080psf (30 / 29.97 / 25 / 24 / 23.98)
        720p (60 / 59.94 / 50)
        480i (59.94), 576I (50)
      • Quad Link 4K (Each channel)
        2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
      • Quad Link 8K (Each channel)
        4096x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        3840x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
      • HDMI
        4096x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        3840x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        1080i (60 / 59.94 / 50)
        720p (60 / 59.94 / 50)

        General
      • Input Voltage: DC 12V-17V, AC 100-240V, 50/60Hz
      • Power Consumption: 70W
      • Working temperature: 32° to 122°F (0° to 50°C)
      • Working Humidity: 10 to 90%
      • Storage Temperature: 5° to 140°F (-15° to 60°C)
      • Storage Humidity: 10 to 90%
      • Dimensions: 22.87 x 15.44 x 3.49" (580.9 x 392.3 x 88.8mm)
      • Net Weight (Main body): 19.55Lbs (8.87kg)


    • Item Includes:

      • 2x Desktop Stand Feet
      • 1x AC-DC power adapter
      • 1x Gold Mount Battery Plate


    • Warranty:

      • 2 Years Conditional


    • GTIN:

      0694819350786
