SWIT S-4604 3G/HDSDI 1 to 4 Distributor

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    SWIT S-4604 3G/HDSDI 1 to 4 Distributor

    Item #: SWIT-S-4604   •   MFG #: S-4604



    List Price:$225.00
    Our Price:$210.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.


    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

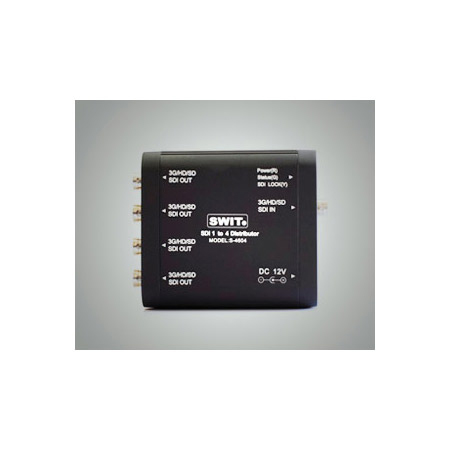

    S-4604 is a portable 3G/HD/SD-SDI distributor. It supports 1 SDI input, and 4 SDI output, with embedded audio. There are Power/Input/Output status indicators to check the availability of distribution.
    S-4604 is heavy duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing on other accessories (battery mount, etc)


    • Features

      • Portable 3G/HD/SD-SDI distributor
      • 1 SDI input, 4 SDI output
      • Power/Input/Output status indicators
      • Heavy duty housing
      • Bottom screw threads for installing

    • Specifications

      • Input: 3G/HD/SD-SDIx1
      • Output: 3G/HD/SD-SDIx4
      • Format
      • SDI SMPTE-425M 1080p (60 / 59.94 / 50)
      • SMPTE-274M 1080p (30 / 29.97 / 25 / 24 / 23.98)
      • 1080i (60 / 59.94 / 50)
      • SMPTE-RP211 1080PSF (30 / 29.97 / 25 / 24 / 23.98)
      • SMPTE-296M 720p (60 / 59.94 / 50)
      • ITU-R BT.656 576i (50)
      • SMPTE-125M 480i (59.94)
      • Power=2W
      • Working Voltage DC 6-18V
      • Working Environment Temperature: 0°C-+70°C, Humidity:10%-90%
      • Dimension 105x84.15x29 mm
      • Net weight 210g

    • Item Includes

      • SWIT S-4604 & power adaptor

    • GTIN:

      6948193501017
