Teradek 10-0999-G Bolt 10K HD-SDI/HDMI Wireless Receiver with Gold Mount

10-0999-G - Overview

• Features:

  • Super long range (10,000 ft.) receiver for Bolt 3000 TX
  • Works alongside Bolt 3000, 703 Bolt, and Sidekick II receivers
  • Fully integrated panel antenna
  • Built-in Gold- battery plate
  • 3G-SDI and HDMI outputs


• Specifications:

  • Video
  • Video Inputs: 1 x SD/HD/3G-SDI (75 Ohm BNC), 1 x Type A receptacle HDMI
  • Video Outputs: 1 x HD/SD/3G-SDI Loop-out (75 Ohm BNC)
  • SDI Ancillary Data Support: supports metadata, timecode, and start/stop flags from certain camera manufacturers.
  • Color Sampling: SDI: YCbCr 4:2:2, 8-bit HDMI: RGB 4:4:4, 8-bit
  • Delay Tx To Rx: <0.001sec (without format conversion)

    Supported Resolutions
  • 1080p 23.98/24/25/29.97/30/50/59.94/60
  • 1080psf23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60
  • 480p59.94/576p50 (via HDMI ports only)
  • 480i(NTSC)/576i(PAL)

    Video Processing
  • Video Compression: visually lossless
  • Test Pattern Generator Support: Yes
  • Color Correction: CDL/1024 1D LUT (supports 10-bit color), 33x33x33 3D LUT (supports 10-bit color)

    Audio Processing
  • Audio Format: 48kHz 24-bit PCM

    Physical
  • Dimensions: 9.29" x 9.29" x 2.61" (236mm x 236mm x 66.2mm)
  • Weight: 41.6oz (1179g)
  • Construction: ABS Plastic and CNC Aluminum 6061-T6

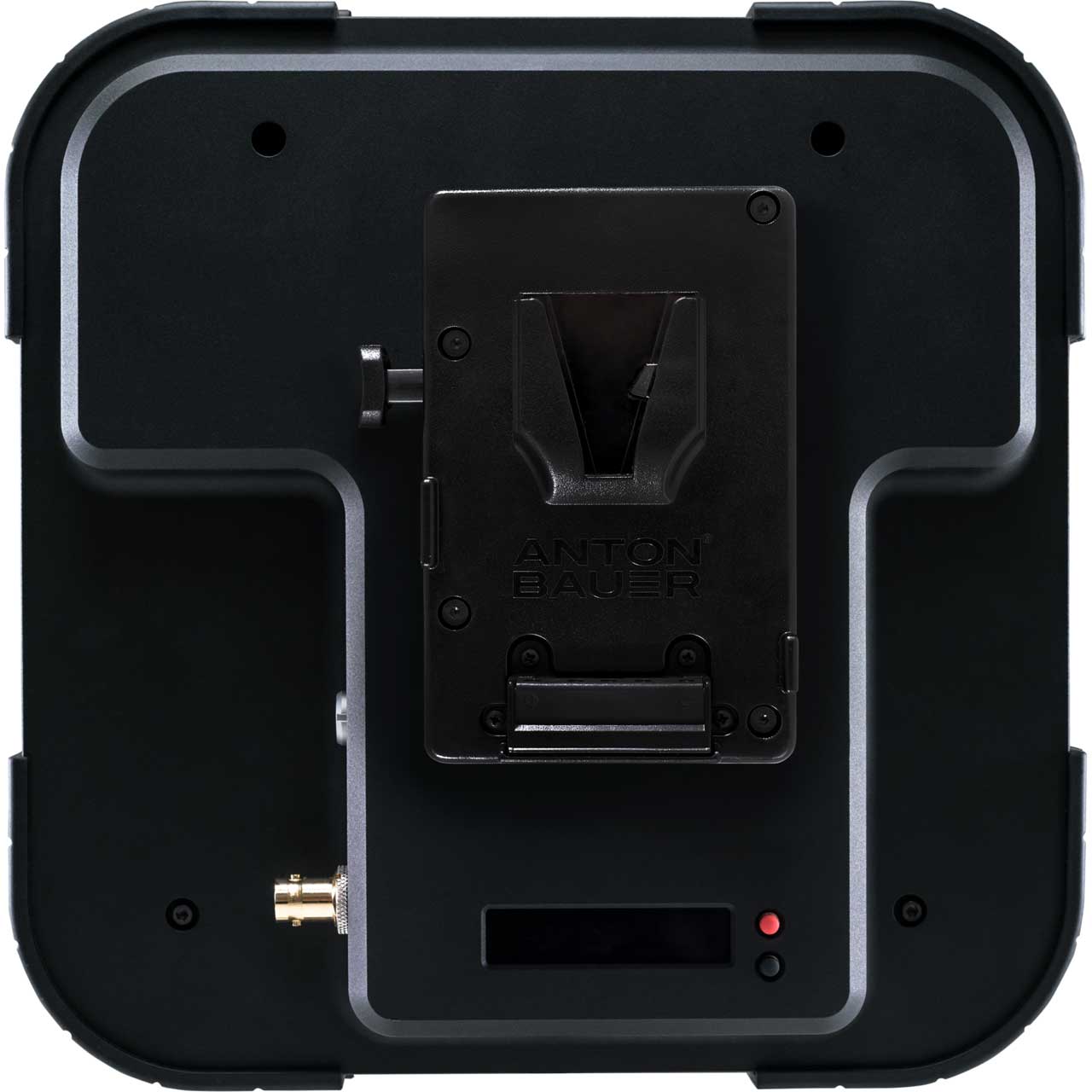

  • Mountability: Gold Mount Battery Plate in Back, Multiple mounting options with 3/8" holes

    Interfaces
  • Http: None
  • Configuration Interfaces: OLED Screen with Menu Joystick Navigation
  • Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
  • USB Interface Functionality: Upgrade via Mini-USB

    Network
  • Wireless
  • Non-DFS Frequencies:
    US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
    EU & JP: 5.19 ~ 5.23 GHz
  • DFS Frequencies:
    US: 5.27 ~ 5.55 GHz and 5.67 GHz
    EU & JP: 5.27 ~ 5.67 GHz
  • Rf Channel Selection: Auto and Configurable Channel selection
  • Encryption: AES-128
  • Rf Power: 17dbm EIRP(with one 2dbi TX antennas)
  • Range: Up to 10000ft line of sight
  • Unicast Multicast: Unicast / Multicast
  • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones

    Power
  • Power Input: 2-Pin Connector 6-28 VDC or Gold Mount Battery
  • Battery: None
  • Nominal Power Consumption: 8.5 Watts (Measured at 1080p60)

    Environmental
  • Operating Temperature: 32-127°F

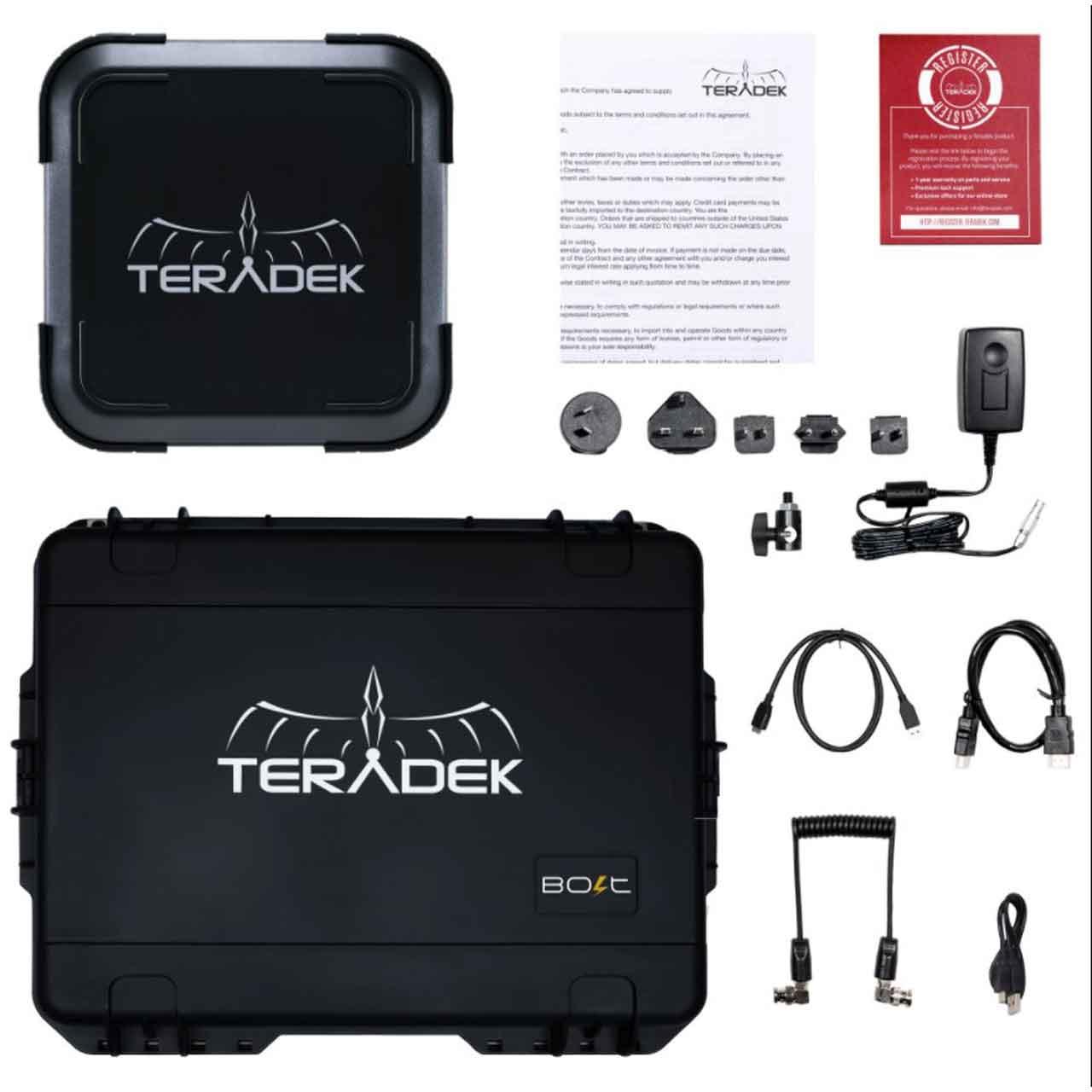

• Item Includes:

  • 1x 10-0999-G Bolt 10K Receiver
  • 1x SDI (BNC to BNC) Cable 10 inch
  • 1x HDMI 18in Cable (Type A to Type A)
  • 1x Protective SKB Case - military-standard waterproof hard case with custom foam (22in x 17in x 8in)Lightstand Adapter (3/8 inch)
  • 1x PSU 2-pin Connector to 18W AC Adapter 6ft cable
  • 1x USB 3.0 Cable A to Micro B (3ft Length)


• Warranty:

  • 1 Year Warranty
