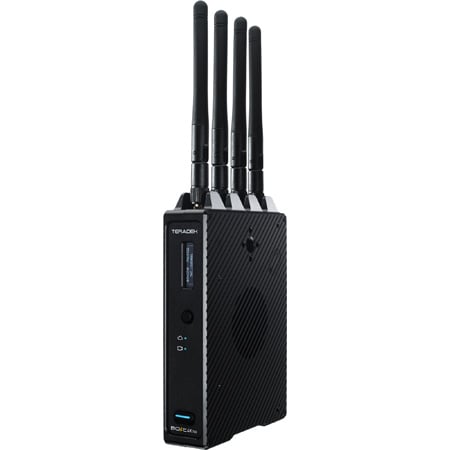

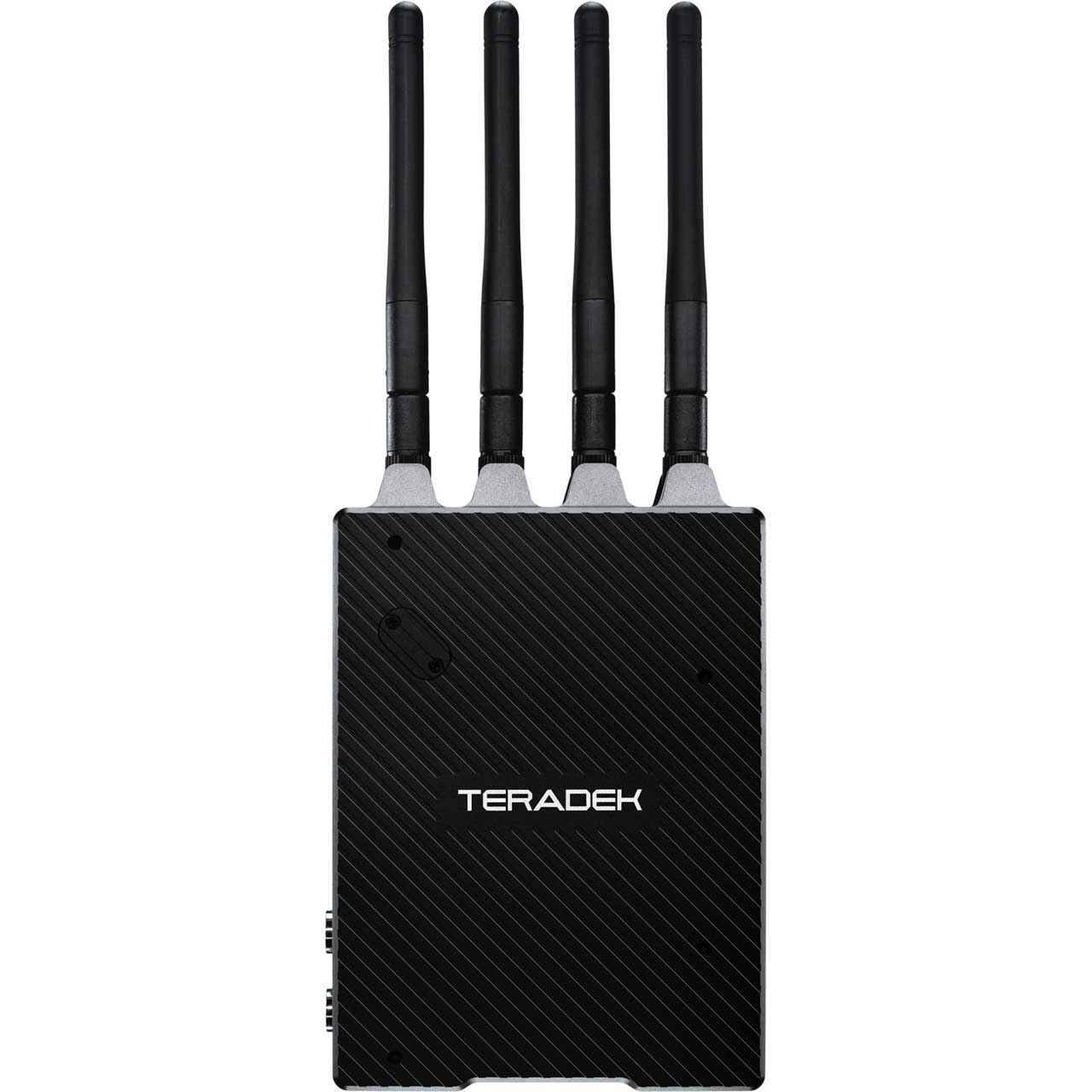

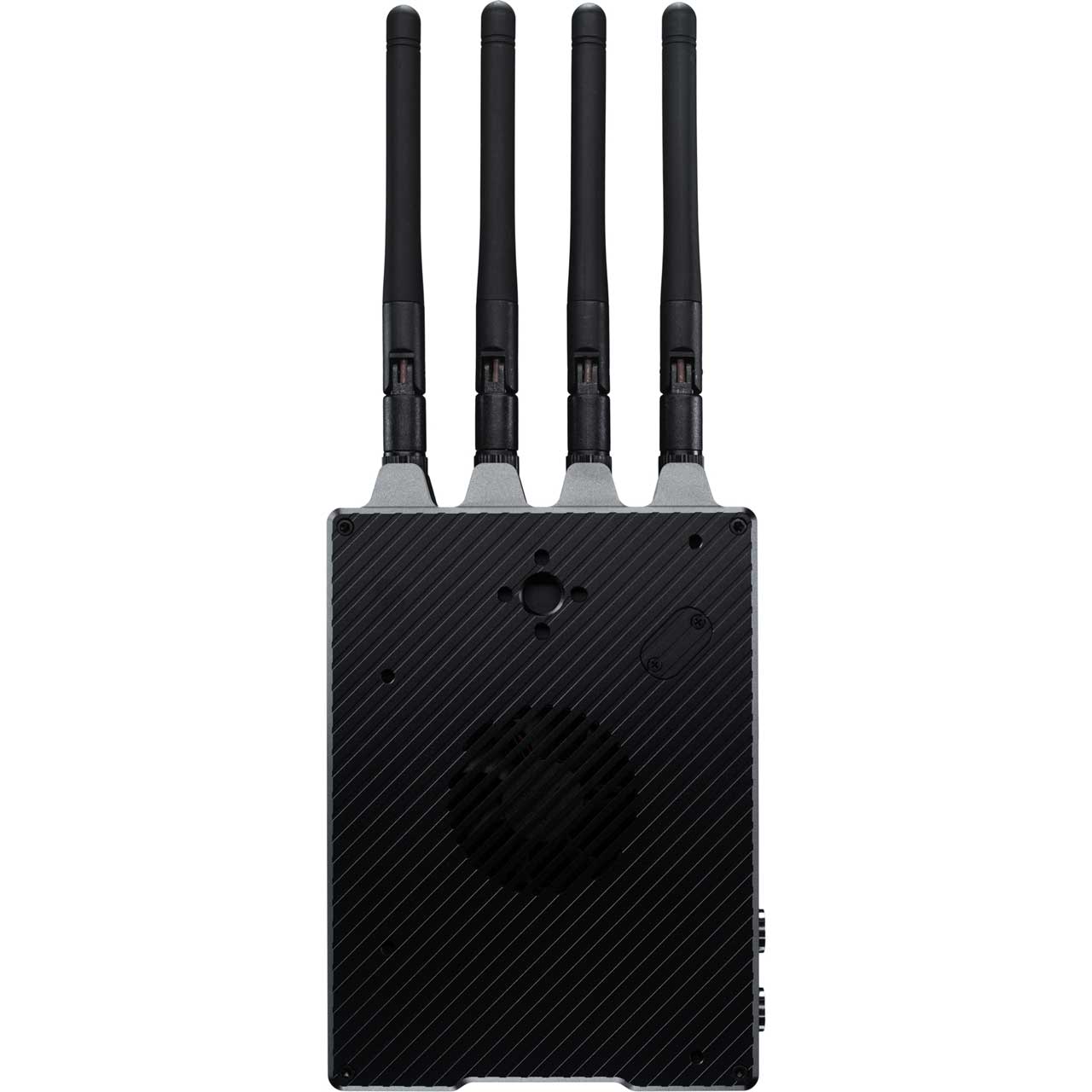

Teradek 10-2102 Bolt 4K 750 12G-SDI/HDMI Wireless TX

10*2101 - Overview

• Features:

  • Includes: 1 TX
  • Video: Up to 4K60FPS
  • Range: 750 ft.
  • Inputs: 12G-SDI, HDMI 2.0
  • Outputs: 12G-SDI loopout
  • Multicast: Up to 6 RXs
  • Compatibility: Bolt 4K 750, Bolt 4K 1500


• Specifications:

  • Video
  • Video Inputs: 1 x 12G-SDI SMPTE 2082-1 standard / 75 O (accepts 12G-SDI, 6G-SDI, or 3G-SDI), 1 x HDMI Type-A receptacle accepts
    HDMI 2.0 or HDMI 1.4)
  • Video Outputs: 1 x Loopout 12G-SDI SMPTE 2082-1 standard / 75 O
  • SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
  • Delay Tx To Rx: <0.001sec (without format conversion)
  • Input Cross Conversion: Yes, HDMI to SDI

    Supported Resolutions
  • 4Kp23.98/24/25/29.97/30/50/59.94/60
  • 1080p23.98/24/25/29.97/30/50/59.94/60
  • 1080psf23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60
  • 480p50 576p59.94/60
  • 480i(NTSC)/576i(PAL)

    Video Processing
  • Video Compression: visually lossless
  • Connect an HD source to the Tx and get a 4K signal out of Rx
  • Connect a 4K source to the Tx, get HD resolution out of Rx
  • You can also mix & match from a single source:
  • 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
  • Input/output configurations are controlled directly on units or via Bolt 4K app
  • Color Correction: None

    Audio Processing
  • Audio Format: 48kHz 24-bit PCM

    Physical
  • Dimensions: 132 x 91 x 27 mm
  • Weight: 358g (12.6 Oz)
  • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

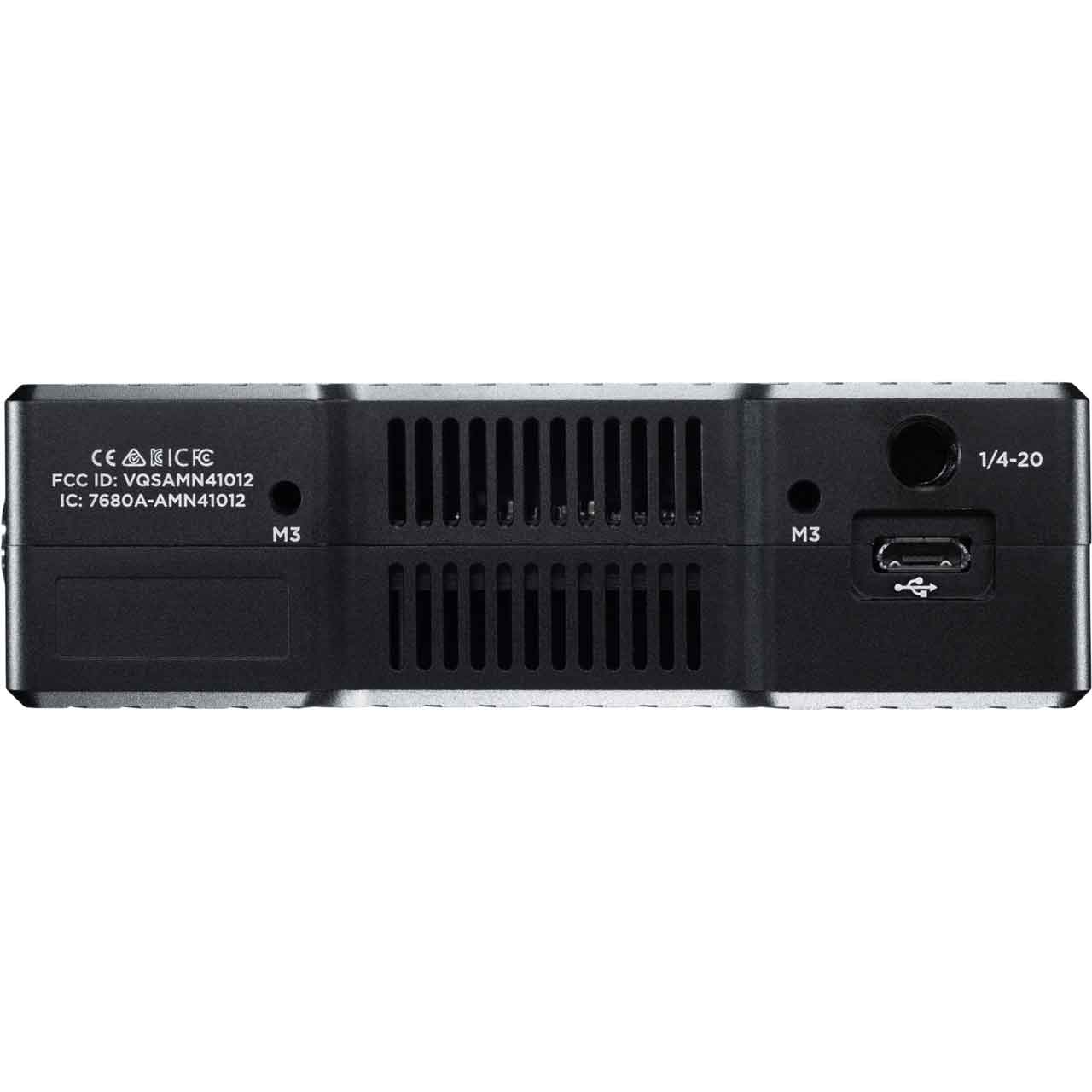

  • Mountability: Multiple mounting options with 1/4"x20 and M3 holes

    Interfaces
  • Configuration Interfaces: OLED Screen with Menu Joystick Navigation
  • Switches: On/Off Switch
  • USB Interface Functionality: Upgrade via Mini-USB

    Network

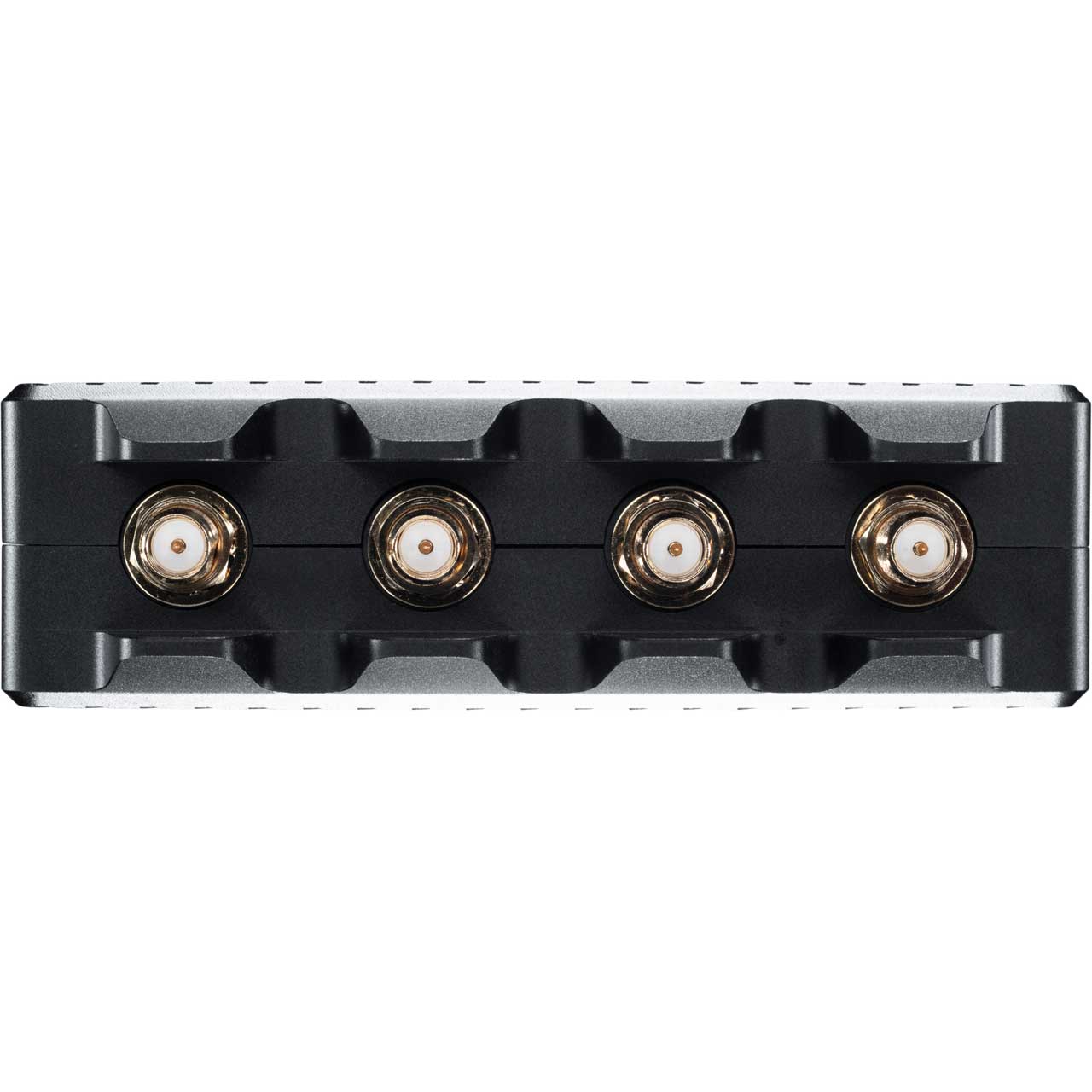

  • Antennas: 4 External 2dBi RP-SMA antennas (included)
  • Wireless:
  • Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  • DFS Frequencies: 5.270 ~ 5.670 GHz
  • Channel Bandwidth: 13x 40MHz wide channels
  • Rf Channel Selection: Auto, Manual, Manual available for non-DFS Channels
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power)
  • Range: Up to 750 ft, line of sight
  • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
  • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones, Can operate up to 6 sets in same location

    Power
  • Power Input: 2-Pin Circular locking Connector 6-28 VDC
  • Battery: None, optional Gold or V mount battery plate
  • Nominal Power Consumption: 20 Watts

    Environmental
  • Operating Temperature: 32°F - 121°F


• Item Includes:

  • 1x Bolt 750 12G-SDI/HDMI Wireless TX
  • 1x 2pin Conn. to PowerTap - 18in Cable
  • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
  • 1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
  • 1x SDI 12G BNC to BNC Cable Length: 18in / 46cm
  • 1x Large Universal Box
  • 1x Foam Bolt 4K TX
  • 1x Small Insert for Large Universal Box Bolt 4K
  • 1x Sticker for Universal Box - Bolt
  • 1x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
  • 4x 4 x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
  • 1x Teradek Standard Terms and Conditions
  • 1x Insert - Product Register
  • 1x Quickstart Guide - Bolt 4K 750/1500
  • 1x Insert - Bolt 4K A/C Adapter Requirements


• GTIN:

  0818264025499
