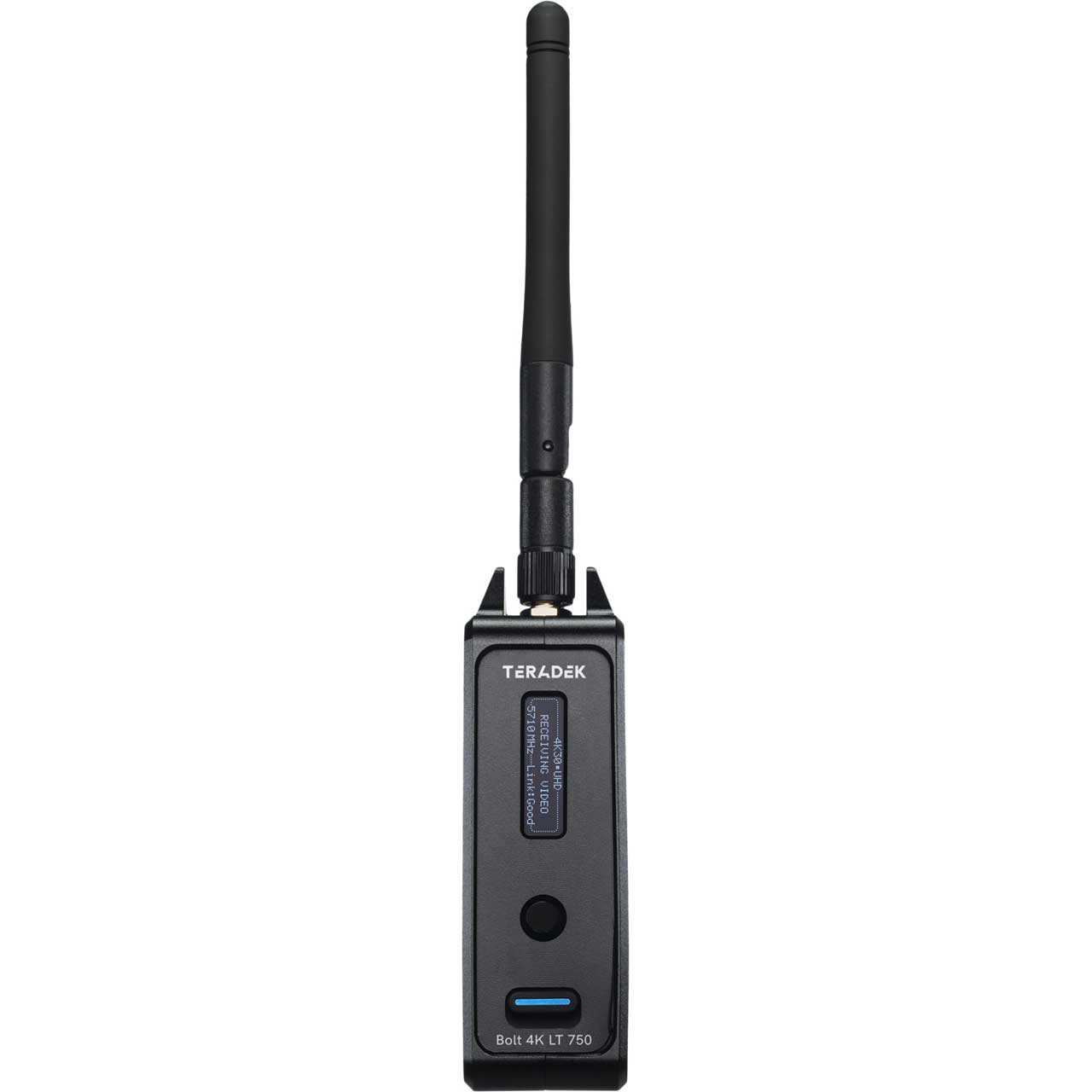

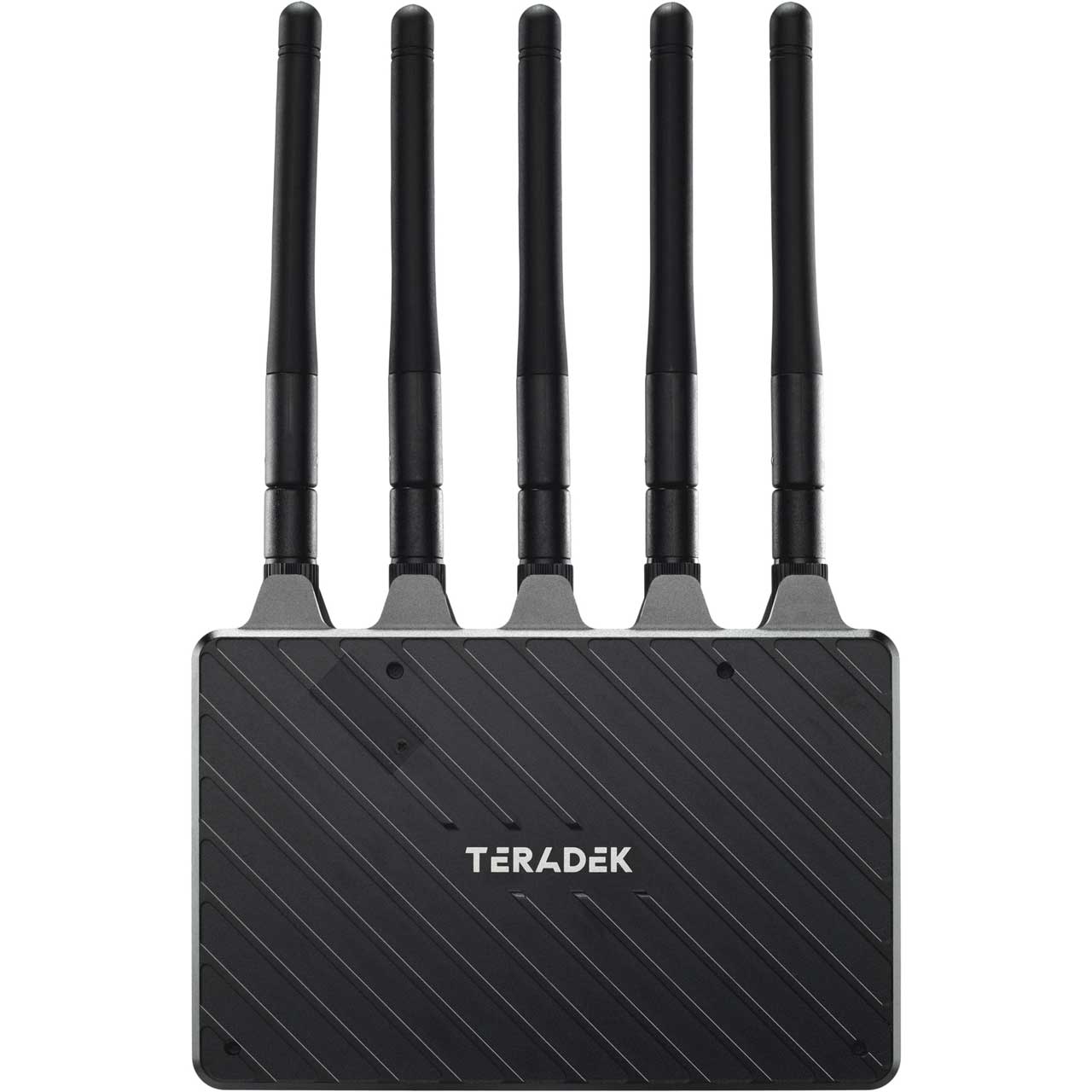

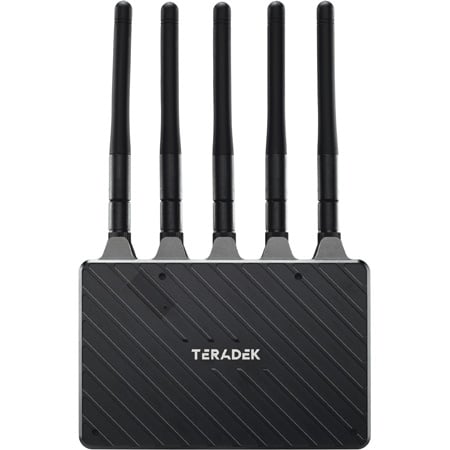

Teradek 10-2202-G Bolt 4K LT 750 3G-SDI/HDMI Wireless Receiver - Gold Mount

ITEM #: TER-10-2202-G MFG #: 10-2202-G

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$2,090.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


10-2202-G - Overview

The Teradek 10-2202-G Bolt 4K Gold Mount is a revolution in wireless video featuring the best reliability and image quality in the industry. Featuring real-Time 4K Wireless Video the Bolt 4K transmits uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay up to 750 feet of range. The Bolt 4K has True HDR Color and is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows. The Rock-Solid Reliable Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments. Universal Compatibility means each transmitter can send video to up to 6 receivers and will work with any model in the Bolt 4K line.

The Bolt 4K transmitter has one 12G-SDI, one HDMI 2.0 and a 12G-SDI looping output and on the receiver side it's two 12G-SDI and one HDMI 2.0. Optional Gold or V-mount battery plates with pass-through power available on both TX & RX as well as Camera Metadata like send start and stop flags, timecode, and other ancillary data all over the wireless link. With the receiver you can upload and apply custom 3D LUTs to monitor each take with the look you're after.The Bolt App uses Bolt 4K's integrated Bluetooth to give you all of its settings in the palm of your hand.

Zero-Delay 4K Wireless Video
Receive images up to 4Kp30 via HDMI at a line-of-sight distance of up to 750ft (228m) with no image latency (>0.001sec).

Output: 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)

True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance
Reliable signal reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Send Signal up to 6 Receivers
Link up to 6 RX receivers to any 1 TX transmitter to enable multiple points of viewing.

Lightweight Body with Versatile Mounting
RX Mounting: M3 / 1/4"-20 / 5/8" x16

Universal Cross-Compatibility between all Bolt 4K Devices
Receive signal from any Bolt 4K series TX device for expanding workflow requirements.

Camera Metadata
Transmit metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.

  • Features:

    • Real-Time 4K Wireless Video
    • True HDR Color
    • Rock-Solid Reliability
    • Universal Compatibility
    • Bolt App for iOS and Android
    • Camera Metadata
    • Optional Battery Plates

  • Specifications:

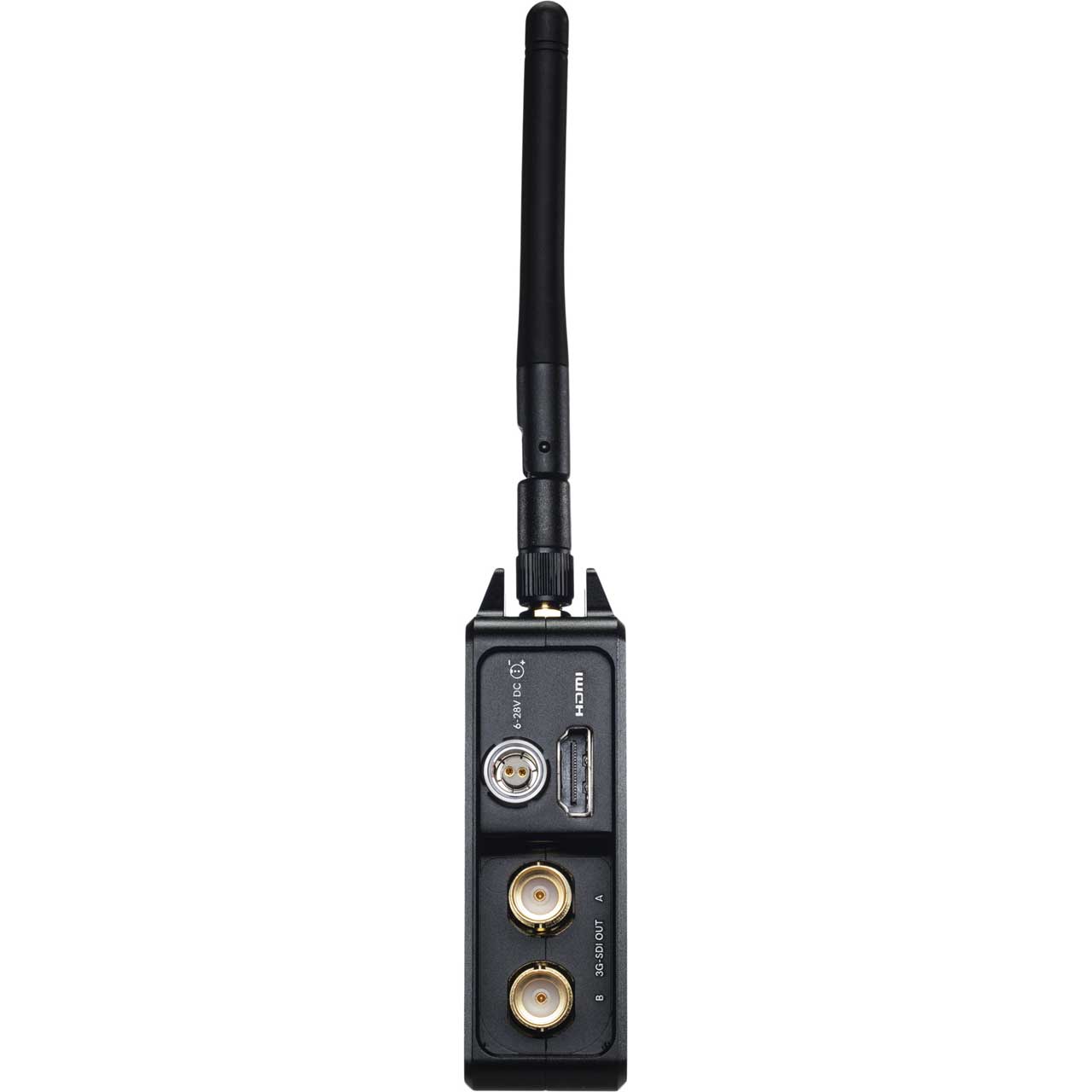

    • Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1), 1 x HDMI 1.4b Type-A receptacle
    • SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
    • Color Sampling: SDI - YCbCr 4:2:2, 10-bit / HDMI - RGB 4:4:4, 8-bit
    • Delay Tx To Rx: <0.001sec
    • Supported Resolutions:
      4Kp23.98/24/25/29.97/30 (HDMI only)
      1080p23.98/24/25/29.97/30/50/59.94/60
      1080psf23.98/24/25/29.97/30
      1080i50/59.94/60
      720p50/59.94/60
      480p50 576p59.94/60
      480i(NTSC)/576i(PAL)
    • Video Compression: Visually Lossless
    • Video Format Conversion Support: No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 4K XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs)
    • Audio Format: 48kHz 24-bit PCM
    • Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)
    • Dimensions: 122mm x 94mm x 27mm
    • Weight: 292g (10.3oz)
    • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
    • Mountability: Multiple mounting options with 1/4"x20 and M3 holes
    • Configuration Interfaces: OSD with Menu, Joystick Navigation
    • Switches: On/Off Switch
    • Mobile App: Bolt App
    • Desktop App: Bolt Manager application for OSX & Windows
    • USB Interface Functionality: Upgrade via Micro-USB
    • External Control: Via Bolt App
    • Bluetooth: 2.4 GHz
    • Antennas: 5 External 2 dBi antennas (included)
    • Wireless: Non-DFS Frequencies - 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz, DFS Frequencies 5.270 ~ 5.670 GHz
    • Number Of20 Mhz Channels: 25 (region dependent)
    • Number Of 40 Mhz Channels: 13 (region dependent)
    • Channel Bandwidth: 20MHz, 40MHz
    • Rf Channel Selection: Auto, Manual
    • Encryption: AES-256, RSA-1024 key exchange
    • Rf Power: 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
    • Rf Sensitivity: 5 External 2 dBi antennas (included)
    • Range: Up to 750 ft, line of sight
    • Unicast Multicast: Each Receiver can register up to 6 Transmitters
    • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones, Can operate up to 6 sets in same location
    • Power Input: 2-Pin Circular locking Connector 6-28 VDC

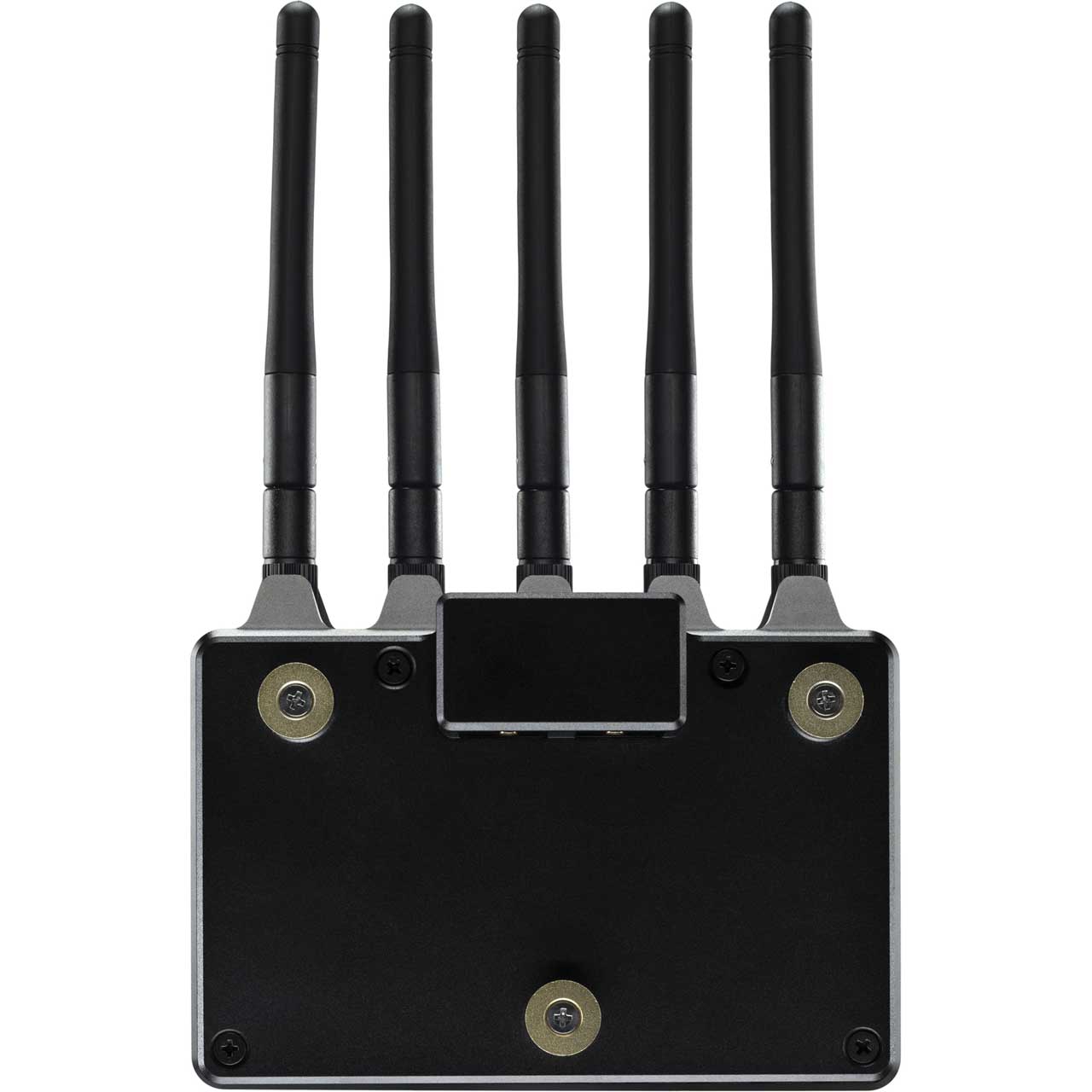

    • Battery: Gold Mount
    • Nominal Power Consumption: 11 Watts
    • Operating Temperature: 0-40°

  • Item Includes:

    • 1x Bolt 4K LT RX 750 Gold Mount
    • 2x Bolt 4K RX Battery Cover
    • 1x Ultra Thin HDMI Male Type A (Full) to HDMI Male Type A (Full) Cable - 18in
    • 1x 2pin Connector to PowerTap Cable (P-Tap/D-Tap) - 18in
    • 1x Micro-USB (5pin) to USB Cable (Firmware Cable) - 36in
    • 1x 3G-SDI (BNC to BNC) Cable - 10in
    • 1x 18 Watt AC Adapter Cable (2-Pin Connector) - 6ft
    • 5x TX/RX Antenna (2dBi WIFI 2.4/5.8GHz, Small)

  • GTIN:

    0818264026687
