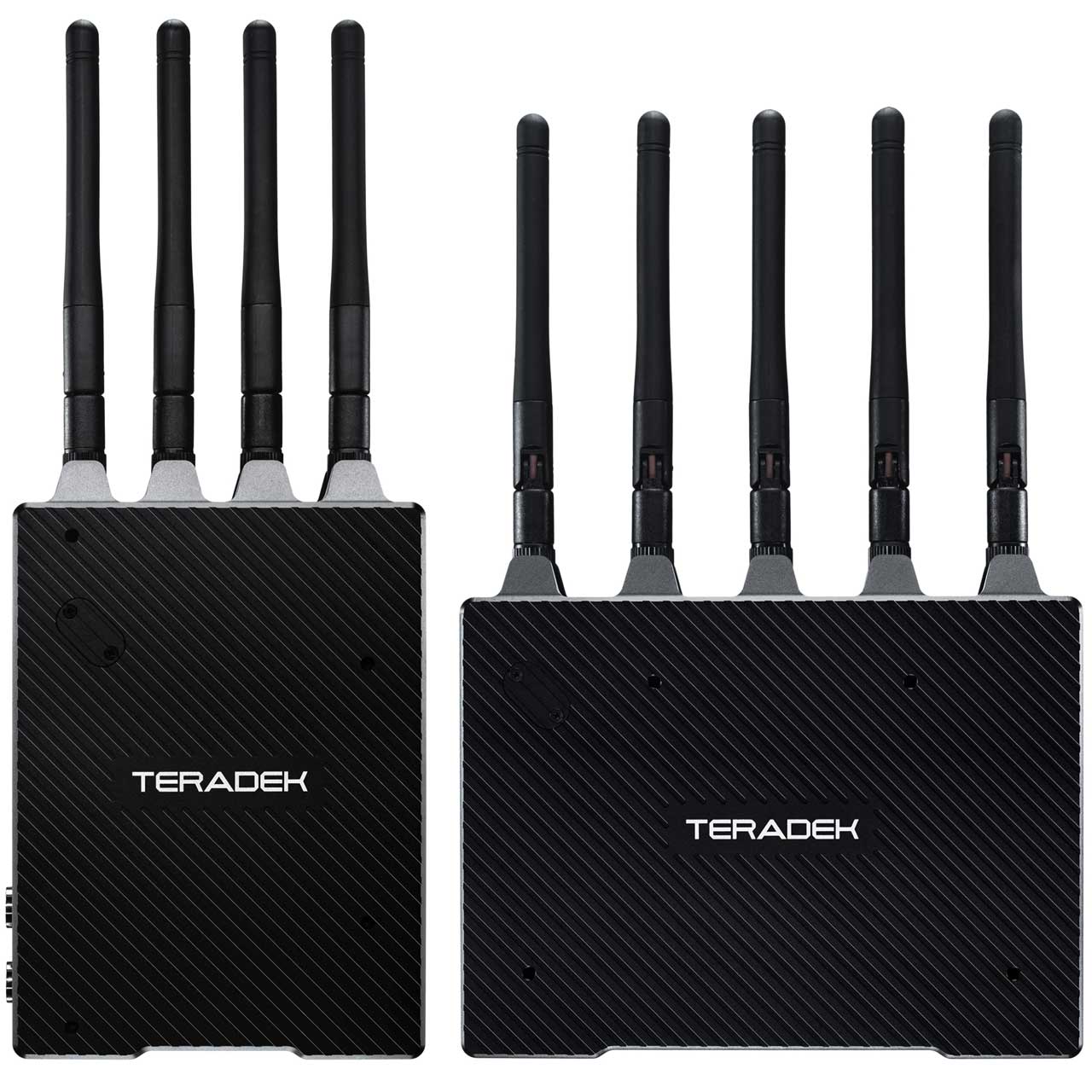

The Teradek Bolt 4K 750 defines a revolutionary new category of wireless video technology, delivering uncompressed 2160p60 HDR video transmission with zero delay. Bolt 4K's exclusive technology offers 8x the signal performance and 50% more range than existing systems, making it the most robust wireless system they've ever designed.
Teradek's patented RF technology greatly improves image quality across all resolutions and framerates, giving you finer detail and better color reproduction, even if you're at the system's maximum wireless range. Monitor every shot in stunning 10-bit 2160p with 4:2:2 chroma subsampling. For cutting-edge HDR workflows, Bolt 4K supports HLG, PQ, and HDR-10 standards.
Bolt 4K offers the industry's best protection against prying eyes with AES-256 encryption and RSA 1024 key pairing. Combined, these two technologies ensure nobody can decrypt your wireless feed or connect another receiver to your system without explicit authorization. All Bolt 4K systems are compatible with one another and are multicast-capable to up to 6 receivers, even if they're from different model ranges.

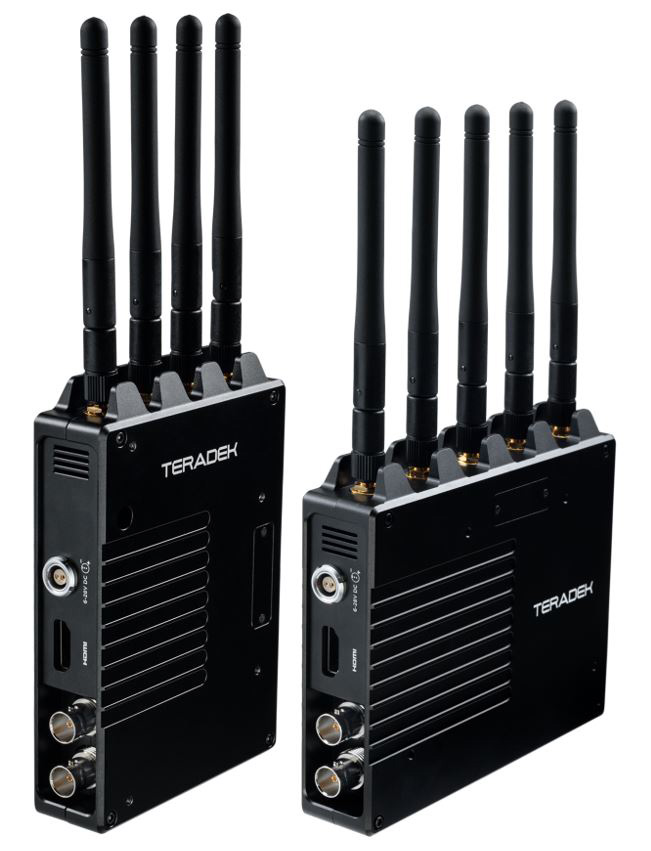

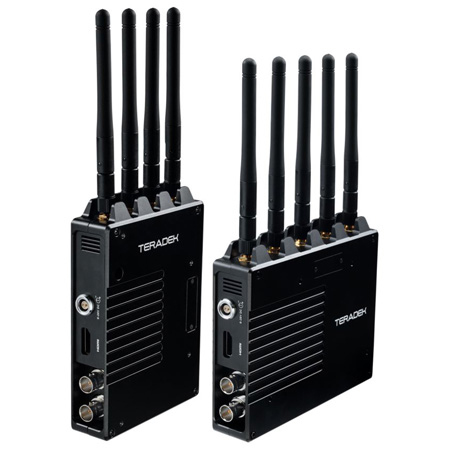

Transmitters feature dual 12G-SDI and HDMI 2.0 inputs, while receivers feature two 12G-SDI outputs and an HDMI 2.0 output. Bolt 4K can transport extended camera metadata, timecode, and record triggers for industry standard cameras from ARRI, RED, Sony, Canon, and more. Manage every parameter of the Bolt 4K from the convenience of your smartphone.

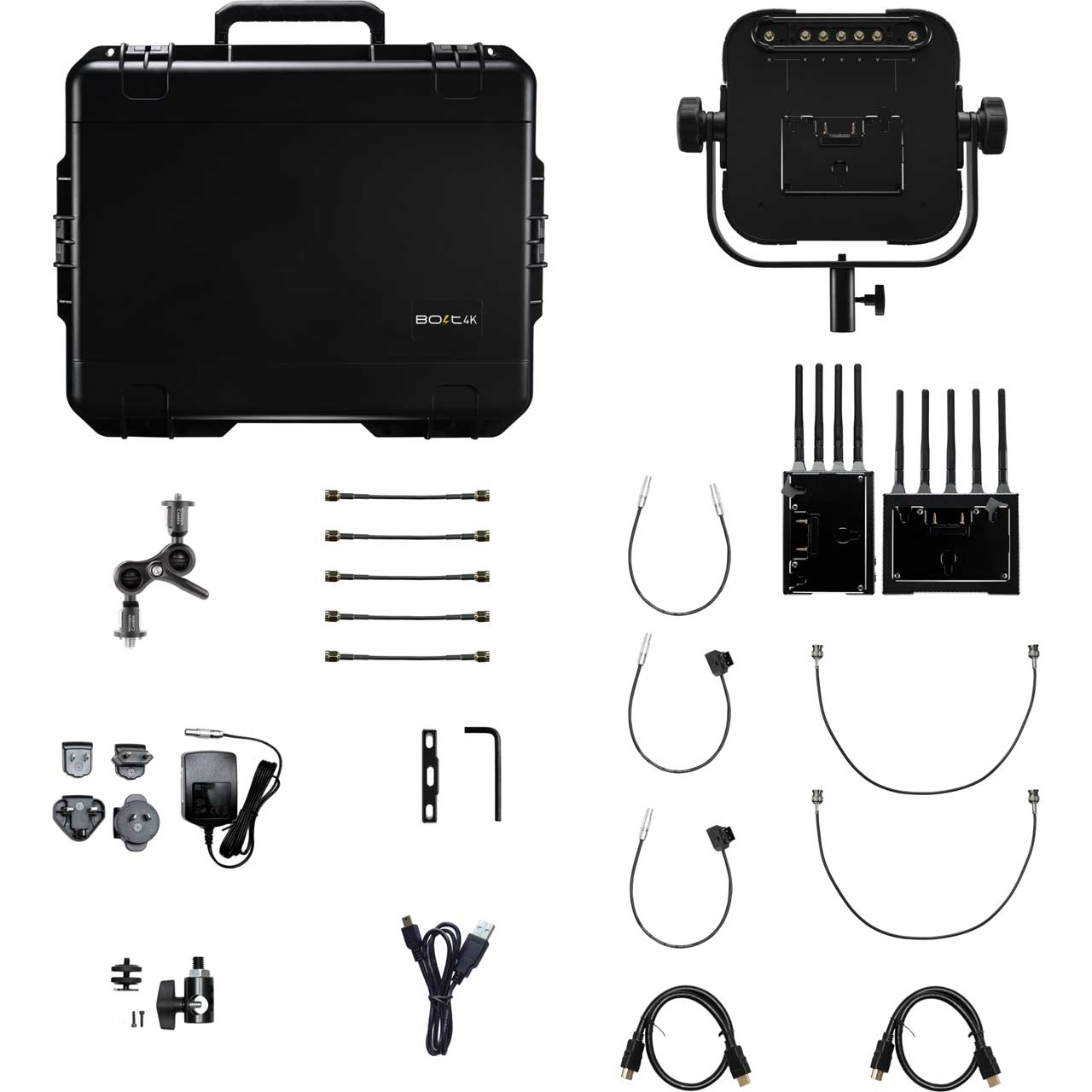

Bolt 4K transmitters offer various mounting options, including an ARRI 3/8-16" Pin-Lock mounting point for camera arms, as well as an optional camera-back mount with Gold/V-Mount pass-through power. Bolt 4K receivers offer optional Gold and V-Mount battery plates with pass-through power. Both transmitter and receiver feature OLED displays. Easily access Bolt 4K settings and software features such as spectrum analyzer, channel selection, 3D LUTs and more.
