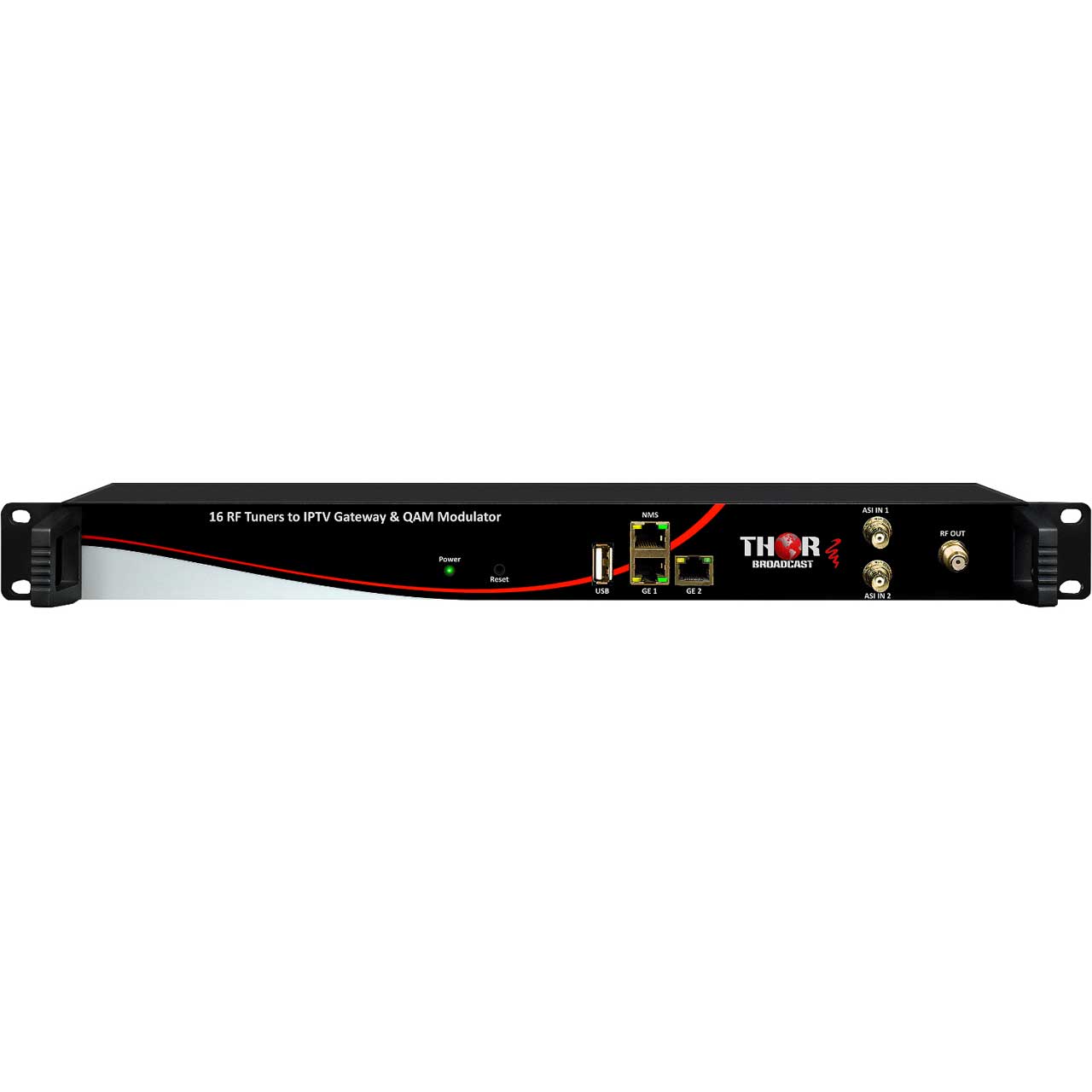

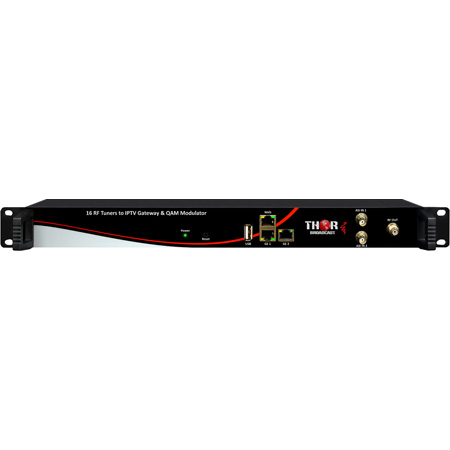

Thor Fiber H-16QAM-IP-RF 16 RF Tuners to IPTV Gateway and QAM Output Modulator/Encoder

Manufacturer: Thor Fiber

Item #: THR-16QAM-IP-RF   •   MFG #: H-16QAM-IP-RF



List Price:$5,618.75
Our Price:$4,495.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

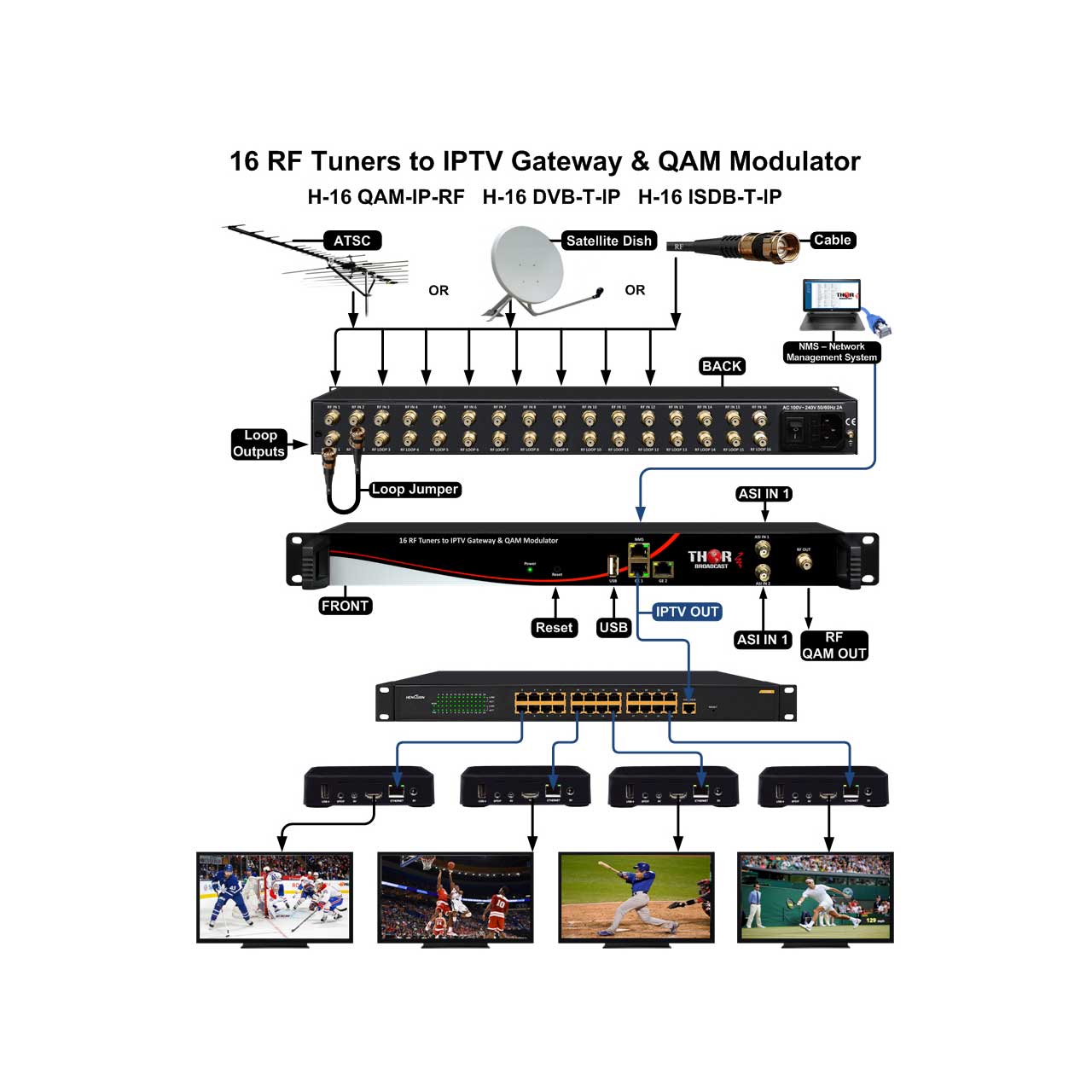

    Thor's newly designed H-16QAM-IP-RF is a high density demodulating IP Gateway that has 16 DVB-S/S2 FTA tuner inputs that convert to 16 non-adjacent carrier outputs with multiplexing, scrambling and QAM modulaton included. It also supports a maximum 512 IP inputs and one IP (MPTS) output through GE1 and TS input for re-mux through 2 ASI ports. It supports dual power supply (optional). This is the next generation of Gateways of which will create a seemless conversion of RF programs to IP TS that are easily managed via a secure NMS system developed by Thor to help distribute all of your programs via IP and ASI.


    • Features

      • 16 DVB-S/S2 FTA Tuner + 2 ASI input + 512 IP (GE1 only) input over UDP and RTP protocol
      • 16 DVB-C RF output
      • Excellent RF output performance index, MER=40db
      • 16 groups multiplexing +16 groups scrambling +16 groups QAM modulating
      • 1 IP(MPTS) output over UDP and RTP/RTSP
      • Accurate PCR adjusting
      • PSI/SI editing and inserting
      • Web management, Updates via web
      • Redundant Power Supply (optional)

    • Specifications

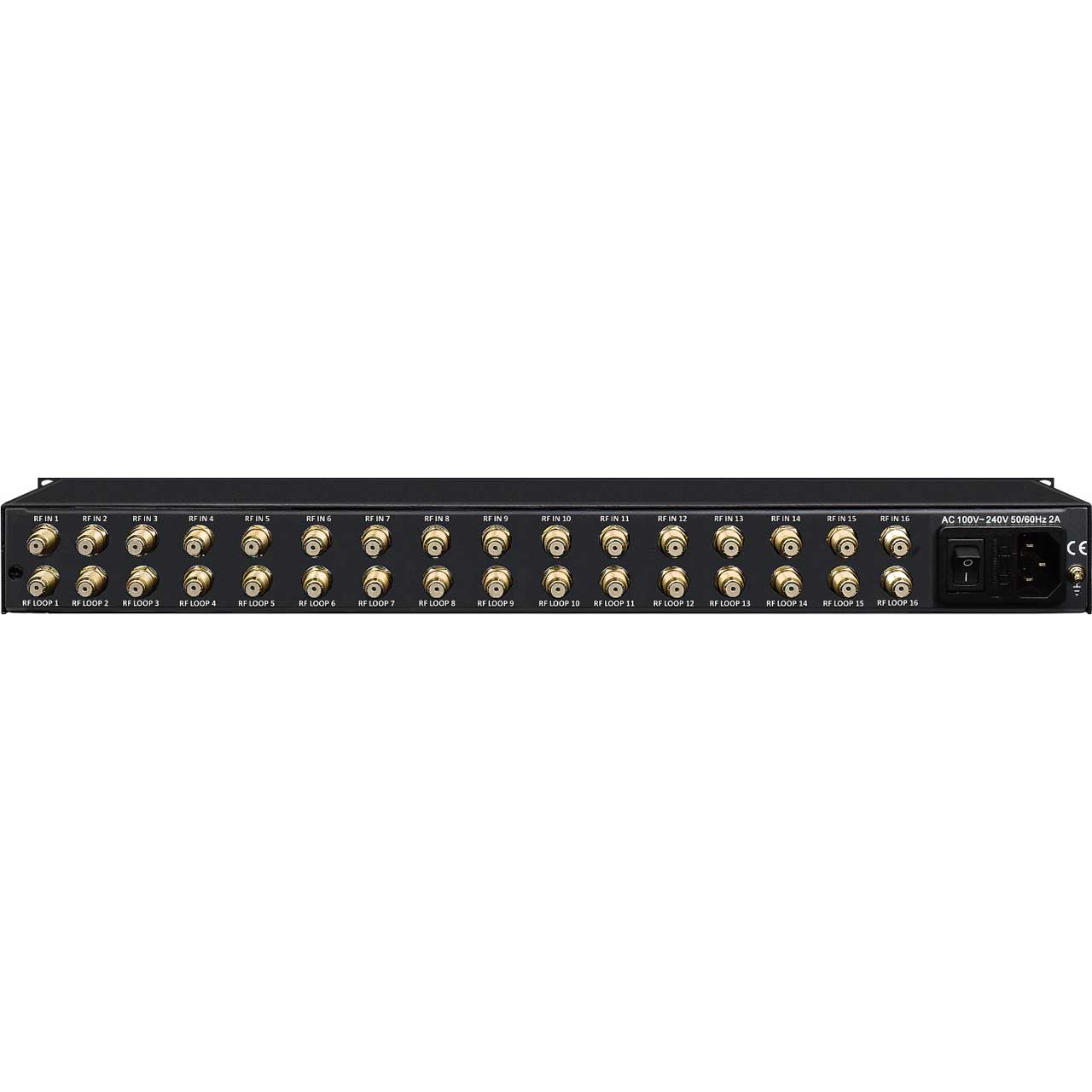

      • Input:
        16 DVB-S/S2 FTA Tuner
        512 IP (GE1only)input over UDP and RTP protocol
        2 ASI Input, BNC interface

        Tuner
      • DVB-S
      • Input Frequency: 950-2150MHz
      • Symbol Rate: 2-45Msps
      • Signal Strength: -65~-25dBm
      • FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 QPSK

        DVB-S2
      • Input Frequency: 950-2150MHz
      • Symbol Rate:
        QPSK 1~45Mbauds
        8PSK 2~30Mbauds
      • Code Rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
      • Demodulation Mode: QPSK, 8PSK

        Multiplexing
      • Maximum PID Remapping: 128per input channel
      • Function
        PID remapping (automatically or manually)
        Accurate PCR adjusting
        Generate PSI/SI table automatically

        Scambling Parameters
      • Max Simulscrypt CA: 4
      • Scamble Standard: ETR289, ETSI 101 197, ETSI 103 197
      • Connection: Local/Remote Connection

        Modulation
      • QAM Channel: 16
      • Standard: EN300 429/ITU-T J.83A/B
      • MER: =40db
      • RF Frequency: 50~960MHz, 1KHz step
      • RF output level: -20~+10dbm(87~107 dbæV),0.1db step
      • Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping
      • Constellation: 16/32/64/128/256QAM, J.83A, J.83B
      • Bandwidth: 8M, 6M

        System
      • Remote Management: Web NMS (10M/100M)
      • RF Out: 16 DVB-C output
      • IP Out: 1 IP (MPTS) output over UDP and RTP/RTSP (GE1 only), Mirrors one carrier
      • Language: English
      • Software Upgrading: Web

        General
      • Dimension (WxDxH): 18.97 x 11.81 x 1.75 Inches
      • Weight: 8.15 Lbs
      • Temperature: 32~113°F(Operation); -4~176°F(Storage)
      • Power: AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
      • Consumption: 25W
