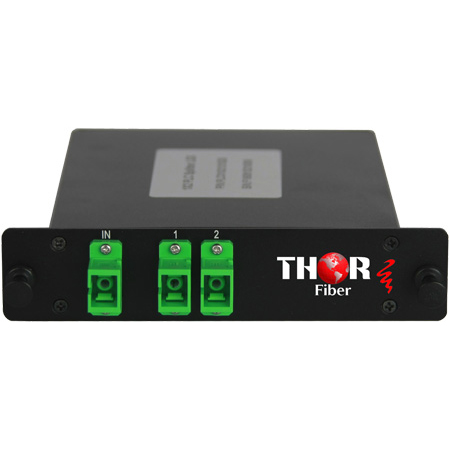

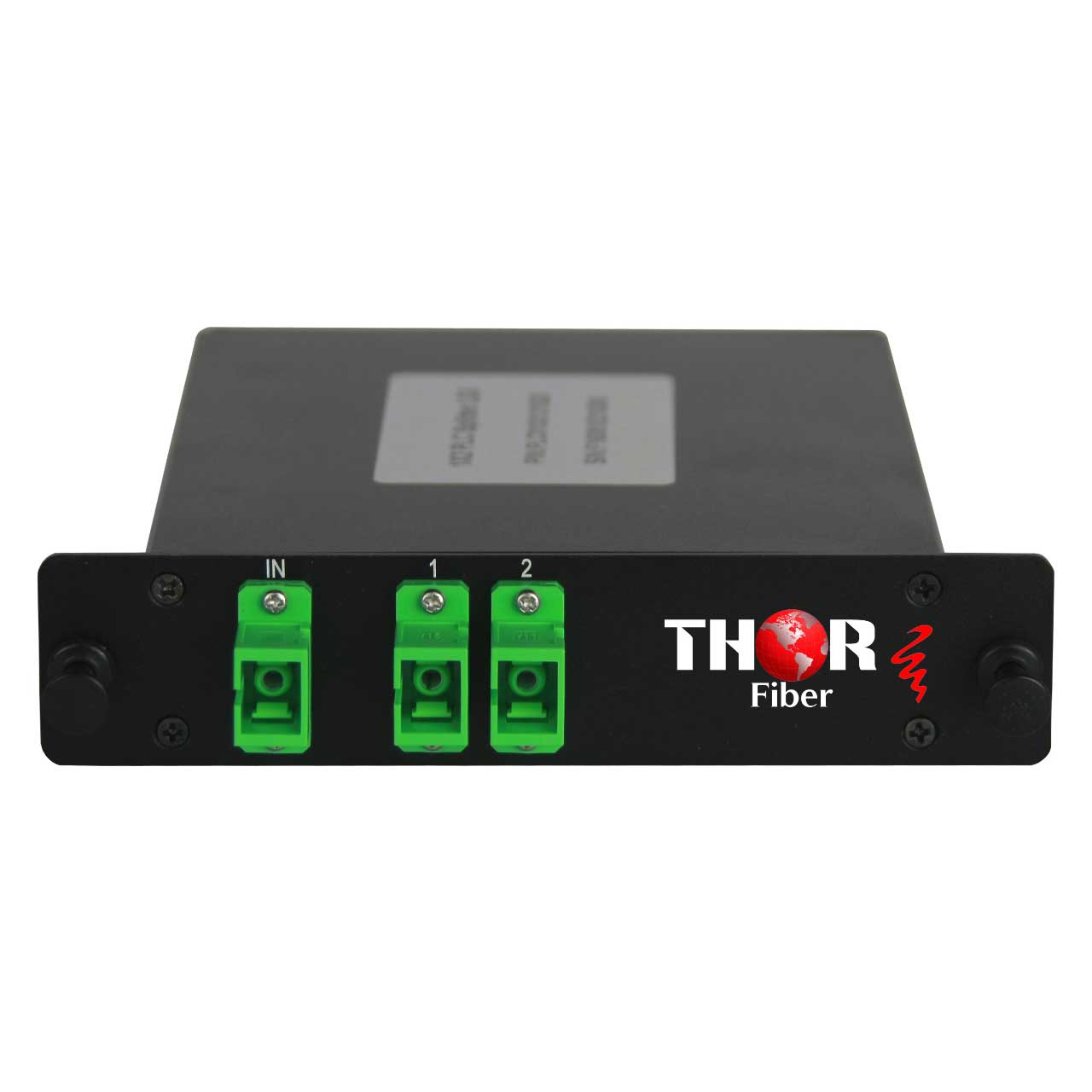

Thor F-PLC-1x2-LGX 1x2 Compact LGX Fiber Optic -Optical Splitter Couplers

ITEM #: THR-F-PLC1X2-LGX MFG #: F-PLC-1X2-LGX

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$238.80

Our Price:

$199.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    F-PLC-1X2-LGX - Overview

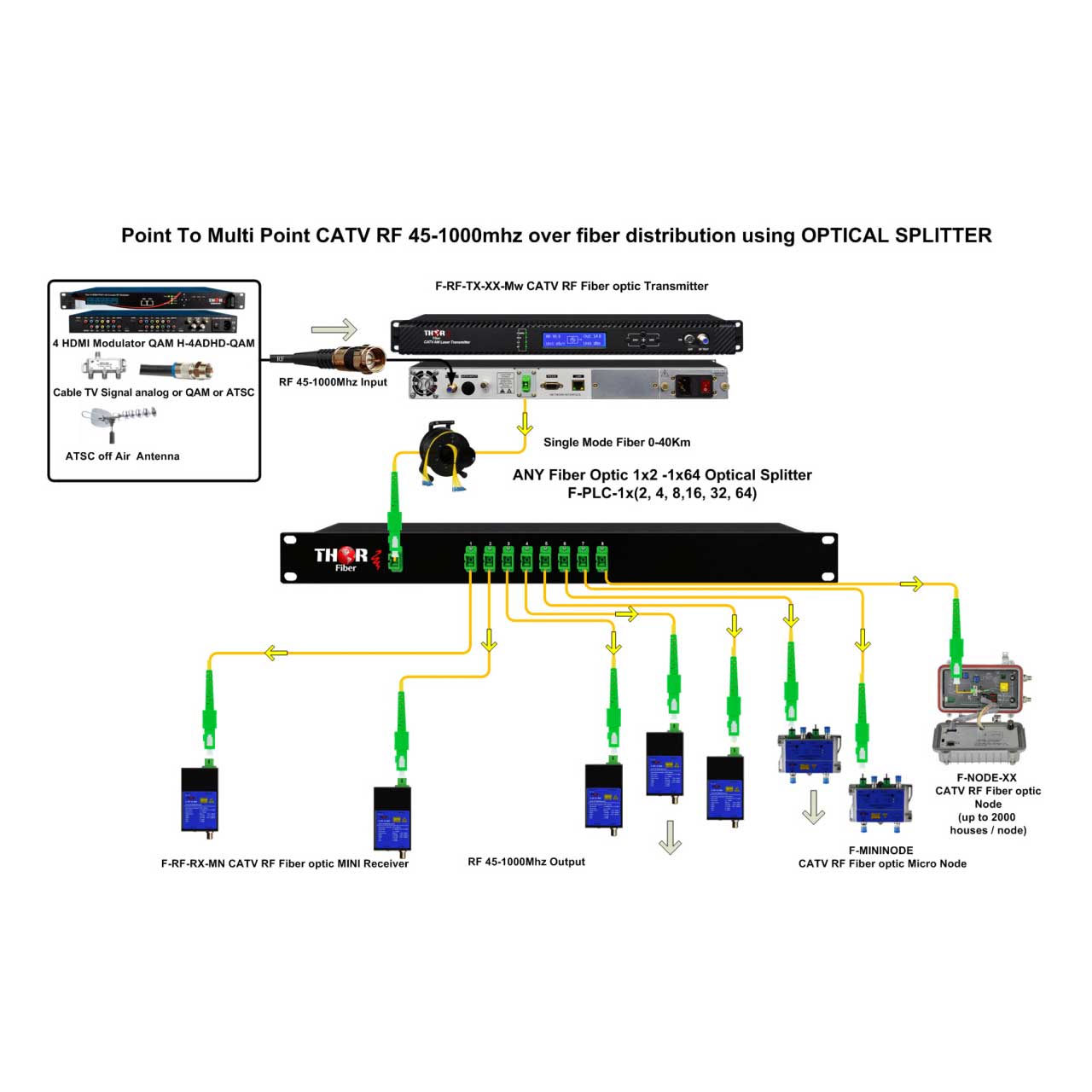

    The Thor Fiber F-PLC 1x2 LGX style cassette splitter can be used in any single mode fiber application for injecting a single SC/APC fiber stream connection and splitting it to multiple SC/APC fiber sources no matter what the signal is HD/SDI, SD/SDI, RF, HDMI, Component, composite etc, etc. A commercial grade rackmount splitter that allows for easy distribution utilizing front facing connector ports to easily setup your hardware and distribute your signal. With a wide range and flexibility means Thor Fiber can prepare and meet any necesiities pertaining to a PON, GPON, FTTH, FTTX, LAN, and CATV application for any infrastructure.

    • Features:

      • Compact LGX Cassette housing
      • Low insertion loss
      • Optical coupling ranging from 1x2 up to 2x64
      • Any PLC Splitter Applications
      • Fiber to the point (FTTX)
      • Fiber to the home (FTTH)
      • Passive optical networks (PON, GEPON)
      • Local area networks (LAN)
      • Cable television (CATV)

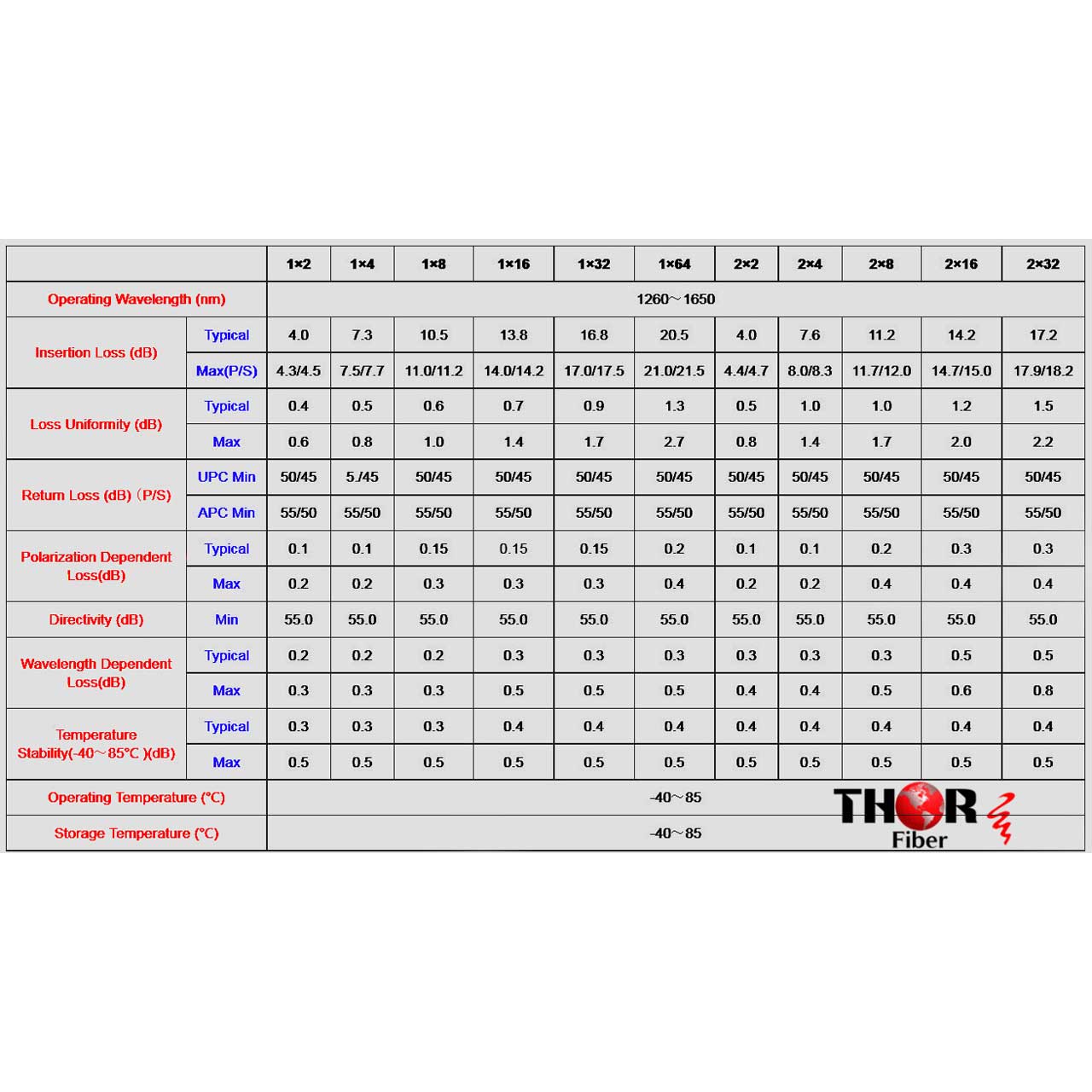

    • Specifications:

      • Compact form factor
      • Good uniformity and low insertion loss
      • Low Polarization
      • Excellent Mechanical Stability
      • Passive Optical Coupling
      • Operating environment: -40°C to +85°C
      • High Polarization Extinction Ratio & Excellent Uniformity
      • Fiber input: 2.0mm Fiber output: 2.0mm G.657A Fiber


    F-PLC-1X2-LGX - Required Accessories

      F-PLC-1X2-LGX - Recommended Accessories
