Thor Fiber F-2A-XLR-B-TxRx 2-Channel Bi-Directional XLR Audio over One Fiber Transmitter and Receiver Kit

ITEM #: THR-F2AXLRB-TXRX MFG #: F-2A-XLR-B-TXRX

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,254.00

Our Price:

$1,045.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    F-2A-XLR-B-TXRX - Overview

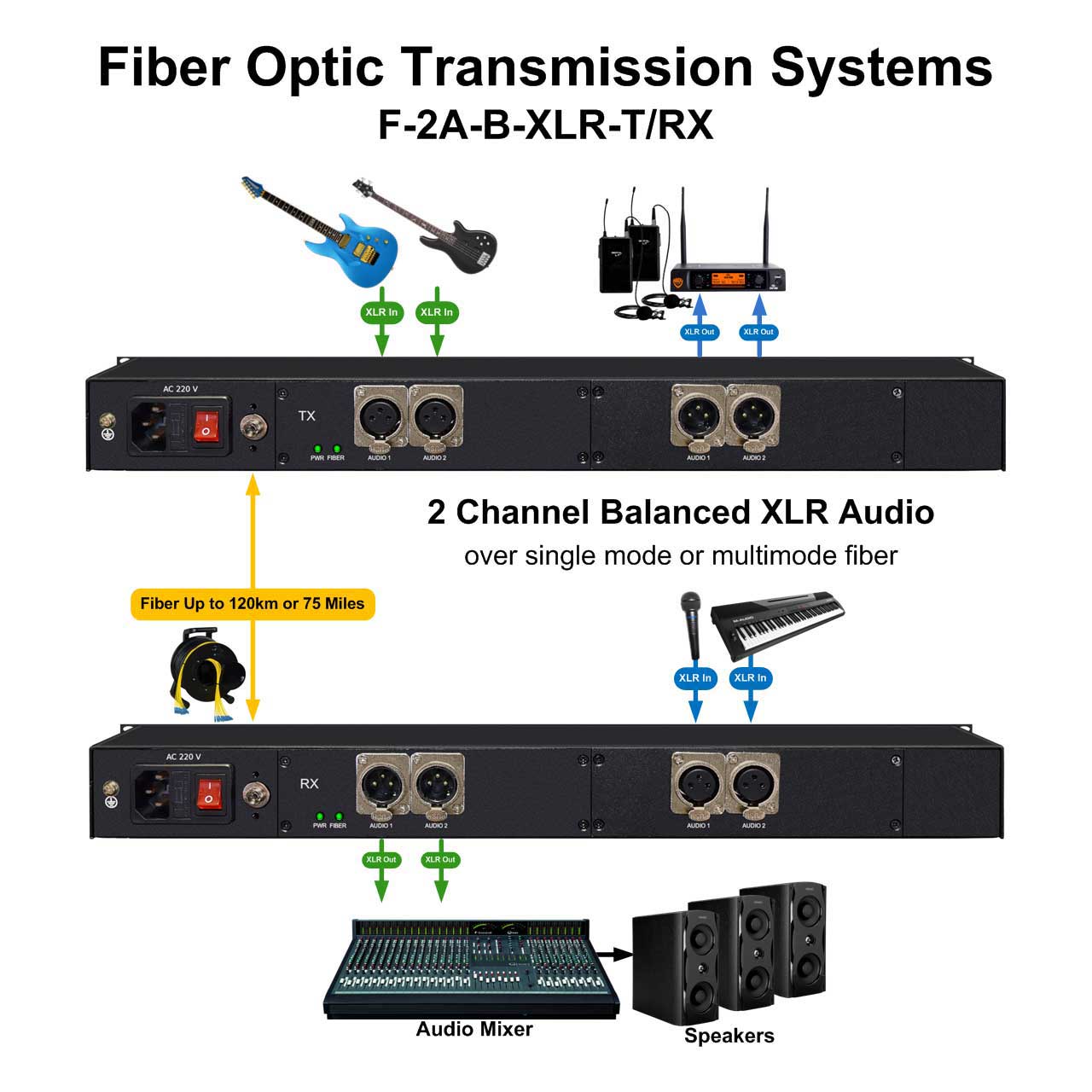

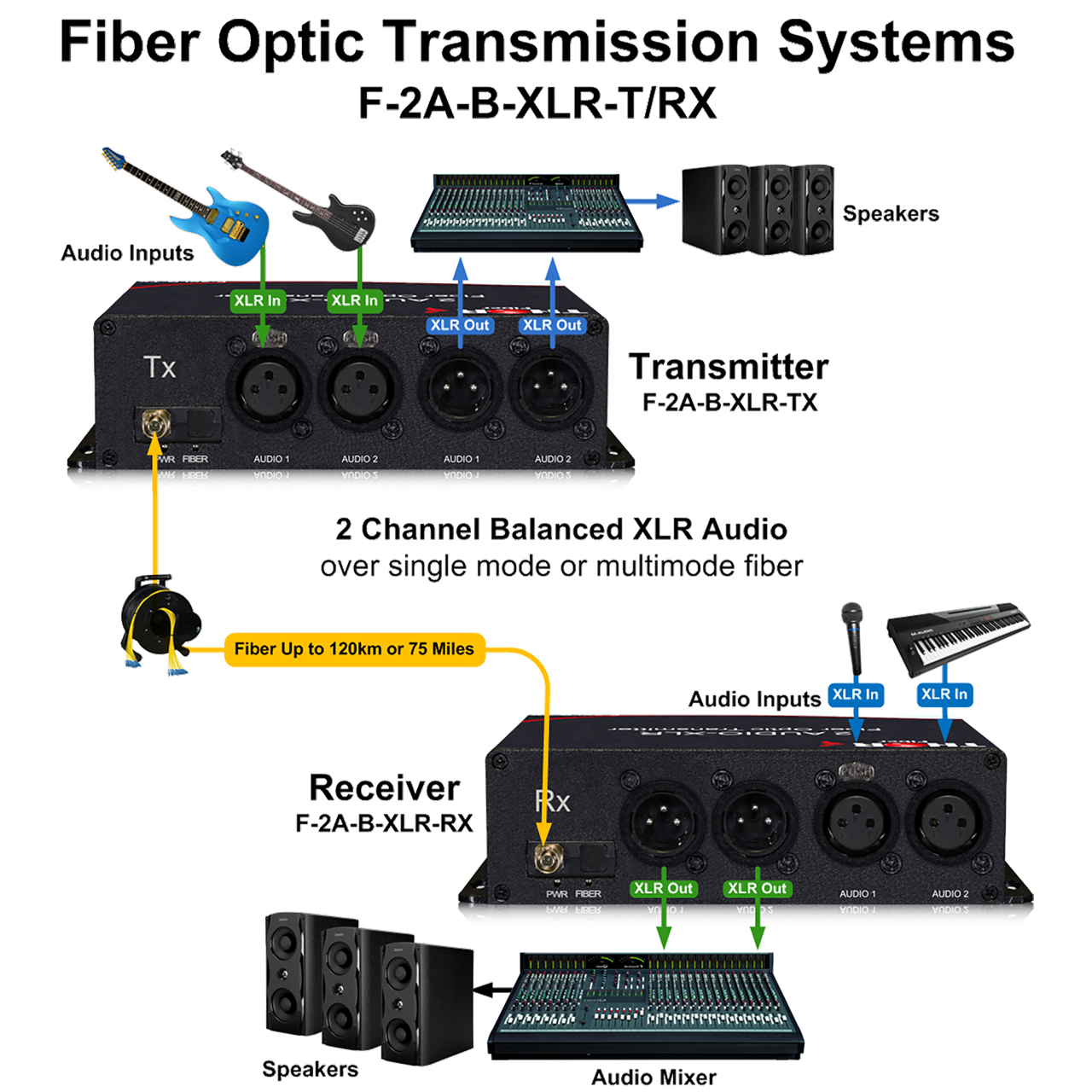

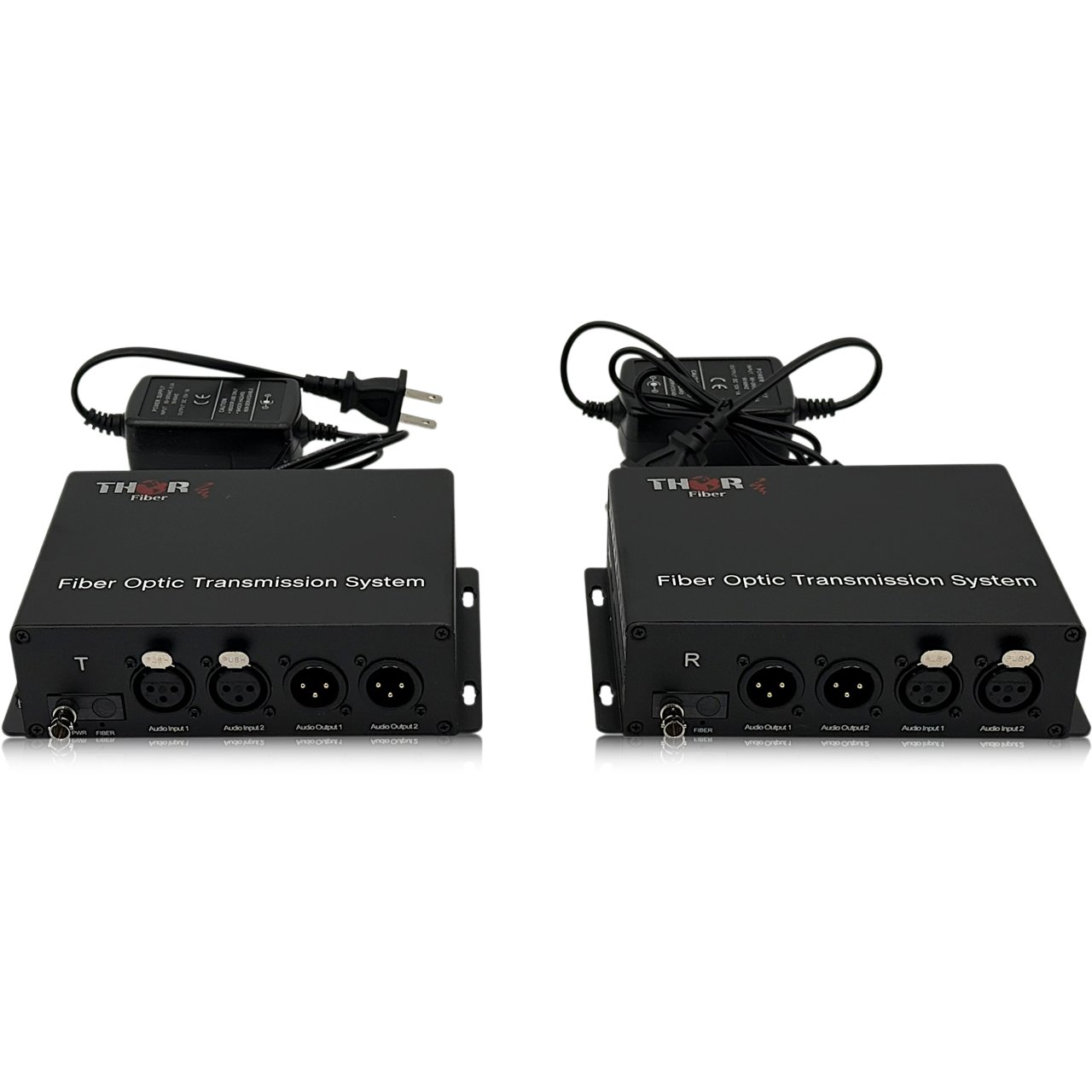

    The Thor Fiber F-2A-XLR-B-TXRX XLR audio over fiber units are able to send balanced audio over fiber much further than traditional copper. Their Audio Interface with XLR kit has both a transmitter and receiver unit. Available options are for 2, 4, 8, 16 or 32 XLR inputs/outputs can be used on a single transmitter unit and sent over fiber to the receiver unit that also has an equal number of XLR outputs. The fiber allows the signal to be sent over a long distance without losing any quality in the signal. The kit is 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. Thor XLR Audio Splitters are typically used in applications for Rental, Staging, Concerts, Theater, Churches, Stadiums, Theme Parks, Broadcast/Studio, Intercom, CCTV audio and Professional AV applications. Popular devices to use in conjunction with the XLR transmitter and receiver are: XLR Audio Mixers, Digital Audio Recorders with XLR IN/OUT and Audio signal Splitter with XLR. They are available for stand-alone or rack-mount installations. Their standard fiber connectors are ST/PC, but it could also be ordered as SC/PC or FC/PC. Basic units support up to 20Km of single mode / 3000 multimode fiber, other modes are available - 40km, 80km, 120km.

    • Features:

      • 3-Pin Balanced XLR Audio input/output
      • Uni-directional 2 or 4 or 8 or 16 or 32 Channel
      • Bi-directional over single fiber available on 2 and 4 Channel model

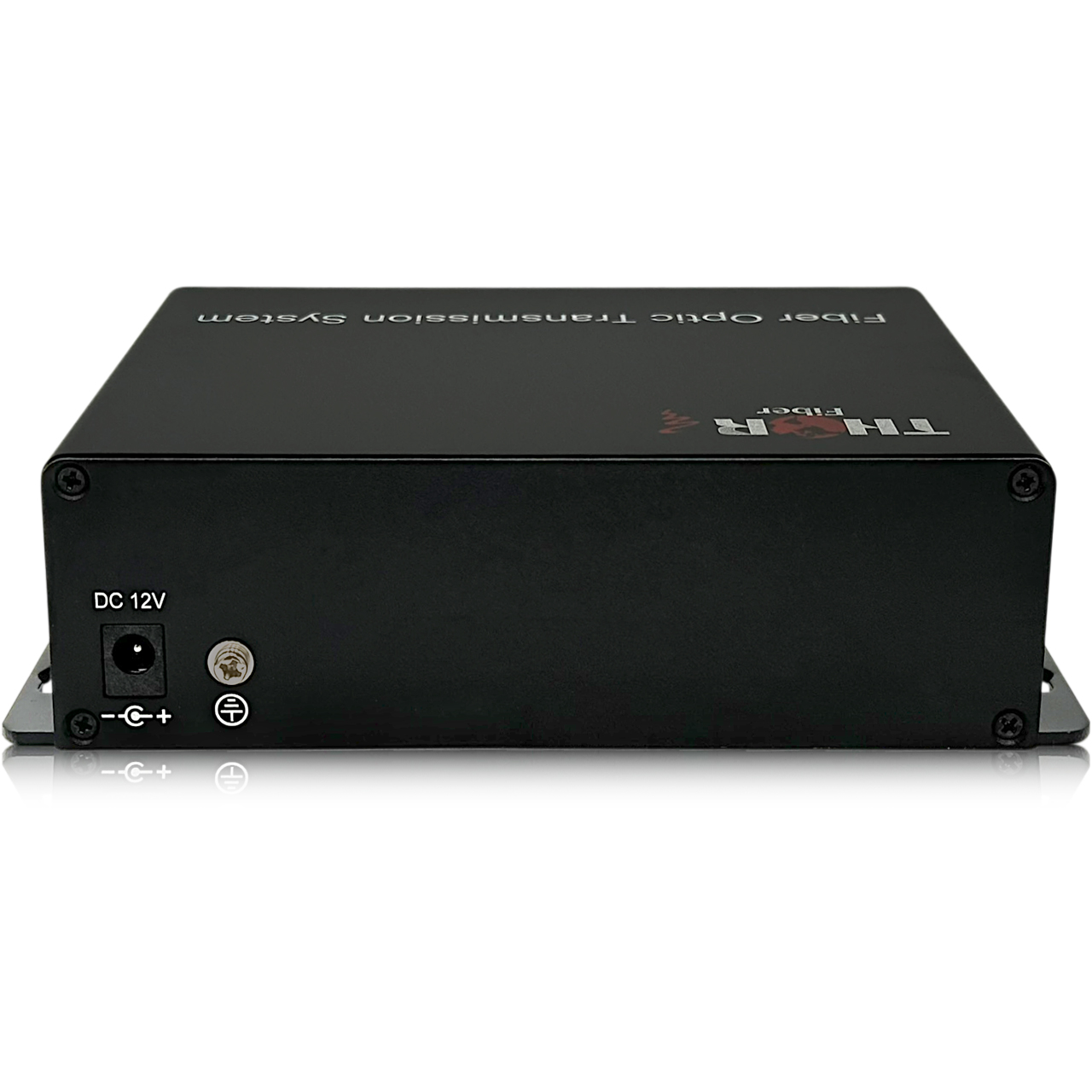

      • 12V DC Power input
      • Single mode fiber up to 20km, Multimode fiber up to 3000feet
      • Easy to Use, Plug and Play Units

    • Specifications:

      • Optical
      • Wavelength: 1310nm or 1310/1550 for bi-directional models
      • Output Power: -8dBm (+-2db)
      • Optic fiber: 50/125u multimode, 62.5/125u multimode, 9/125u single mode
      • Rx sensitivity: -25dBm
      • Optical connector: ST/PC (optional FC/PC, SC-PC)
      • Distance: 20Km for singlemode and 0~2KM (MM), 40, 80 120Km - model specific

        Balanced Audio
      • Number of Channels: 2 Input +2 Output
      • Input Connector: XLR (female)
      • Output Connector: XLR (male)
      • Input / Output Impedance: 10K Ohm
      • Input capacitance LINE inputs : 10 pF
      • Max input/output voltage: 2.0Vp-p (6db)
      • Frequency Response: 10 Hz - 20kHz @±3dB
      • Sample Rates From: 48kHz
      • SNR: > 80dB

        Electrical & Mechanical
      • Input Power Requirements: DC 5V@2A
      • Power Adapter: AC 90V~240V
      • Power Consumption: < 5W
      • Stand-Alone Dimensions (LxDxH): 6 3/4 x 4 1/2 x 1 3/4" (168 x 154 x 45mm) (for the mounting holes)
      • Shipping Weight (TX & RX): 5.51Lbs (2.5kg)

        Environmental
      • Operating Temperature: -4° to 167°F (-20° to 75°C)
      • Storage Temperature:: -40° to 185°F (-40° to +85°C)
      • Relative Humidity:: 0% ~ 95% (non-condensing)
      • MTBF:: >100,000 hours
