Thor F-M1SDI-TX/RX compact SDI fiber extender kits are designed to increase the range of digital SD-SDI or HD-SDI video signals over single mode or multimode fiber optic cable. SDI is normally carried over coax cable on BNC connectors, however, the maximum cable distance is limited to around 100 meters. Thor SDI extenders increase this distance to more than 80 miles by using lasers to send the data over fiber cable.

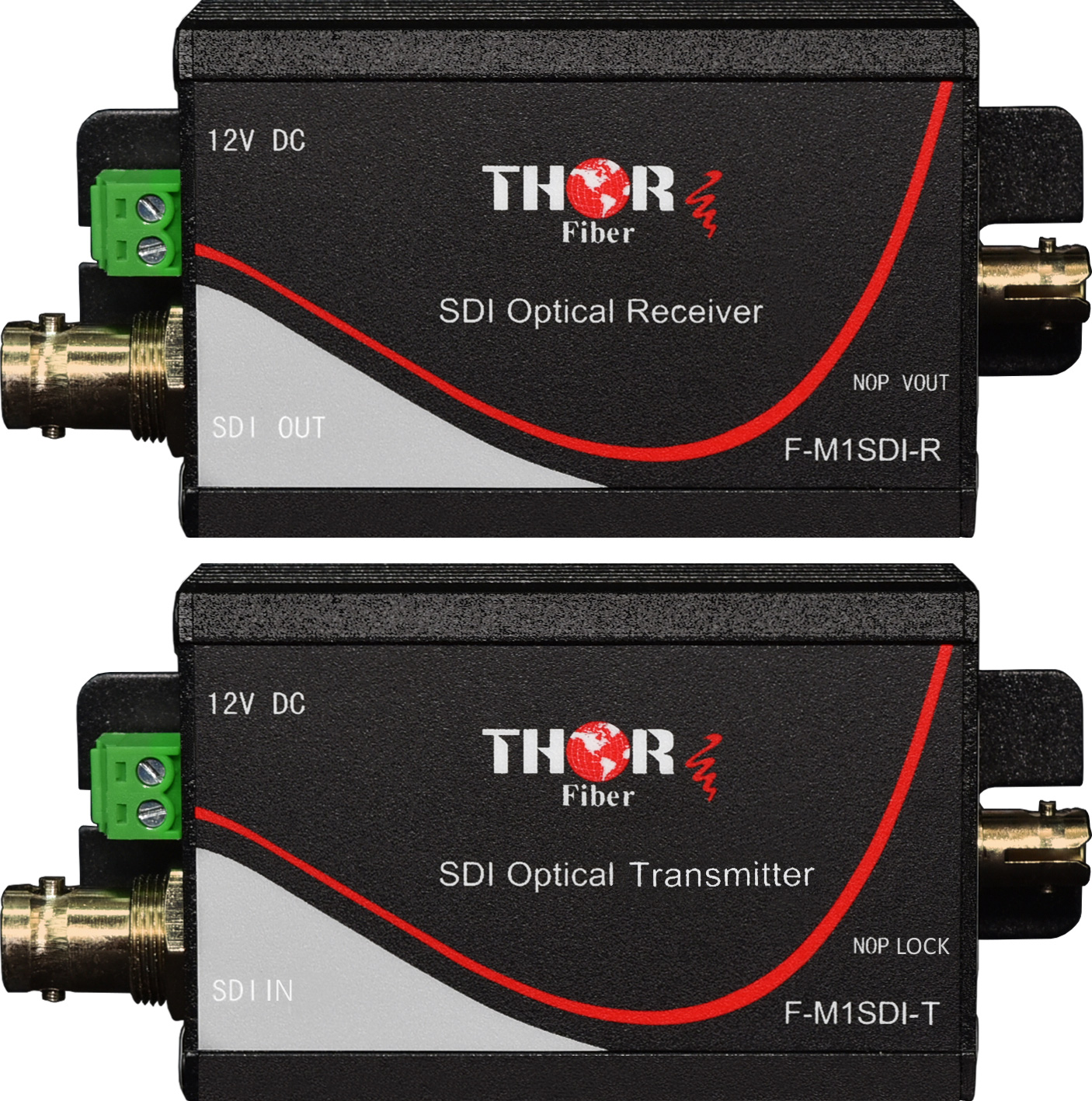

TX/RX kit F-M1SDI-TX/RX with SC/PC connector, supports single mode fiber up to 20Km or 2000 feet over multimode fiber

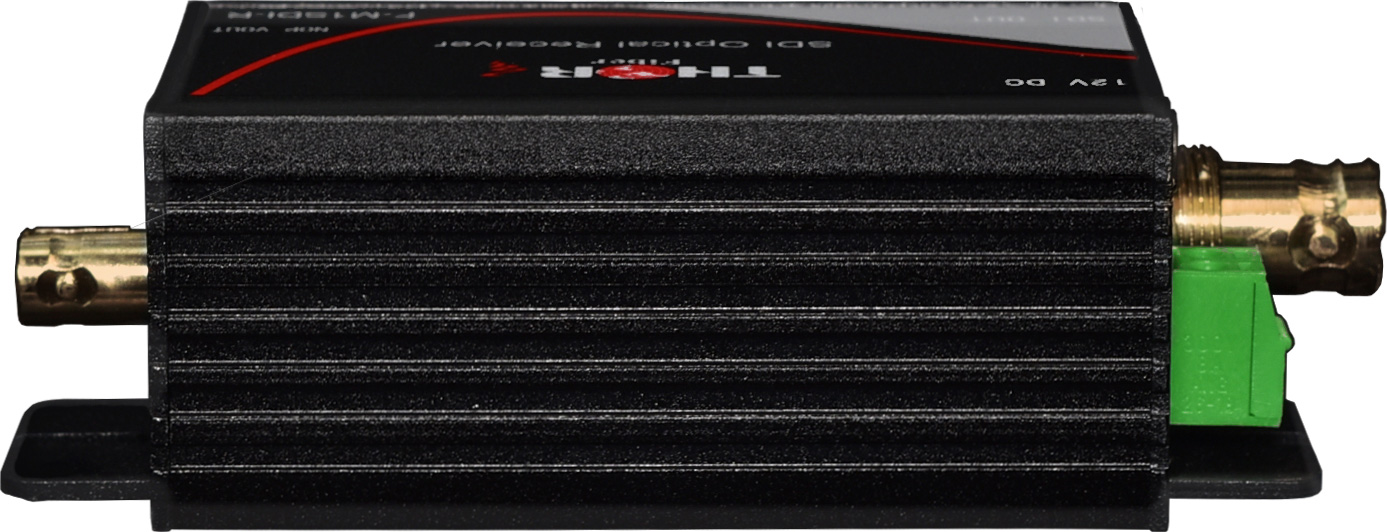

Cabled (coax-to-fiber) throw-down converter compact, rugged, and portable converter boxes. Super-easy to use, supports SMPTE 424M, 292M, and 259M as well as ASI and MADI audio. Its wide operating range from 5Mbps to 1.5Gbps, (3G-SDI 3Gbps model available*) supports most professional digital serial communications. Full error-free pathological pattern operation is fully compatible with professional fiber video interfaces.

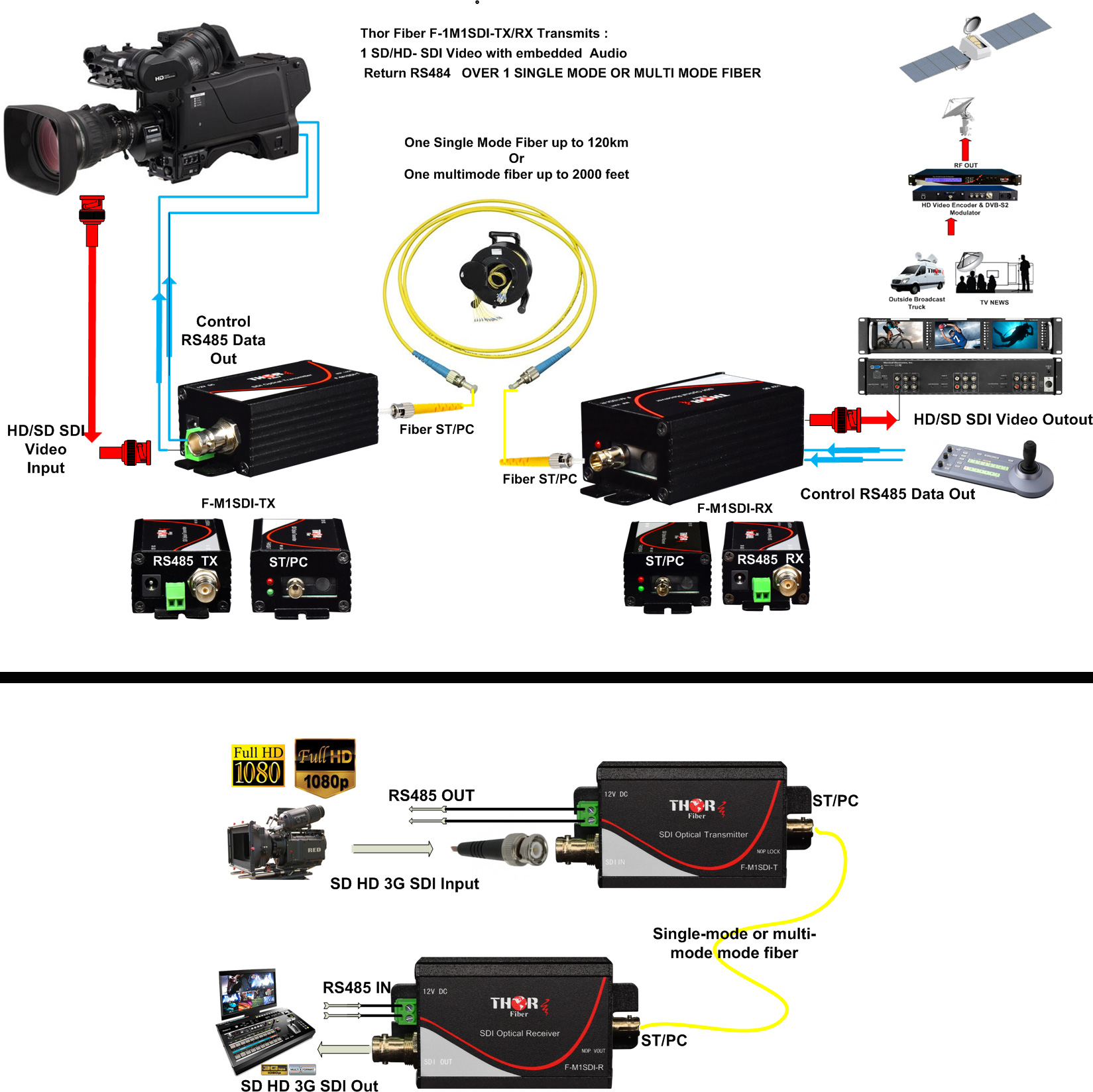

Single channel SDI fiber links are highly compact units that are suitable for a wide range of applications identical to where rattlers are used. Common uses include mounting on broadcasting cameras to simplify cable distribution. Another common application is for high end security systems. The F-M1SDI platform is ideal for security applications where the RS-485 serial data channel can be used to control pan, tilt, and zoom controllers at the camera mount. This also simplifies cabling.
