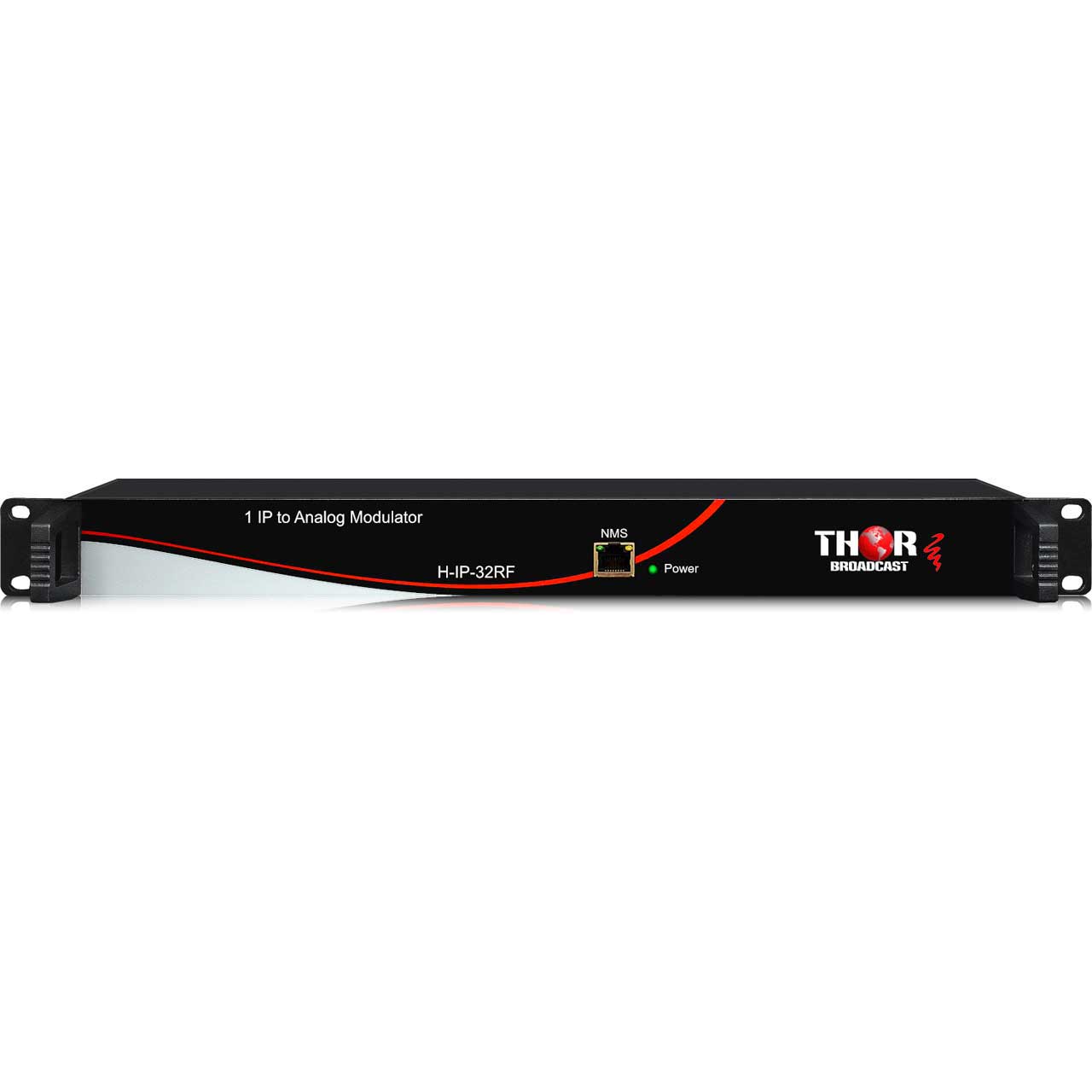

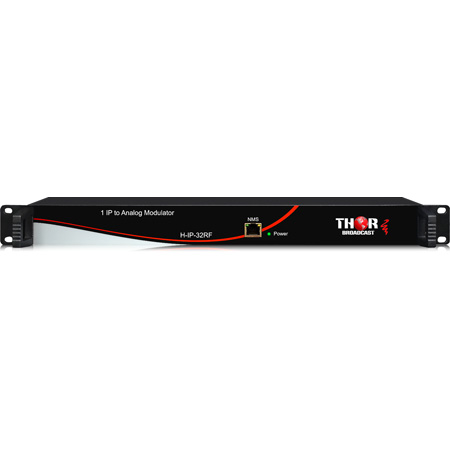

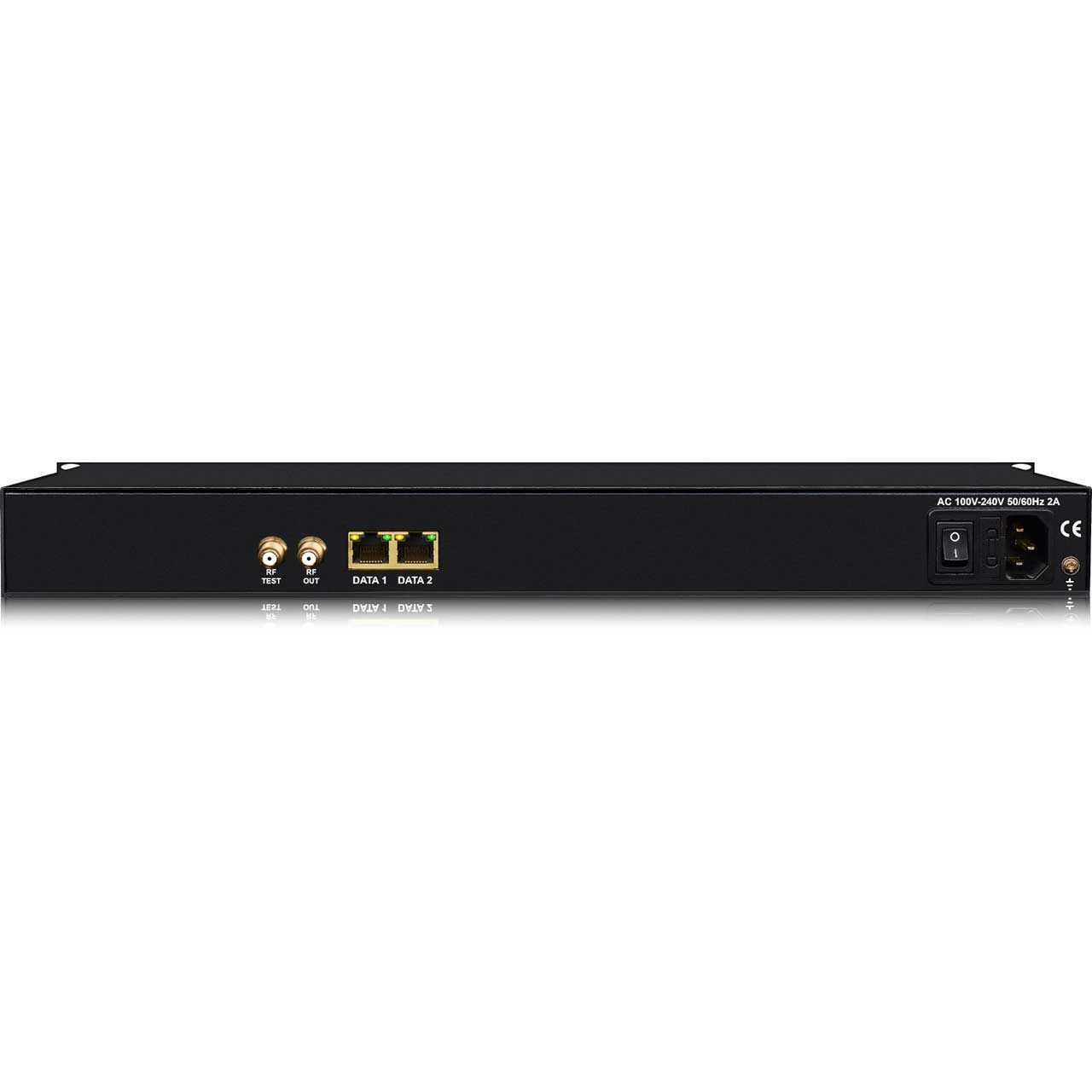

Thor H-IP-32RF IPTV to 32 RF channel Analog NTSC PAL Modulator

H-IP-32RF - Overview

• Features:

  • OSD (Logo and Caption) insertion, CC/Subtitle/Teletext
  • Program info modifies, multiple audio selection options
  • 2 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input
  • HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation

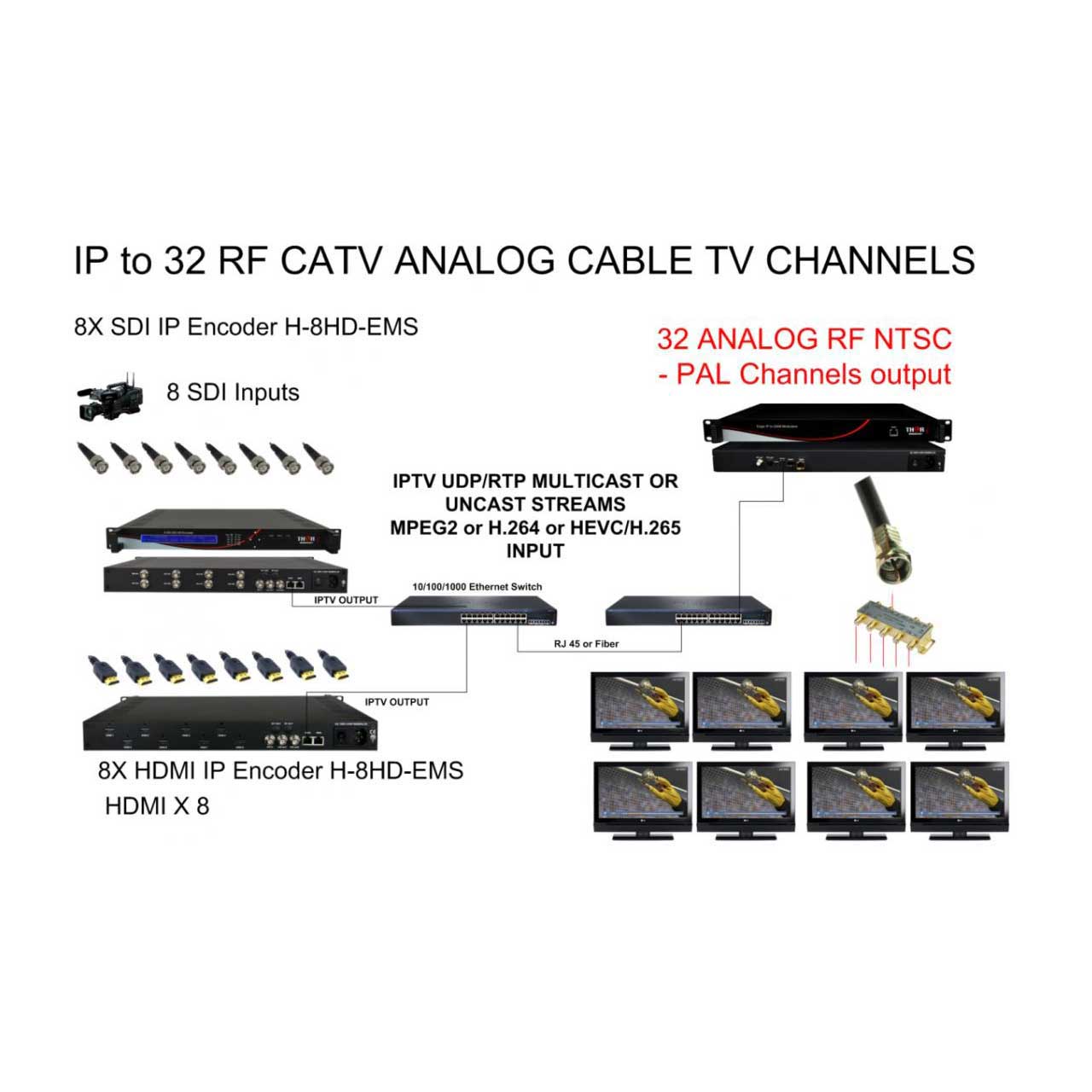

  • Processing of up to 32 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 32 standard PAL or NTSC
  • 32 non-adjacent or adjacent carriers output within 400MHz
  • Web-based Network management


• Specifications:

  • Input
  • Interface/rate: 2 GE ports (max 64 IP input) Max 840Mbps for each GE input
  • Stream: UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS
  • Transport Protocol: UDP/RTP, unicast and multicast, IGMP V2/V3
  • Packet Length: 188 / 204 Bytes

    Decoding Parameters
  • Video: HEVC/H.265, H.264/AVC Level 4.1 HP, MPEG-2 MP@HL
  • Audio: MPEG-1/2 Layer 1/2, (HE-)AAC, AC3 (Optional)
  • Data: Teletext, Teletext subtitles, DVB Subtitling
  • Resolutions:
    HEVC/H.265: 1080@60P, 1080@60I, 1080@50P, 1080@50I, 720@60P, 720@50P
    H.264/AVC: 1080@60I, 1080@50P, 1080@50I, 1080@30P, 1080@25P, 720@60P, 720@50P, 576@50I, 480@60I
    MPEG2: 1080@60I, 1080@50I, 720@60P, 720@50P, 576@50I, 480@60I
  • Aspect ratio: 4:3/16:9

    Modulation Parameters
  • Number of channels: Up to 32 non-adjacent or adjacent carriers output
  • Connectors: 75Ω, F-jack
  • Frequency range: 47 - 862MHz, digital modulation process
  • Output Bandwidth: 400MHz
  • Output level: maximum 112dBμV
  • Return loss: ≥ 14dB
  • Spurious frequency dist.: ≥ 60dB
  • Stereo cross talk: > 55dB
  • Residual carrier accuracy: 1%
  • TV standard: PAL B/G/D/K/M/N, NTSC M/J/4.43; SECAM (under development)
  • Video-signal to noise ratio: ≥ 60dB

    Network Interface
  • Management: 1x 100 Base-T Ethernet (RJ 45)
  • Data: 2x 1000 Base-T Ethernet (RJ 45)
  • Protocol: IEEE802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP, HTTP, IGMPv2/v3

    Others
  • Image resolution: up to 1080i
  • CNR: 60 dB (after internal combining)
  • SNR: > 53 dB (after internal combining)
  • Sampling frequency: 48, 44.1, 32
  • Output volume adjustment: 0 - 100 %

    General
  • Dimensions (WxLxH): 16 x 17 x 1.75" (420 x 440 x 44.5mm)
  • Operating Temperature: 32° to 113°F (0° to 45°C)
  • Storage Temperature: -4° to 176°F (-20° to 80°C)
  • Power Supply: AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz
