Thor Fiber F-RF-BR Thor Fiber CATV Fiber Break Solution that includes Thor Transmitter and Receiver

ITEM #: THR-RF-BR MFG #: F-RF-BR

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$3,594.00

Our Price:

$2,995.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    F-RF-BR - Overview

    Low cost RF Fiber Break for military and high security applications. RF Fiber Breaks are used to transport the RF over a single directional fiber link. This prevents signals from being passed in the return direction. Often times this is required for high security and military applications. These units are for short distance RF over fiber applications to create a single direction RF Fiber Break. Because of the nature of RF over fiber systems, signals can only travel in one direction without return path optics. Our standard units are for CATV band 45-870 MHz, but we can also provide units for satellite bands as well as other communication system frequencies. Coax cabling represents a serious security vulnerability to any location with access to highly sensitive data. Protect your facility today with low cost RF Fiber Breaks from Thor.

    • Features:

      • Low cost RF Fiber Break for Security Applications
      • All working parameters controlled by a microprocessor

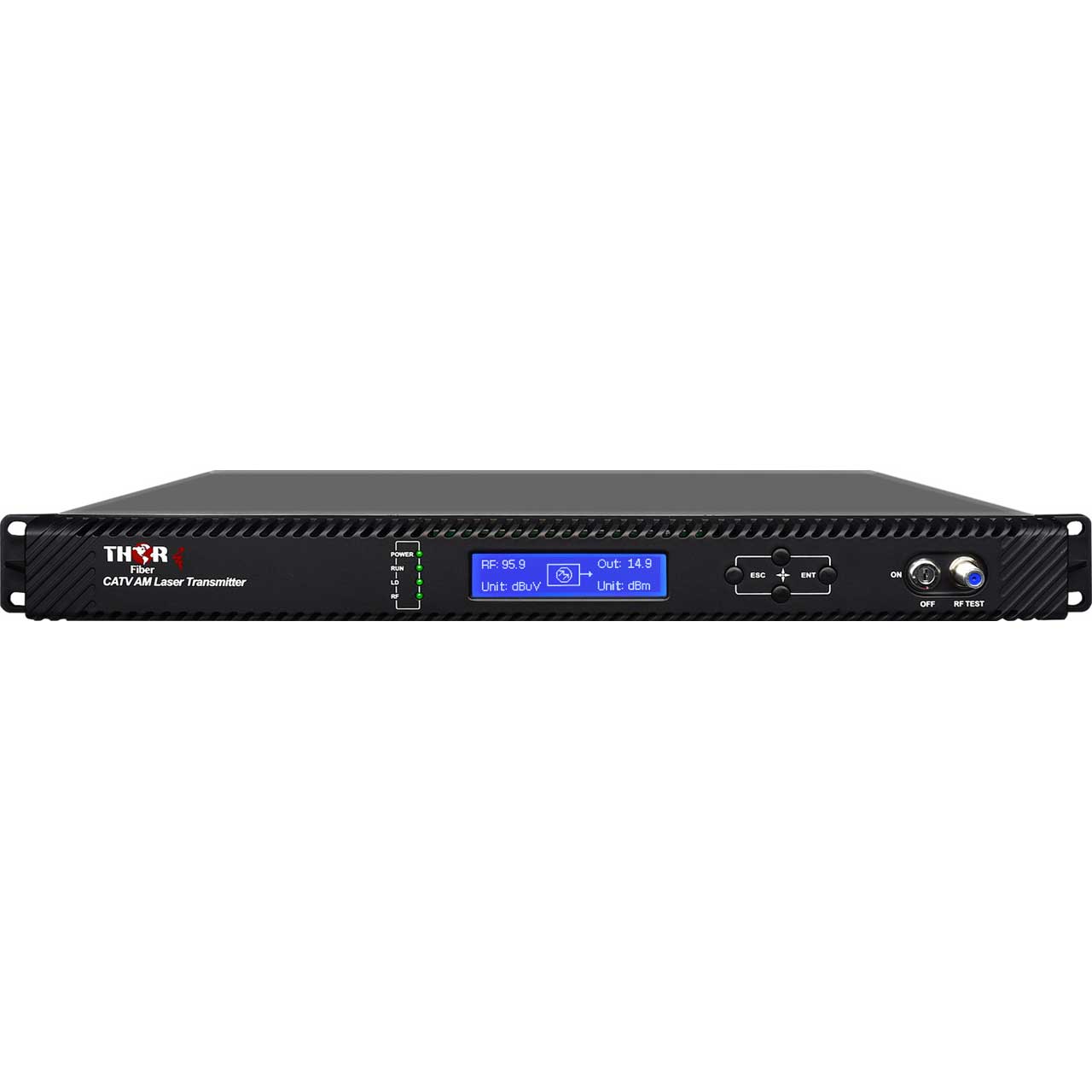

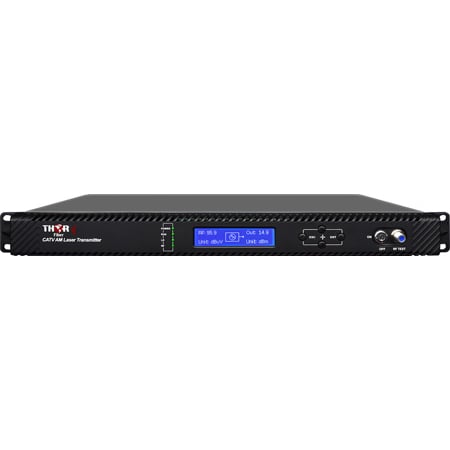

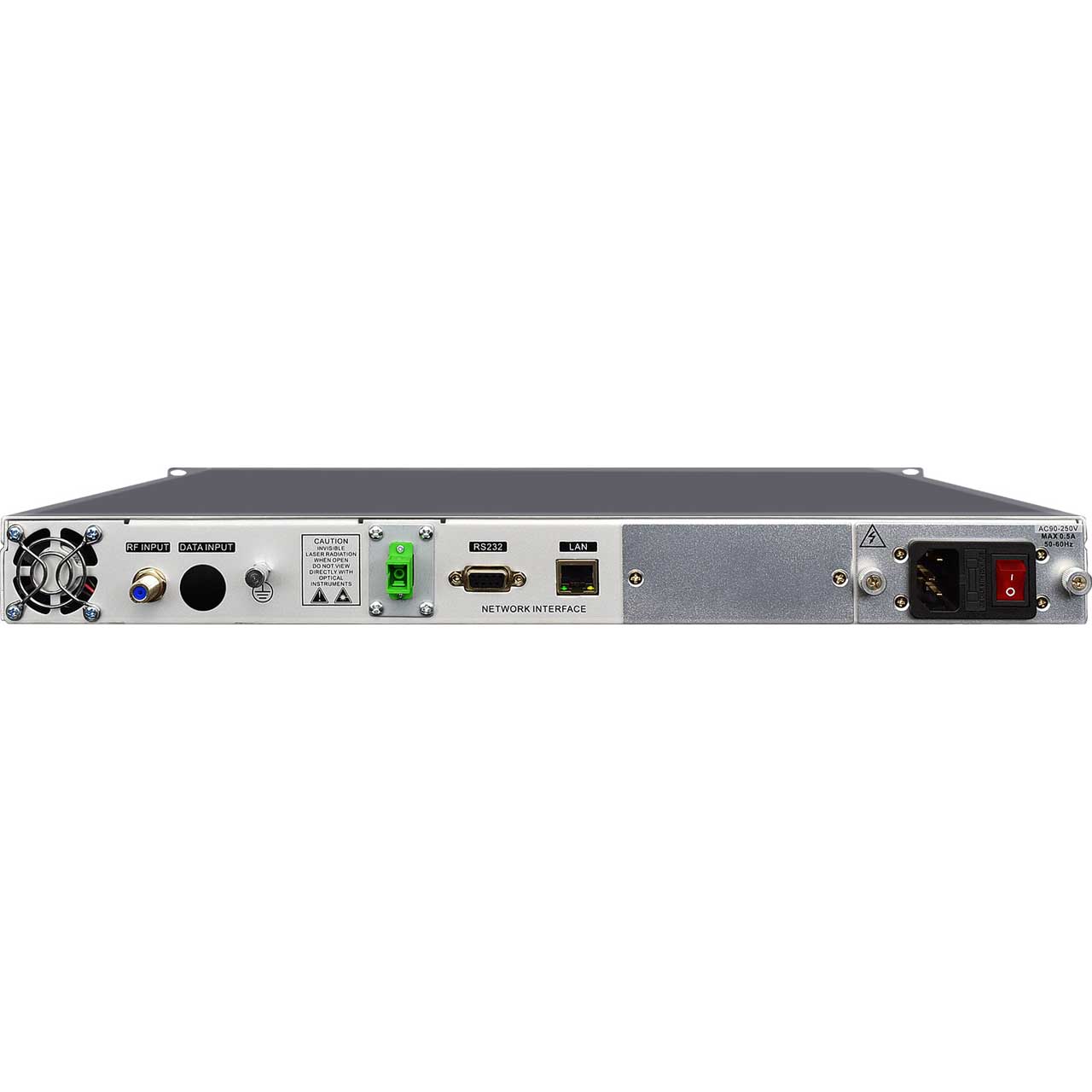

      • Form Factor 1 RU Transmitter
      • Includes Thor Transmitter, 1M Jumper, and Mini Receiver
      • Single Directional RF Transport
      • Easy & quick installation with everything included

    • Specifications:

      • Laser Power: 4mW
      • RF Frequency: 5-1000Mhz
      • Wavelength: 1310nm
      • Optical Power: > +3.5 dBm
      • Fiber Connector: SC/APC
      • RF Input Power: 19 - 21 dBmV
      • RF Connector: Type-F 75 Ohm
      • Power Input: 120-240 VAC
      • Power Rating: 50W
      • Dimensions: 19 x 10 x 1.75 IN
      • Termperature: -5 - 65 C

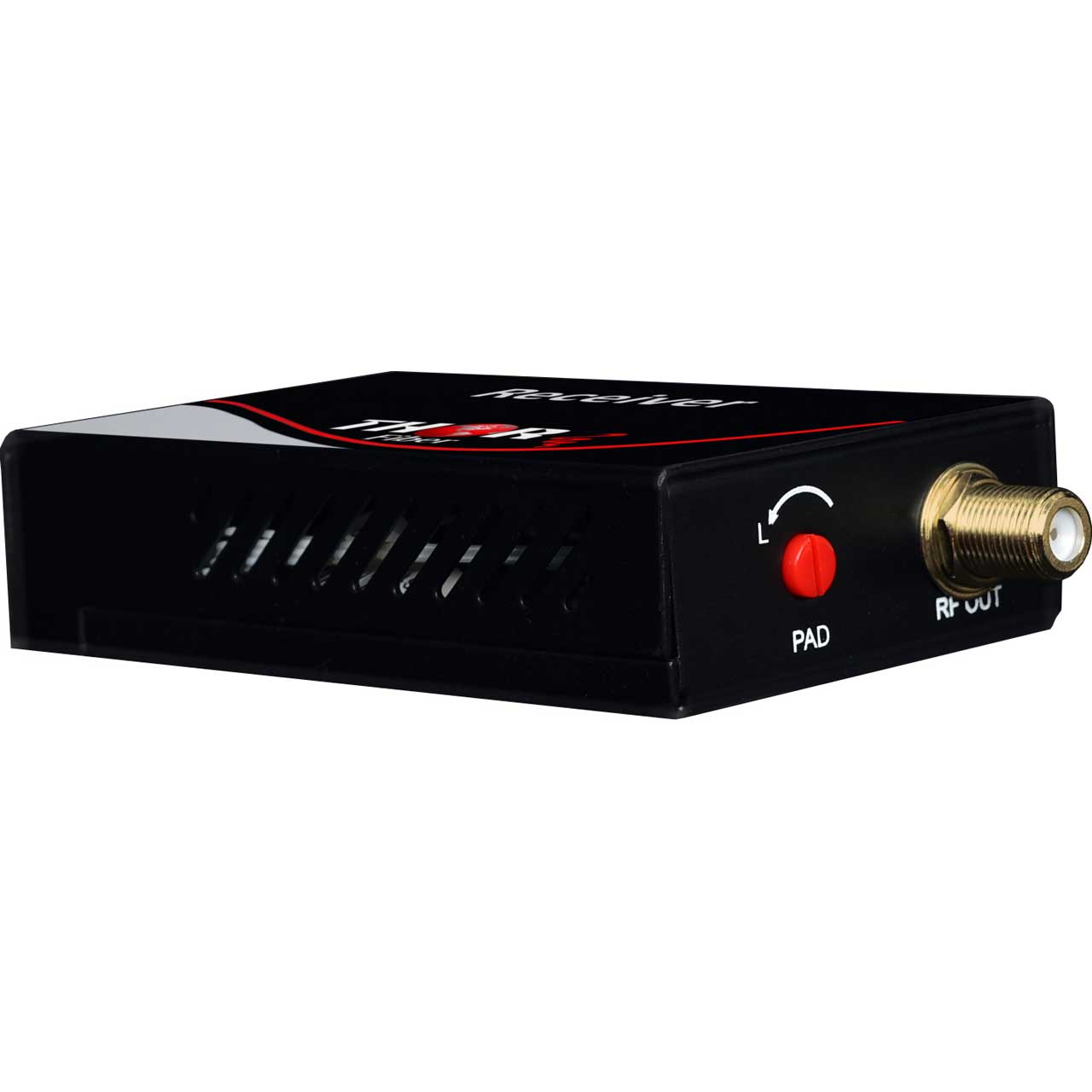

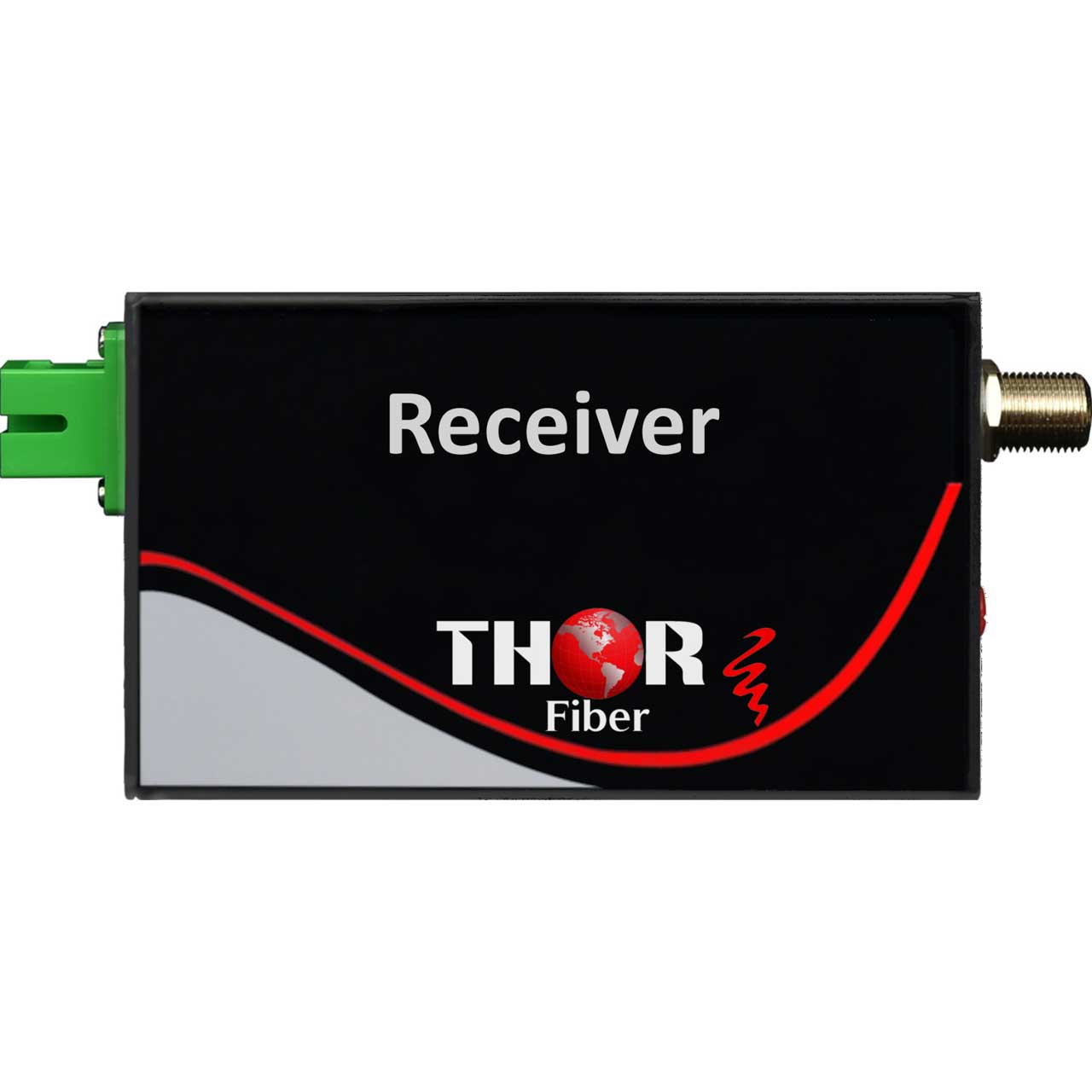

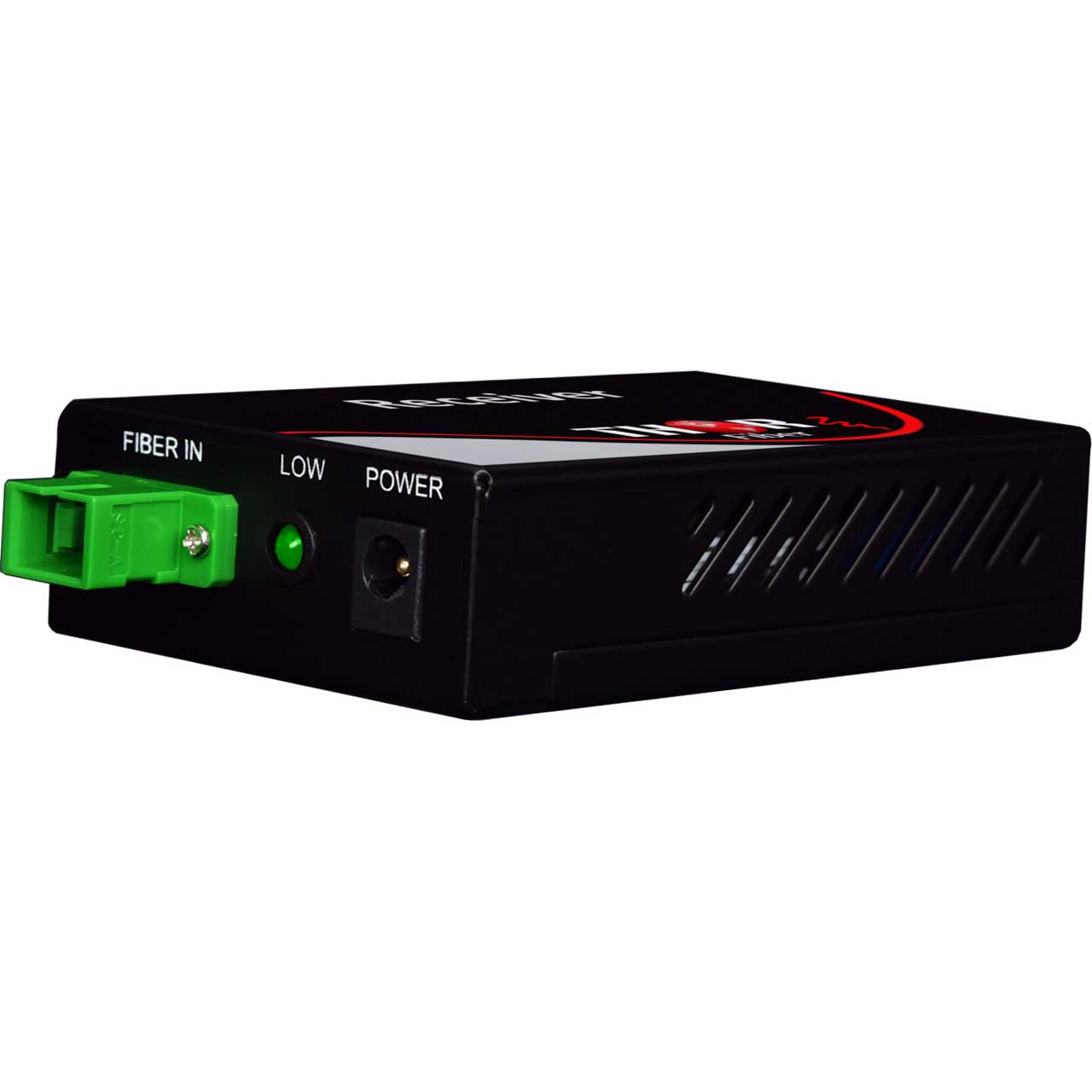

      • RF Receiver- Compact simple fiber Input and RF output
