Teracue DEC-300-HDSDI-PORTABLE H.264 and MPEG-2 SD Portable Decoder with HD/SD SDI Embedded Audio and Audio Video Output
  • Teracue DEC-300-HDSDI-PORTABLE H.264 and MPEG-2 SD Portable Decoder with HD/SD SDI Embedded Audio and Audio Video Output
  • Teracue DEC-300-HDSDI-PORTABLE H.264 and MPEG-2 SD Portable Decoder with HD/SD SDI Embedded Audio and Audio Video Output

Questions? Ask a Markertek Expert:
800-522-2025 Email

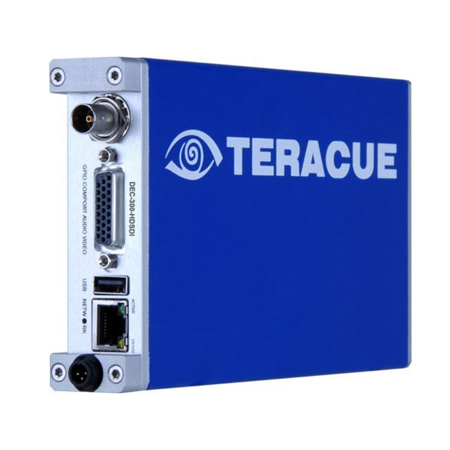

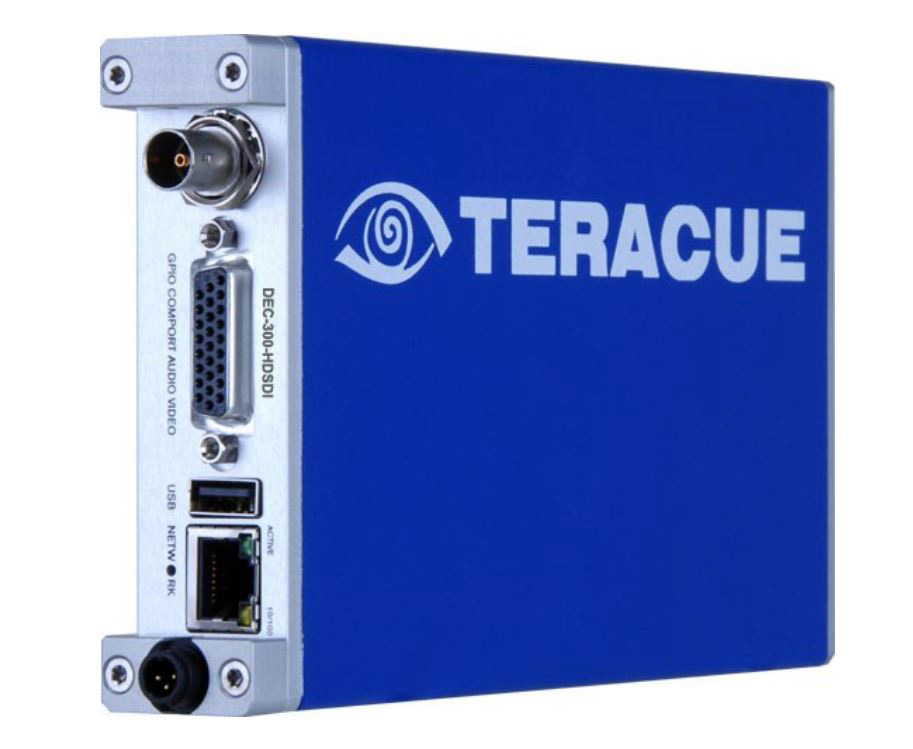

Teracue DEC-300-HDSDI-PORTABLE H.264 and MPEG-2 SD Portable Decoder with HD/SD SDI Embedded Audio and Audio Video Output

Manufacturer: Teracue

Item #: TRCU-DEC300HDSDI   •   MFG #: DEC-300-HDSDI




Our Price:$3,366.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





Required Accessories

    Show More

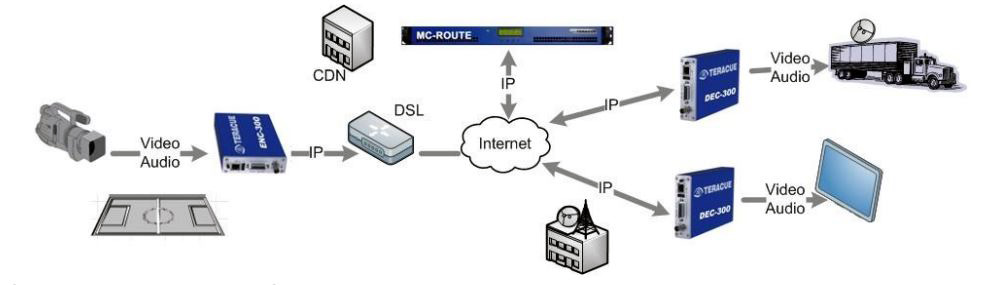

The DEC-300-HDSDI is a professional compact H.264 SD/HD and MPEG-2 SD/HD video/audio stream receiver and IPTV decoder. It is designed for network IP video system integration. As an output decoder device for streaming media it provides easy access to DVB IP and IPTV streams on HD-SDI and analog video outputs.

DEC-300 decoders incorporate low-latency compression technology and professional signal processing, creating full resolution video output in HD resolution. To access the intuitive graphical user interface use your standard web browser from any PC on the network. Remote network configuration is also supported over SNMP, by Telnet and by control over the local COM port.


  • Features

    • Robust hardware solution for 24/7 operation
    • Real-time hardware HD/SD device
    • H.264 and MPEG-2 HD/SD decoder
    • Forward error correction Pro-MPEG FEC
    • Low delay support
    • Talkback for audio conferencing
    • Export & import of presets
    • UDP & TCP (error correction) streaming
    • Low power consumption
    • Extended temperature range
    • Management by web interface

  • Specifications

    • Decoding
    • Standards: PAL, NTSC, 720p 50/60, 1080i 50/60, 1080p 25/30
    • Video Inputs: HD-SDI output: 0,8 VPP, 75 Ohm (BNC , embedded audio support); Breakout cable outputs: Composite, S-Video, Component
    • Video resolutions: Full D1: 720h x 480/576v, Half-D1: 352h x 480/576v, CIF/SIF: 360/384h x 288/240v, QCIF: 176h x 144/120v; 720p 50/60, 1080i 50/60, 1080p 25/30
    • Audio outputs: Unbalanced analog stereo, consumer line level
    • Audio inputs (Talkback): Analog stereo, consumer line- and MIC-level
    • Video codecs: MPEG-2 (ISO/IEC 13818-2), Main Profile at Main Level ([email protected]), 4:2:0; High Profile at Main Level ([email protected]), 4:2:0; MPEG-4 AVC/H.264 (ISO/IEC 14496-10), Main Profile at Level 3.1 ([email protected]); Baseline Profile at Level 3.1 ([email protected]), 4:2.0; High Profile at Level 4 ([email protected])
    • Stream types: Elementary A/V
    • Audio codecs: MPEG-1 Audio Layer 1, 2 (ISO/IEC 11172-3 Layer 1, 2); MPEG-4 AAC LC (ISO/IEC 14496-3)

      I/O
    • Network: 10/100TX Ethernet, RJ45, half/full duplex, auto-sensing
    • Streaming Traffic: Unicast and multicast traffic supported, TCP, RTP
    • IP Protocols: HTTP (web browser), TCP/IP control protocol, UDP/TCP streaming, IGMPv2, SNMP, DHCP
    • Error correction: Pro-MPEG FEC (forward error correction) and TCP
    • RS-232/422 port: RS-232 connection via console (remote control for non IP devices via TCP/IP RS-232/422 command tunneling)
    • GPI in: 1 INPUT, isolated
    • GPI out: 1 OUTPUT, isolated
    • USB port: (For future use)
    • Management: Web browser, SNMP, Telnet and RS-232, software updates via web browse; Fault measurement with log generation, authorization via user password, RTC (Real Time Clock) support

      Environmental
    • Agency approvals: CE, RoHS compliant
    • Humidity: Up to 90%, non-condensing
    • Temperature: -25 to +45°C environment temperature; fanless when operated as -PORTABLE
    • Weight: 1.54 lbs
    • Dimensions (H x W x D): 1.10 x 4.09 x 7.55 Inches
    • Power: 5Vdc ±10% / 8W per blade
    • Limited Warranty: 1 year standard limited warranty. Warranty extensions for up to 5 years available.
