Tripp Lite B118-002-UHD-2 2-Port HDMI Splitter - HDCP 2.2/4K @ 60 Hz/HDR/TAA

B118-002-UHD-2 - Overview

• Features:

  • Supports UHD resolutions up to 4K @ 60 Hz (3840 x 2160) for crystal-clear video
  • Distributes A/V up to 15 ft. when used with 28 AWG HDMI cable
  • Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
  • Expand the number of connected displays, up to 32, by cascading up to 3 levels of splitters together
  • Plug-and-play operation with no software required for easy, immediate installation
  • 3-year limited warranty


• Specifications:

  • Video
  • Max Supported Video Resolution: 3840 x 2160 (4K) @ 60Hz
  • Max Supported Color Depth: 36-bit Deep Color
  • HDR Support: Yes
  • 3D Video Supported: Yes

    Audio
  • Audio Specification: DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound

    Input
  • AC Power Adapter Plug(s): NEMA 5-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
  • AC Power Adapter Input Specs (V / Hz / A): 100-240V / 50/60HZ / 0.35A
  • AC Power Adapter Output Specs (V / A): 5V / 2A
  • AC Power Adapter Cord Length (ft.): 4.0
  • AC Power Adapter Cord Length (m): 1.2
  • Voltage Compatibility (VAC): 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
  • Product Length (in.): 3.61
  • Product Length (ft.): 0.300

    Power
  • Power Source Type: AC Adapter
  • Power Over Cable (PoC) Support: No
  • AC Adapter: Input: 100-240V, 50/60Hz, 0.35A; Output: 5V, 2A, 4 ft
  • DC Barrel Plug: OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve

    User Interface, Alerts & Controls
  • LED Indicators: (x1) Green (Power), (x2) Orange (Signal)

    Physical
  • Color: Black
  • Material of Construction: Metal
  • Cable Length (ft.): 0
  • Included Mounting Accessories: Yes
  • Rackmountable: Yes
  • Shipping Dimensions (hwd / in.): 2.17 x 7.24 x 6.46
  • Shipping Weight (lbs.): 0.99
  • Unit Dimensions (hwd / in.): 2.160 x 6.450 x 7.240
  • Unit Packaging Type: Box
  • Unit Weight (lbs.): 0.187

    Environmental
  • Operating Temperature Range: 32° to 104°F
  • Storage Temperature Range: 5° to 122°F
  • Relative Humidity: 0% to 85% RH, Non-Condensing

    Communications
  • EDID Compatible: Yes
  • IR Remote Extension Support: No
  • RS-232 Serial Extension Support: No

    Connections
  • Number of Ports: 2
  • Side A - Connector 1: HDMI (FEMALE)
  • Side B - Connector 1: (2) HDMI (FEMALE)
  • Connector Plating: Nickel
  • Input x Output: 1 x 2

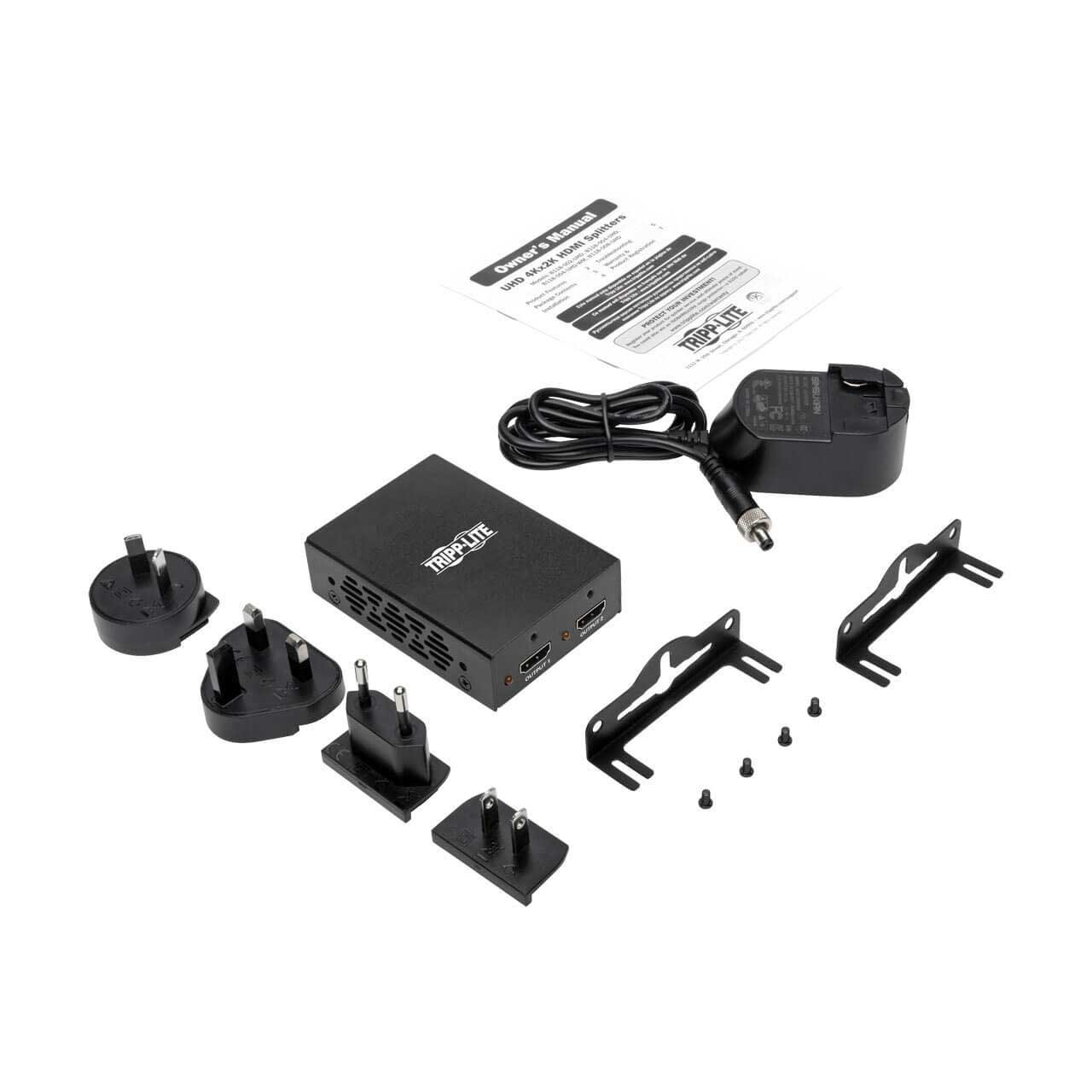

• Item Includes:

  • B118-002-UHD-2 2-Port 4K 3D HDMI Splitter.
  • External power supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A).
  • International plug adapters (North America, Europe, U.K. and Australia).
  • Mounting hardware
  • Owner's manual


• GTIN:

  0037332200648
