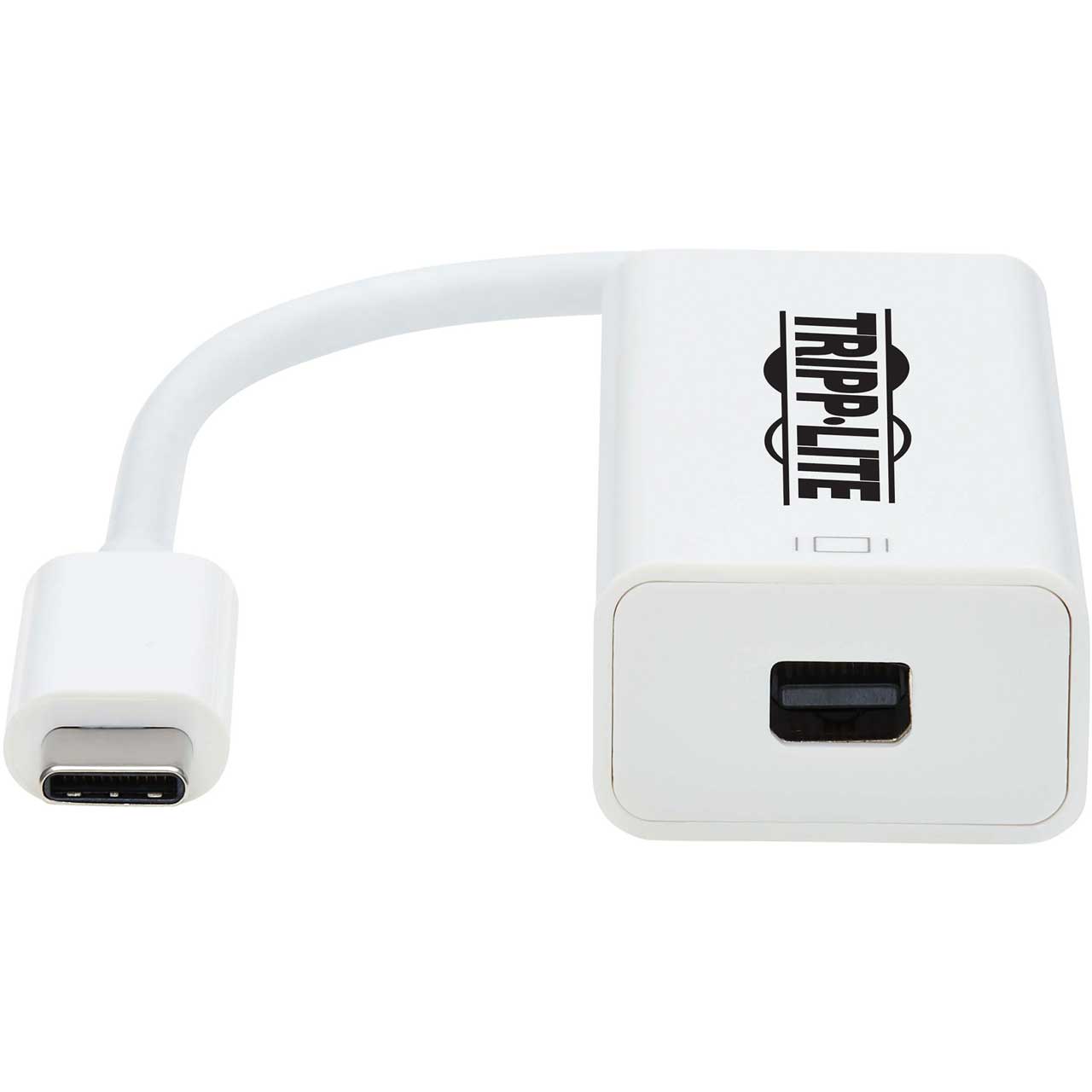

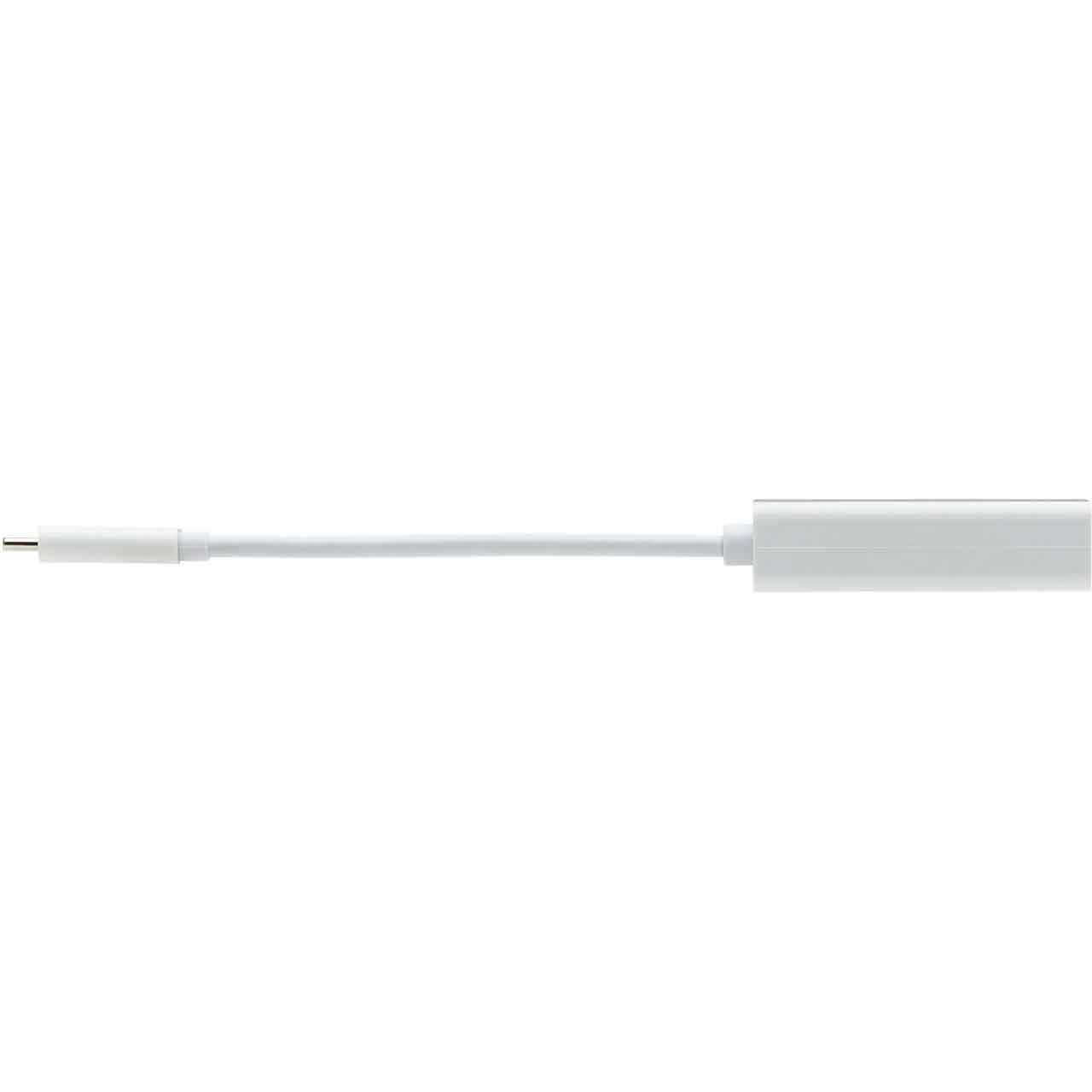

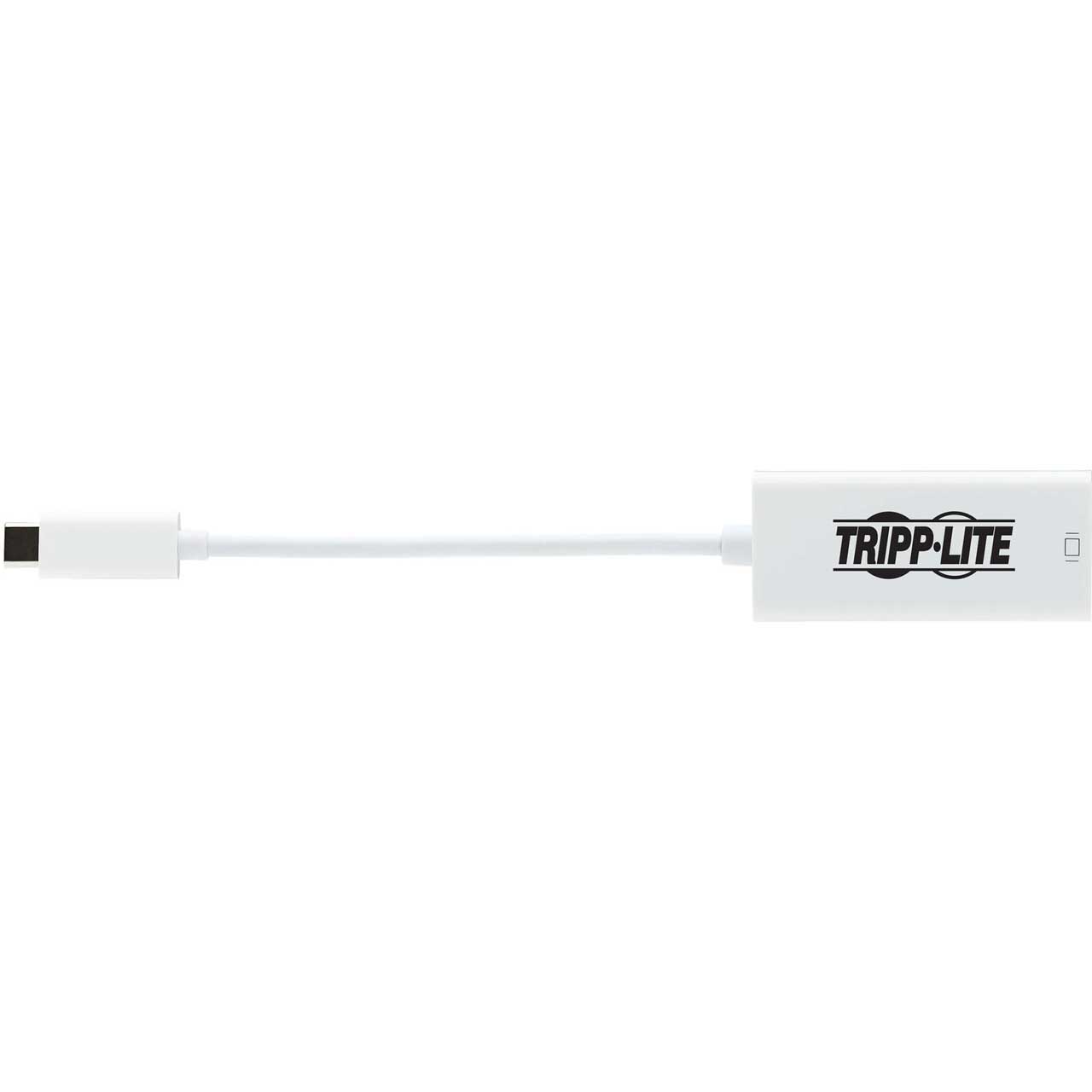

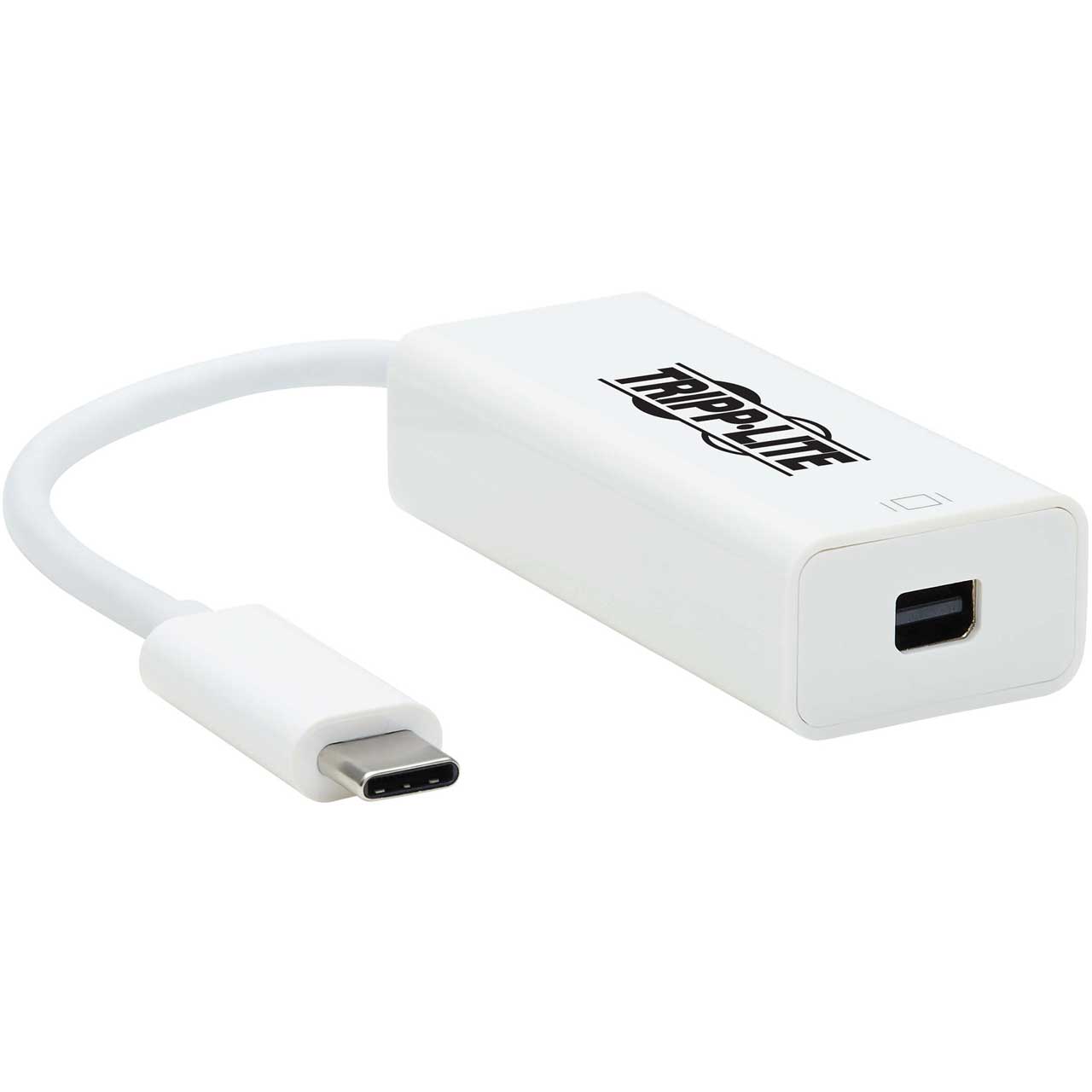

Tripp Lite U444-06N-MDP8W USB-C to Mini DisplayPort Adapter Cable with Equalizer 8K - White - 6 Inch

ITEM #: TRL-U44406NMDP8W MFG #: U444-06N-MDP8W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$80.41

Our Price:

$34.00

Availability: In Stock
iAvailability Description Popup


    U444-06N-MDP8W - Overview

    USB-C to mDP Converter Gets Your Gaming, Home Theater or Digital Signage Setup 8K-Ready
    This high-speed USB Type-C to Mini DisplayPort adapter (M/F) connects a Mini DisplayPort monitor, projector or television to the USB-C or Thunderbolt 3 port on your MacBook Pro, Windows laptop, tablet or media center. Backward compatible with all your existing USB-C sources and Mini DisplayPort displays, the U444-06N-MDP8W is ideal for future-proofing your 1080p or 4K audio/video application in anticipation of an 8K upgrade. It flawlessly handles data transfer speeds up to 32 Gbps.

    Supports USB-C DisplayPort 1.4 Alternate Mode for Converting Audio/Video Signals
    By connecting the USB-C cable to a source device that supports USB DisplayPort 1.4 Alt Mode, you can output 8K video and digital audio to a Mini DisplayPort monitor, television or projector without installing special software drivers. The cable is backward compatible with DP 1.2 Alt Mode signals.

    Enjoy the Clarity of 4K/8K Video with Digital Audio, HDR and 4:4:4 Color
    The U444-06N-MDP8W supports Ultra High Speed 8K video resolutions up to 7680 x 4320 at 30 Hz, as well as 48-bit Deep Color and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper b that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. An equalizer built into the Mini DisplayPort connector automatically adjusts the video image to perfect clarity.

    Reversible USB-C Connector Attaches in Either Direction
    Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time.

    Ready to Use Right from the Package, So You Can Plug and Play Immediately
    The plug-and-play USB Type-C to Mini DisplayPort adapter requires no software or external power. Just connect the USB-C plug to the USB-C or Thunderbolt 3 port on a source device that supports USB DisplayPort Alternate Mode, and connect the Mini DisplayPort end to your monitor or HDTV with a Mini DisplayPort cable (sold separately).

    • Features:

      • Converts audio/video signals from sources supporting USB DisplayPort Alt Mode
      • Supports UHD resolutions up to 8K @ 30 Hz (4:4:4) for enhanced video without latency
      • Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
      • Reversible USB-C plug connects in either direction for immediate no-fuss use
      • Uni-directional plug-and-play cable directs A/V signals only from USB-C to mDP

    • Specifications:

      • Video
      • Max Supported Video Resolution: 8K @ 60Hz (4096 x 2160)
      • Max Supported Color Depth: 48-bit True Color

        Physical
      • Color: White
      • Cable Outer Diameter (OD): 3.9MM
      • Cable Jacket Material: PVC
      • Cable Jacket Rating: VW-1
      • Wire Gauge (AWG): 34/28
      • Cable Length (ft.): 0.5
      • Cable Length (in.): 6
      • Material of Construction: PVC, ABS
      • Shipping Dimensions (hwd / in.): 0.78 x 4.72 x 3.93
      • Shipping Weight (lbs.): 0.09
      • Unit Packaging Type: Box
      • Unit Weight (lbs.): 0.070

        Environmental
      • Operating Temperature Range: 32 to 113 °F (0 to 45 °C)
      • Storage Temperature Range: 14 to 158 °F (-10 to 70 °C)
      • Operating Humidity Range: 10 - 85% RH, NON-CONDENSING
      • Storage Humidity Range: 5 - 85% RH, NON-CONDENSING

        Connections
      • Ports: 1
      • Side A - Connector 1: USB C (MALE)
      • Side B - Connector 1: Mini Displayport (FEMALE)
      • Connector Plating: Nickel
      • Contact Plating: Gold

        Features & Specifications
      • HDMI Specification: 1.2;1.4
      • HDCP Specification: 1.4;2.2
      • USB Specification: USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
      • Certifications: RoHS, REACH, CE, FCC, WEEE, ISO9001

    • Item Includes:

      • 1x U444-06N-MDP8W USB-C to Mini DisplayPort Adapter Cable, M/F, White, 6 in.
      • 1x Instruction sheet

    • Warranty:

      • 3 Year Limited Warranty

    • GTIN:

      0037332255587
