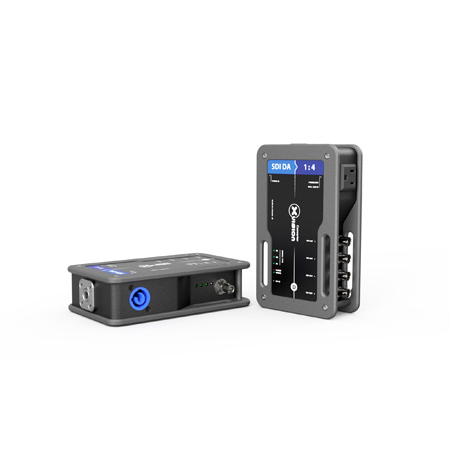

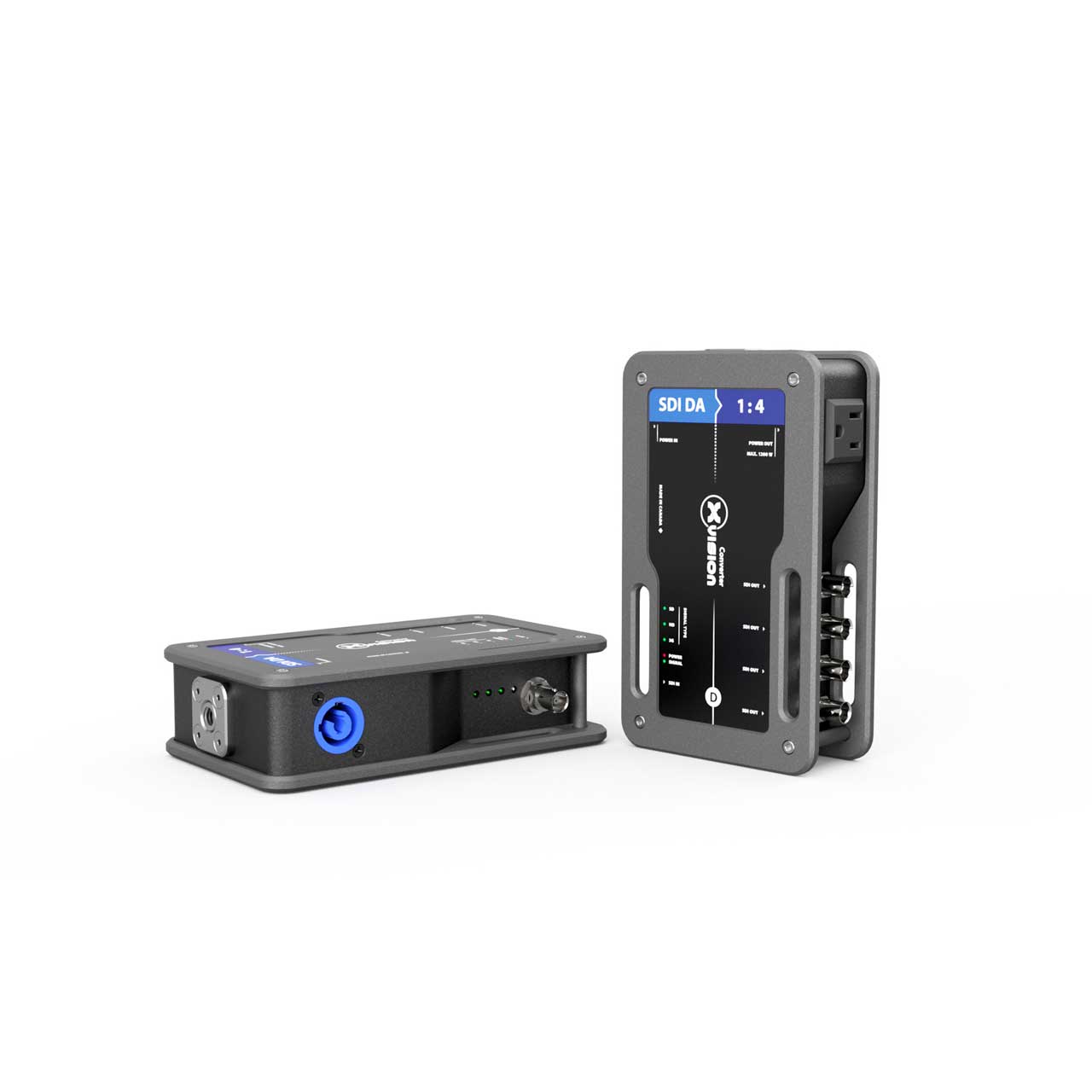

Theatrixx XVV-SDIDA xVision 1x4 SDI Video Distribution Amplifier


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    XVV-SDIDA - Overview

    Professional equipment in mission-critical applications is all about reliability and confidence. So we built the xVision SDI 1x4 Video DA in a super rugged chassis and designed it to be your most trustworthy piece of equipment. Simply input your 3G-SDI source and get 4 fully reclocked and amplified outputs capable of sending the SDI signal up to 330 feet.

    True Power & Go Operations
    It just works. Automatic signal detection means no dipswitches, buttons or menus to fumble with - just add power and you're ready to go. Status LEDs will deliver confidence that you have a signal as well as offering quick troubleshooting.

    Built to Last Magnetic Chassis

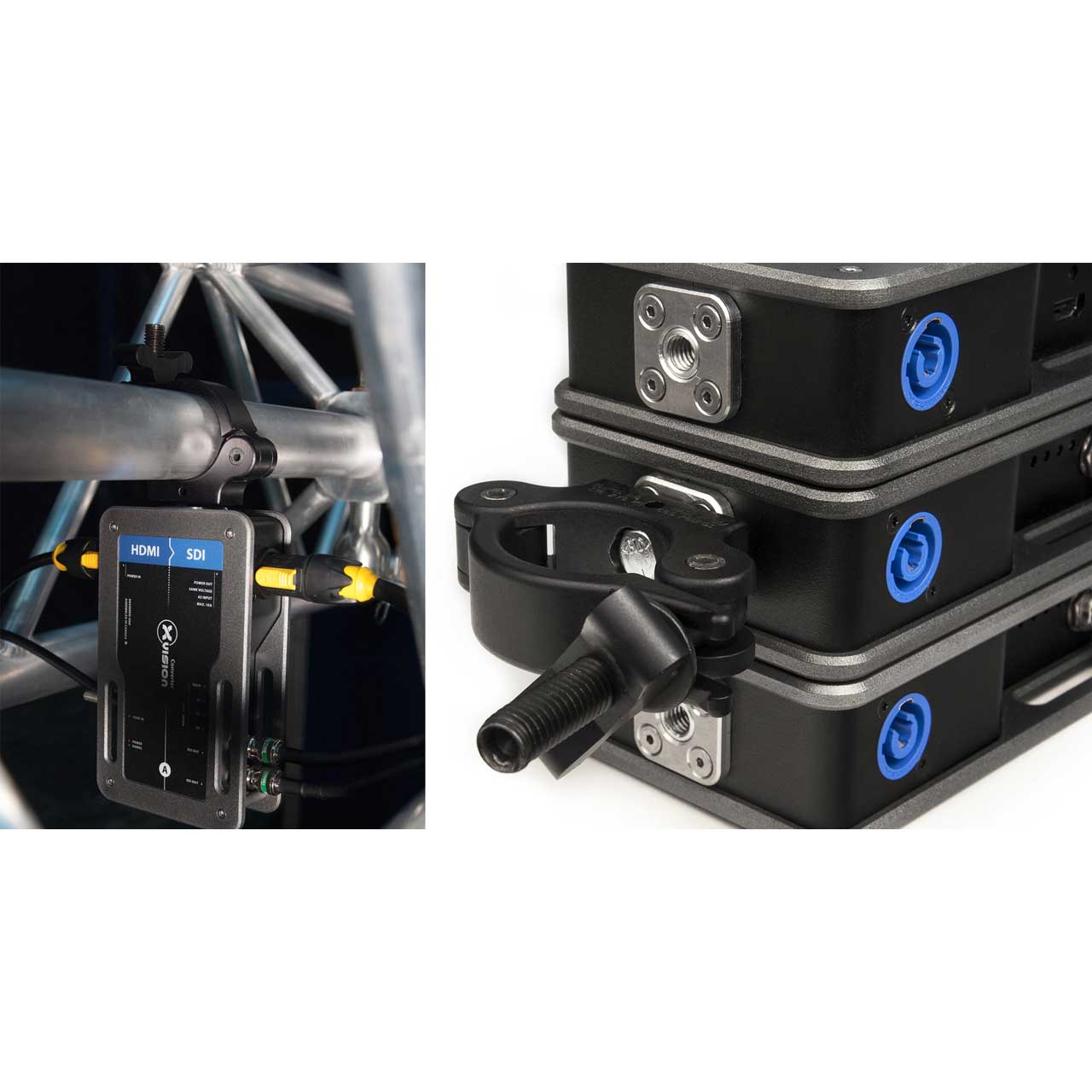

    xVision is the world's first video converter truly designed for field applications meant to withstand harsh conditions. Each unit is encompassed by a heat dissipating aluminum chassis with built in connector protection. The chassis has magnetic mounts on the top and bottom for simple stacking and clustering when the action calls for it.

    No More Wall Warts
    xVision converters feature an integrated power supply with locking PowerCON connectors. Never rely on a cluster of wall-warts again! In addition, units have a built-in 120V standard Edison outlet to power cameras, projectors, TVs, laptops and more.

    • Features:

      • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
      • Built-in convenience 120V outlet to power nearby projector, TV, laptop, small video projector - Power bar to power both the converter and device not required anymore.
      • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
      • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
      • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
      • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
      • Clear and ample status LED indicators for quick troubleshooting.
      • Easy on-the-field identification with unique color and alphabetic coding system.
      • All ouputs fully reclocked and amplified.
      • Proudly designed and assembled in Canada.
    • Specifications:

      • Connections
      • Video Input: 3G/HD/SD SDI BNC
      • Video Output: 4 x 3G/HD/SD SDI BNC

      • Supported Signals
      • 3G Format Support: 1080p50, 1080p59.94, 1080p60.
      • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50,
      • 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97,
      • 1080p30, 1080PsF30

      • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL.
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit.
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically detects incoming signal format.

      • Power Requirements
      • Power Supply: Built-in power supply, PowerCON input, Edison Nema 5-15 output
      • Power Consumption: 25W
      • Operational Voltage Range: 90-125V, 90-250V also available (with PowerCON True1)

      • Physical Specifications
      • Height: 50mm (1.97in)
      • Depth: 180mm (7.08in)
      • Width: 107mm (4.21in)
      • Weight: 1kg (2.2lbs)
      • Relative Humidity 0% to 90% non-condensing

      • Optional Accessories
      • XVV-RK - xVision Video Converter Rigging Kit
      • XVV-MW - xVision Video Converter Wall Mount Adapter
      • XVV-MT - xVision Video Converter LCD Mount Adapter
      • XVV-CC1 - xVision Video Converter Carrying Case for 1 unit
      • XVV-CC2 - xVision Video Converter Carrying Case for 2 units
    • Item Includes:

      • xVision converter SDI DA 1x4
      • Edison to PowerCON (1m)
    • GTIN:
