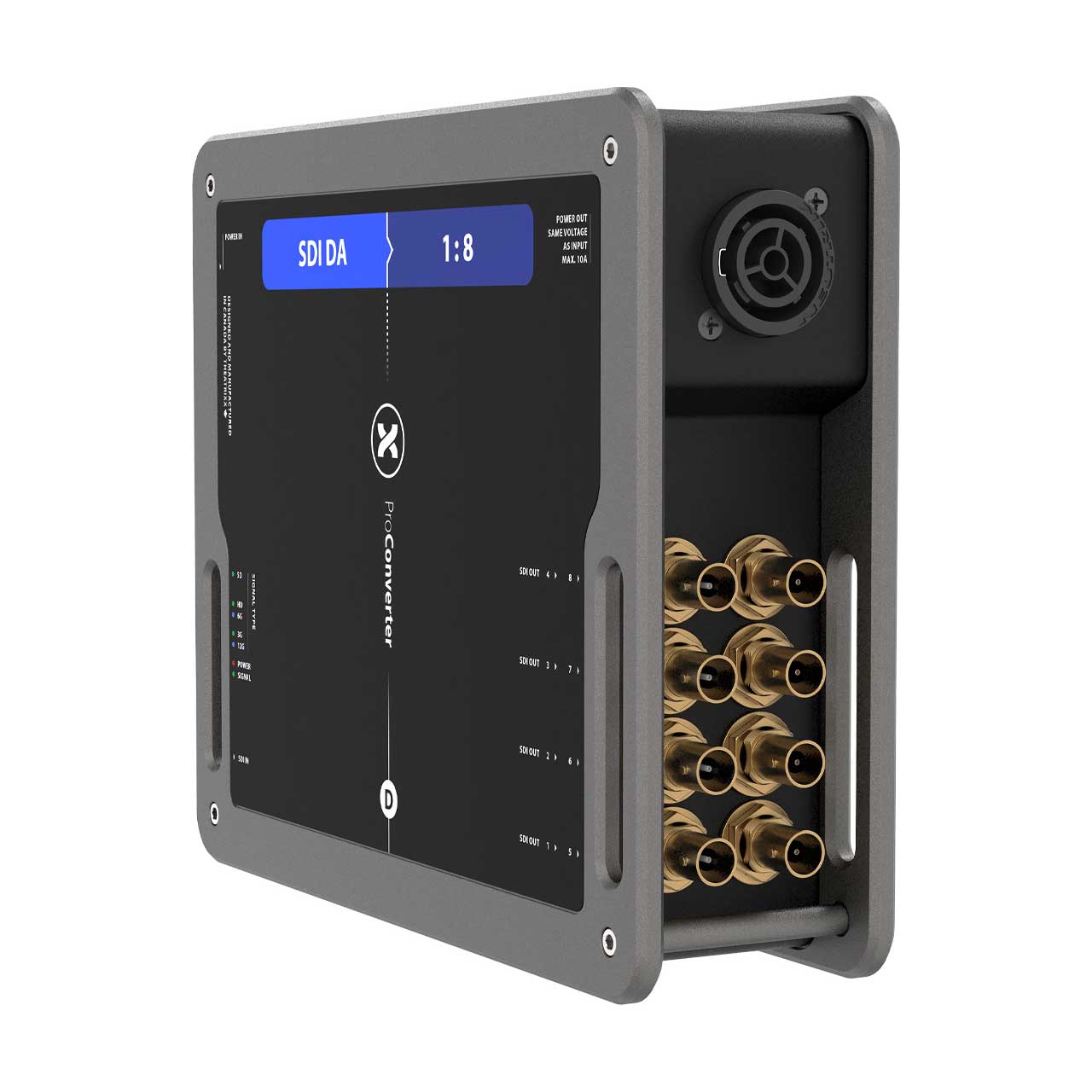

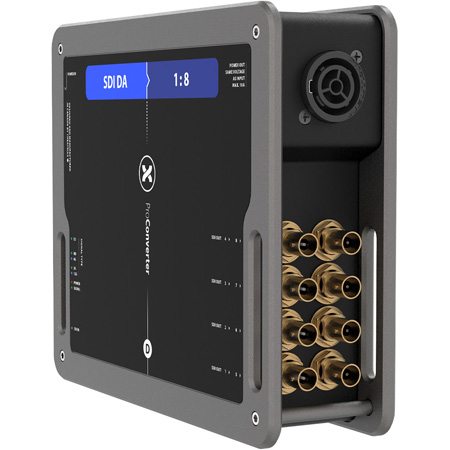

Theatrixx XVVSDIDA8 xVision Converter - 12G-SDI Video Distribution Amplifier 1:8 (2020) B - Sized

ITEM #: TTX-XVVSDIDA8 MFG #: XVVSDIDA8

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TTX-XVVSDIDA8

XVVSDIDA8 - Overview

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world's first video converters truly designed for the road.

Video converters nowadays are used everywhere on profesional A/V events, presentations, live shows and tours and often have a critical role, yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the XVVSDIDA8 xVision Video Converter.

  • Features:

    • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience 120V outlet to power nearby projector, TV, laptop, small video projector (Power bar to power both the converter and device not required anymore.)

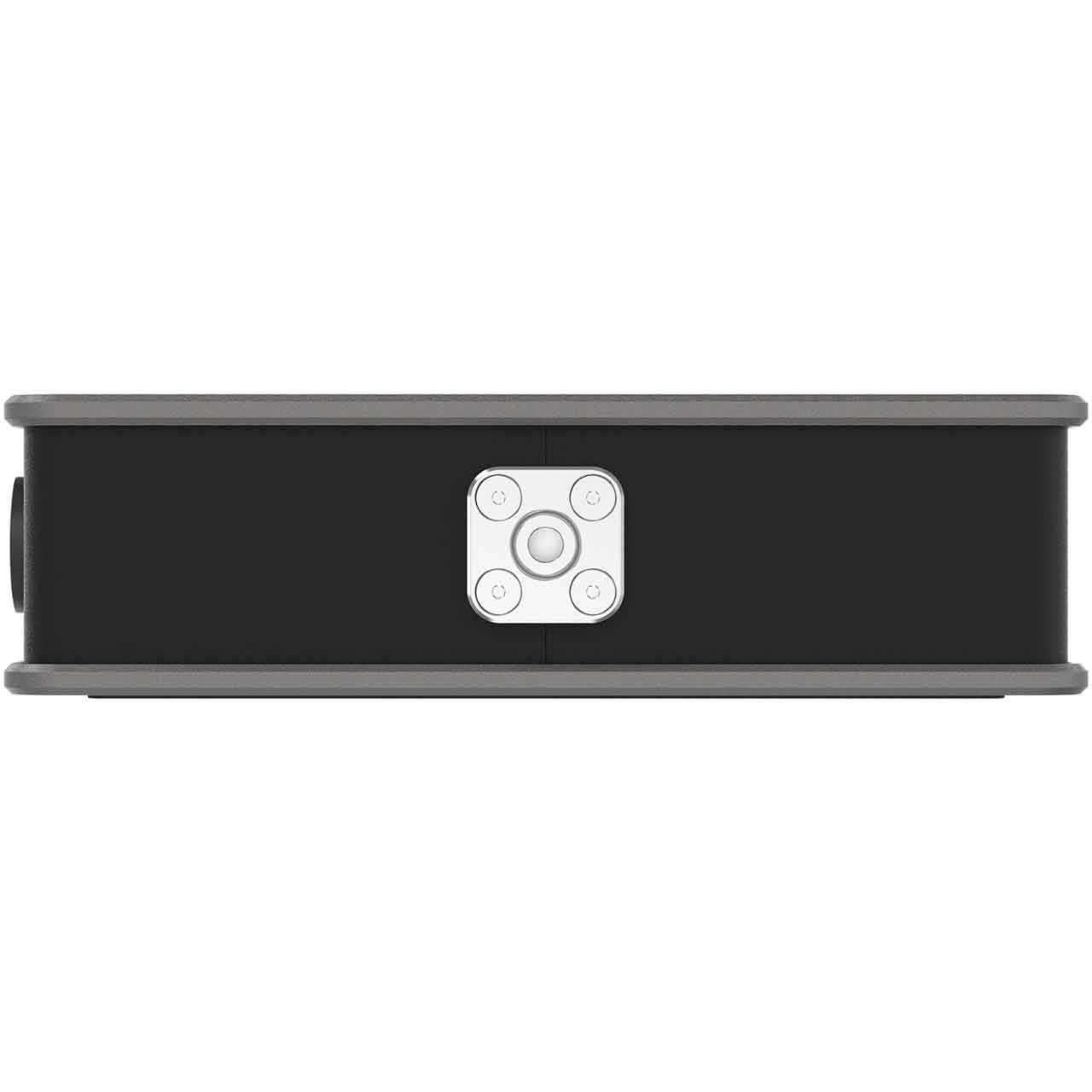

    • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
    • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.

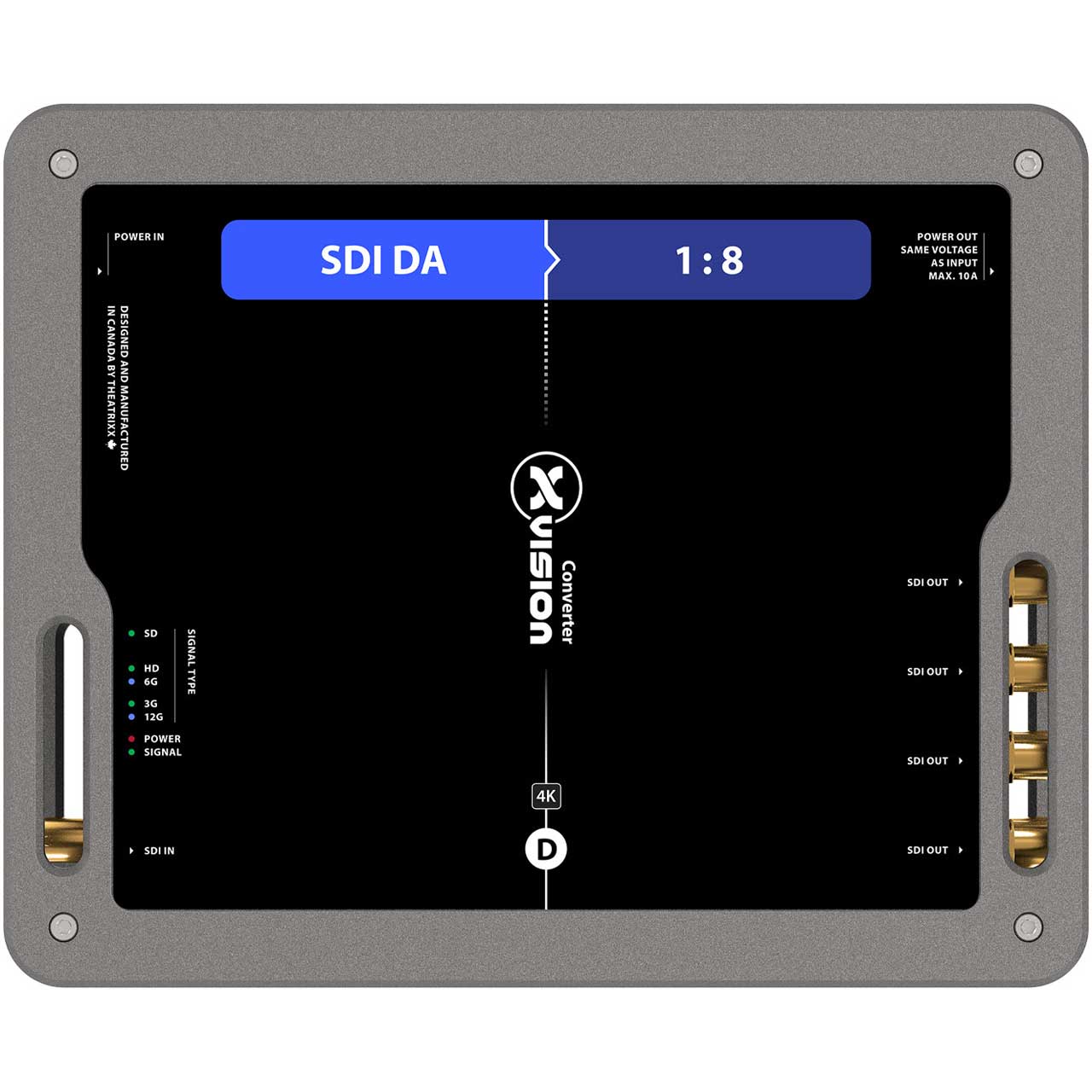

    • Clear and ample status LED indicators for quick troubleshooting.
    • Easy on-the-field identification with unique color and alphabetic coding system.
    • Locking HDMI port prevents accidental disconnection.
    • Reclocked and amplified SDI loop thru
    • Proudly designed and assembled in Canada.

  • Specifications:

    • Connections

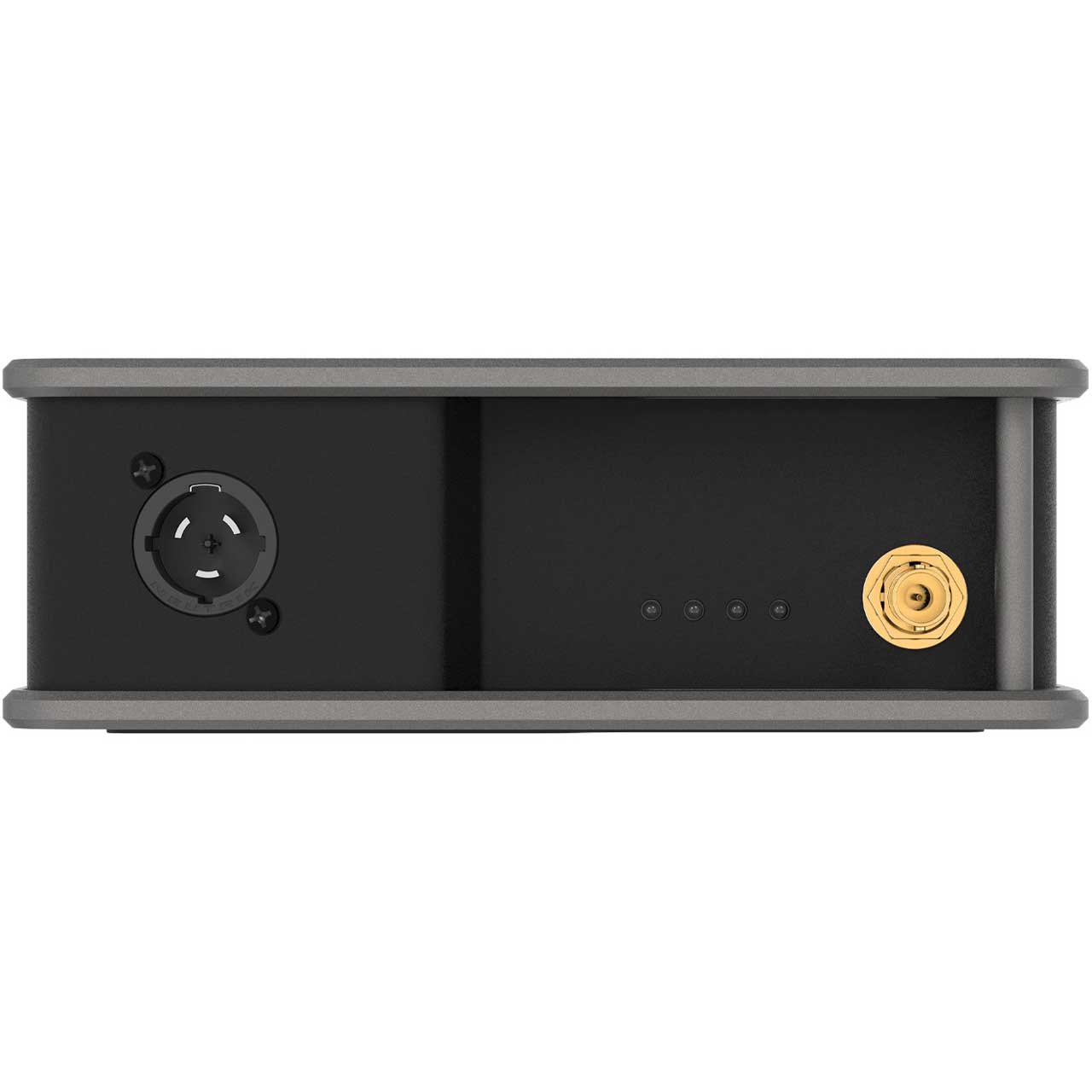

    • Video Input: 1 x 12G-SDI BNC

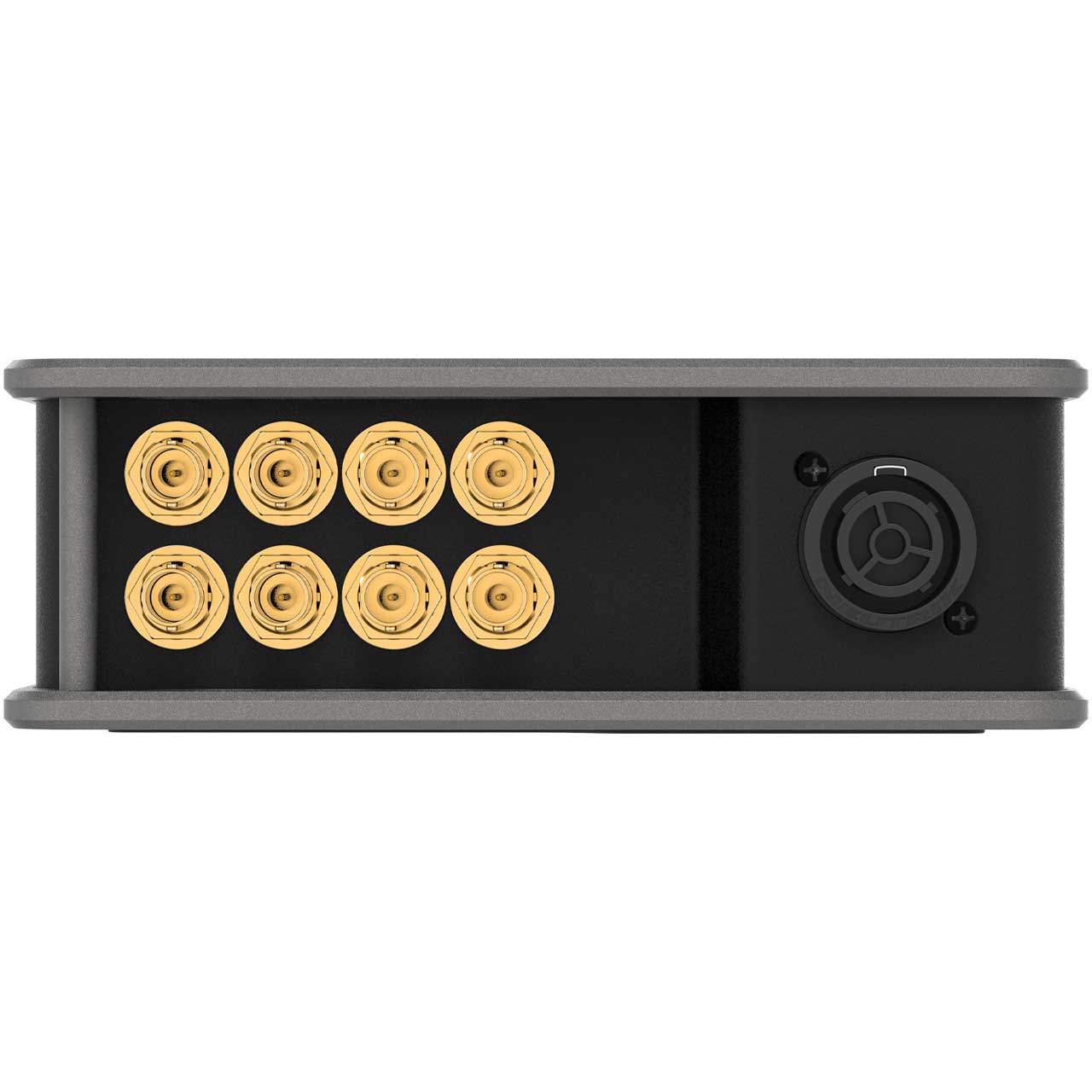

    • Video Output: 8 x 12G-SDI BNC (reclocked & amplified)

      Supported Signals
    • 12G format: 4096x2160p @ 60/50 fps3840x2160p @ 60/50 fps
    • 6G format: 4096x2160p @ 30/25/24 fps, 3840x2160p @ 30/25/24 fps
    • 3G format: 1920x1080p @ 60/50 fps
    • HD format: 1920x1080p @ 30/25/24 fps, 1920x1080i @ 60/50 fps, 1280x720p @ 60/50 fps
    • SD format: 720x480i @ 60 fps, 720x576i @ 50 fps
    • Embedded audio: Up to 16 channels, 24 bit, 48 kHz
    • SMPTE Standards: ST2082-1S, ST2082-10, ST425M Level A and B, ST424M, ST292M, ST259M

      Physical
    • Height: 62 mm (2.44 in)
    • Depth: 180 mm (7.08 in)
    • Width: 221 mm (8.7 in)
    • Weight: 2 kg (4.4 lbs)
    • Alt. form factor: Also available in rackmount module (RM)

      Environmental
    • Operating temp.: 0-40° C
    • Relative Humidity: 0 % to 90 % RH non-condensing

      Power Requirements
    • Built-in Power Supply: PowerCON True1 in / loop thru
    • Power Consumption: 45W max.
    • Operational Voltage Range: 100-240 V 50-60 Hz

  • Item Includes:

    • 1x xVision SDI Distribution Amplifier 1:8 (True1)
    • 1x PowerCable
