tvONE 1T-CT-654 HDMI over Cat.5e-Cat.6 wLAN-RS232 Receiver
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

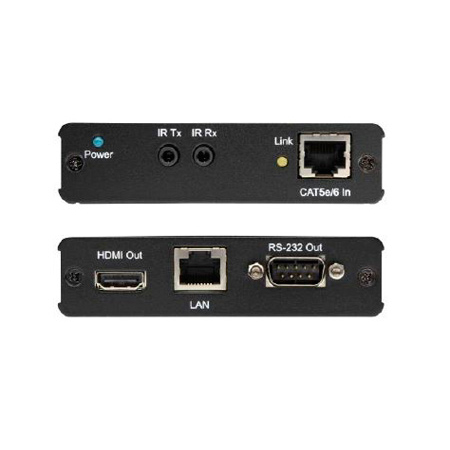

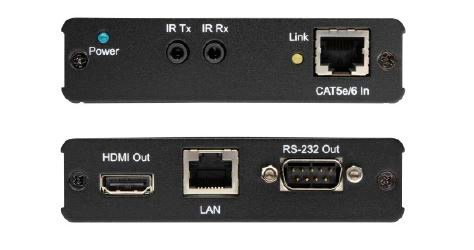

    tvONE 1T-CT-654 HDMI over Cat.5e-Cat.6 wLAN-RS232 Receiver

    Manufacturer: tvONE

    Item #: TV1-1T-CT-654   •   MFG #: 1T-CT-654


    Our Price:$325.00

    free ship
    Direct Ship from manufacturer, contact us for availability
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

      California Residents:
      Cancer and Reproductive Harm -


      Required Accessories

      1T-CT-653/1T-CT-654 HDMI over Single Cat.5e/Cat.6 form a product group that consists of a 1T-CT-653 Transmitter coupled with a 1T-CT-654 Receiver which employs HDMI v1.4 capability and the HDBaseT 5PlayT technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable (this is the type of cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4K x 2K formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded 7.1CH LPCM, Dolby TrueHD and DTS-HD Master Audio capability is standard.

      The 1T-CT-653/1T-CT-654 system can achieve signal distribution distances of up to 100 meters (325 feet) for uncompressed 1080p signals without signal degradation.

      Control signals can be passed via Ethernet, Infrared or RS-232. PoE (Power over Ethernet) technology is employed to allow powering of the Receiver from the Transmitter, negating the need for a separate power supply for that unit.

      • Features

        • Resolutions to WUXGA @ 48bits or 4K x 2K
        • Uncompressed transmission to 100 meters (325ft)
        • Uses HDBaseT performance enhancing technology
        • Supports Embedded HDMI Lossless Digital Audio
        • Compliant with HDMI v1.4a, HDCP 1.1 and DVI 1.0
        • Uses a single Cat.5e/Cat.6 Ethernet cable
        • Bi-directional infrared remote support
        • Bi-directional RS-232 and Ethernet support
        • PoE (Power over Ethernet) capability for Receiver
      • Specifications

        • Video I/O
        • 1T-CT-653 Tx-HDMI Input 1x via HDMI Connector
        • 1T-CT-654 Rx-HDMI Output 1x via HDMI Connector
        • Cat.5e/Cat.6 Cable I/O
        • 1T-CT-653 Tx - Cat.5e/Cat.6 1x via RJ45 Connector
        • 1T-CT-654 Rx - Cat.5e/Cat.6 1x via RJ45 Connector
        • Additional I/O
        • Connectors (each unit)
        • 1x LAN RJ45, 1x DB9 RS-232,
        • 2x 3.5mm mini-jack (Infrared)
        • Signals & Protocols
        • Industry Standards
        • HDMI v1.4a, 3D, 4Kx2K, HDCP,
        • DVI 1.0, IR, RS-232, Ethernet
        • Video Performance
        • Maximum Resolution
        • [email protected]/48bit or
        • [email protected]
        • Audio Support
        • Formats Supported 7.1CH, Dolby TrueHD, DTS-HD
        • HDBaseT Support
        • Maximum Bandwidth
        • Uncompressed Video/Audio to
        • 10.2Gbps
        • Maximum Range
        • 1T-CT-653/654 Tx/Rx System 100m (325 ft.)
        • Environmental
        • Operating Temperature 0° to +40° C (+32° to +104° F)
        • Operating Humidity 20% to 90%, Non-condensing
        • Storage Temperature -20° to +60° C (-4° to +140° F)
        • Storage Humidity 20% to 90%, Non-condensing
