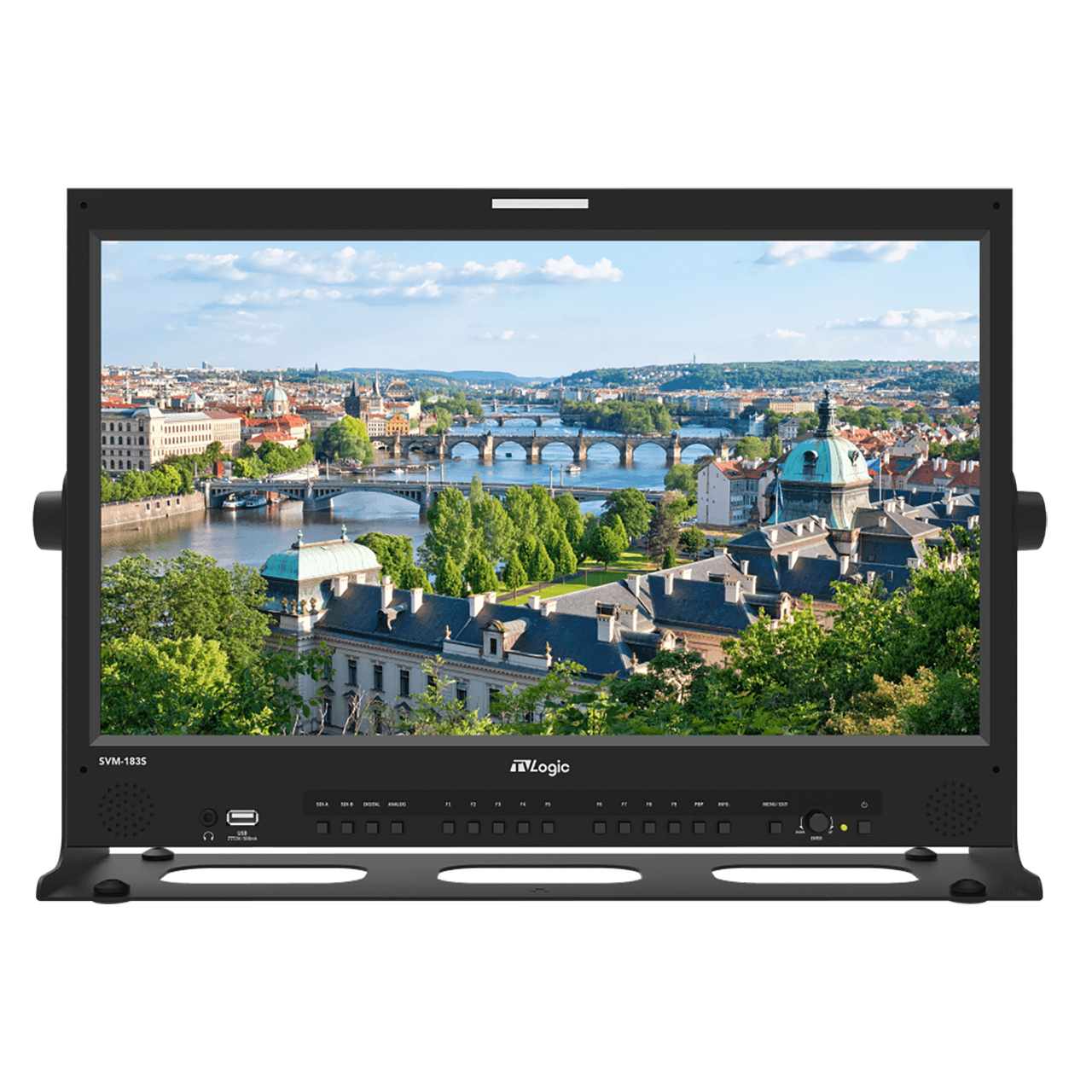

TV Logic SVM-183S 18.5-Inch 12G-SDI Full HD LCD Monitor with HDMI and SFP Inputs

SVM-183S - Overview

18.5" 12G-SDI with FHD LCD Monitor

• Features:

  • 2x 12G-SDI Input and Loopout
  • 12G-SDI Input to 3G-SDI Downscale Output
  • Processed Monitor Output
  • Picture-by-Picture Display
  • HDR (PQ, HLG, S-LOG3)
  • Custom 3D LUT Import by USB Flash Drive
  • Auto Detection of SDI Payload ID
  • Image Capture & Overlay
  • Waveform (YCbCr, RGB)/Vector Scope/Histogram
  • Audio Level Meter/Audio Phase Meter
  • Fast Mode/Focus Assist/Marker
  • Closed Caption in Multi Languages (CC-608, CC-708, OP47)
  • Blue/Mono Only/Timecode Display
  • Remote Control & FW Update via Ethernet
  • Dynamic UMD/Tally/H Flip, V Flip


• Specifications:

  Picture Performance
  • Size: 18.5"
  • Resolution: 1920 x 1080 (16:9)
  • Pixel Pitch: 0.213mm(H) x 0.213mm(V)
  • Color Depth: 1.07B colors
  • Viewing Angle: 178°(H) / 178°(V)
  • Luminance of White: 500 cd/m2
  • Contrast Ratio: 1000:1
  • Display Area: 408.96mm(H) x 230.04mm(V)

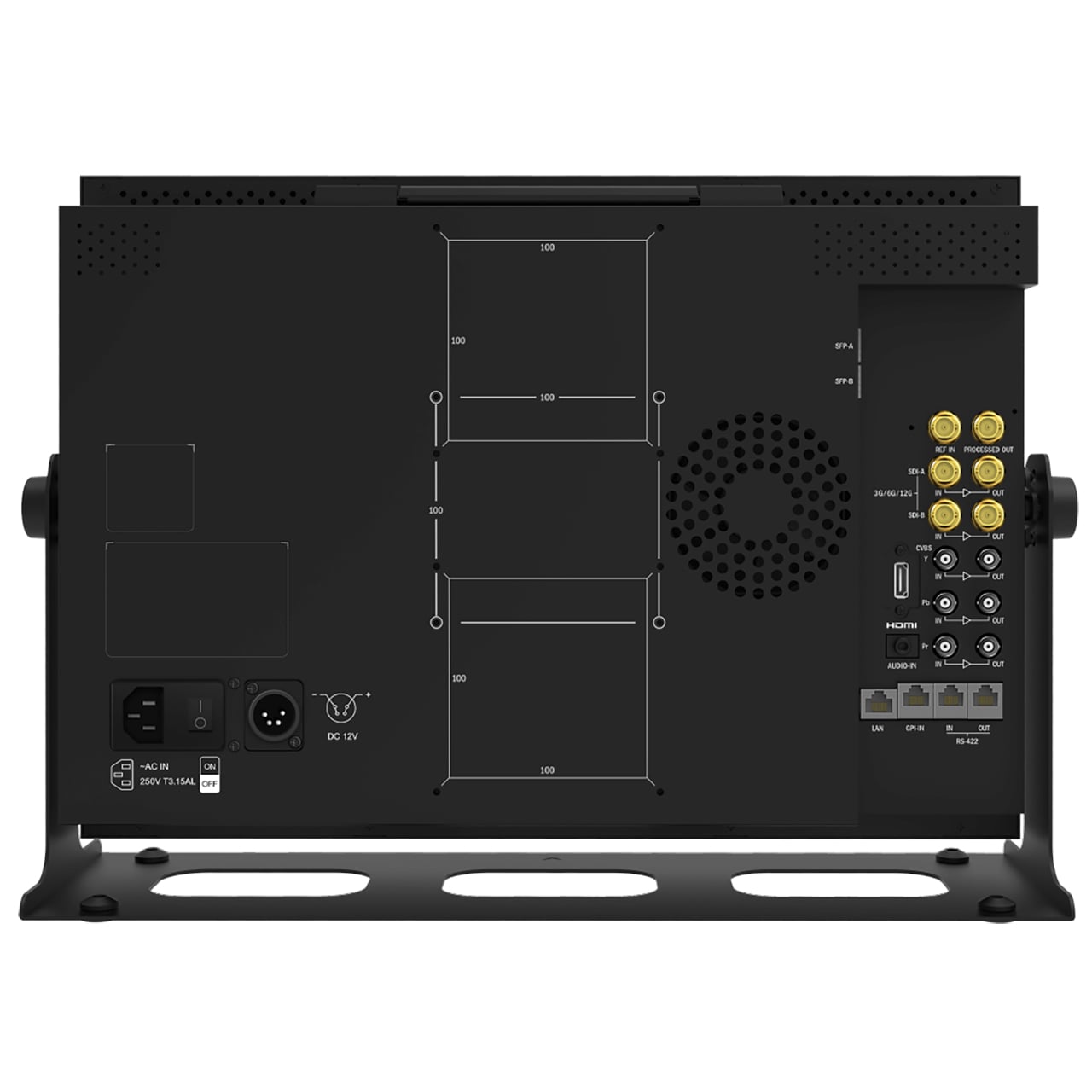

    Inputs
  • 2x SDI BNC: 12G/6G/3G/HD-SDI
  • 3x BNC: YPbPr/CVBS
  • 1x HDMI
  • 2x SFP: SDI over fiber
  • 1x BNC: Reference (Gen-lock)

    Outputs
  • 2x SDI BNC: 12G/6G/3G/HD-SDI A/B Channel Output
  • 3x BNC: YPbPr, CVBS Output
  • 1x BNC: Processed Output

    SDI Input Signal Formats
  • SMPTEST2082: 2160p(60/50/30/25/24p)
  • SMPTEST2081: 2160p(30/25/24p)
  • SMPTEST2036-1: 2009:2160p(23.98/24/25/29.97/30/50/59.94/60p)
  • SMPTE-425M-A/B:
    -1080p(60/59.94/50)1080i(60/59.94/50)
    - 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
  • SMPTE-274M:
    - 1080p(60/59.94/50)
    - 1080p(30/29.97/25/24sF/23.98/23.98sF)
  • SMPTE-296M: 720p(60/59.94/50)
  • SMPTE-260M: 1035i(60/59.94)
  • SMPTE-125M: 480i(59.94)
  • ITU-RBT.656: 576i(50)
  • SMPTEST2048-2: 2011:2048x1080(23.98/24/25/29.97/30p/psf,47.95/48/50/59.94/60p)

    Remote Control & Update
  • 1x LAN: RJ-45 input (ethernet), Firmware update & remote Control
  • 1x Remote: RJ-45 input, GPI control
  • 2x RS-422: RJ-45 input & output, monitor control by TVLogic protocol or TSL protocol
  • 1x USB: A type, firmware update

    Physical
  • Audio In: Analog stereo (phone jack)
  • Audio Out: Internal stereo speakers, analog stereo (phone jack)
  • Power:
    - AC100-240V (50-60Hz)
    - DC 12V/24V
  • Power Consumption: 30W
  • Operating Temperature: 32°F to 95°F (0°C to 35°C)
  • Dimensions Main Body (L x W x H): 17.42" x 12.16" x 3.30" (442.5mm x 309mm x 84mm)
  • Dimensions with Stand (L x W x H): 19.26" x 13.1" x 5.41" (489.3mm x 332.8mm x 137.5mm)
  • Dimensions for Shipping Box (L x W x H): 21.65" x 18.11" x 11.81" (550mm x 460mm x 300mm)
  • Weight with Stand: 16.09 lbs (7.3kg)


• Item Includes:

  • 1x AC Power Cord
  • 1x Stand
  • 1x Handle
