VigilLink VLEX-HT2070-TR HDBaseT 1.0 4k@30Hz HDMI 1.4 Extender with IR and RS-232 - 10.2Gbps - 229 Foot/70m

VLEX-HT2070-TR - Overview

• Features:

  • POC (Power Over Cable) function supported: Power either TX or RX with a 24V@1A power supply; the other end does not require power from the DC jack. POC power consumption is less than 10W.
  • Utilize a single UTP LAN cable (CAT-5E/6) for long-distance HDMI transmission, following standard direct interconnection methods for UTP termination.
  • Transmission distances over CAT6 cable:
  • 70 meters: 1080P @60Hz 36bit; 3D 1080P @30Hz 36bit.
  • 40 meters: 1080P @60Hz @48bit; 1080P @120Hz @24bit; 3D 1080P @60Hz @36bit; 4K x 2K @30Hz @24bit.
  • Supports display resolutions up to 4K x 2K @30Hz.
  • Full HD support includes: 1080p @60Hz @48 bit/pixels, 1080p @120Hz @24 bit/pixels, 3D 1080P @60Hz, and 4K x 2K @30Hz @24bit.
  • Transmit bidirectional infrared control signal alongside the HDMI signal (see description 2 in user manual).
  • Transmit bidirectional RS232 control signal alongside the HDMI signal (see description 3 in user manual).


• Specifications:

  • Frequency Bandwidth: 297MHz (10.2Gbps)

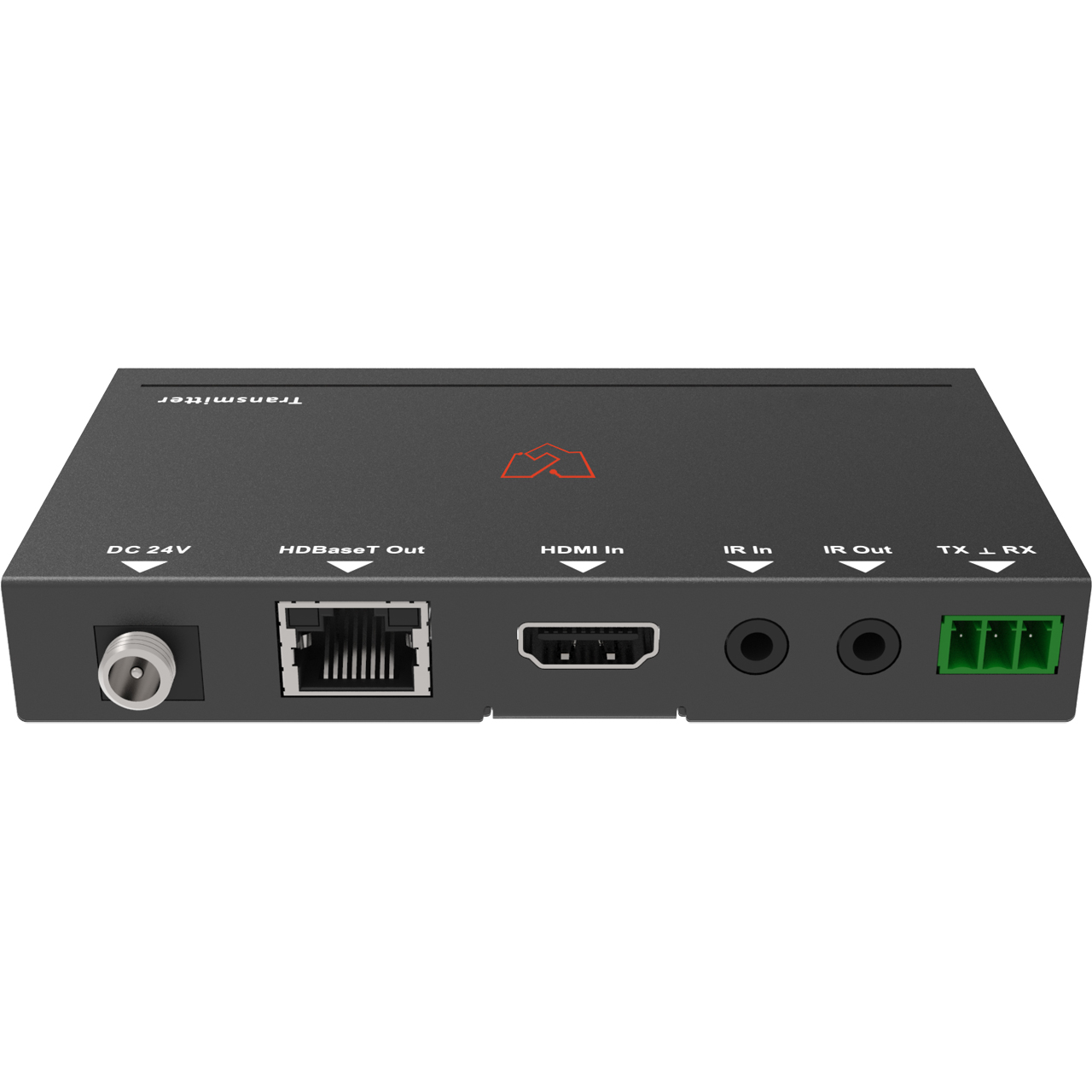

  • Transmitter Input/Output:
    - 1x HDMI Female port/1x CAT6
    - 1x IR Tx/1x IR Rx/1x Phoenix

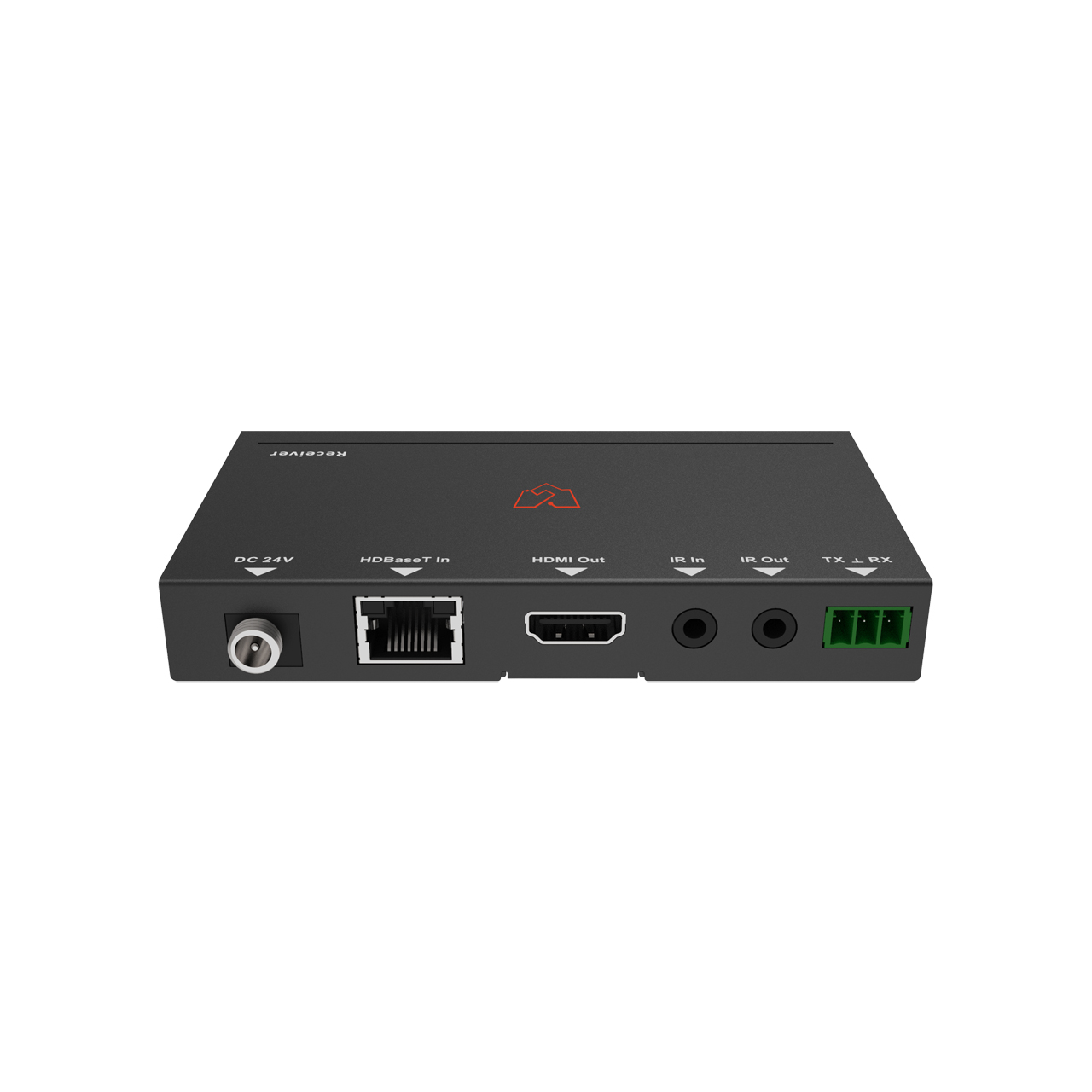

  • Receiver Input/Output Ports:
    - 1x HDMI Female port/1x CAT6
    - 1x IR Tx/1x IR Rx/1x Phoenix
  • ESD Protection: Human Body Model: ±8kV (air-gap discharge) ±4kV (contact discharge)
  • Dimensions: 2.55" x 4.52" x 0.67" (65mm x 115mm x 17mm)
  • Weight: 0.44lbs (200g)
  • Power Consumption: 20W (MAX)
  • Power Supply: DC 24V 1A
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (non-condensing)


• Item Includes:

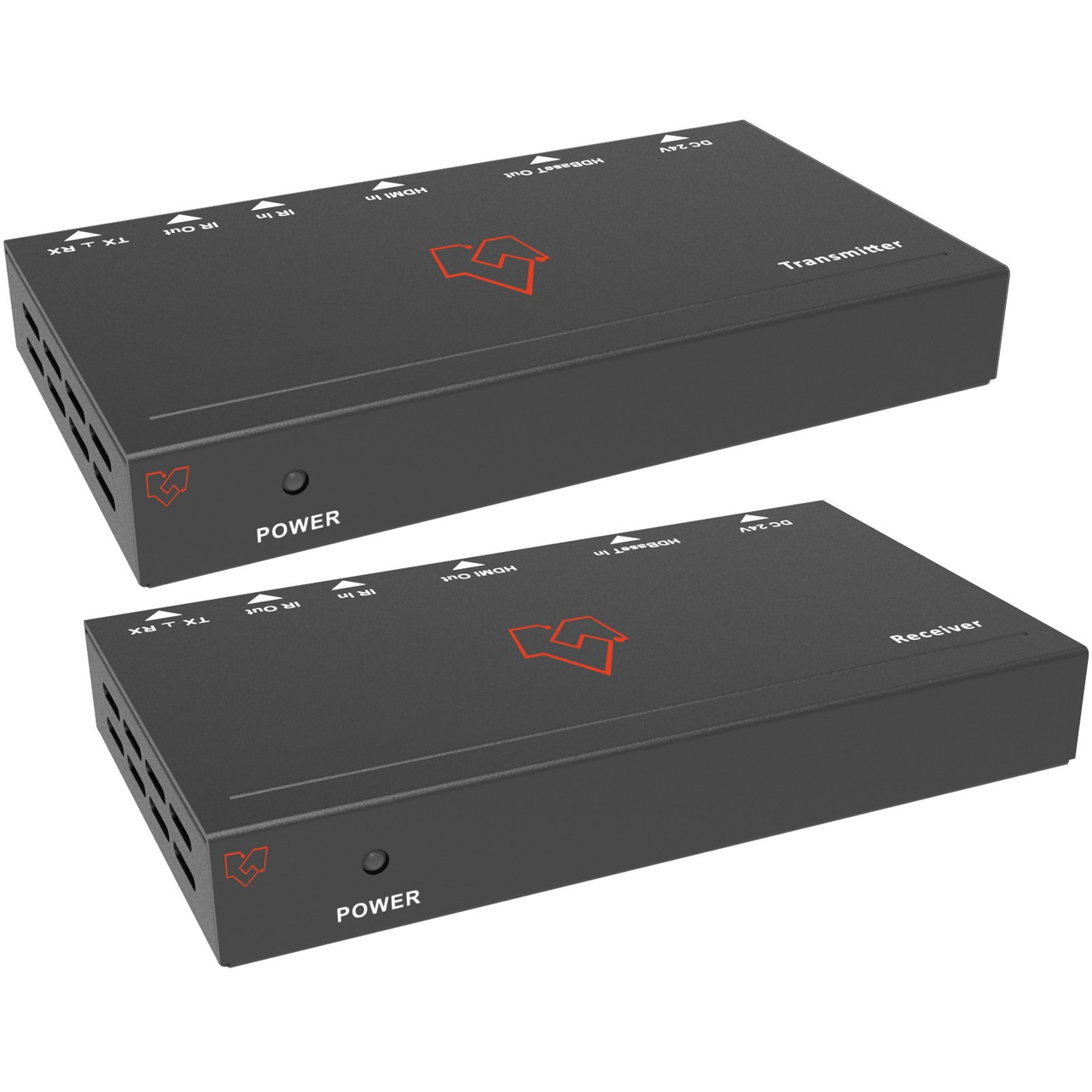

  • 1x HDMI Extender Transmitter
  • 1x HDMI Extender Receiver
  • 2x Wideband IR Tx
  • 2x Wideband IR Rx
  • 1x 24V1A DC Power Supply
  • 1x Operation Manual
  • 4x Mounting


• Warranty:

  • 6 Years
