VigilLink VLEX-HT2150A-TR HDBaseT 1.0 1080p HDMI 1.3 Extender - 6.75Gbps - 492 Foot/150m

ITEM #: VGL-VLEXHT2150AT MFG #: VLEX-HT2150A-TR

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$528.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLEX-HT2150A-TR - Overview

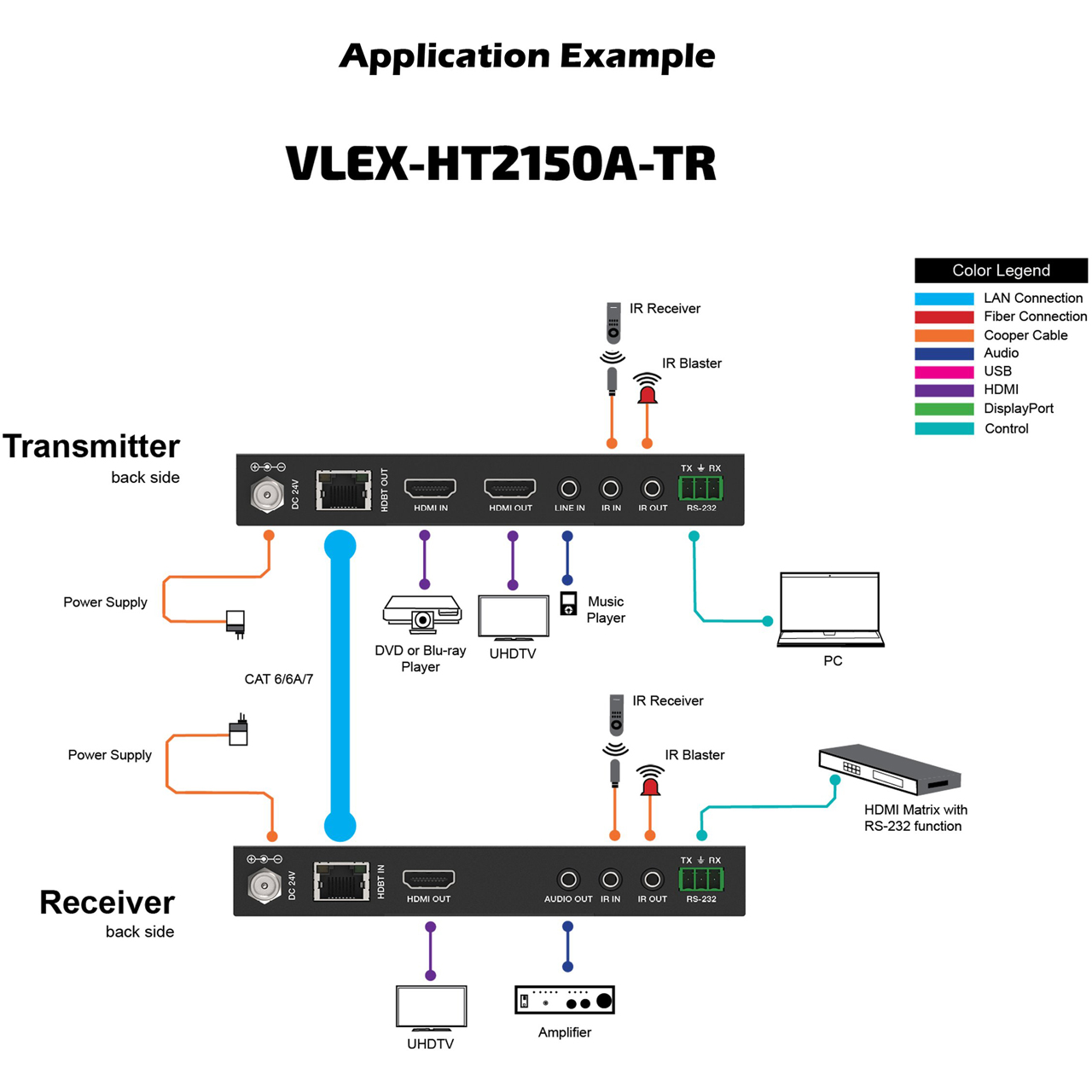

This VigilLink VLEX-HT2150A-TR HDBaseT Extender is capable of extending HDMI signals from signal sources to display devices via CAT 5e/6 cable with a distance up to 150m/ 492ft and video resolution up to 1080P@60Hz YUV4:4:4. It supports bi-directional IR control, RS-232 control, EDID management, audio embedment (TX), and audio dis-embedment (RX). The transmitter supports HDMI signal loop out. Equipped with a powerful chip, the extender can continuously deliver stable work for 24 hours with low power consumption. It is easy to use, plug and play, which is widely applied in scenarios such as video conferences, out-doors big-screen demonstrations, and home theater.

  • Features:

    • HDMI 2.0b, HDCP 2.2 compliant
    • Up to 4K / 2K @60Hz with 24bit RGB / YCbCr (4:4:4)
    • HDR, HDR10, HDR10+, Dolby Vision pass through
    • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
    • Up to 120m (4K) and 150m (1080P) using CAT6/6A cable
    • Two-way IR transmission
    • USB 2.0 protocol, transmission rate up to 480Mbps transmission
    • EDID management
    • Two-way PoC (Power over Cable)

  • Specifications:

      Technical
    • HDMI Compliance: HDCP 2.2
    • HDCP Compliance: HDCP 1.4
    • Video Bandwidth: 6.75Gbps
    • Video Resolution: 480i -1080p50/60Hz Up to 1200P@60Hz
    • Color Space: RGB, YCbCr 4:4:4 / 4:2:2
    • Color Depth: 8-bit (1080P60Hz)
    • Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Extension Distance: 492ft (150m) at 1080p @ 60

      Connections

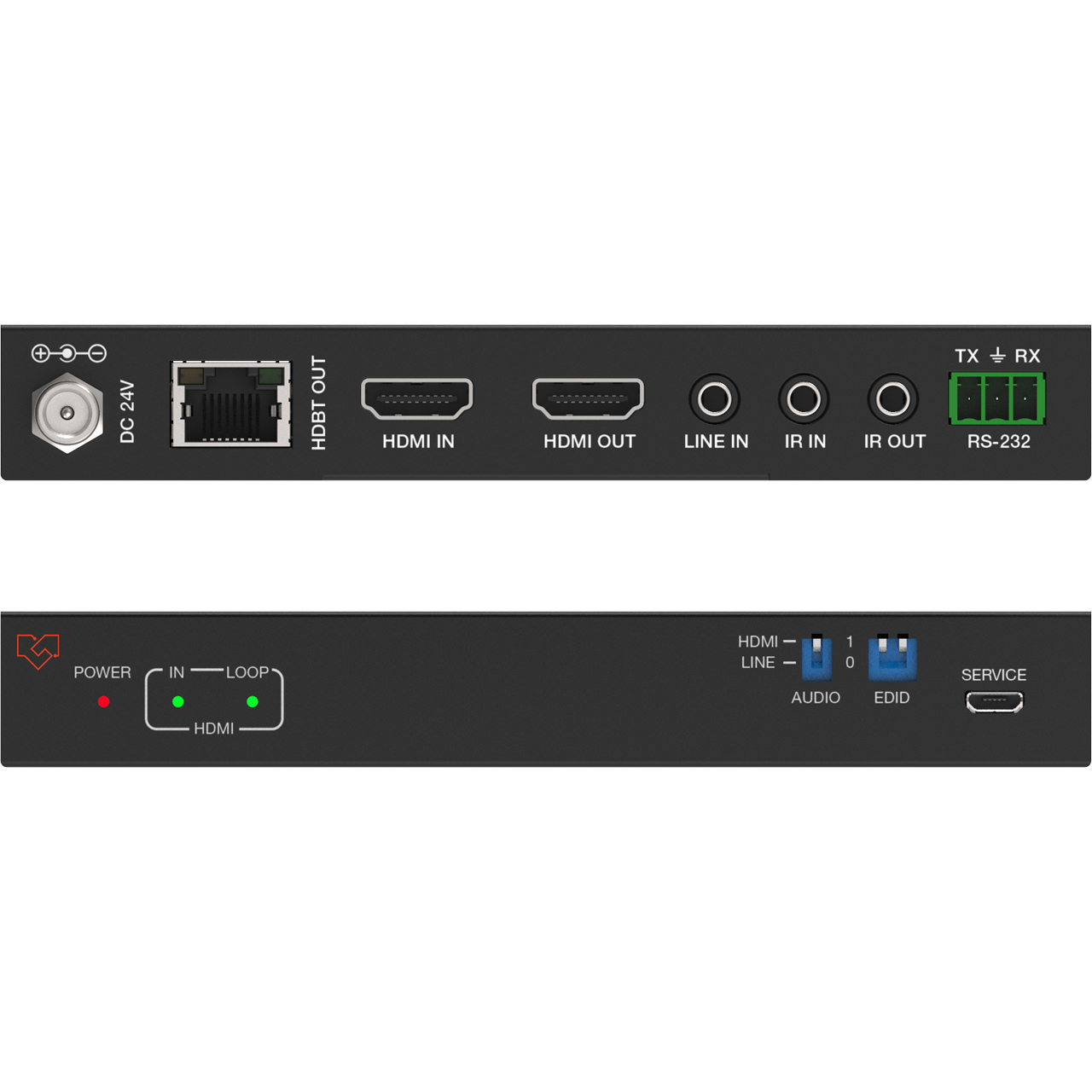

    • Transmitter Inputs:
      - 1x HDMI IN (TypeA 19-pin female)
      - 1x LINE IN (3.5mm Stereo Mini-jack)
    • Transmitter Outputs:
      - 1x HDBT OUT (RJ45 8-pin female)
      - 1x HDMI OUT (TypeA 19-pin female)
    • Transmitter Controls:
      - 1x AUDIO DIP Switch (1 pin)
      - 1x EDID DIP Switch (2-pin)
      - 1x IR IN (3.5mm Stereo Mini-jack)
      - 1x IR OUT (3.5mm Stereo Mini-jack)
      - 1x RS-232 (Phoenix jack)
      - 1x Service (Micro-USB jack)

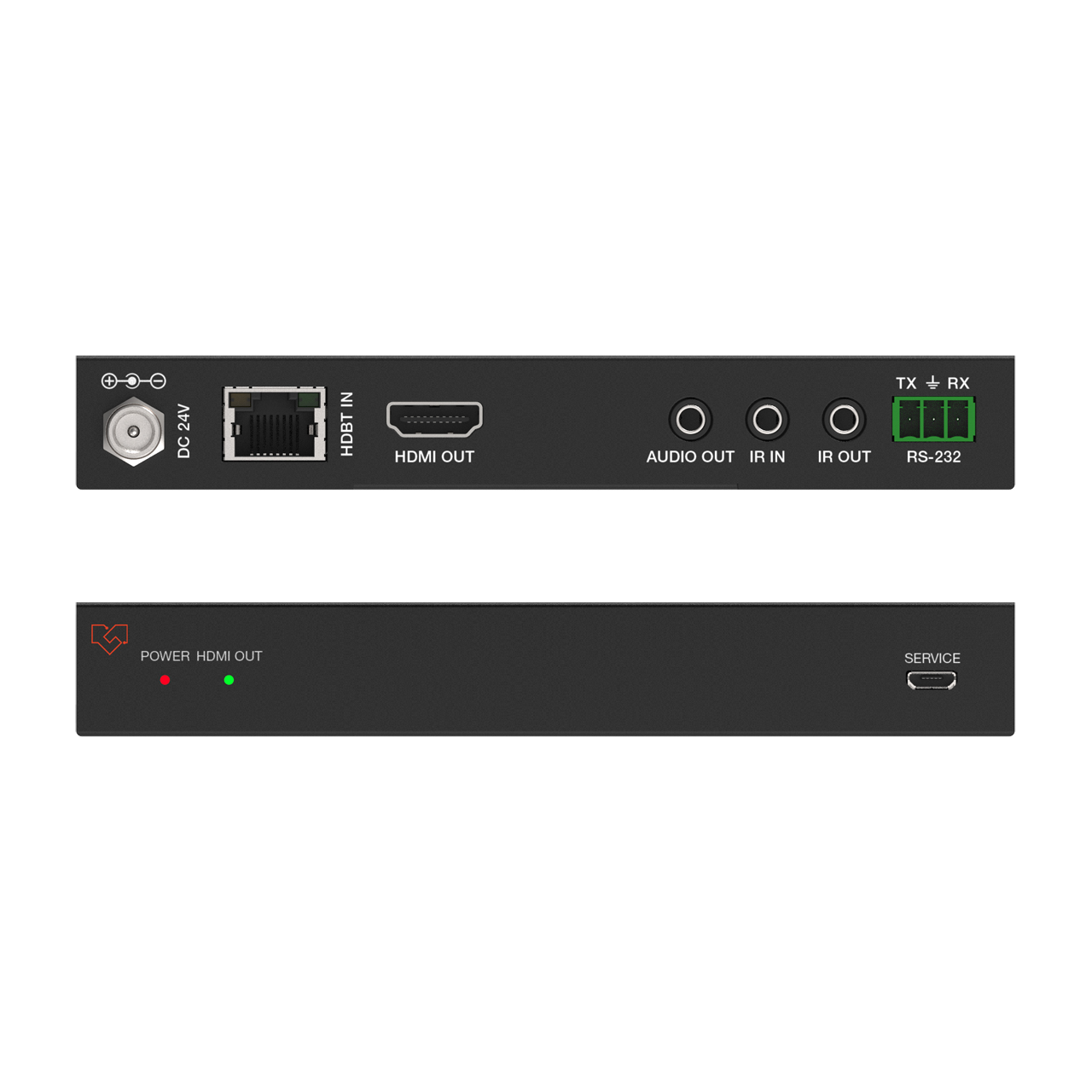

    • Receiver Inputs:
      - 1x HDBT IN (RJ45 8-pin female)
      - 1x LINE IN (3.5mm Stereo Mini-jack)
    • Receiver Outputs:
      - 1x HDMI OUT (TypeA 19-pin female)
      - 1x AUDIO OUT (3.5mm Stereo Mini-jack)
    • Receiver Controls:
      - 1x RS-232 (Phoenix jack)
      - 1x SERVICE (Micro-USB jack)
      - 1x IR IN (3.5mm Stereo Mini-jack)
      - 1x IR OUT (3.5mm Stereo Mini-jack)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions Transmitter/Receiver: 5.77" x 2.81" x 0.82" (144mm x 78mm x 23mm)
    • Weight:
      - Transmitter: 0.71lbs (323g)
      - Receiver: 0.70lbs (319g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
    • Power Consumption: 8.4W (max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)

  • Item Includes:

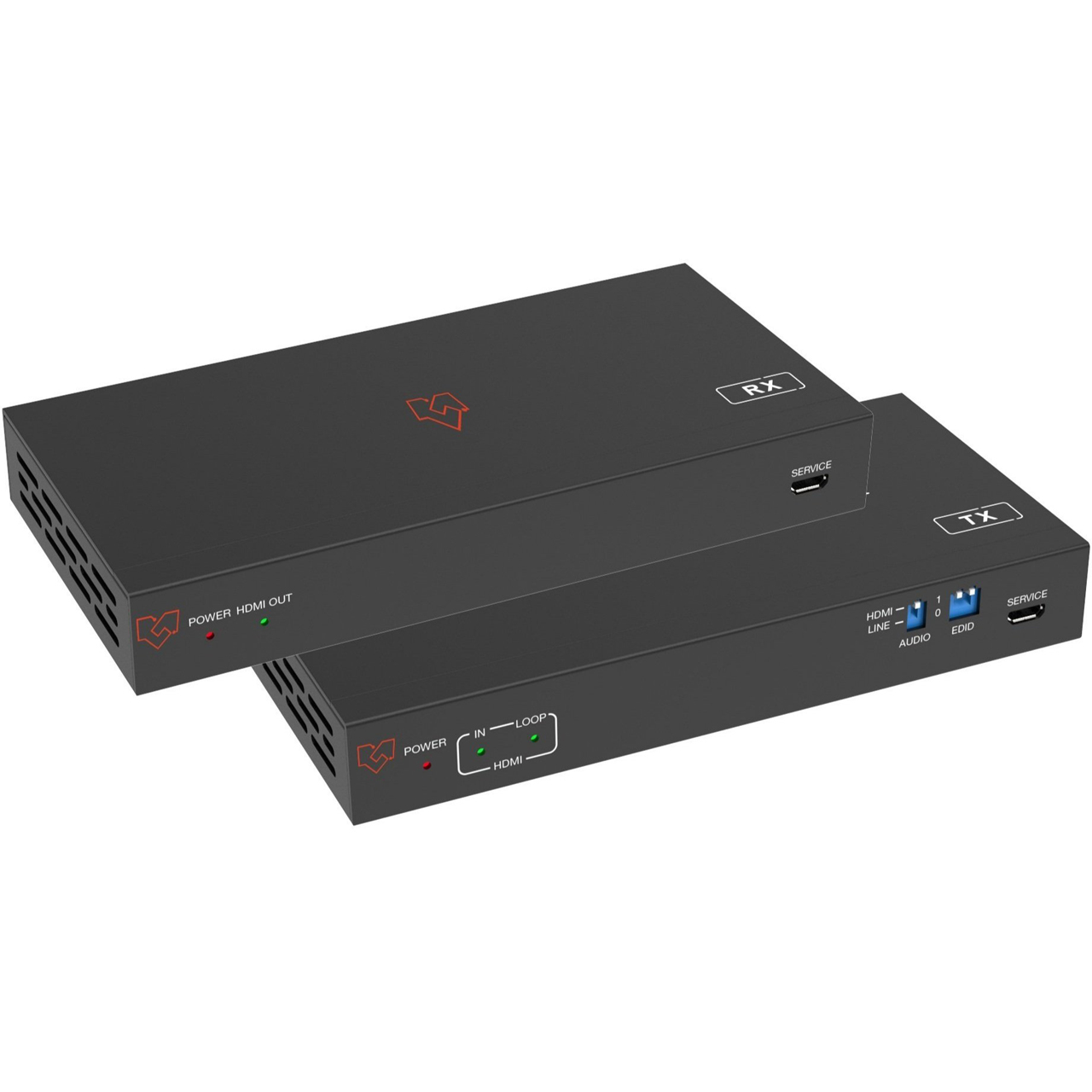

    • 1x 1080P HDBaseT Extender (Transmitter)
    • 1x 1080P HDBaseT Extender (Receiver)
    • 1x IR Blaster Cable (1.5 meters)
    • 1x IR Receiver Cable (1.5 meters)
    • 2x 3-pin Phoenix Connector
    • 4x Mounting Ear
    • 8x Machine Screw (KM3*4)
    • 1x 24V/1A Locking Power Adapter
    • 1x User Manual

  • Warranty:

    • 6 Years
