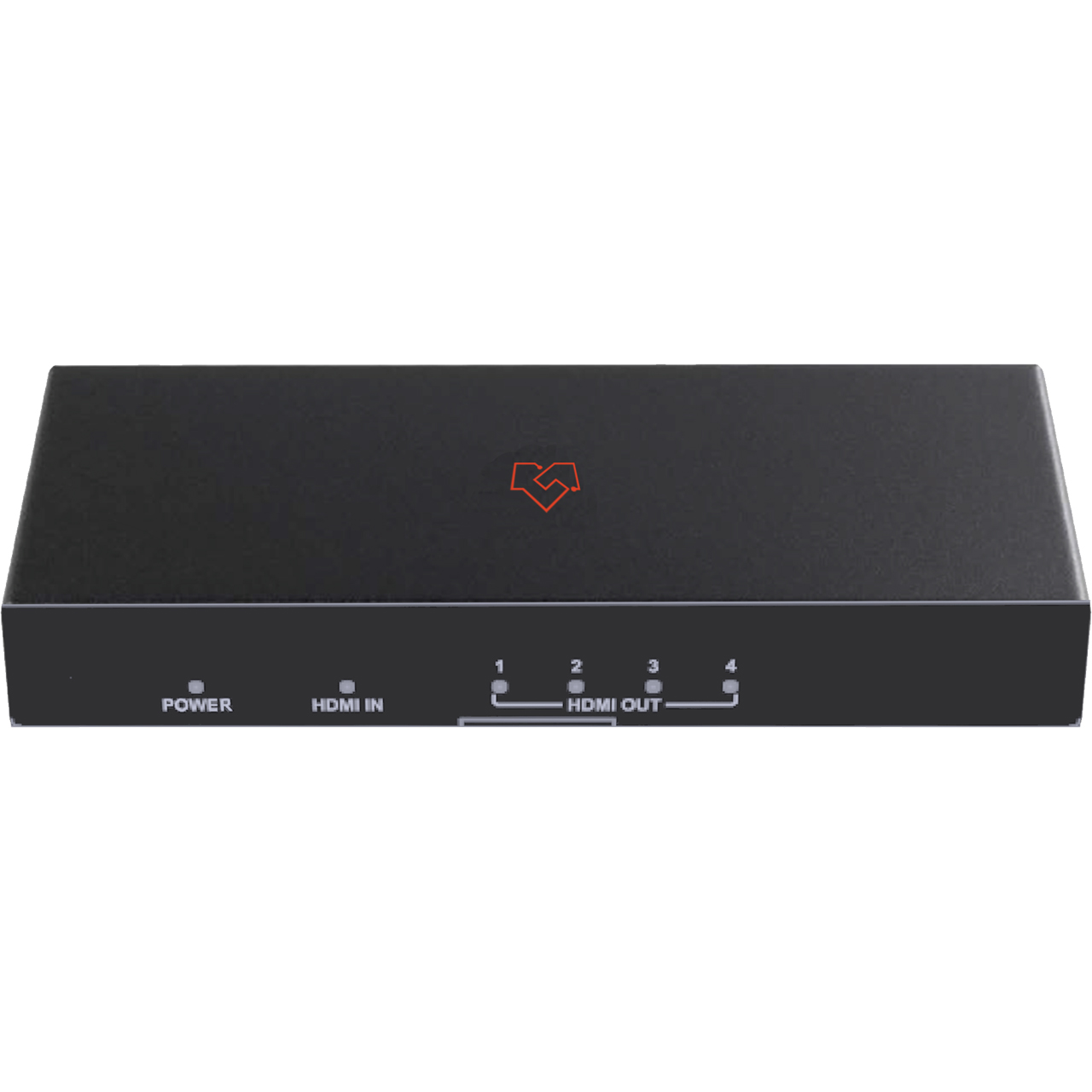

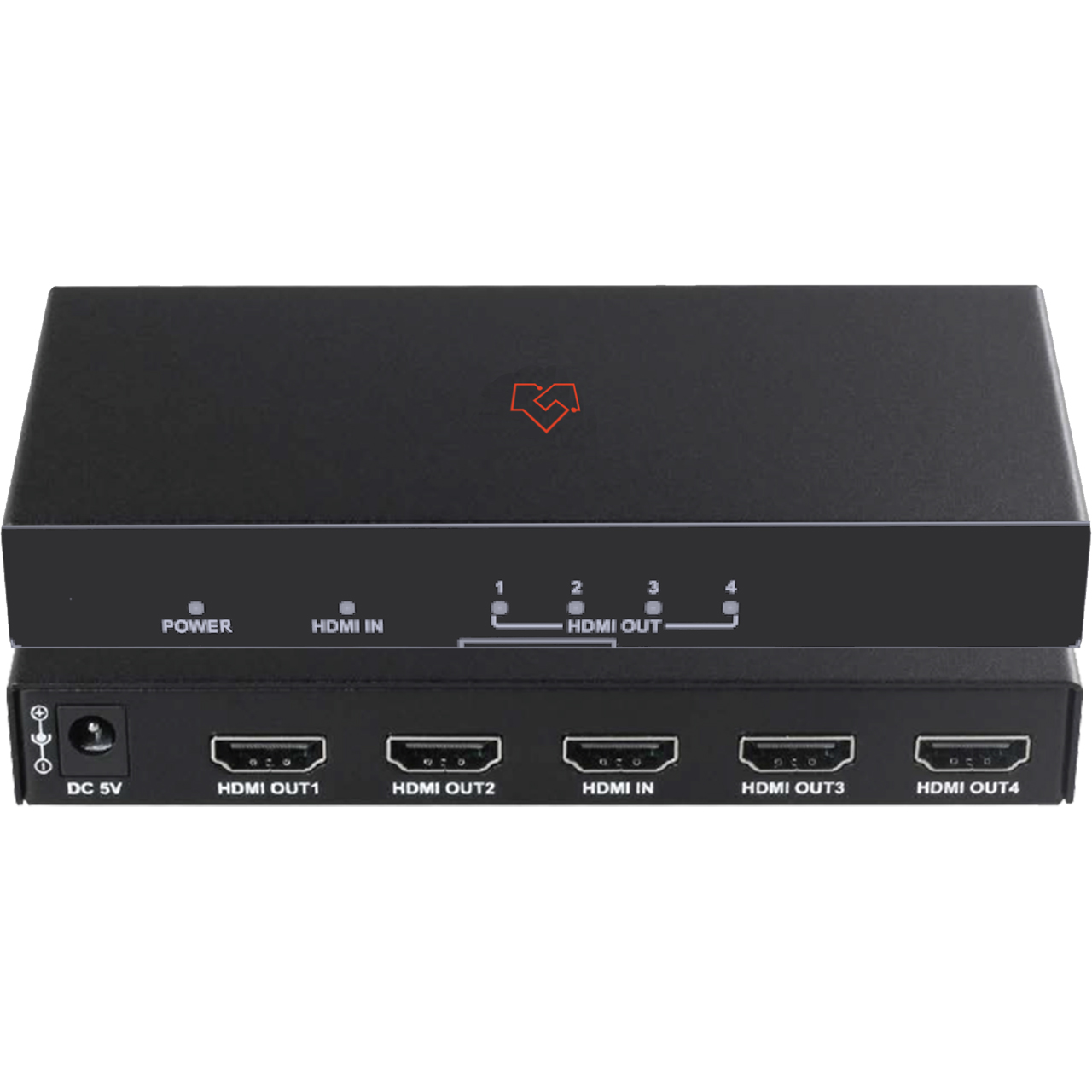

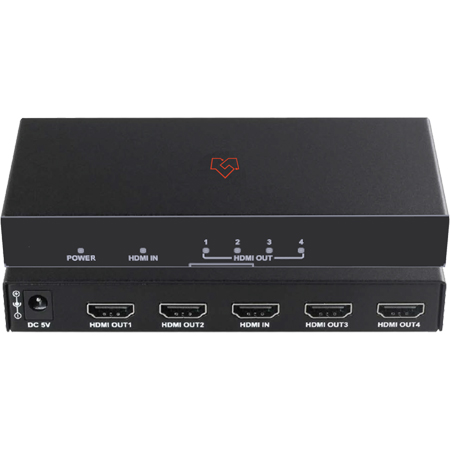

VigilLink VLSP-14H20D 1x4 HDMI 2.0 4K Distribution Amplifier with Integrated Scaler

VLSP-14H20D - Overview

• Features:

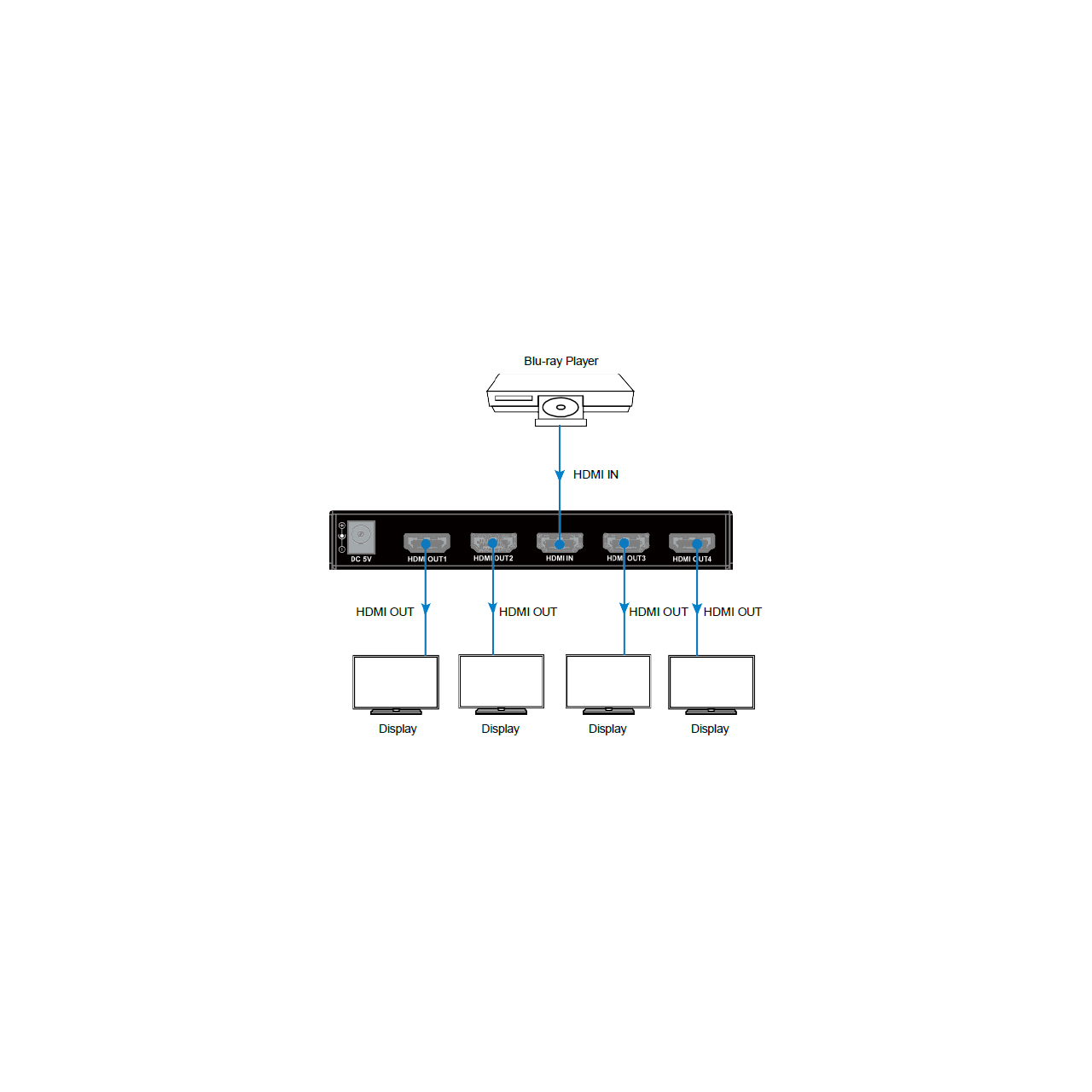

  • Distributes one HDMI input signal to four HDMI displays.
  • Supports HDMI 2.0b Specifications, including: Data rates up to 18.0 Gbps, HDR and 3D, HD lossless audio formats
  • HDCP 2.2 compliant.
  • Each HDMI output supports scaling down to 1080P individually (fps will not change during scaling down from 4K to 1080P).
  • Automatic input cable equalization for signal regeneration compensation.


• Specifications:

  • Video
  • Input/Output Signal Type: HDMI with 4K @ 60Hz 4:4:4, HDCP 2.2, HDR, 3D, Scaler
  • Input/Output Resolution Supported: Up to 4096x2160 @ 60Hz, include 4K @ 60Hz /4K @ 30Hz/1080P/1080i/720P
  • Color Depth:
    - 4K: 8/10/12 bit
    - 1080p: up to 16 bit
  • Maximum Data Rate: 18Gbps
  • Maximum Pixel Clock: 600MHz

    Audio
  • Audio Format Supported: Fully supports audio formats in HDMI 2.0 specification, including PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X

    Transmission Distance
  • HDMI:
    - 1080p @ 60Hz: 50ft (15m)(Input/Output)
    - 4K @ 30Hz: Input: 33ft (10m); Output: 50ft (15m)
    - 4K @ 60Hz: 16ft (5m)(Input/Output)

    Mechanical
  • Operating Temperature: 32°F - 113°F (0°C - 45°C)
  • Storage Temperature: -4°F - 158°F (-20°C - 70°C)
  • Humidity: 10% - 90%, non-condensing
  • Product Weight: 0.53lbs (0.24kg)
  • Power Supply: DC 5V 1A
  • Power Consumption:
    - 4K: 1.8W
    - 1080p: 1.1W
  • Product Dimension: 5.5" x 0.8" x 2.6" (140mm x 20mm x 65.2mm)
  • ESD Protection: Human-Body Model: ±8kV(Air-gap discharge), ±4kV(Contact discharge)


• Item Includes:

  • 1x Splitter VLSP-14H20D
  • 1x Power Adapter (DC 5V 1A)
  • 2x Mounting Brackets


• Warranty:

  • 6 Years
