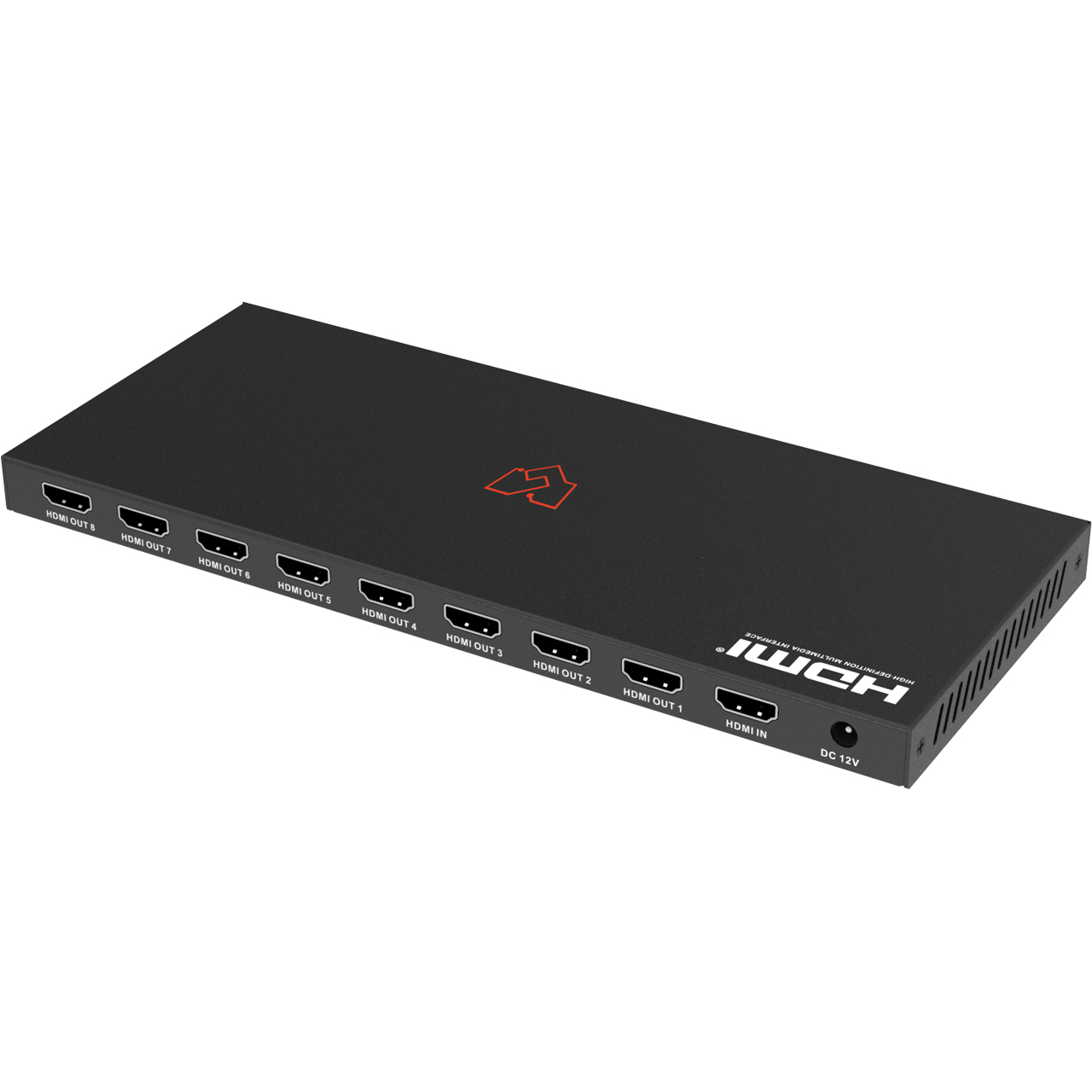

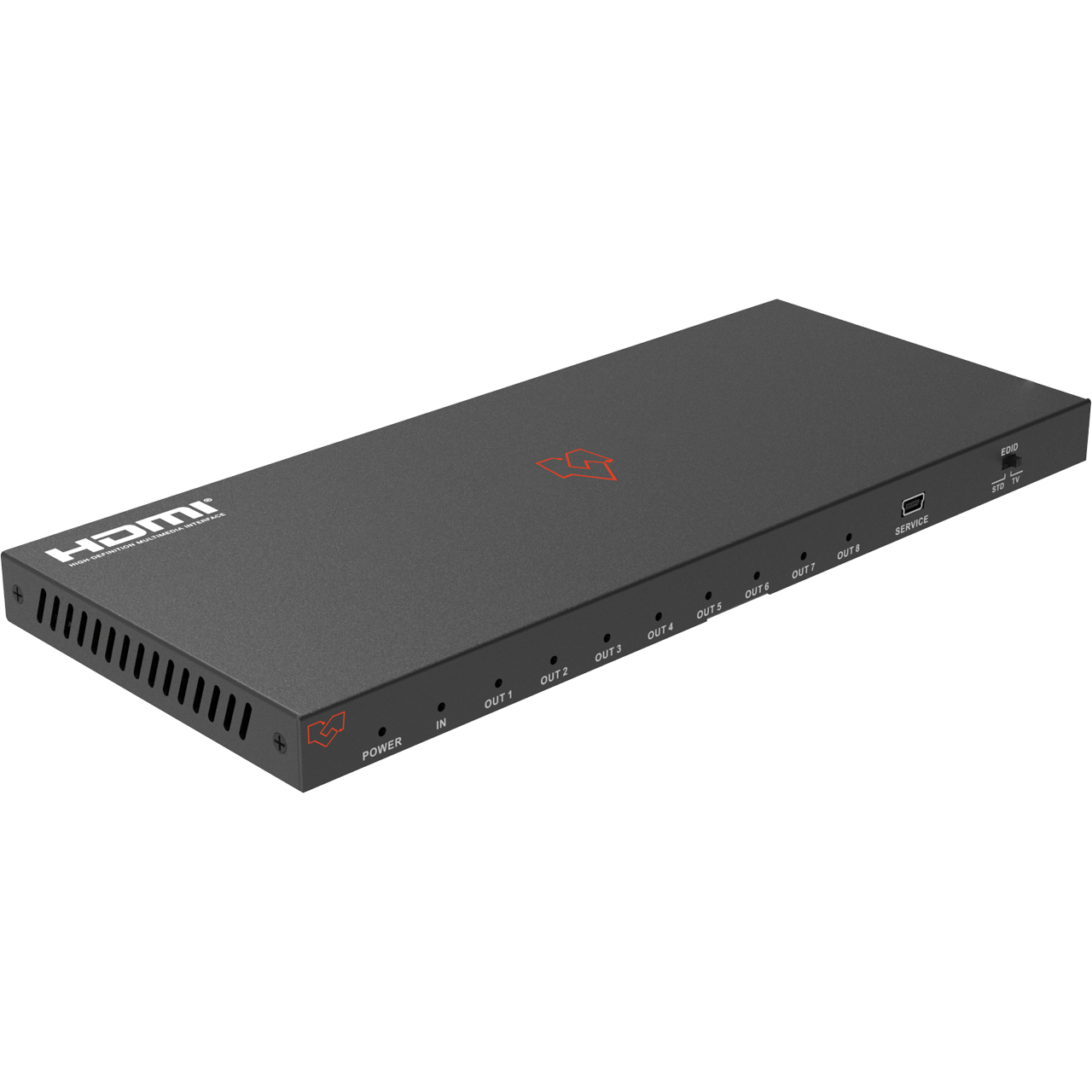

VigilLink VLSP-18H20 1x8 HDMI 2.0 18Gbps 4K Distribution Amplifier - HDMI 2.0b / HDCP 2.2 Compliant

VLSP-18H20 - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2 compliant
  • Supports 18Gbps bandwidth
  • Supports resolution up to 4K @ 60Hz 4:4:4
  • Supports HDR function
  • Supports COPY/AUTO EDID control via dialing the dip switch
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 594MHz/18Gbps
  • Video Resolution: 480i - 1080p50/60Hz, 4Kx2K @ 24/30Hz, 4k2k @ 60Hz
  • HDMI Audio Formats: PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connections
  • Input Ports:
    - 1x HDMI Type A (19-pin female)

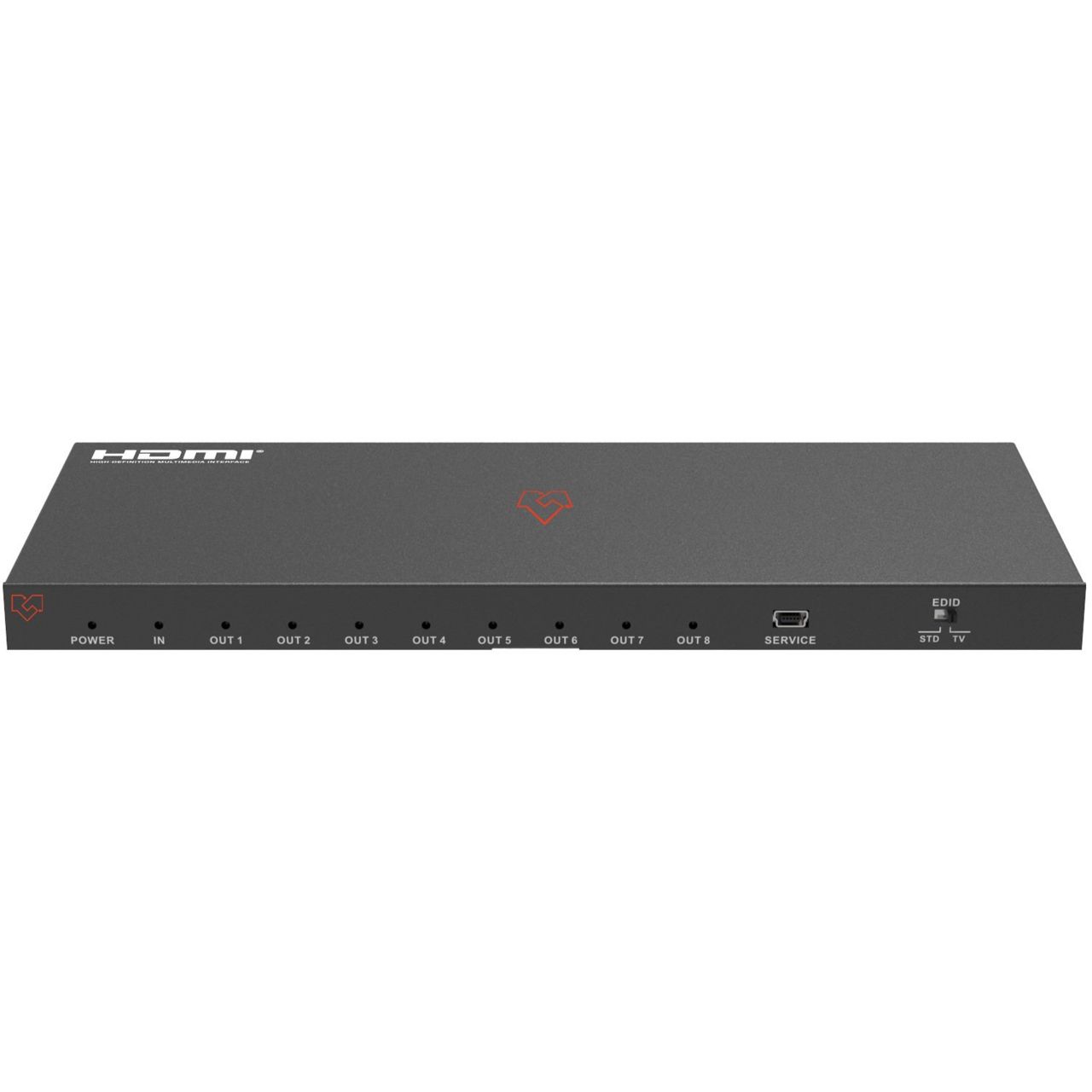

    - 1x SERVICE (Micro USB, Update port)

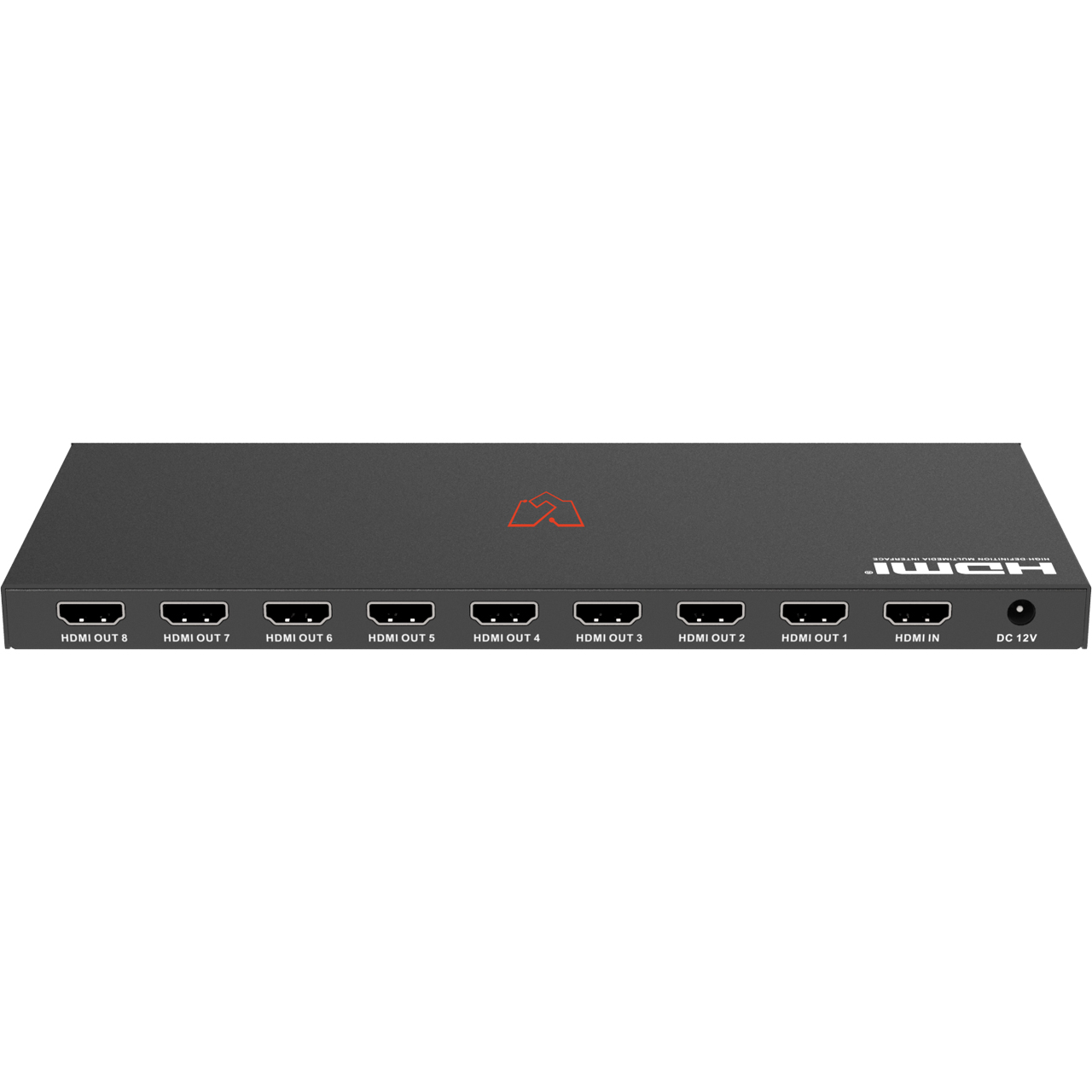

  • Output Ports: 8x HDMI Type A (19-pin female)

    Mechanical
  • Housing: Metal Enclosure
  • Silkscreen Color: Black
  • Dimensions: 9.56" x 4.01" x 0.63" (243mm x 102mm x 16mm)
  • Weight: 1.26lbs (572g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
  • Power Consumption: 6.15W
  • Operating Temperature: 14°F - 122°F (-10°C - 50°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x 18Gbps 1x8 HDMI Splitter
  • 1x 12V/1A DC Locking Power Adapter
  • 1x User Manual


• Warranty:

  • 6 Years
