VigilLink VLSP-22H21 2x2 HDMI 2.1 40Gbps 8K Distribution Amplifier - HDMI 2.1 and HDCP 2.3 Compliant

VLSP-22H21 - Overview

• Features:

  • HDMI 2.1 and HDCP 2.3 compliant
  • Supports 40Gbps video bandwidth
  • Supports video resolution up to 8K @ 60Hz 4:2:0
  • Supports HDR, HDR10, HDR10+, Dolby Vision, ALLM/VRR pass-through
  • Supports HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and -DTS-HD Master Audio

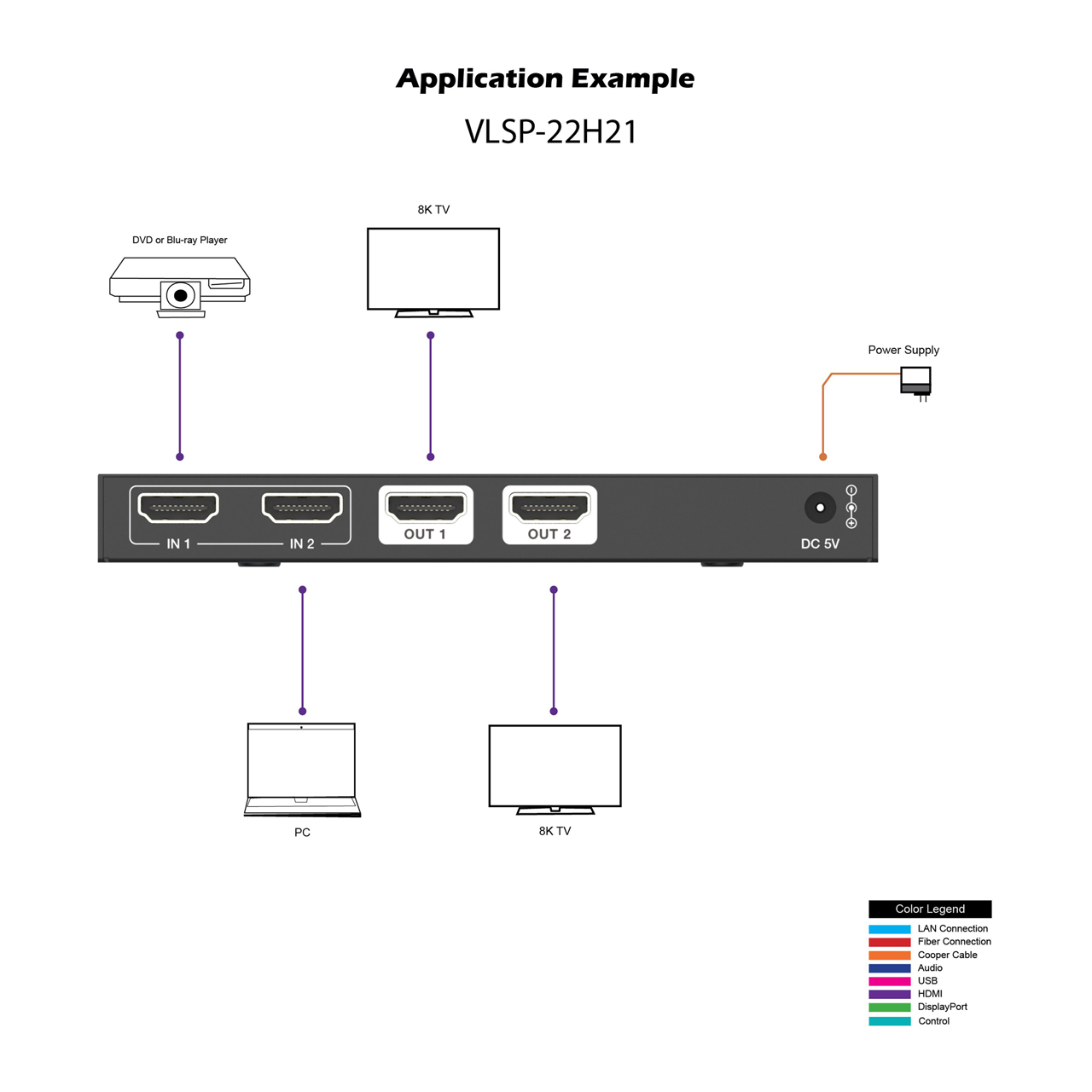

  • 2x1 Switch with Dual Output
  • Built-in Equalizer, Retiming, and Driver
  • Auto EDID management
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 40Gbps
  • Video Resolution: Up to 8K @ 60Hz YCBCR 4:2:0 10bit, 8K30 RGB/ YCBCR 4:4:4 10bit or,4K120 RGB/YCBCR 4:4:4 10bit
  • Color Depth: 8-bit,10-bit,12-bit
  • Color Space: RGB, YCbCr 4:4:4 / 4:2:2. YCbCr 4:2:0
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

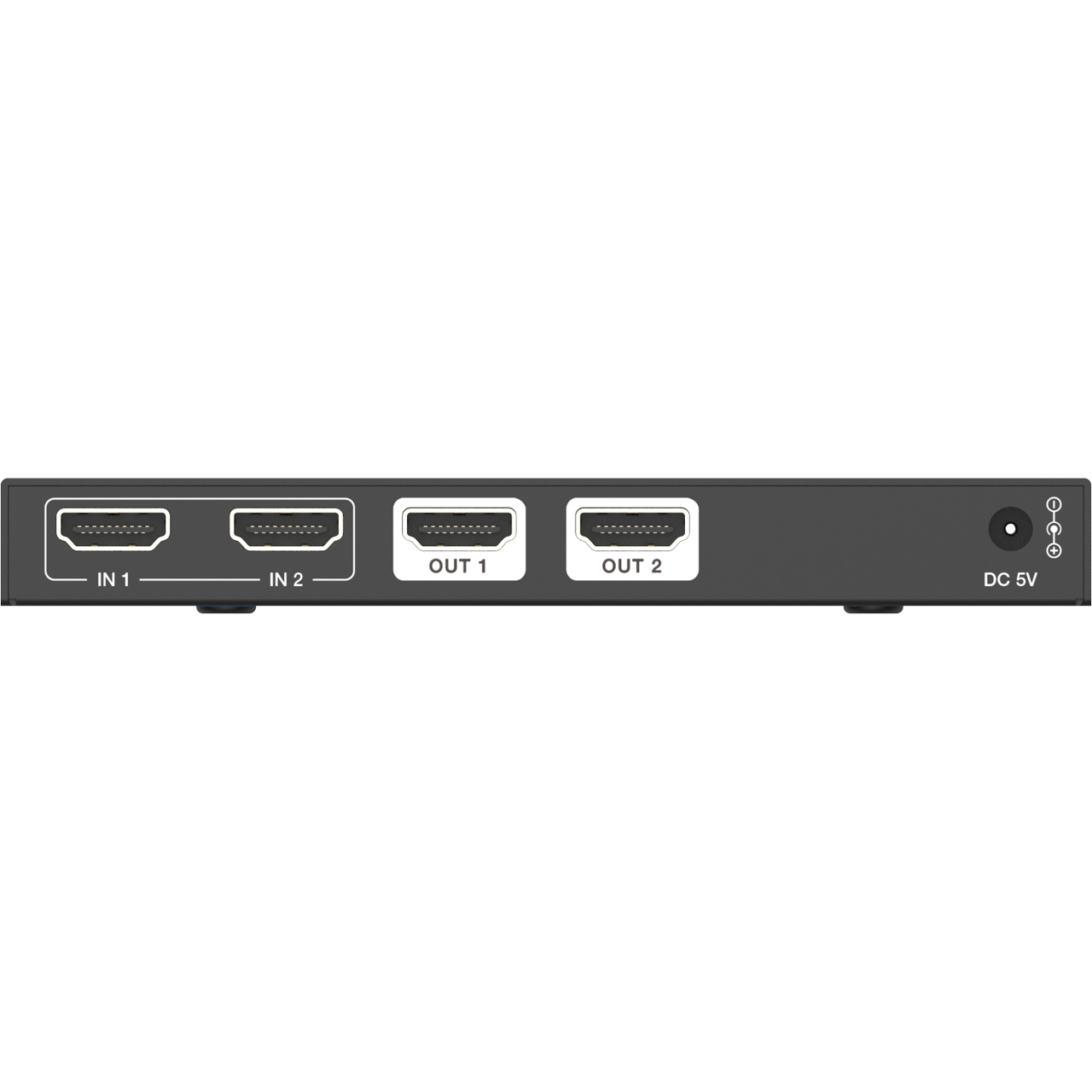

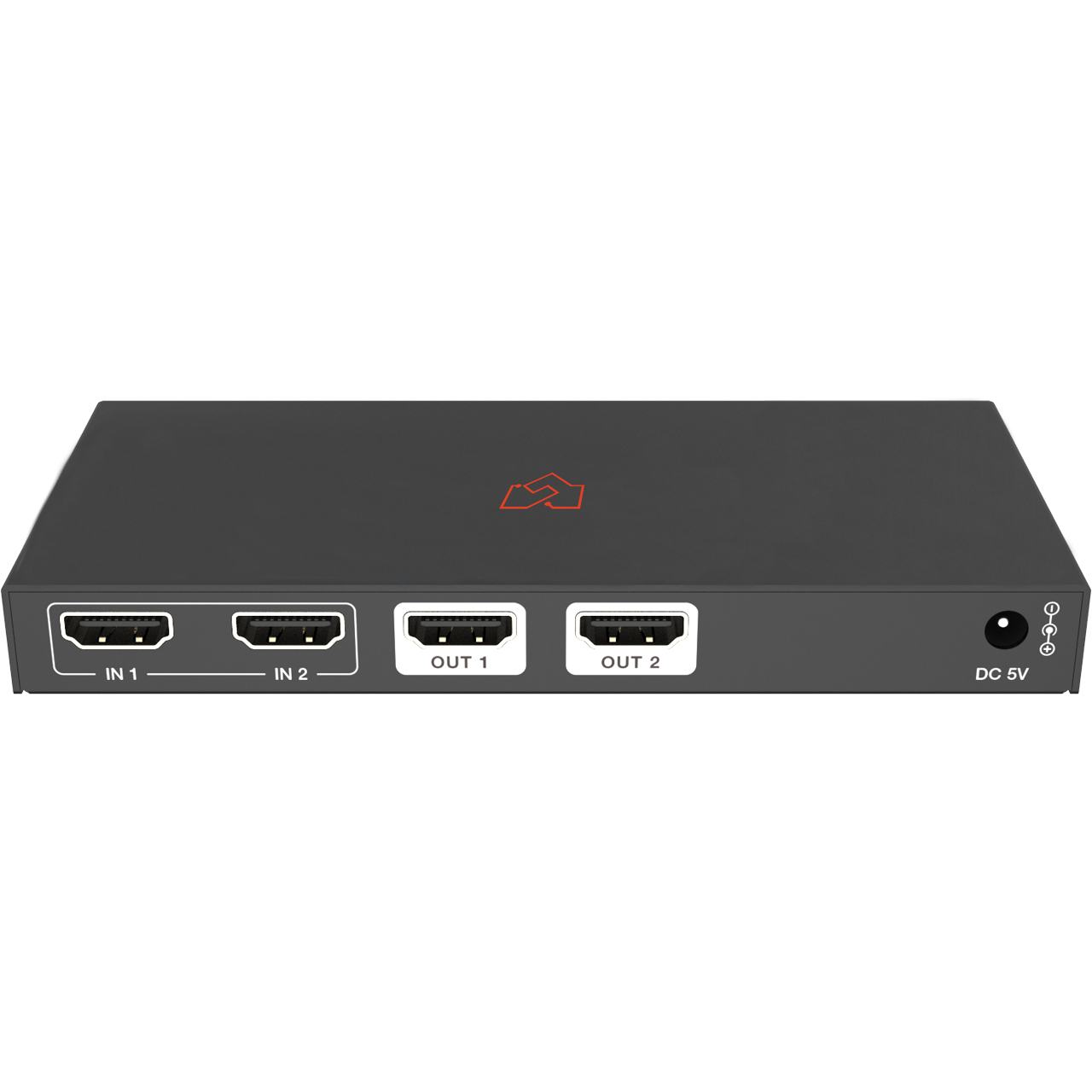

    Connections
  • Input: 2x HDMI IN (Type A, 19-pin female)
  • Output: 2x HDMI OUT (Type A, 19-pin female)

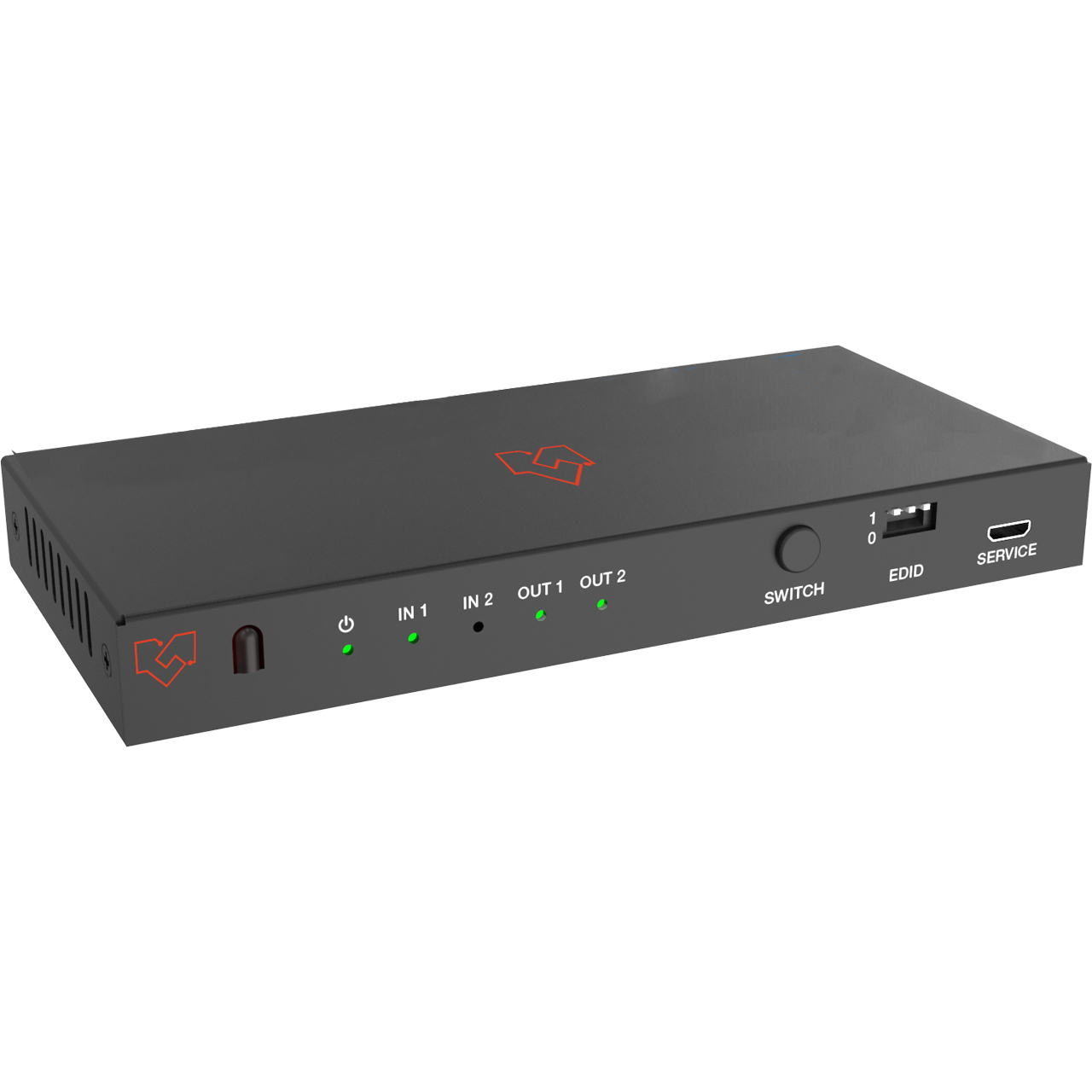

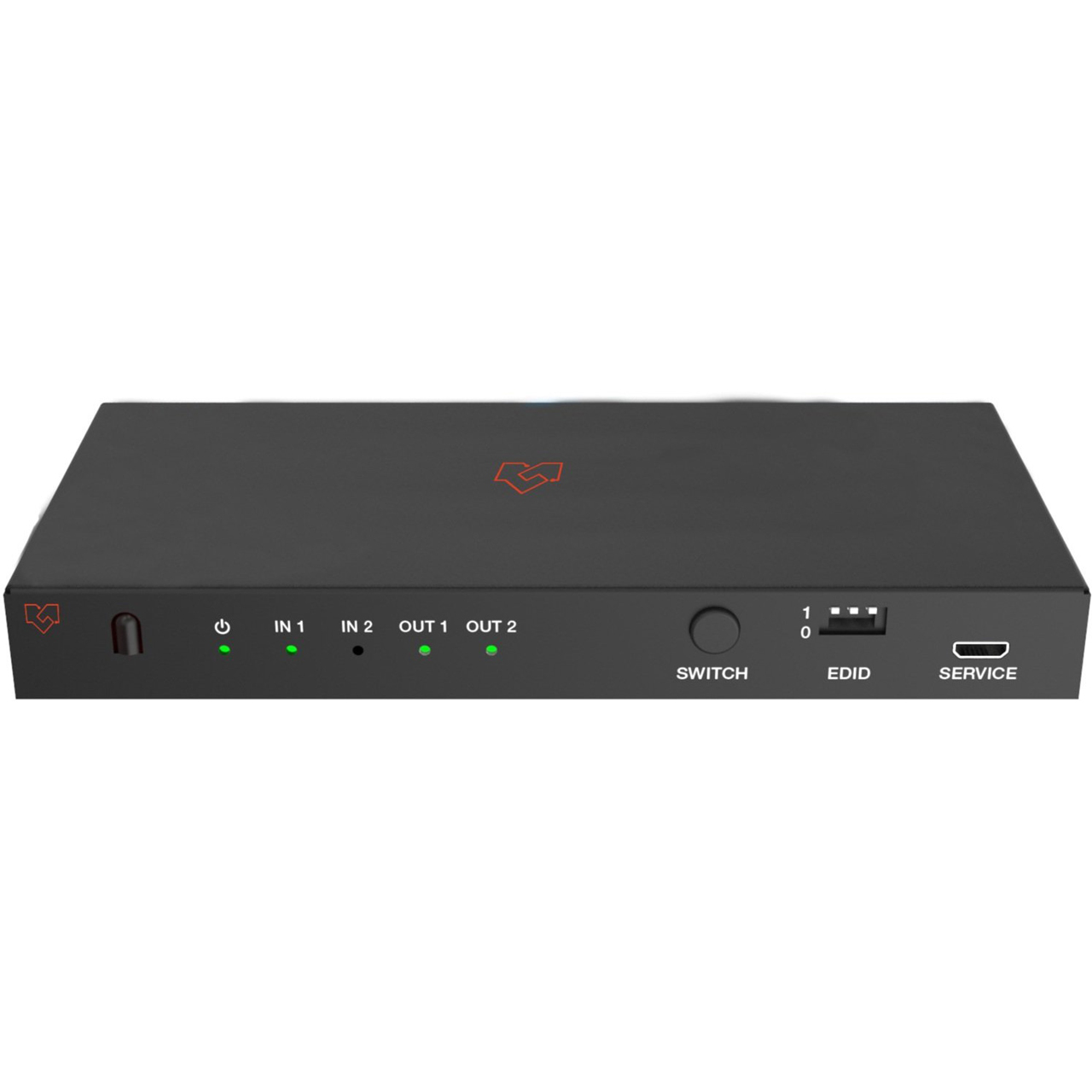

  • Control: 1x SERVICE (Micro USB, Update port)

    Mechanical
  • Housing: Metal Enclosure
  • Silkscreen Color: Black
  • Dimensions: 4.53" x 2.68" x 0.71" (115mm x 68mm x 18mm)
  • Weight: 0.48lbs (220g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
  • Power Consumption: 2.25W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x VigilLink VLSP-22H21 2x2 HDMI 2.1 40Gbps 8K Distribution Amplifier
  • 1x 5V/1A Integrated Power Adaptor
  •
    1x User Manual


• Warranty:

  • 6 Years
