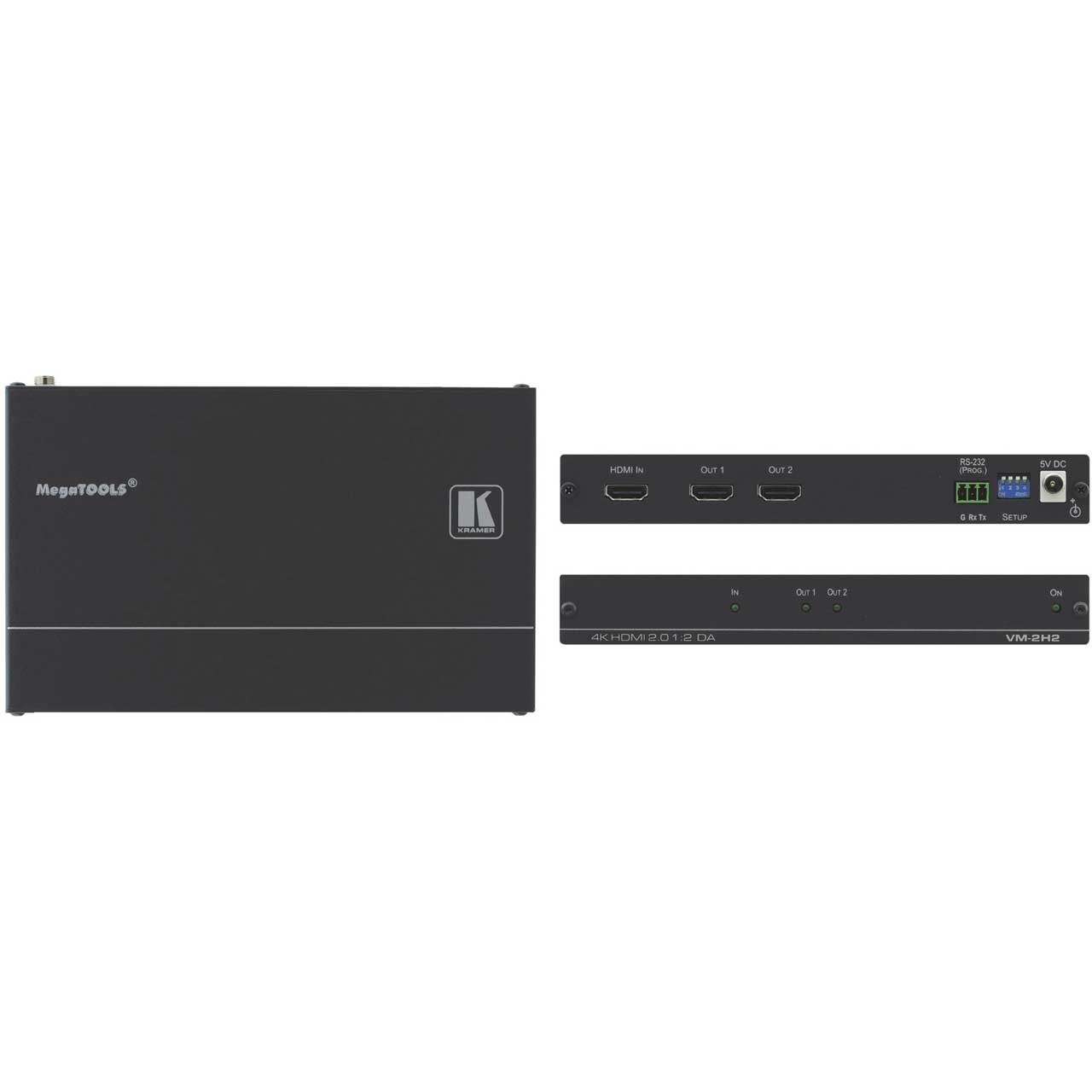

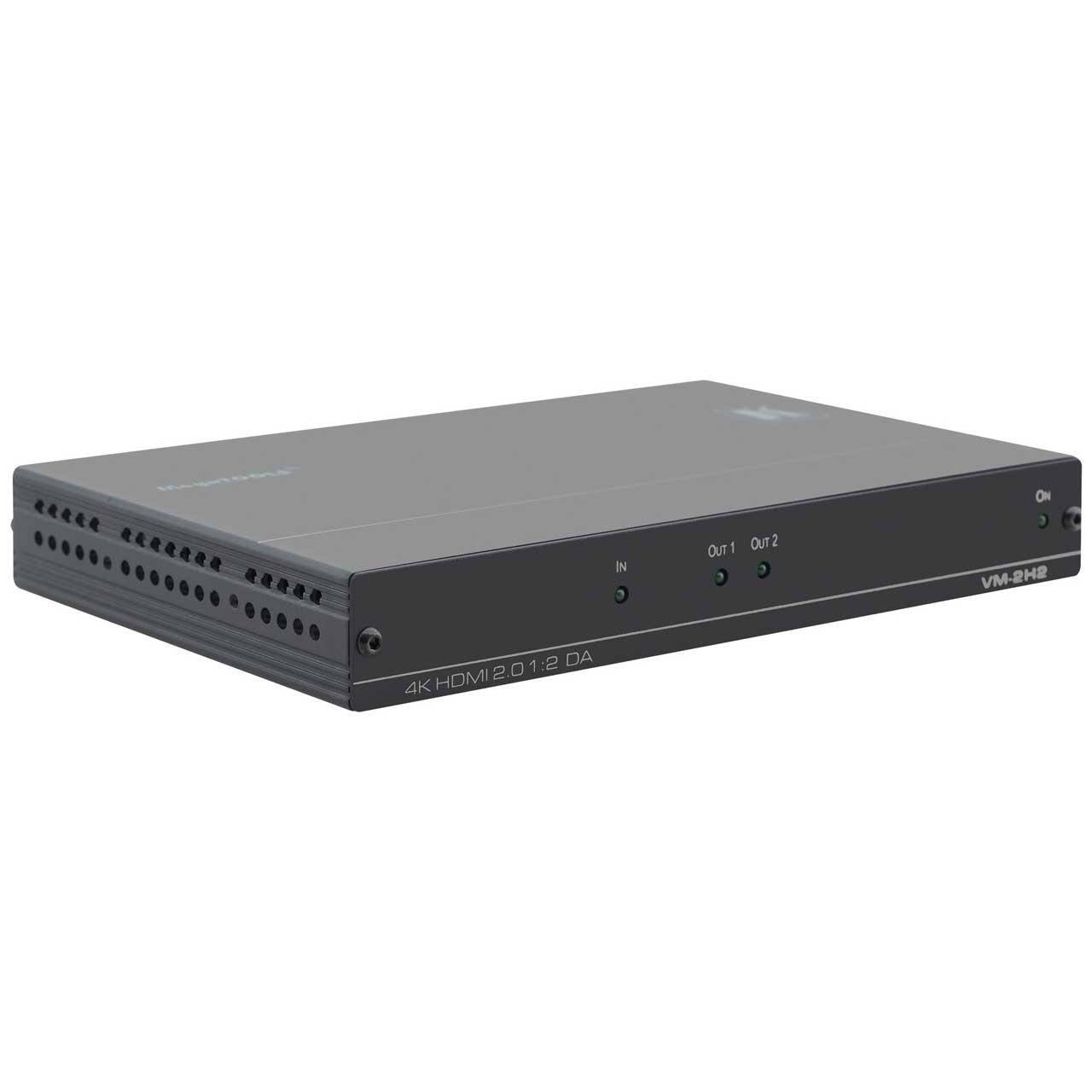

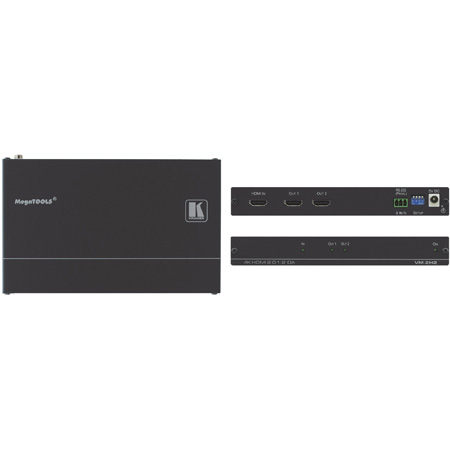

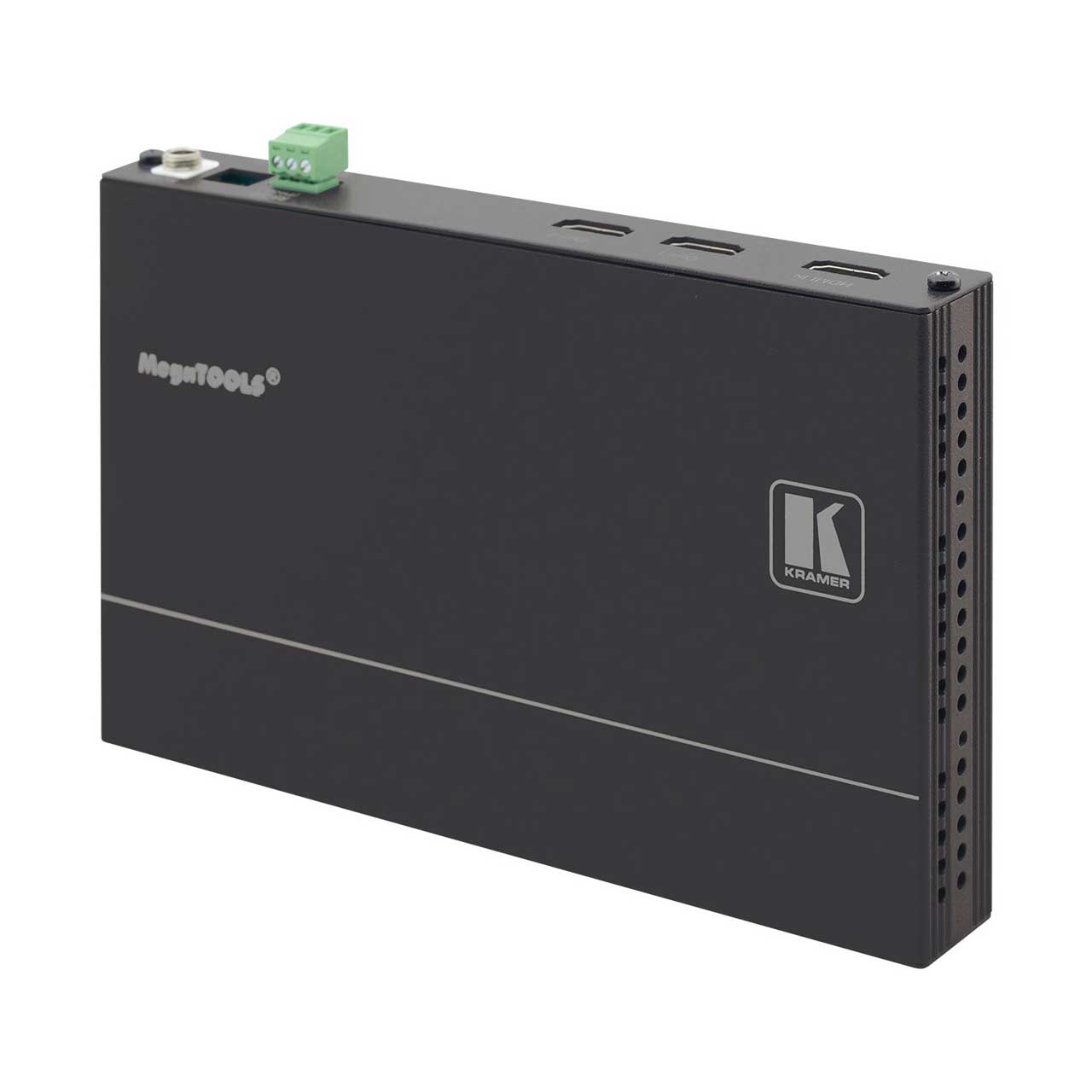

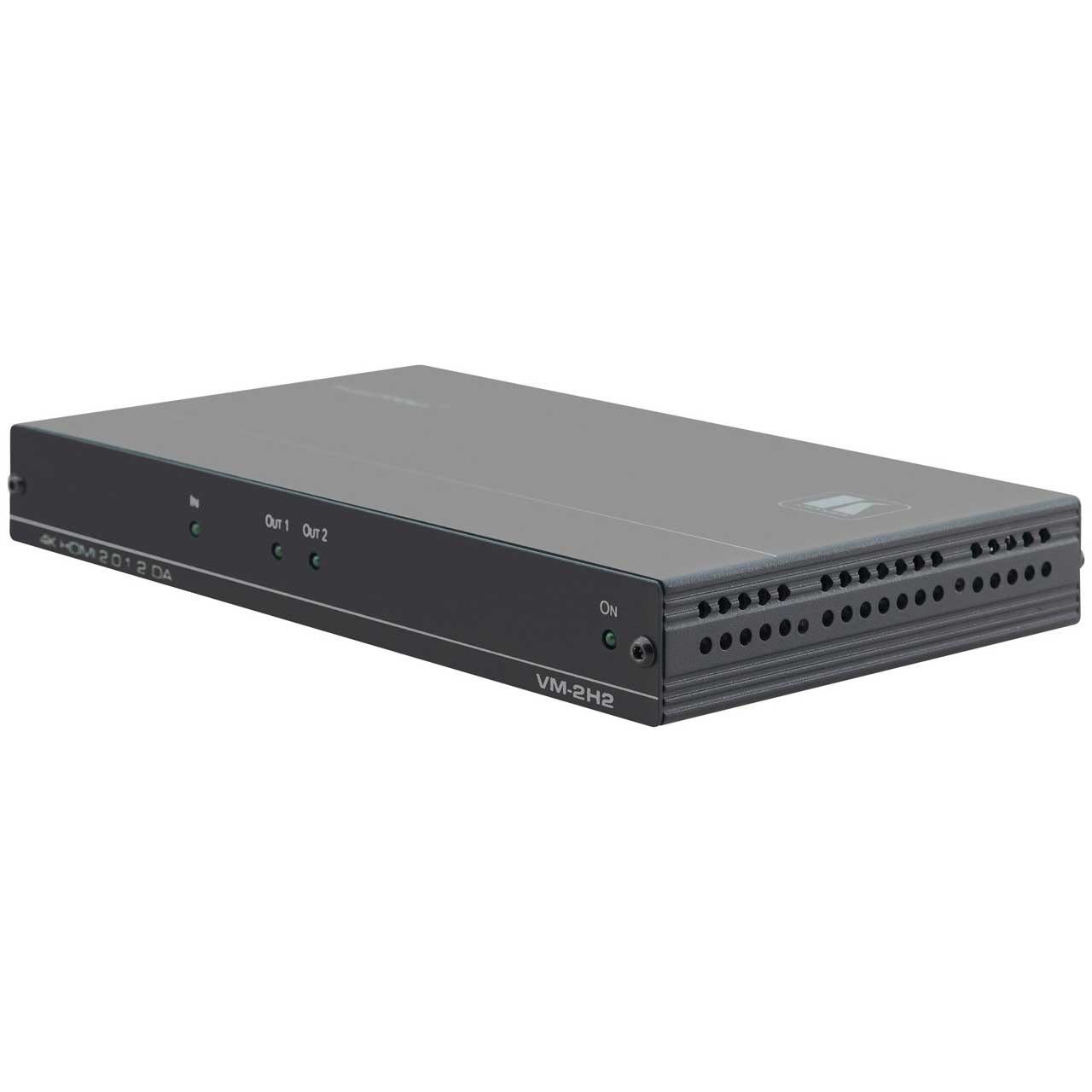

Kramer VM-2H2 1:2 4K HDR HDMI Distribution Amplifier

ITEM #: KR-VM-2H2 MFG #: VM-2H2

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with Minimum Order Banner

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    VM-2H2 - Overview

    The Kramer VM-2H2 is a 1:2 distribution amplifier for up to 4K HDR, HDMI signals that comply with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to two identical outputs.

    Perfect for:
    Simple distribution of high-resolution 4K signals in corporate, education, hospitality and government market segments

    • Features:

      • Max. Data Rate - 17.82Gbps (5.94Gbps per graphic channel).
      • Max. Resolution - [email protected] (4:4:4).
      • HDMI Signal Transmission - HDR, HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K, and 3D as specified in HDMI 2.0.
      • Intelligent EDID Handling - Use connected display EDID or default EDID, with EDID lock and RGB-force options, to ensure proper operation of HDMI source and display systems.
      • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
      • Force RGB - When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality.
      • Selectable HDCP Authorization - Allows the user to control the appearance of an HDCP or non-HDCP input to the source to permit delivery of protection-free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non-HDCP mode.
      • Field Maintenance - RS-232 connection for simple field firmware upgrade, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
      • Easy Installation - Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.
    • Specifications:

      • INPUT
      • 1 HDMI connector

      • OUTPUTS
      • 2 HDMI connectors

      • PORT
      • 1 RS-232 for firmware upgrade

      • VIDEO
      • Up to 17.82Gbps bandwidth (5.94Gbps per graphic channel)
      • Up to [email protected] (4:4:4) resolution
      • HDR10, HDCP 2.2 signal compliance
      • Supports deep color, x.v.ColorT, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0

      • ON, IN, OUT 1 to 2

      • 0° to +40°C (32° to 104°F)

      • -40° to +70°C (-40° to 158°F)

      • HUMIDITY
      • 10% to 90%, RHL non-condensing

      • 5V DC, 730mA
    • Item Includes:

      • VM-2H2 Distribution Amplifier
      • Power Supply
    • Warranty:

      • Limited 7 Year Warranty
    • GTIN:


    VM-2H2 - Required Accessories

      VM-2H2 - Recommended Accessories
