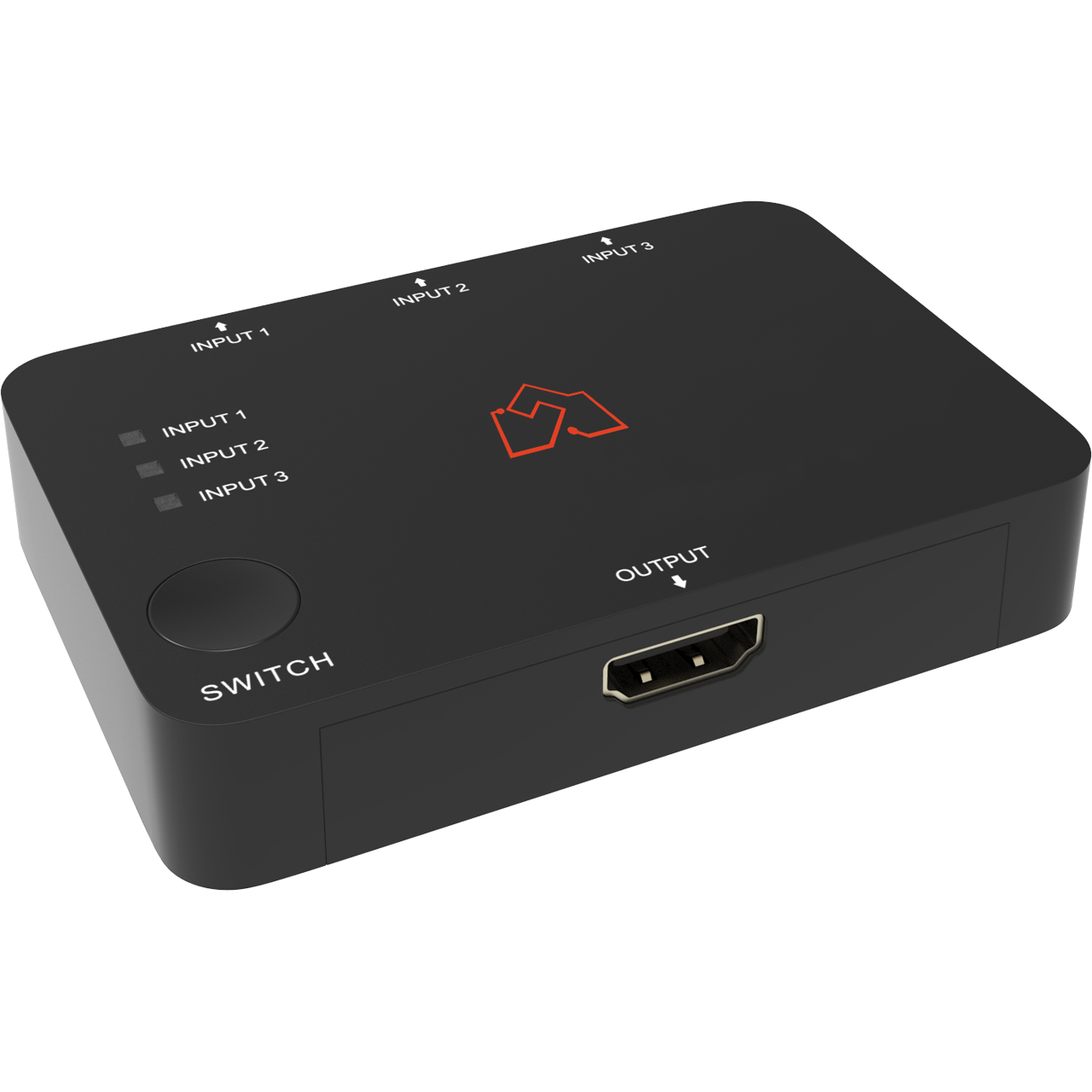

VigilLink VLSW-31H20 3x1 18Gbps HDMI 2.0 Switch - HDCP 2.2/1.x and DVI 1.0 Compliant

VLSW-31H20 - Overview

• Features:

  • HDCP 2.2/1.x and DVI 1.0 compliant
  • Supports 18Gbps video bandwidth
  • HDR, HDR10, Dolby Vision, and HLG are supported
  • Supports video resolution up to 4K2K @ 50/60Hz YCbCr 4:4:4
  • Supports 3D video format
  • Low power consumption
  • Supports IR remote control and panel button control
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4k2k @ 60Hz
  • Color Depth: 8-bit (4K60Hz)
  • Color Space: RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4
  • HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

    Connections
  • Input Ports:

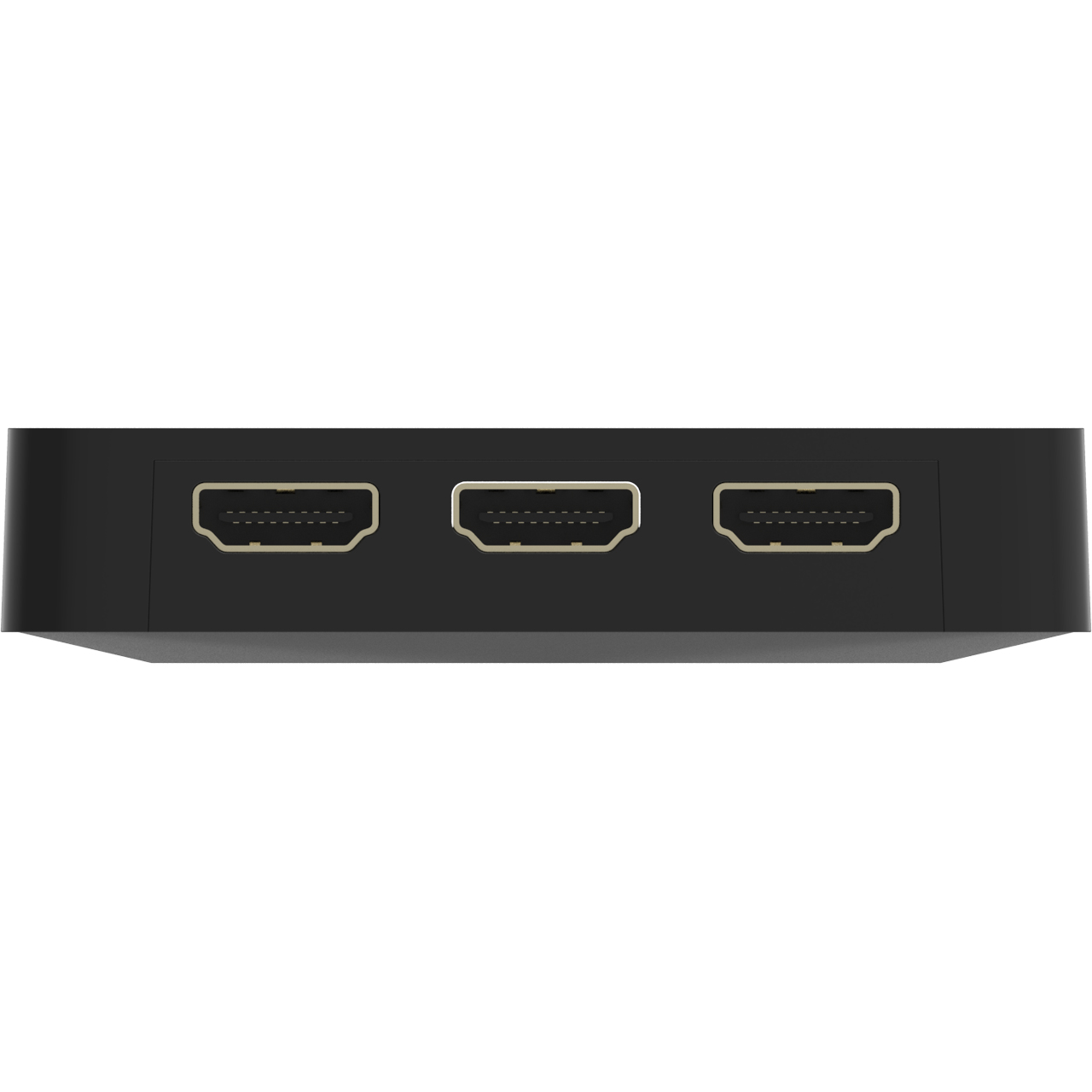

    - 3x HDMI Type A (19-pin female)
    - 1x IR IN (3.5mm Stereo Mini-jack)

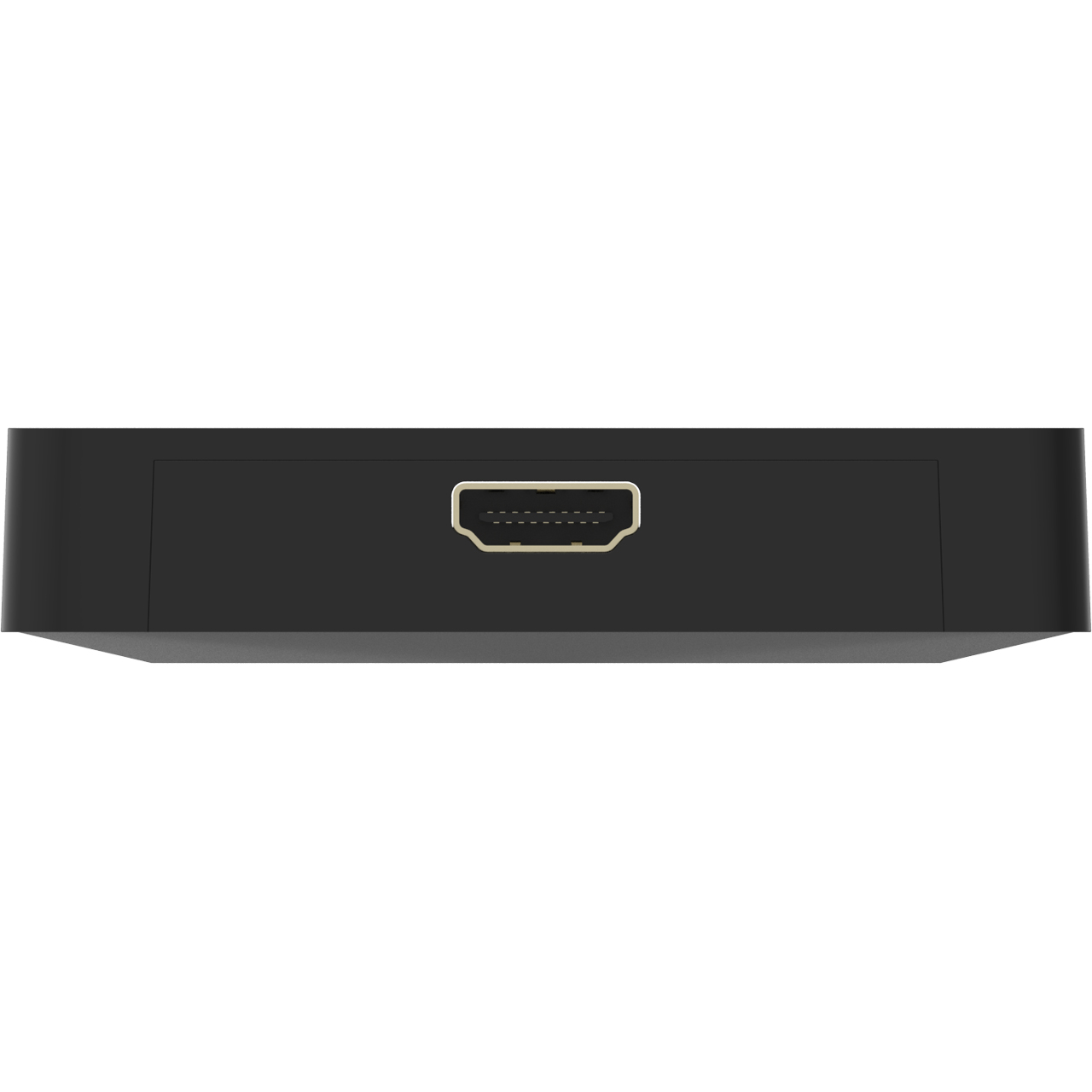

  • Output Port: 1x HDMI Type A (19-pin female)

    Mechanical
  • Housing: Plastic Enclosure
  • Silkscreen Color: Black
  • Dimensions: 3.43" x 2.34" x 0.75" (87mm x 59.5mm x 19mm)
  • Weight: 0.13lbs (60g)
  • Power Supply: 5V/1A
  • Power Consumption: 1.5W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x HDMI 3x1 Switcher
  • 1x IR Receiver Cable
  • 1x 5V USB Power Cable
  • 1x Remote Control
  • 1x User Manual


• Warranty:

  • 6 Years
