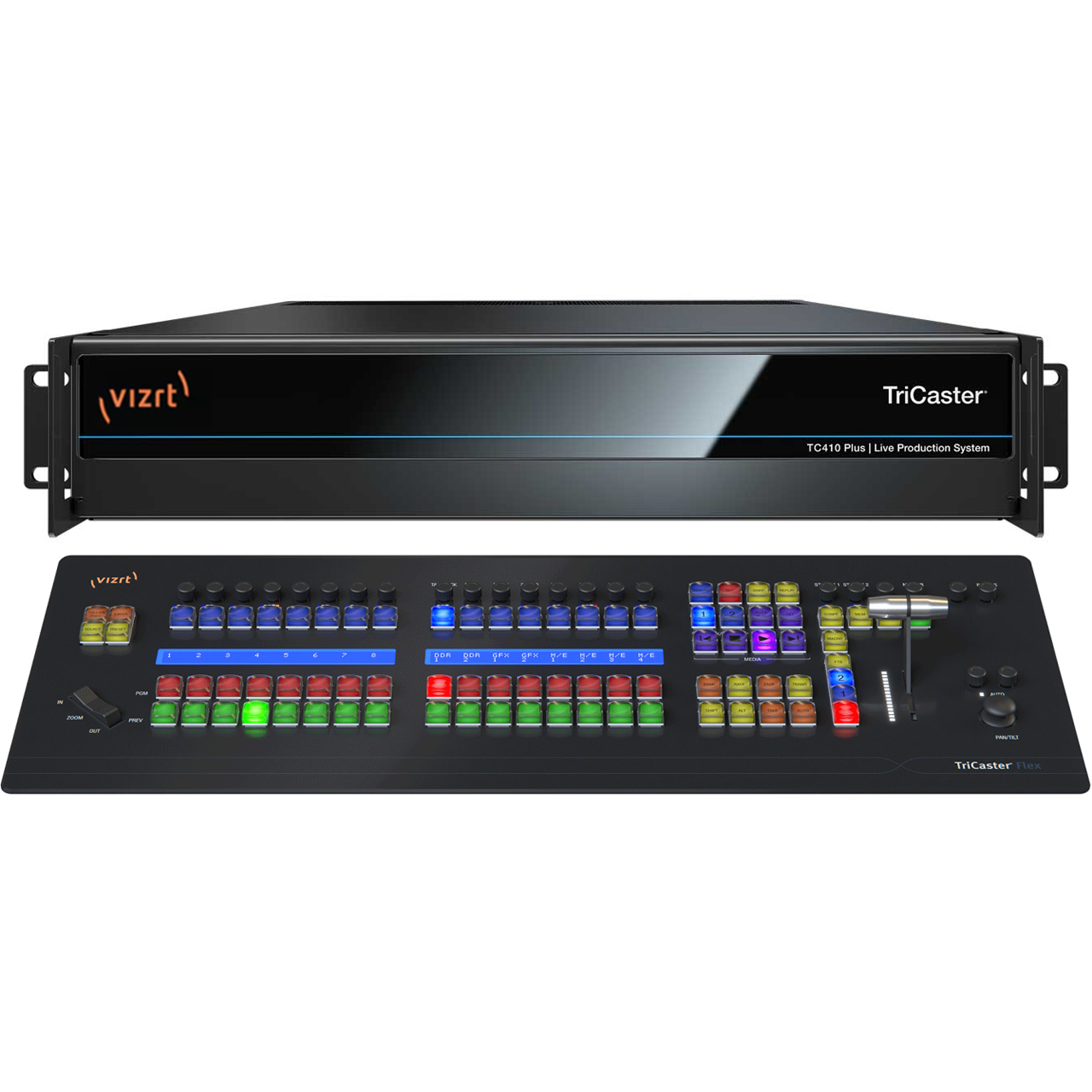

VIZRT TriCaster TC410PFLEX 410 Plus 2RU Live Video Production System and Flex Control Panel Bundle Promo

ITEM #: VZT-TC410PFLEX MFG #: TC410PFLEX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$19,990.00

After Savings:

$14,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Vizrt bundle promotion instant savings!Get instant savings with your purchase of select Vizrt TRicaster and Flex control panel bundles! Get yours today through Markertek while this sale lasts!
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TC410PFLEX - Overview

True Broadcast-quality Shows and More

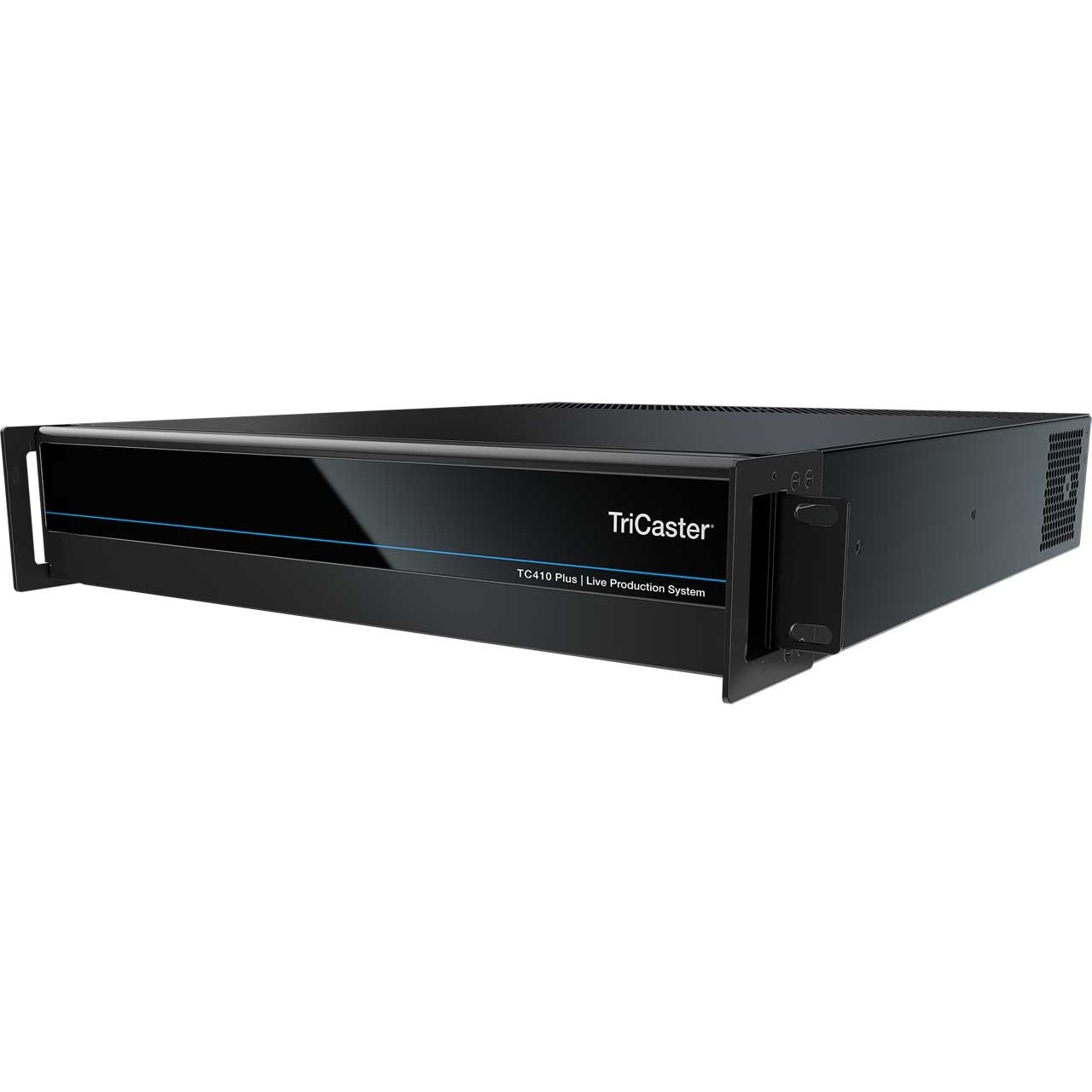

The TriCaster® TC410 Plus is an integrated video production system designed to create multi-platform productions live and on-demand. Your shows will be polished, engaging to viewers through social and second-screen experiences, deliver revenue opportunities, and extend your brand. TriCaster 410 Plus is scaled for smaller racks and mobile units and gives you an end-to-end IP workflow from acquisition to delivery.

Live Link for TriCaster®
Live Link allows users to render web pages directly into the TriCaster and pull any web page elements into production without the need for a 3rd party application. From graphics or images on a web page to videos from your organization's internal training platforms - Live Link offers the ultimate in production agility and freedom.

Maximum Video Production. Minimal Complexity.
TriCaster TC410 Plus enables producers to create high-end video smoother, faster, and easier. With only 2RU of rack space in a flight-pack or tight space, you gain the freedom of movement that's just not possible with racks of individual components pieced together. With an all-in-one design, do-it-yourself setup, and hundreds of entry-level and advanced production capabilities, you can be on your way to building captivating productions from anywhere simply and efficiently.

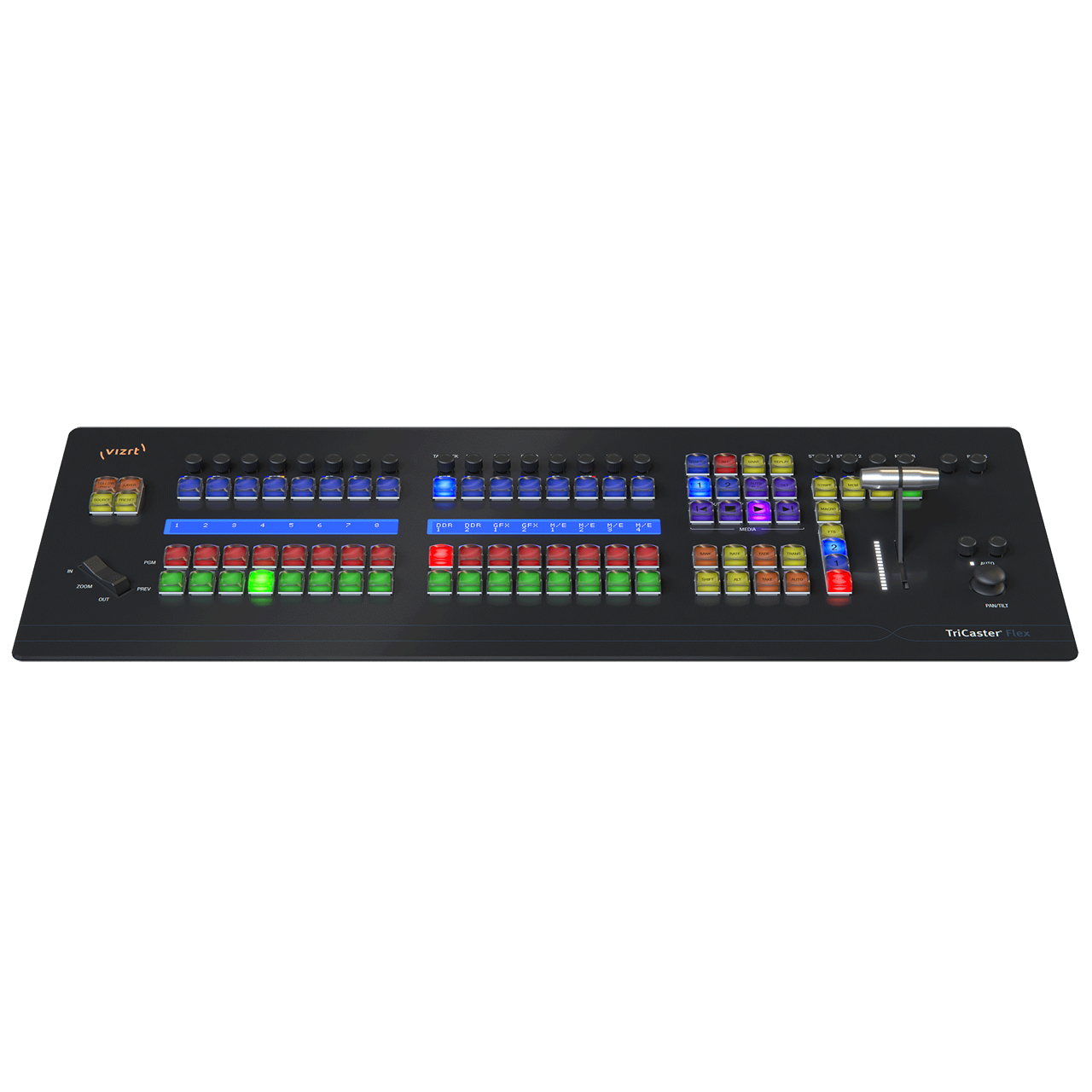

Flex Control Panel
The included Flex Control Panel is the best way to harness the power of TriCasters anywhere. Operators can take direct control of PTZ devices, audio connections, audio and video mixing, and talkback - all connected with NDI®.

VIZRT Flex harnesses the power of the most complete production system on the planet in one control surface. For the first time VIZRT introduces a Control Surface that offers video & audio mixing, PTZ control, audio I/O, and talkback.

Better Connectivity
The Flex Control Panel is the first of its kind to simply connect to a network with NDI and take instant control of any video switcher on that network. In addition - the Flex is built to work with any modern TriCaster. As at home controlling the mighty TriCaster 2 Elite as it is mastering the TriCaster Mini X.

Better Control
Flex allows audio & video mixing, PTZ Control and talkback, directly in one unit; significantly reducing the margin for error for operators, offering greater precision and control than ever before.

  • Features:

    • Mid-size production power including 4 M/E mixing, up to 8 external inputs, and 4 mix outputs

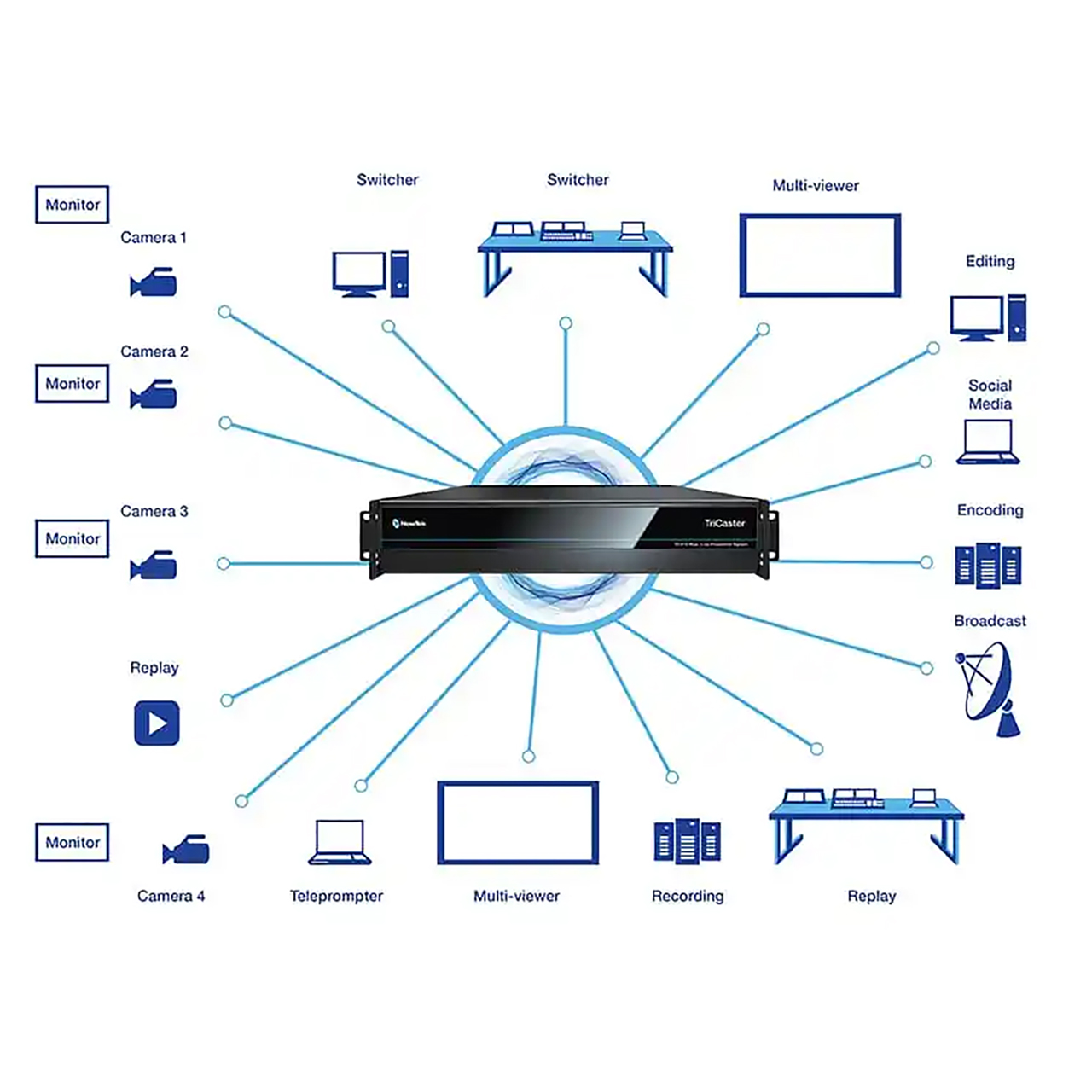

    • NDI integration for video, audio, and data transmission over IP
    • Real-time social media publishing
    • Streaming to Facebook Live, Twitch, and more
    • Multi-channel recording and internal storage
    • Video playback without any additional hardware
    • Integrated multiviewers for monitoring
    • Multi-channel audio mixing

  • Specifications:

    • Video Input: 8x up to 1080 60fps
    • Network Video Input: 8x IP video inputs via NDI
    • SDI Video Input 4x HD/SD-SDI formats:
      - 1080p: 59.94, 50, 29.97, 25
      - 1080i: 59.94, 50
      - 720p: 59.94, 50, 29.97, 25
      - 576i: 25
      - 480i: 59.94
    • PTZ: Up to 8 simultaneous PTZ cameras
    • Video Output: Configurable for 2x pairs of independent video mix outputs via IP and SDI
    • Network Video Output via NDI: 2x pairs independent video mix outputs
    • SDI Video Output: 4x 3G/HD/SD-SDI connection
    • Stream Output: 2x resolution-independent streaming video output
    • Multiviewer Output:
      - 3x multiviewer outputs supporting standard display resolutions
      - 1x Displayport
      - 2x HDMI
    • Mix/Effect Buses (M/E):
      - 4x M/E buses supporting video re-entry
      - 1x Mix/Effect channel per bus with support for up to 4 sources
      - 4x M/E Busses with 2 Key Layers
      - 9x memory slots per bus
      - 1x PREVIZ configuration and preview bus
    • DSK Channels: 2x DSK channels
    • Media:
      - 5x media players
      - 15x media buffers
      - 30x clip players
    • Keyers:
      - 8x input keyers
      - 4x media player keyers
      - 4x M/E keyers
      - 1x PREVIZ keyer
      - 15x buffer keyers
    • Recording:
      - 8x configurable video recording channels via IsoCorder technology
      - 8x NDI source recording
      - 4x QuickTime archival video recorders
      - 2x H.264 distribution video recorders
      - 1x MP3 audio recorder
    • Storage: 1x 2TB internal drive
    • Audio Mixer: Support for quad-channel audio, DSPs, 4x4x4 audio input channel routing
    • Local Audio Input:
      - 4x SDI embedded
      - 1x Balanced XLR stereo pair (Line)
      - 3x Balanced 1/4"
    • Local Audio Output:
      - 4x SDI embedded
      - 1x Balanced XLR
      - 1x Balanced 1/4"
      - 1x Stereo 1/4"
    • Network Audio: Native support for network audio input and output via NDI
    • Supported Media File Formats:
      - Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM
      - Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP
      - Audio: AIFF, MP3, WAV
    • Monitoring: Up to 3 multiviewer displays
    • Processing:
      - Video: Floating Point YCbCr + Alpha Color Space, using 4:2:2:4
      - Audio: Floating Point, 96 kHz
    • Latency: Processing Latency: ~1.0-1.5 frames
    • Practical Throughput Latency: 4 frames
    • A/V Standards:
      - 3G-SDI video conforms to SMPTE 424M (Level A)
      - HD-SDI video conforms to SMPTE 292M
      - SD video conforms to SMPTE 259M and ITU-R BT.656
      - Analog audio levels conform to SMPTE RP-155
    • Tally: via HD15 GPI connector, network tally via NDI, and Blackmagic Design SDI tally standard
    • Genlock: Genlock input supporting SD or HD reference signals
    • GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
    • MIDI: Support for standard MIDI protocol enabling third-party device control
    • System Drive: 250GB SSD
    • NIC:
      - 1x 10 Gigabit
      - 1x 2.5 Gigabit
      - 1x 1 Gigabit
    • Physical:
      - 2RU chassis with 500W PSU and multi-tiered hardware and software fail-safe
      - 19.0 x 3.5 x 19.57" with rack ears attached
      - 26 lbs

  • Item Includes:

    • 1x TriCaster 410 Plus
    • 1x Flex Cotnrol Panel
