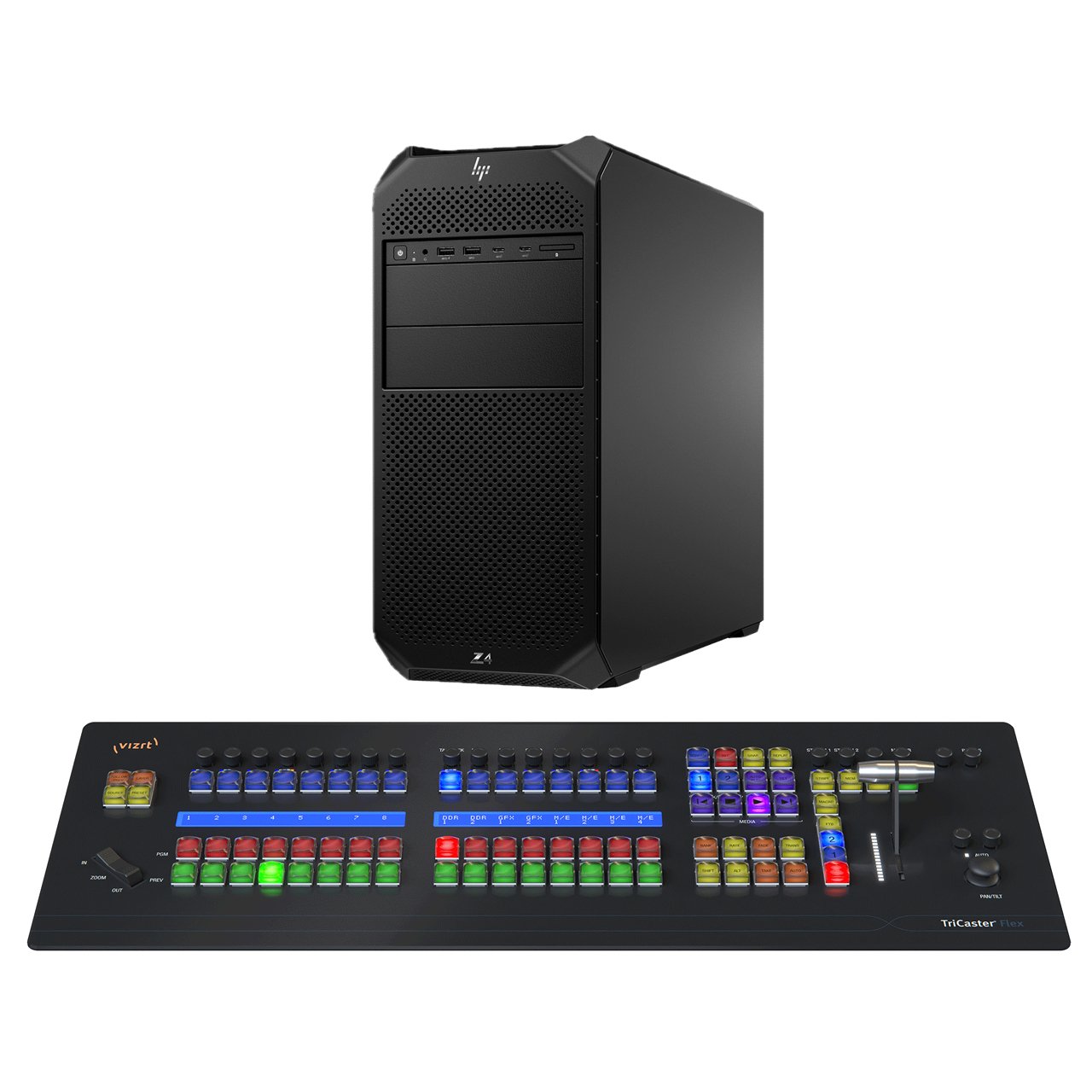

VIZRT TriCaster TCVIZ16TFLEX Vizion Tower 16 4RU SDI Video Mixer and Flex Control Panel Production Bundle Promo

TCVIZ16TFLEX - Overview

• Features:

  • Powerful Animated Graphics
  • 44 External Live Inputs
  • Up to 16 configurable SDI I/O
  • 12G connectivity
  • 10-bit SDR Workflow
  • HDR Sessions with LUT conversion
  • AI Gaze correction
  • AI Keyer
  • TriCaster graphics powered by Viz Flowics
  • Connect to a network with NDI and control any video switcher on the network
  • Control audio and video mixing, PTZ Control and talkback, directly in one unit
  • With audio I/O, instantly expands the on-board I/O of any TriCaster allowing for more external sources to enter the NDI ecosystem directly from the panel


• Specifications:

  • Video Input: 44x simultaneous external video inputs
  • Network Video Input: 44x IP inputs via NDI, resolution-independent
  • SDI Video Input - 12G/3G/HD SDI Frame Rates:
    - 2160p 59.94, 50, 29.97, 25
    - 1080p: 59.94, 50, 29.97, 25
    - 1080i: 59.94, 50
    - 720p: 59.94, 29.97, 25
  • Video Output: Configurable for up to 8x independent HD or 2x UHD video mix outputs, with simultaneous delivery via IP and SDI
  • Network Video Output:
    - 56x IP outputs via NDI. 8x video mix outputs in resolutions up to 1080p at frame rates up to 60fps or 2x UHD video mix outputs at up to 60fps
    - Up to 16x direct IP source outputs via NDI translation of local SDI inputs
    - 4x direct IP source outputs via NDI translation of media players
    - 15x direct IP source outputs via NDI translation of media buffers channel
    - 3x Multiviewer outputs. 4K support on 2x Multiviewer outputs while the 3rd outputs in HD
    - 1x User Interface w/ dedicated multiviewer
    - 1x Teleprompter output
    - 8x Selectable IP outputs via internal NDI matrix router
  • SDI Video Output: 12G/3G/HD SDI: 8x independent 12G/3G/HD video mix outputs supporting standard NTSC and PAL formats, resolutions, and frame rates
  • Audio: 44-ch. integrated audio mixer with support for 8-ch. audio, DSPs and 4x8x8 audio input routing SSD
  • Local Audio Input: 16x SDI embedded
  • Local Audio Output: 8x SDI embedded
  • Network Audio:
    - Native support for I/O via NDI
    - Embedded audio supported for all NDI I/O video signals
    - Integrated support for Dante networking protocol from Audinate
    - Support for AES67 protocol via compatible WDM audio drivers
  • Media:
    - 5x media players
    - 15x media buffers
  • Keyers:
    - 44x input keyers
    - 4x media player keyers
    - 8x M/E keyers
    - 1x PREVIZ keyer
    15x buffer keyers
  • Recording:
    - 8x configurable M/E channels
    - Up to 16x SDI inputs
    - 4x DDR's
    - 3x streaming encoders
    - Support for growing file playback from DDR's
    - Instant Replay capability on each input
    - 44x total configurable inputs
  • Storage: 4TB SSD internal storage - Supports recording to external storage
  • PTZ: Up to 44 simultaneous Pan-Tilt-Zoom
  • Monitoring: Up to 4 multiviewer displays
  • Signal Monitoring: Integrated waveform and vectorscope
  • Processing: Video: YCbCr + Alpha color space, using 4:2:2:4, Audio: Floating Point, 96kHz
  • Latency:
    - Processing Latency: ~1.0 - 1.5 frames
    - Practical Throughput Latency: 4 frames
  • A/V Standards: 12G-SDI video conforms to SMPTE ST 2082, 3G-SDI video conforms to SMPTE 424M, HD-SDI video conforms to SMPTE 292M
  • Tally: Network tally via NDI
  • Genlock: Genlock input per I/O board supporting SD or HD reference signals
  • GPI: GPI signals via JLCooper Electronics eBox GPI interface
  • MIDI: Standard MIDI protocol enabling third-party device control
  • System Drive: 500GB SSD
  • System Physical:
    - Redundant 675W PSU, Tower chassis w/ 1125W PSU
    - Tower: 17.5" x 15.2" x 6.65"/27.8lbs
  • Temp Range:
    - Operating: 40°F - 80°F
    - Non-Operating: -40°F - 140°F


• Item Includes:

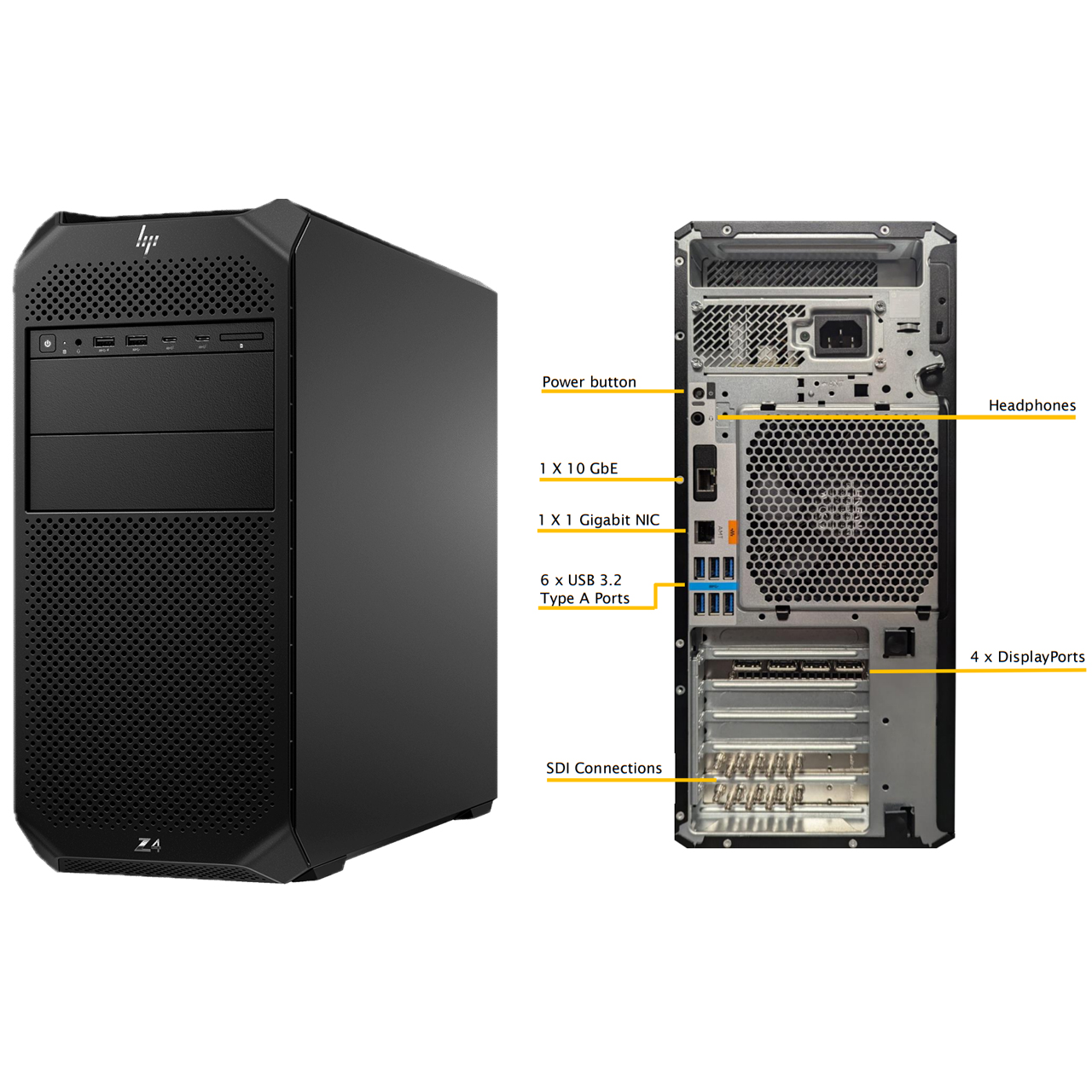

  • 1x Vizrt TriCaster Vizion Tower with 16 SDI I/O
  • 1x 1 Year of Standard Support
  • 1x Viz Flowics Basic for 36 months

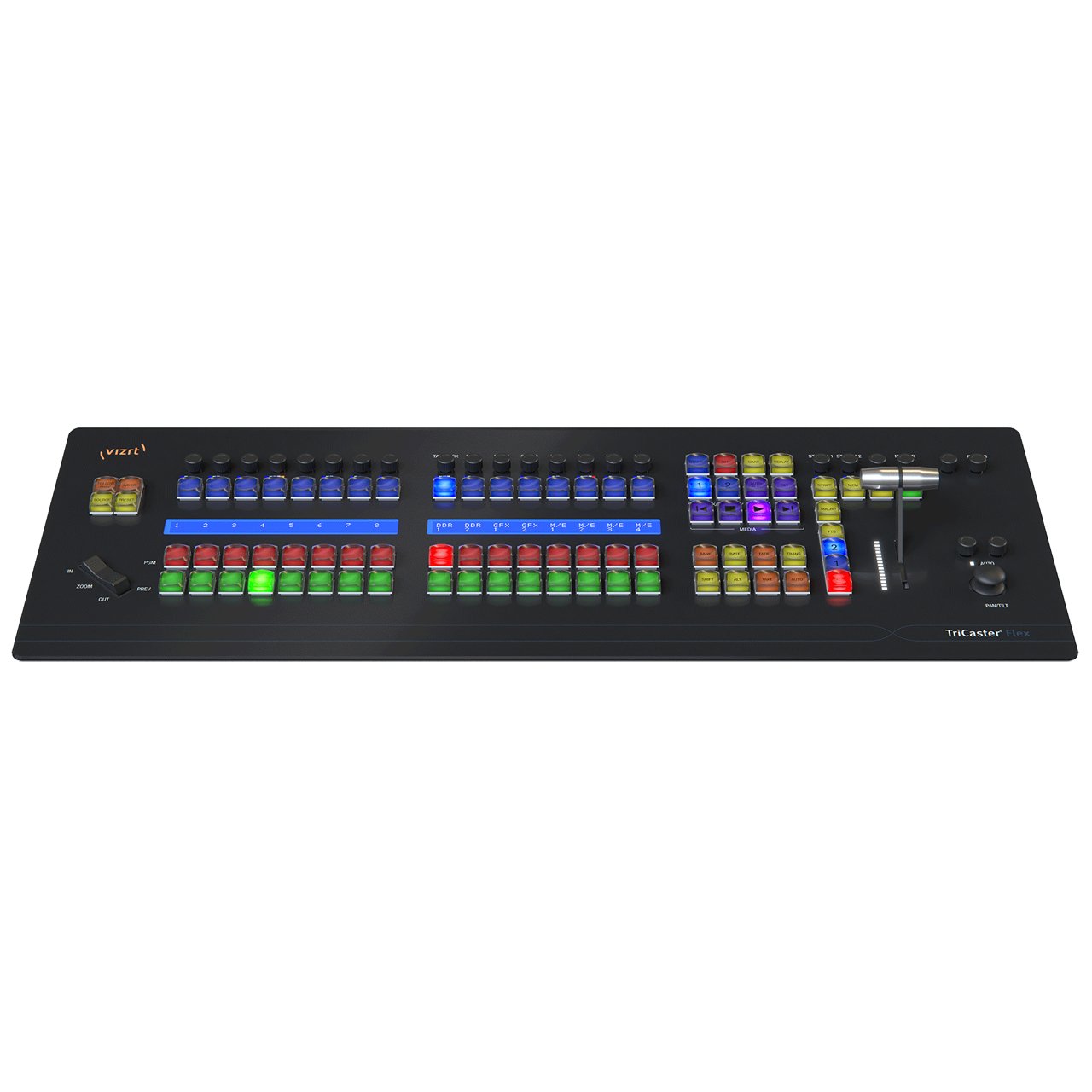

  • 1x Vizrt Flex Control Panel
