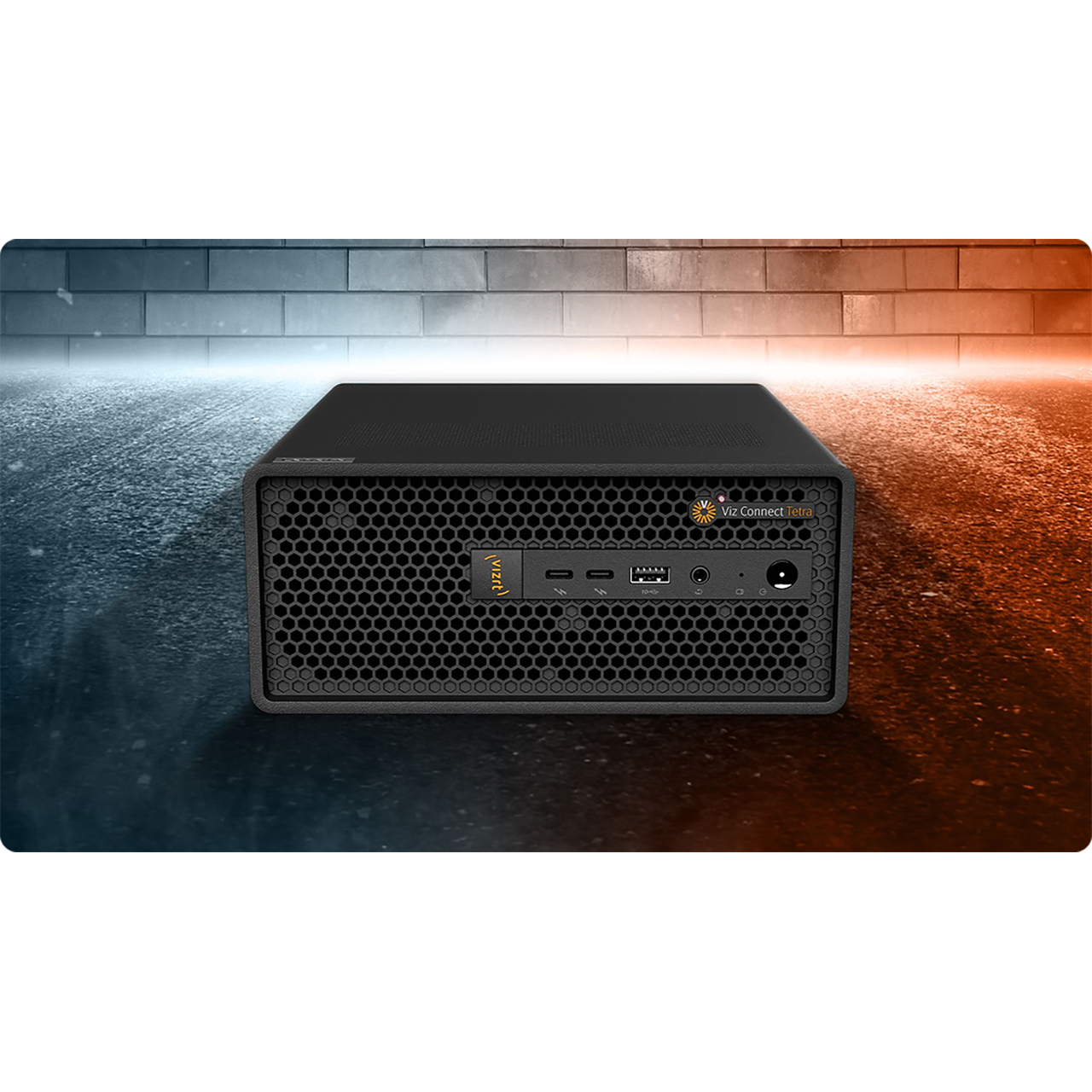

VIZRT Viz Connect Tetra NDI Ultra-Compact Multi-Channel 4K Video & Audio Live Production Workstation

VIZ CONNECT TETRA - Overview

• Features:

  • 4 Flexible I/O Channels: For the first time in a Viz Connect product, 12G-SDI and 3G-SDI can be converted through NDIr High-Bandwidth with no compromise in each channel.
  • 12G SDI Connectivity: 4x 3G/12G-SDI connections can be used independently or in Key/Fill pairs for a wide range of deployments; Cameras, Graphics, and Monitoring.
  • Viz Flowics: Ingest Viz Flowics/HTML 5 to NDI for IP deployment, or SDI (including key & fill mode) for baseband systems integration.
  • NDI Bridge: With NDI Bridge pre-installed on Viz Connect Tetra, users can seamlessly enable production capabilities with cloud and remote productions without additional hardware*.
  • Audio Routing: Offering 16 x 16 audio routing, users can "reshuffle" audio patching in each channel for on-the-go use, e.g. audio commentary for sports, and translation for ProAV.
  • Viz Connect Family: Expands on the features Viz Connect users already know and love, including Mutliviewer, ProcAmps, audio embedding and more.


• Specifications:

  • Video In: NDI High Bandwidth, NDI|HX, Viz Flowics HTML 5, SRT, SDI, RTMP, RTSP
  • Video Out: NDI High Bandwidth, SDI
  • IO IP Channels: Up to 4x IO channels as input or output, configurable as follows:
    - 4K UHD and HD SDI I/O Support: 4x 12G-SDI HD-BNC connectors, also configurable as up to 2x Key and Fill Pairs assignable to IO channels.
    - Flowics and HTML 5 Support: Up to 4x Viz Flowics HTML5 sources, convertible to either NDI with key and Fill, or 2x SDI key and fill pairs, or 4x as SDI fill only assignable to IO channels.
  • Remote Production and Bandwidth Control Support:
    - NDI Tools Bridge integration (supporting Join and Local modes only) to connect to NDI Bridge hosts over public internet.
    - Up to 4x channels supported as NDI High Bandwidth in 4K UHD and HD
    - 4x channels NDI|HX 2 in HD H.264 or HEVC codec
    - 1x channel 4K UHD as H.264 or HEVC codec
    Please Note: Multichannel and HEVC modes are not supported at this time for 4K UHD feeds.
  • Media Playback Channels: Up to 4x
  • Recording Channels: Up to 4x as NDI in .mov containers
  • Supported Video Formats:
    - 2160p: 59.94, 50, 29.97, 25, 24, 23.976
    - 1080i: 59.94, 50
    - 1080p: 60, 59.94, 50
    - 1080i: 30, 29.97, 25
    - 1080p: 59.94, 50, 29.97, 25, 24, 23.976
    - 720p: 59.94, 29.97, 25, 24, 23.976
    - 1080p/PsF: 30, 29.97, 25, 24, 23.98
    - 720p: 60, 59.94, 50
  • Supported Media Formats:
    - Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
    - Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and moreAudio: AIFF, MP3, WAV, and more
  • Audio I/O: Up to 4x SDI embedded, USB Audio Devices, IP feeds with embedded audio.
  • Audio Channels and Routing: Up to 16x audio channels per IO channel with repatching/routing on 16x16 matrix
  • Audio Networking:
    - Native support for network audio input and output via NDI
    - Embedded SDI audio supported for all NDI input and output video signals
    - Support1 for Dante and ASIO protocols via compatible audio drivers
  • Timecode: LTC and VITC
  • Signal Monitoring: Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
  • A/V Standards:
    - 12G-SDI (ST 2082-10)
    - 6G-SDI (ST 2081-10)
    - 3G-SDI Level A (ST 425-1 Level A Mapping)
    - HD-SDI (ST 292),
    - SD-SDI (ST 259)
  • Video Processing: Floating Point, YCbCr +A 4:4:4:4
  • Audio Processing: Floating Point, 96kHz
  • Genlock: Reference input supporting SD (Bi-level), HD (Tri-level), or network (NDI) supported
  • Displays: 3x DisplayPort 1.2, one utilized for GUI

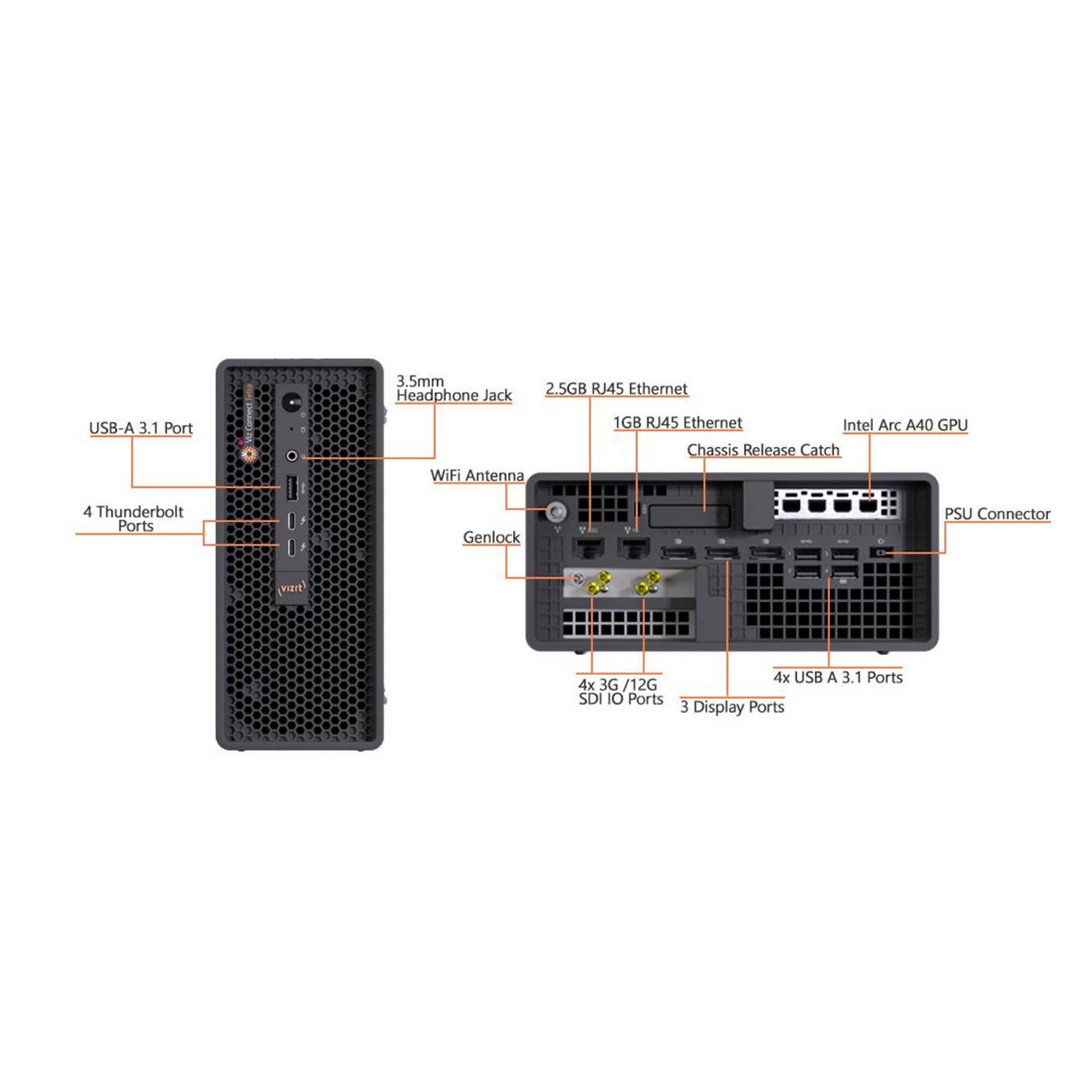

  • Front Ports:
    - Reference input supporting SD (Bi-level), HD (Tri-level), or network (NDI) supported
    - 1x USB -A 3.2 Gen 2 (10Gbs)
    - 2x Thunderbolt 4 (USB-C 40Gbs), 2.5 Gigabit NIC (2.5GBASE-T over RJ45)
  • Rear Ports: 4x USB-A 3.2 Gen 2 (10Gbs)
  • Networking:
    - 1x 2.5 Gigabit NIC (2.5GBASE-T over RJ45)
    - 1x 1 Gigabit NIC (RJ45)
  • Dimensions (HxWxD): 7.9" x 3.4" x 8.7" (20.2cm x 8.7cm x 22.3cm)
  • Weight: 3.96lbs (1.8kg)


• Item Includes:

  • 1x Viz Connect Tetra


• Warranty:

  • 1 Year Limited Warranty
