Wohler iVAM2-2-G 2RU Dual Screen 16-Channel Dual Input 3G/HD/SD-SDI Audio & Video Monitor with Touch Screen Control

ITEM #: WOH-IVAM2-2-G MFG #: IVAM2-2-G

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$7,195.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


IVAM2-2-G - Overview

16 Channel, Dual-Screen, 3GSDI & Analog Audio & Video Monitor with Optional 2022-7 support, plus options to License Additional Input Signals

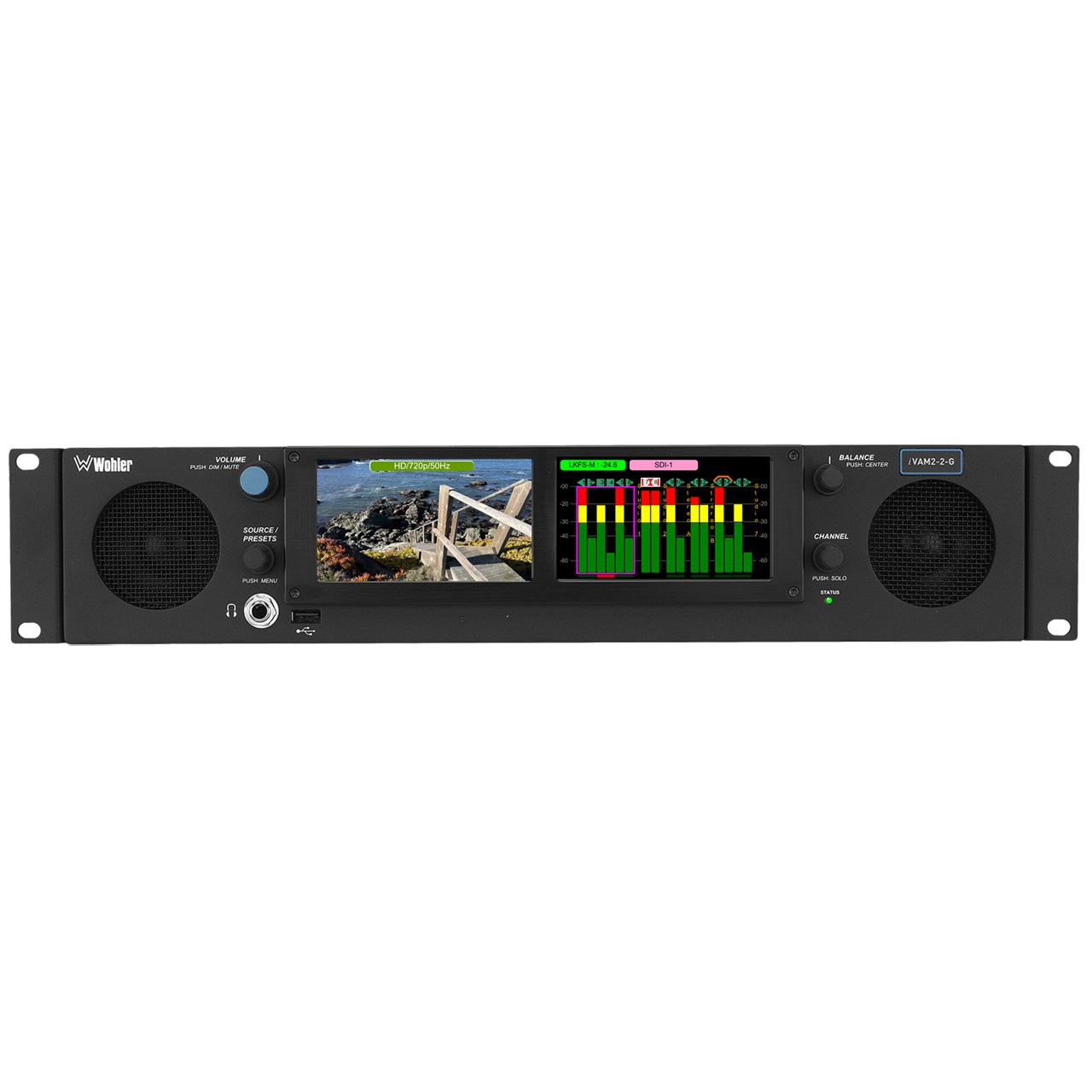

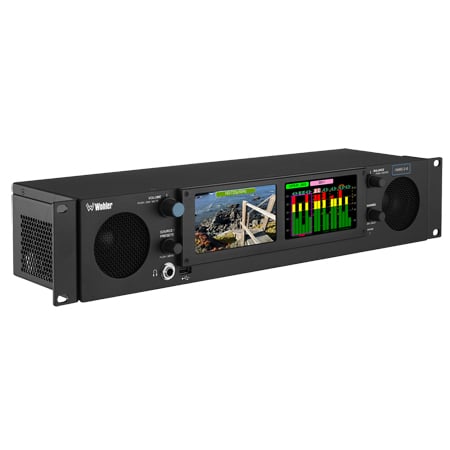

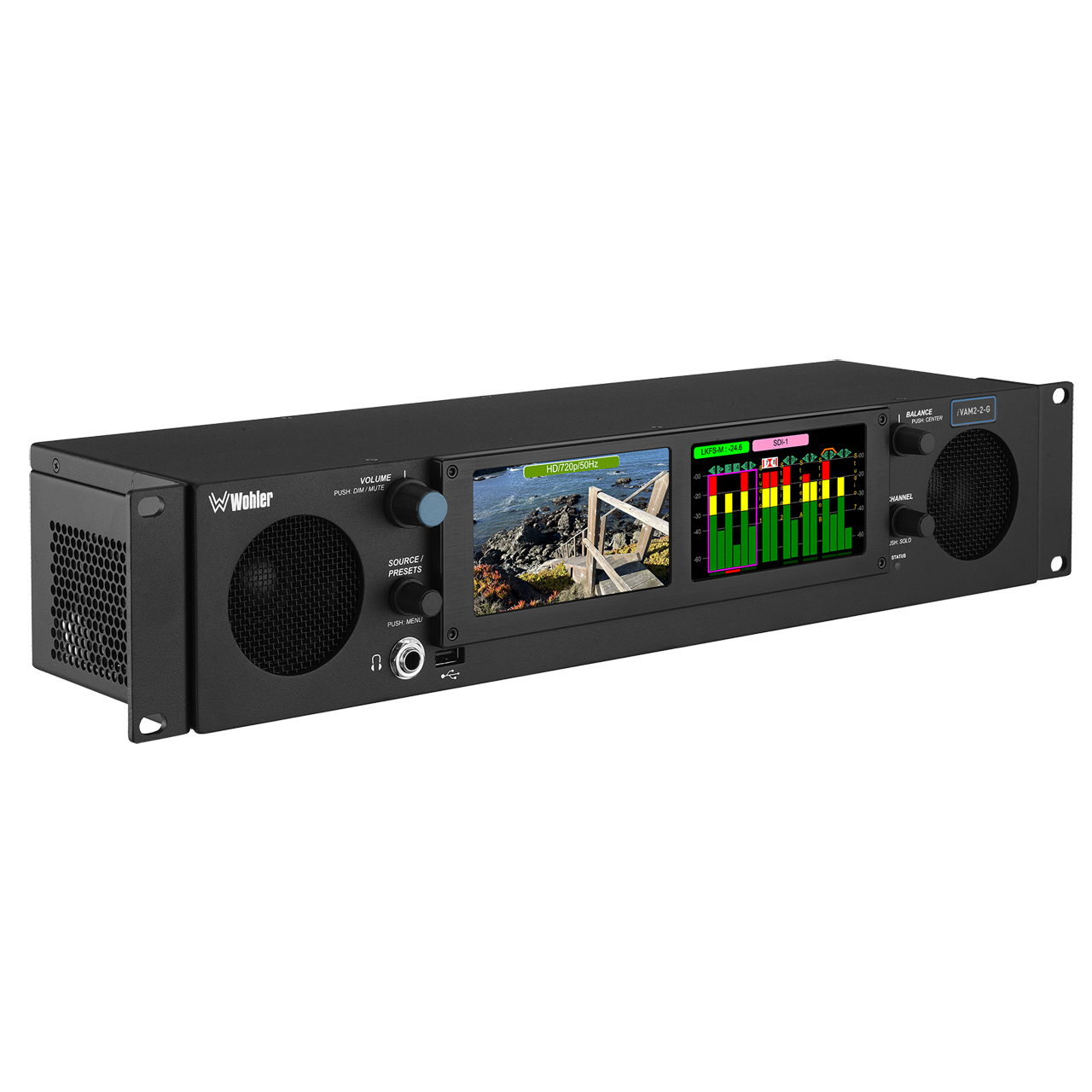

The Wohler iVAM2-2-G is a 2RU height, well featured and competitively priced IP ready 16 channel video and audio monitor with a larger screen and more powerful speakers than Wohler's 1RU offerings. It includes loudness measurement, phase status and HDR detection. It is touch-capable and designed to be easy to operate, providing fast access to meters, menus and presets.

Flexible. Adaptable. Future Proof.
Standard features include 3G-SDI and a pair of Analog inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase. Options for additional signals, include Dante™ or Ravenna™ (with hitless 2022-7 support), SMPTE-2110, SMPTE-2022-7, AES3, and MADI.

Network Capable with Remote Access Options
The unit includes built-in support for remote monitoring provided by Wohler's MAVRIC software applications suite. All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

  • Features:

    • Audio monitoring (up to 16 channels) from multiple sources.

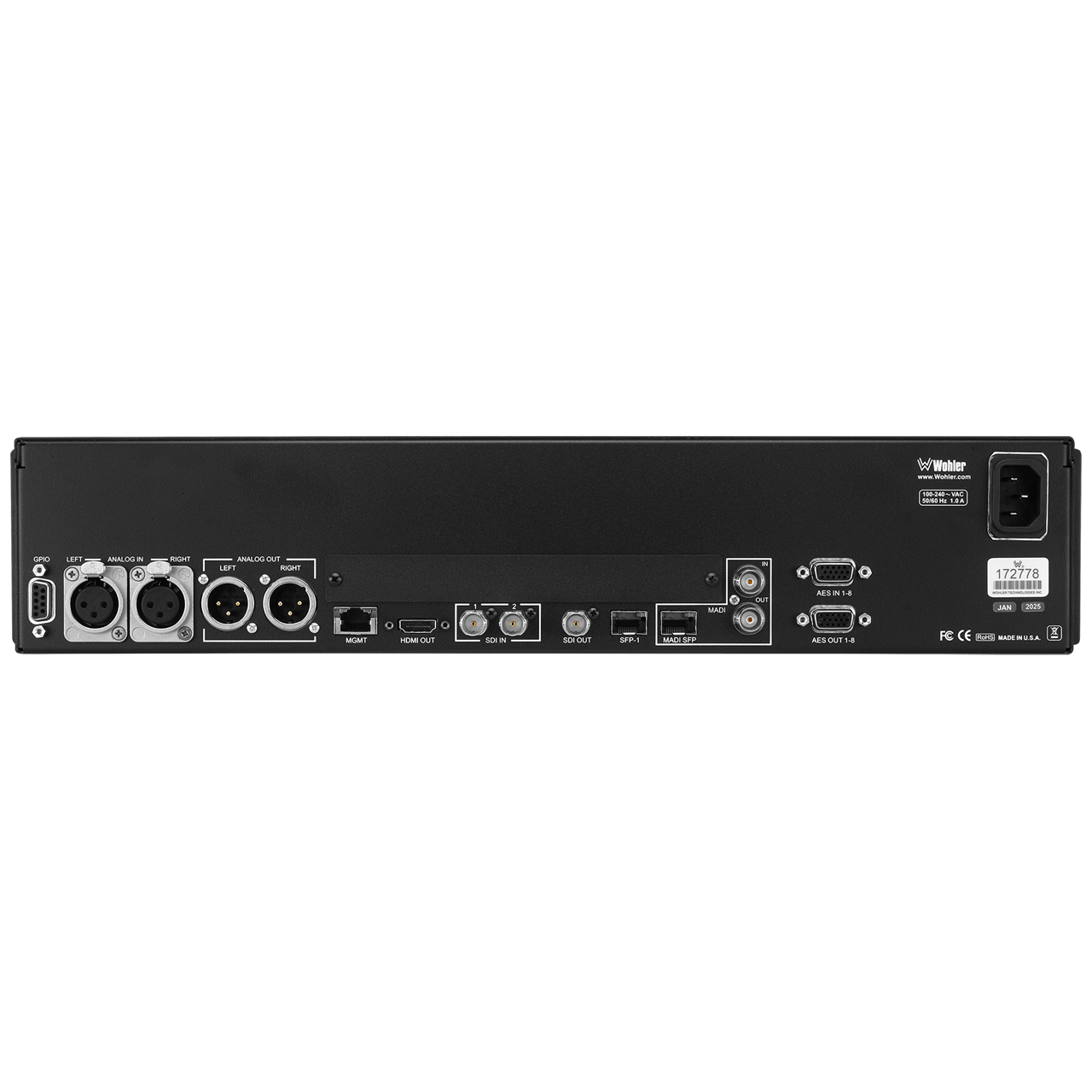

    • Standard I/O: 2x 3G-SDI Inputs on BNC; 1x 3G-SDI Output on BNC + 1 pair Analog I/O on XLR.
    • HDMI output of the monitored video source included.
    • Optional I/O: for AES3 on HD-15, (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
    • Option cards: Choose between AoIP, an additional 8 channels of analog inputs and outputs, 2 additional SFP cages, or a 12G/MAVRIC option card.
    • Optional monitoring for Dolby® D, DD+ or E streams
    • Optional Output routing enables the flexibility to route input signals to various outputs
    • Store and retrieve up to 64 presets
    • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
    • Built-in speakers, headphone jack, USB and Ethernet ports
    • API's for remote management and easy integration with 3rd party control systems.
    • Built-in Audio-only remote monitoring probe. Requires MAVRIC subscription.

  • Specifications:

    • Display Type/Resolution: 2x 4.3" (109mm) LCD Capacitive Touchscreen; 480H x 272V
    • Viewing Angle: 160° (H) x 160° (V)
    • Audio Channels: 16 Max
    • Hum and Noise: Better than -68dB below full output
    • Peak Acoustic Output: 104dB SPL @ 2 feet
    • Speaker Power Output: 15W RMS per side, 30W Peak
    • Upgrades: Via USB or Web GUI
    • GPI/O: 4x GPI and 2x GPO which can be enabled via software license - OPT-GPIO (sold separately)
    • Dimensions (WxHxD): 2RU in standard 19" rack: 19" x 3.5" x 5.5"
    • Shipping Dims: 24"x 8"x 12"
    • Shipping Weight: 10.0lbs (4.5kg)
    • Net Weight: 8.0lbs (3.6kg)
    • Power Consumption/Supply: 60W, 100V - 240V AC ± 10%, 50 - 60 Hz, CE & UL approved

  • Item Includes:

    • 1x Wohler iVAM2-2-G 2RU Dual Screen 16-Channel Dual Input 3G/HD/SD-SDI Audio & Video Monitor
