Theatrixx XVVRMFIBER2SDI12GS2 Reversible Module - Fiber to 12G-SDI - Singlemode - OpticalCON Duo

ITEM #: XVVRMFI2SDI12GS2 MFG #: XVVRMFIBER2SDI12GS2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,486.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


XVVRMFIBER2SDI12GS2 - Overview

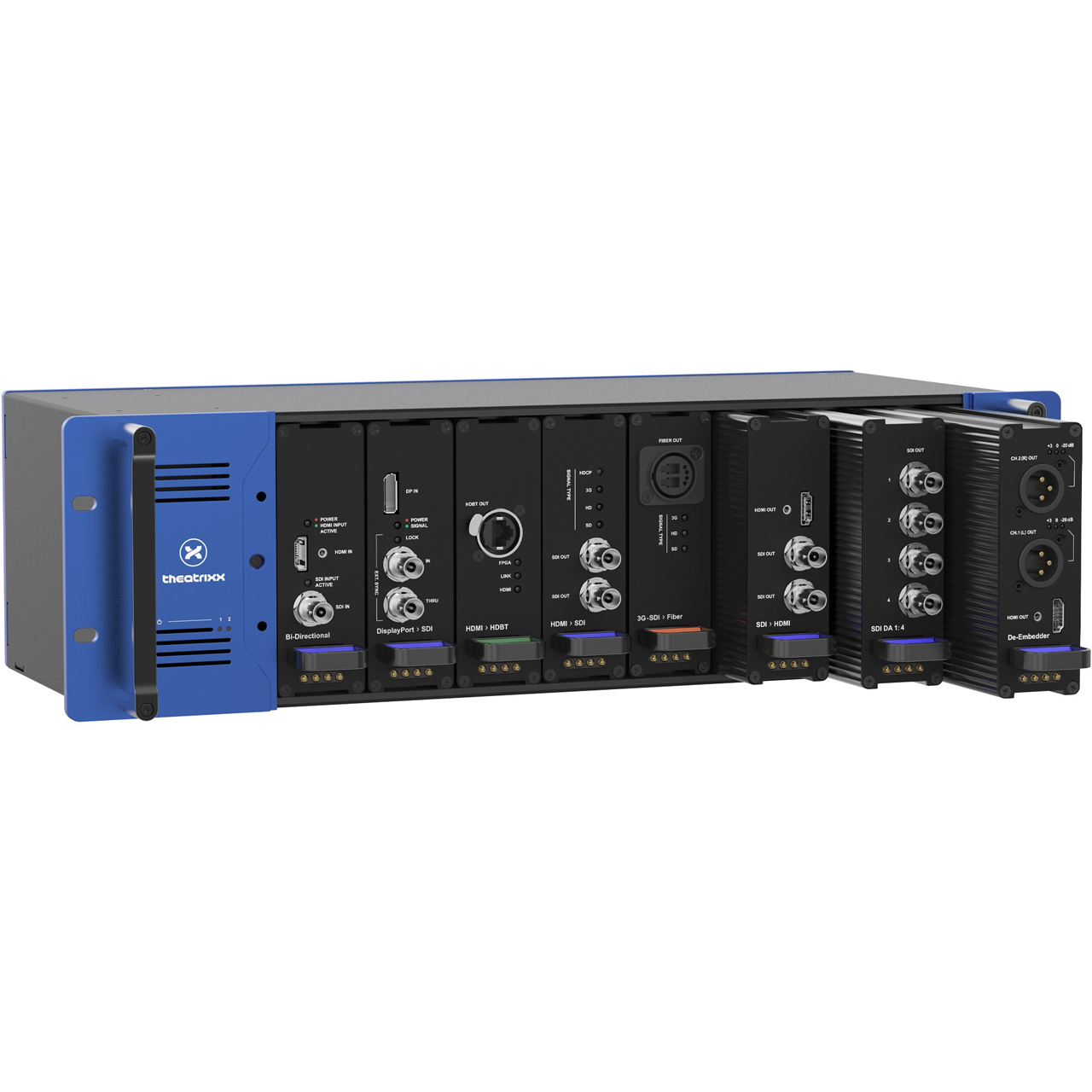

Theatrixx XVVRMFIBER2SDI12GS2 is a Singlemode OpticalCON DUO fiber to 12G-SDI converter. The Fiber to 12G-SDI Reversible Module fits into the 8-Bay Reversible Rackmount Converter System and can be inserted in either direction. That allows the inputs and outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and fully protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

  • Specifications:

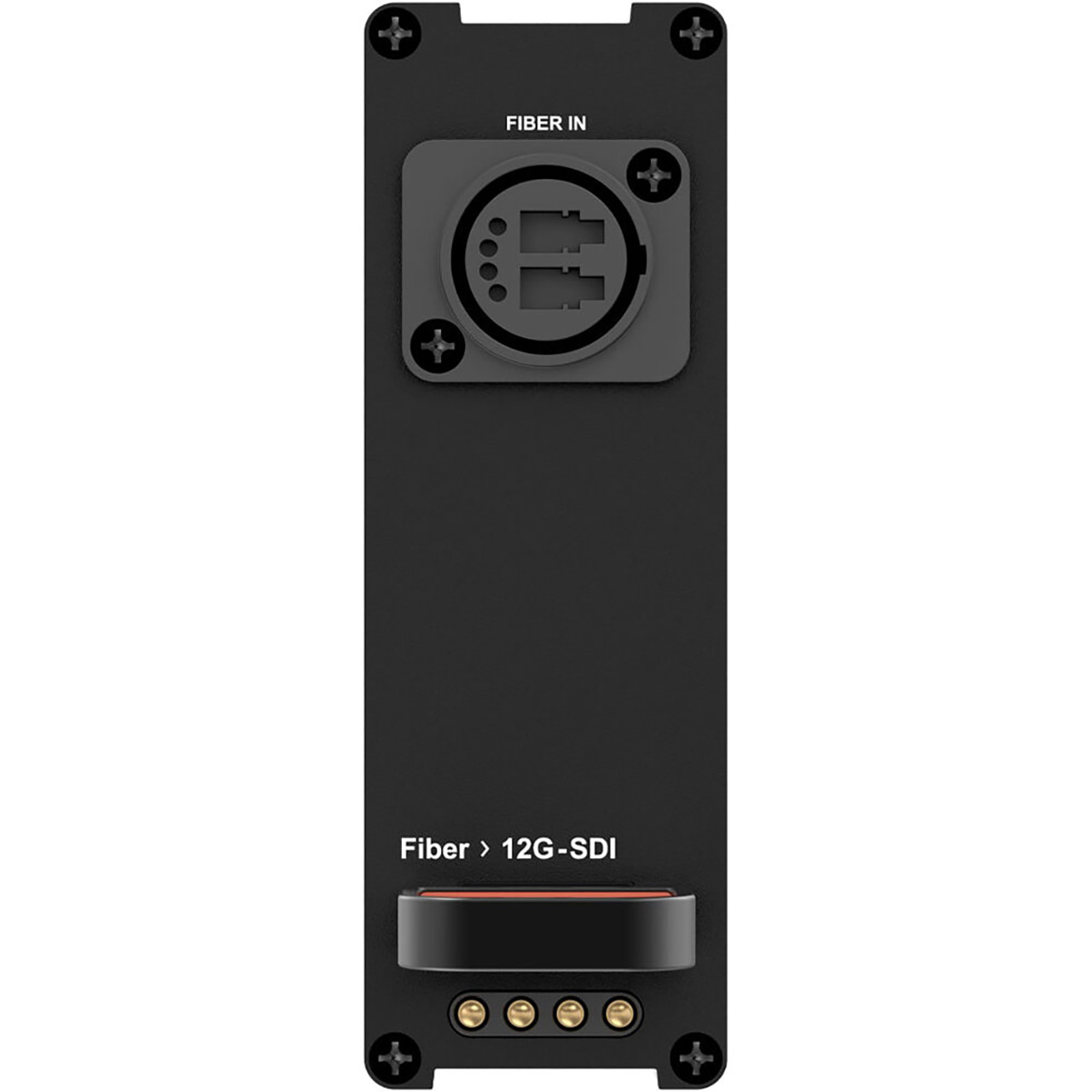

    • Video Input: Singlemode OpticalCON DUO

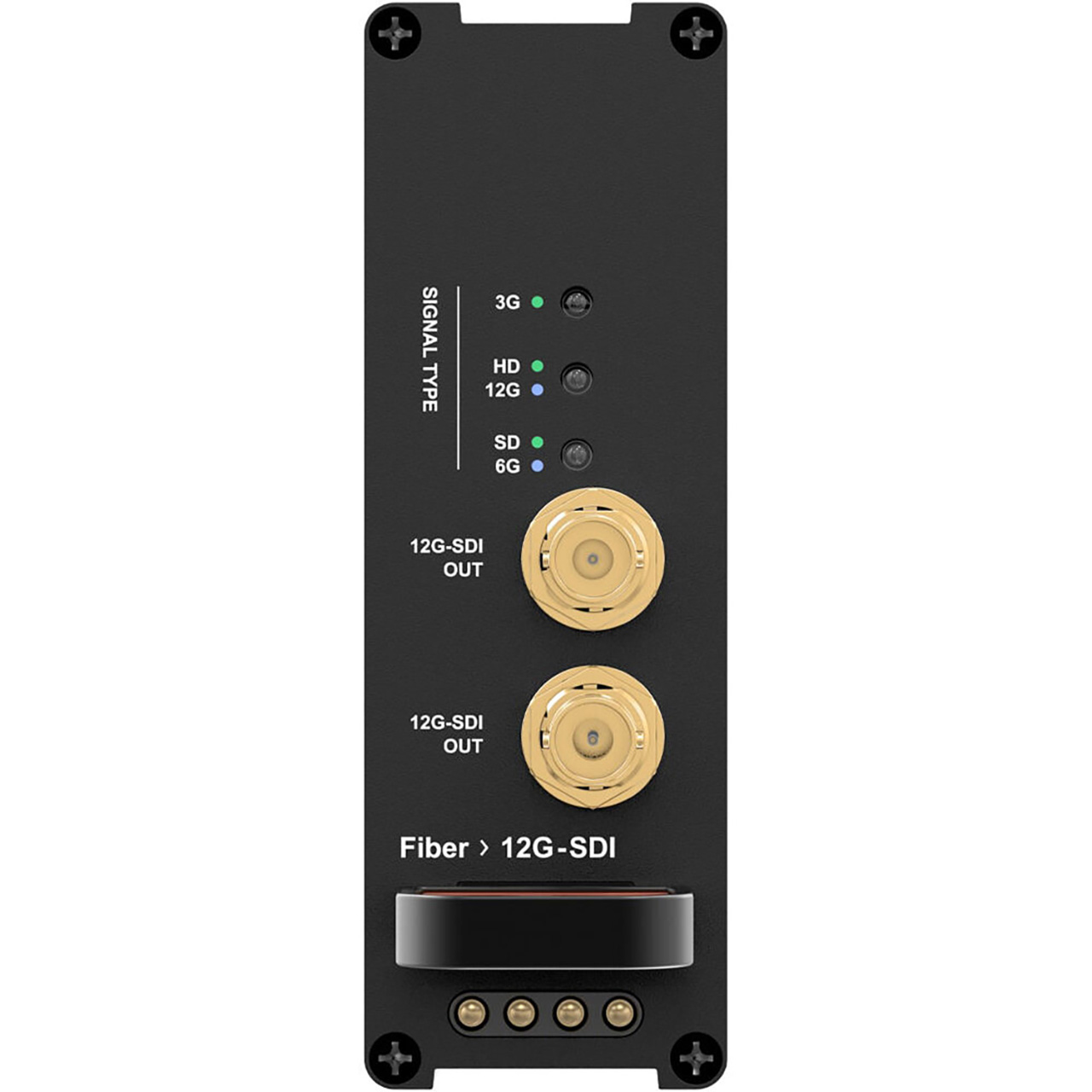

    • Video Output: 2x 12G/6G/3G/HD/SD SDI BNC
    • Video Format Support: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
    • SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M
    • Height: 4.78" (121.5mm)
    • Depth: 8.85" (225mm)
    • Width: 1.61" (41mm)
    • Weight: 1.56lbs (710g)
    • Relative Humidity: 0% - 90% non-condensing
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
    • Power Consumption: 20W
    • Voltage Range: 12VDC
