    XVVRM-HDMI2SDI-12G - Overview

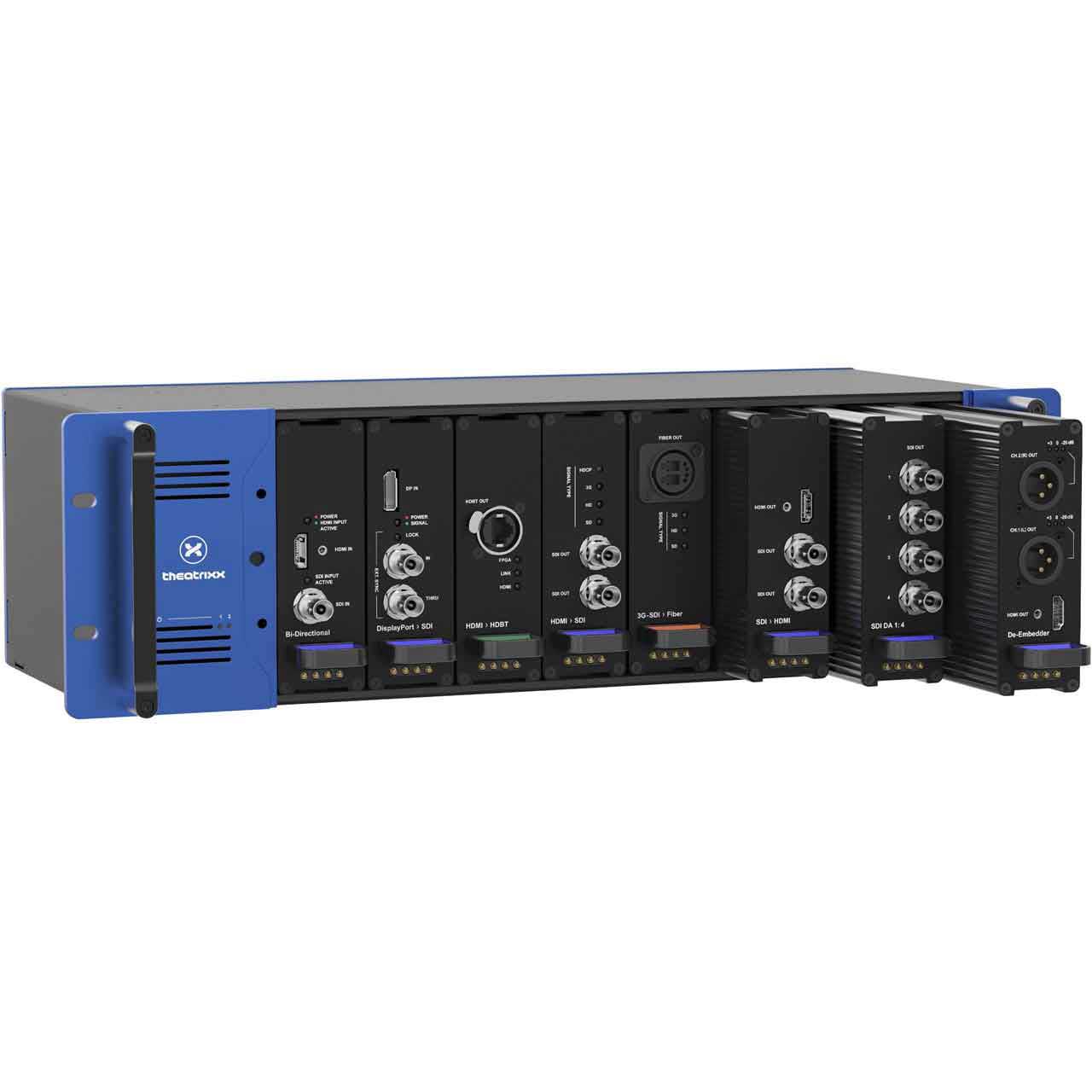

    The Theatrixx XVVRM-HDMI2SDI-12G module can be inserted in the XVVRM8 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

    • Specifications:

      • Connections:

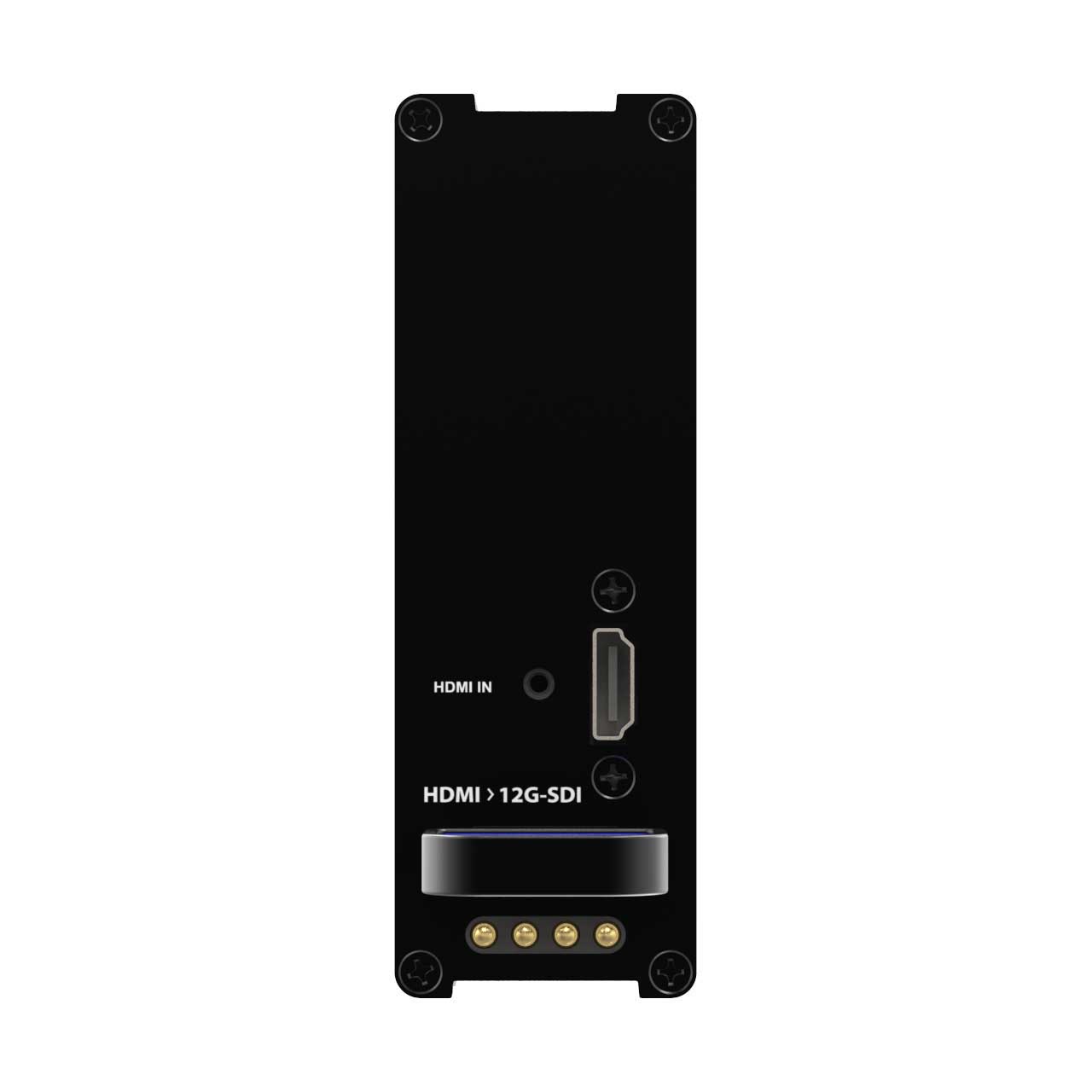

      • Video Input: 1 x HDMI 1.2 type A with locking system

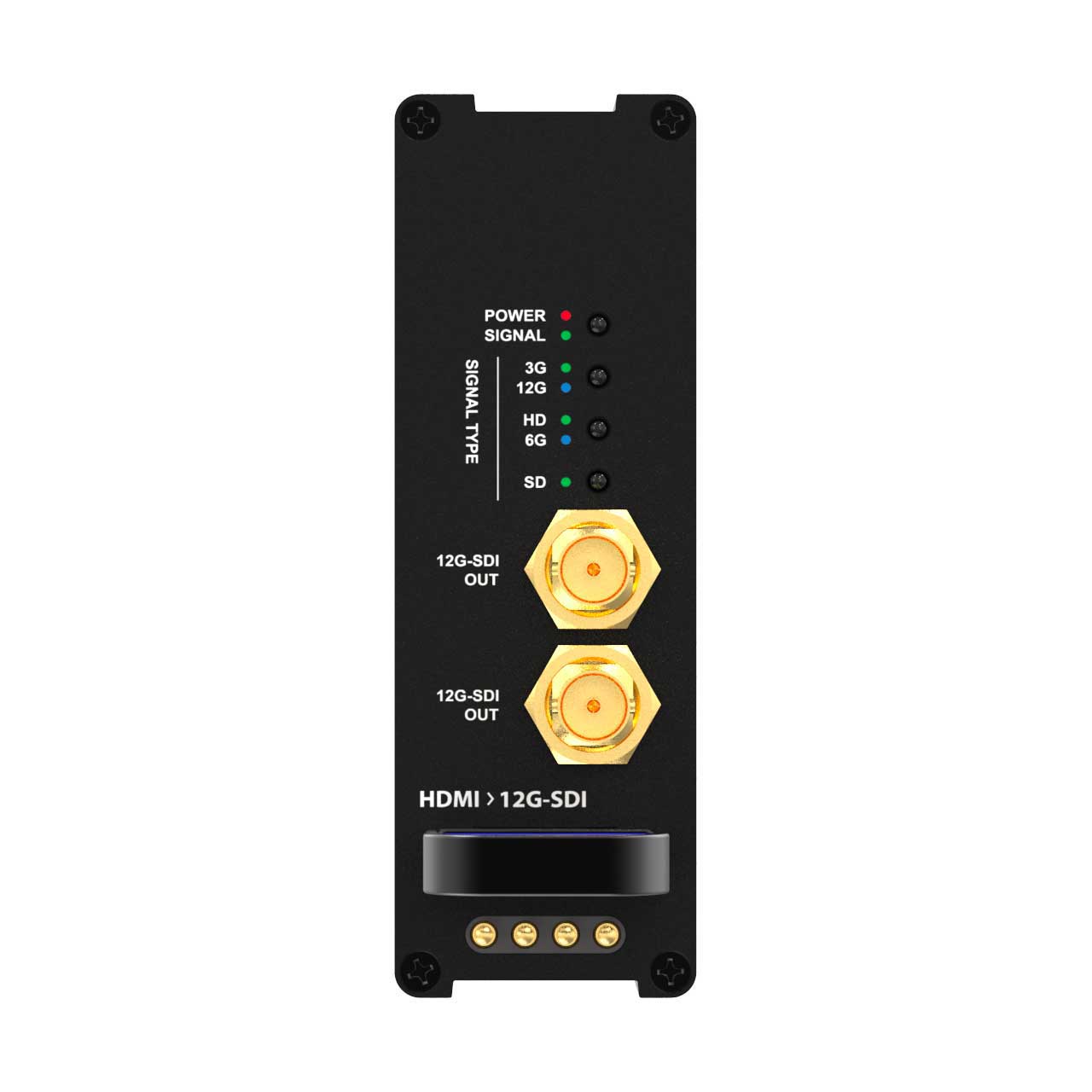

      • Video Output: 2 x 12G/6G/3G/HD/SD SDI BNC

        Supported Signals:
      • 12G Format Support: 4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50
      • 6G Format Support: 4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50
      • 3G Format Support: 1080p50, 1080p59.94, 1080p60
      • HD Format Support:
        720p50, 720p59.94, 720p60, 1080i50,
        1080i59.94, 1080i60, 1080p23.98,
        1080PsF23.98, 1080p24, 1080PsF24, 1080p25,
        1080PsF25, 1080p29.97, 1080PsF29.97,
        1080p30, 1080PsF30
      • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Sample rate of 48kHz and 24 bit
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically detects incoming signal format
      • SMPTE Standards: 425 M Level A & B, 424 M Level A, 292 M, 259 M

      • Height: 121.5 mm (4.78 in)
      • Depth: 225 mm (8.85 in)
      • Width: 41 mm (1.61 in)
      • Weight: 710 g (1.56 lbs)

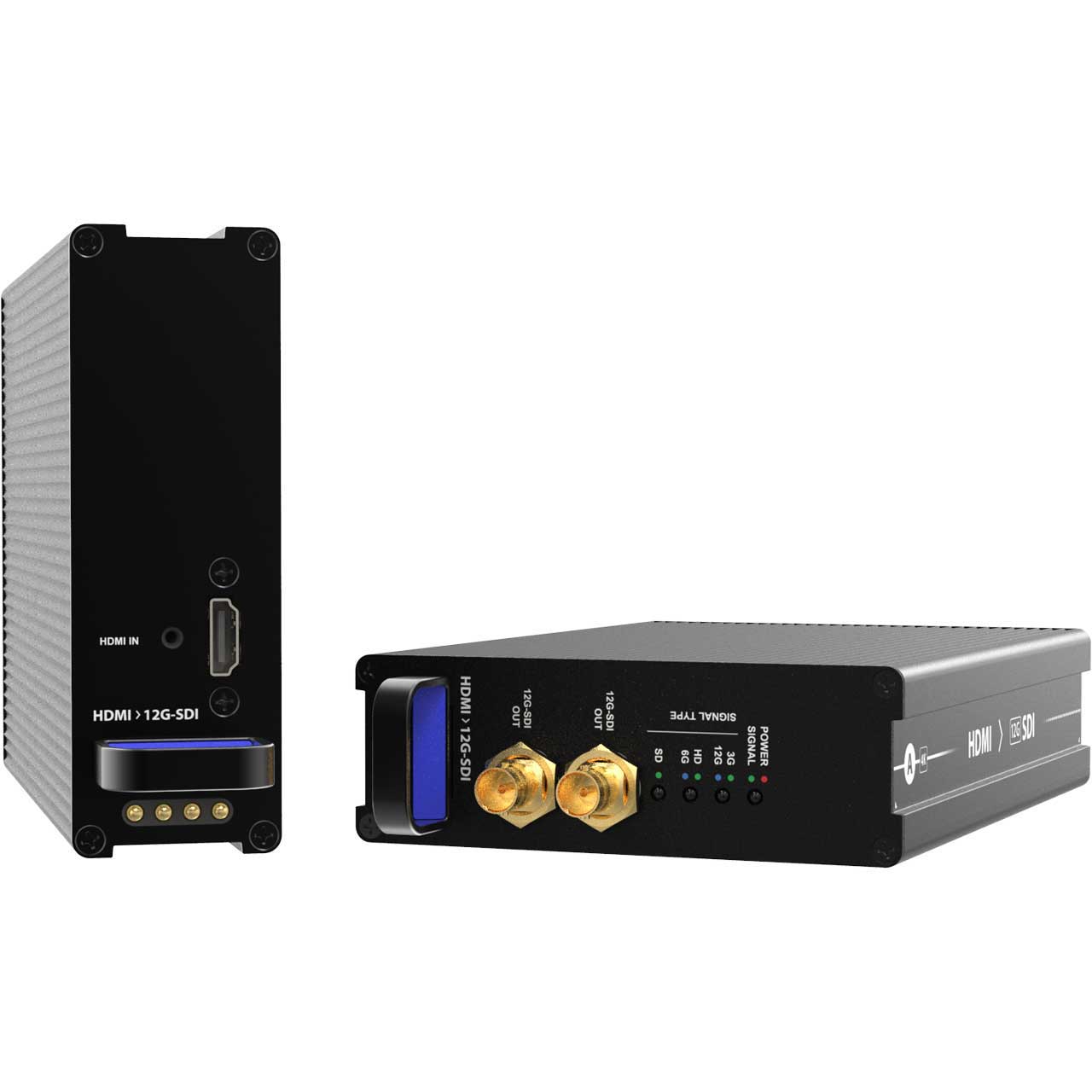

      • Alternate Form Factor: Also available as a standalone converter

      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 0-40 °C
      • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20W
      • Voltage Range: 12VDC
    • Item Includes:

      • 1x Theatrixx Reversible Module HDMI to 12G-SDI
