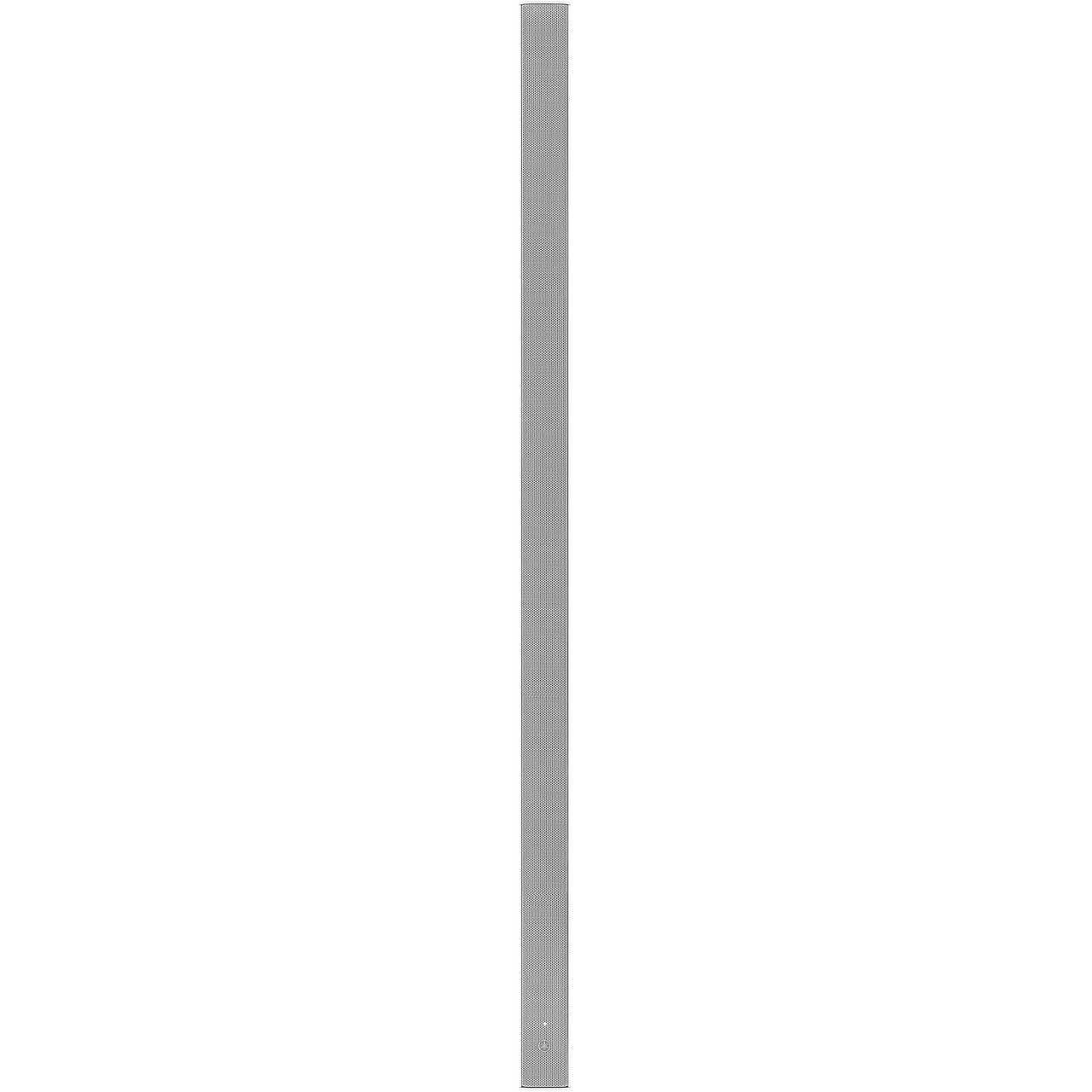

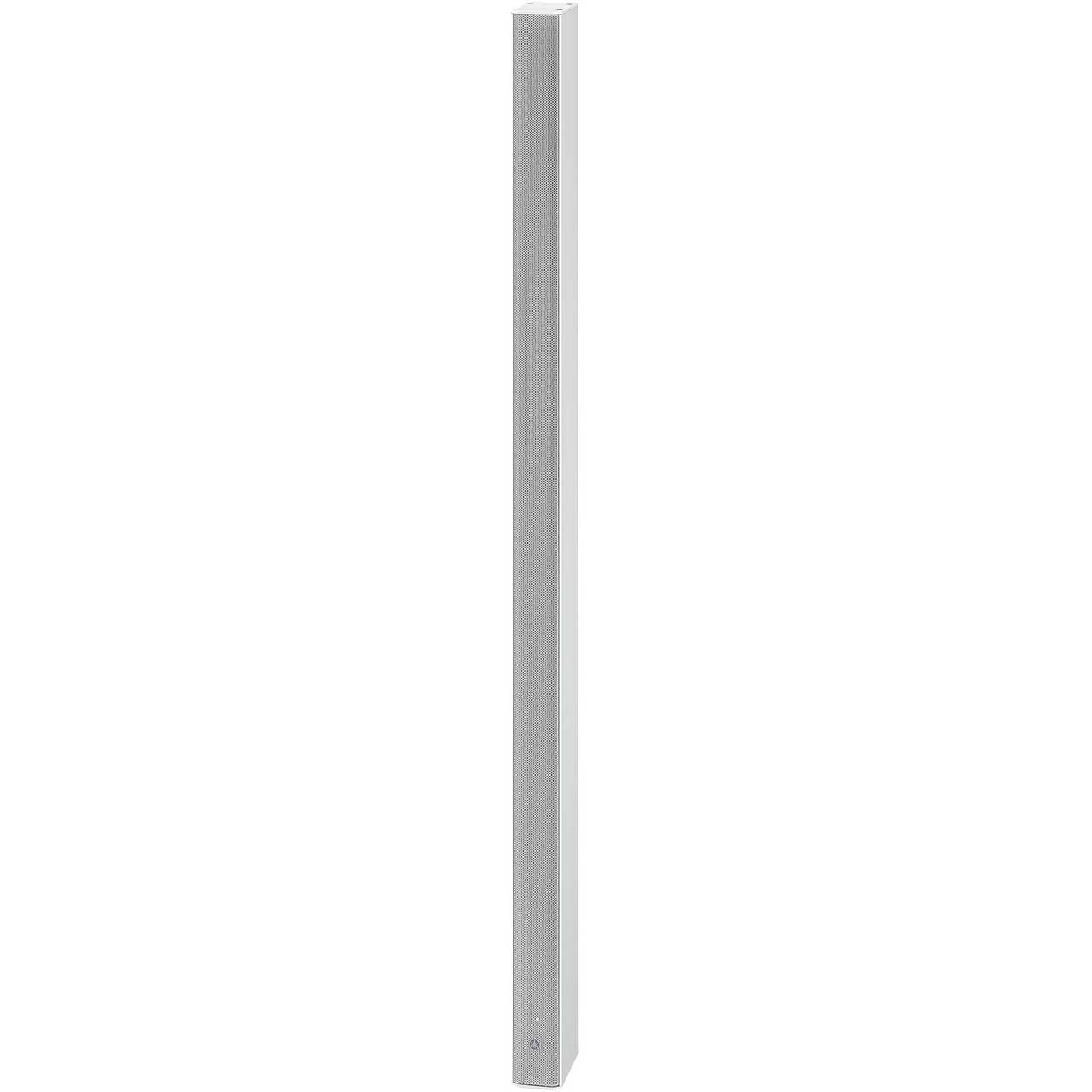

Yamaha VXL1W-16P Dante PoE Line Source Loudspeaker - 16 Drivers - White

ITEM #: YMH-VXL1W-16P MFG #: VXL1W-16P

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,501.00

Our Price:

$1,277.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VXL1W-16P - Overview

    The Yamaha VXL1W-16P combines an elegant form factor with Dante network audio protocols to deliver the ideal loudspeaker for video conference spaces and similar application requiring the power and flexibility of the Dante network platform.

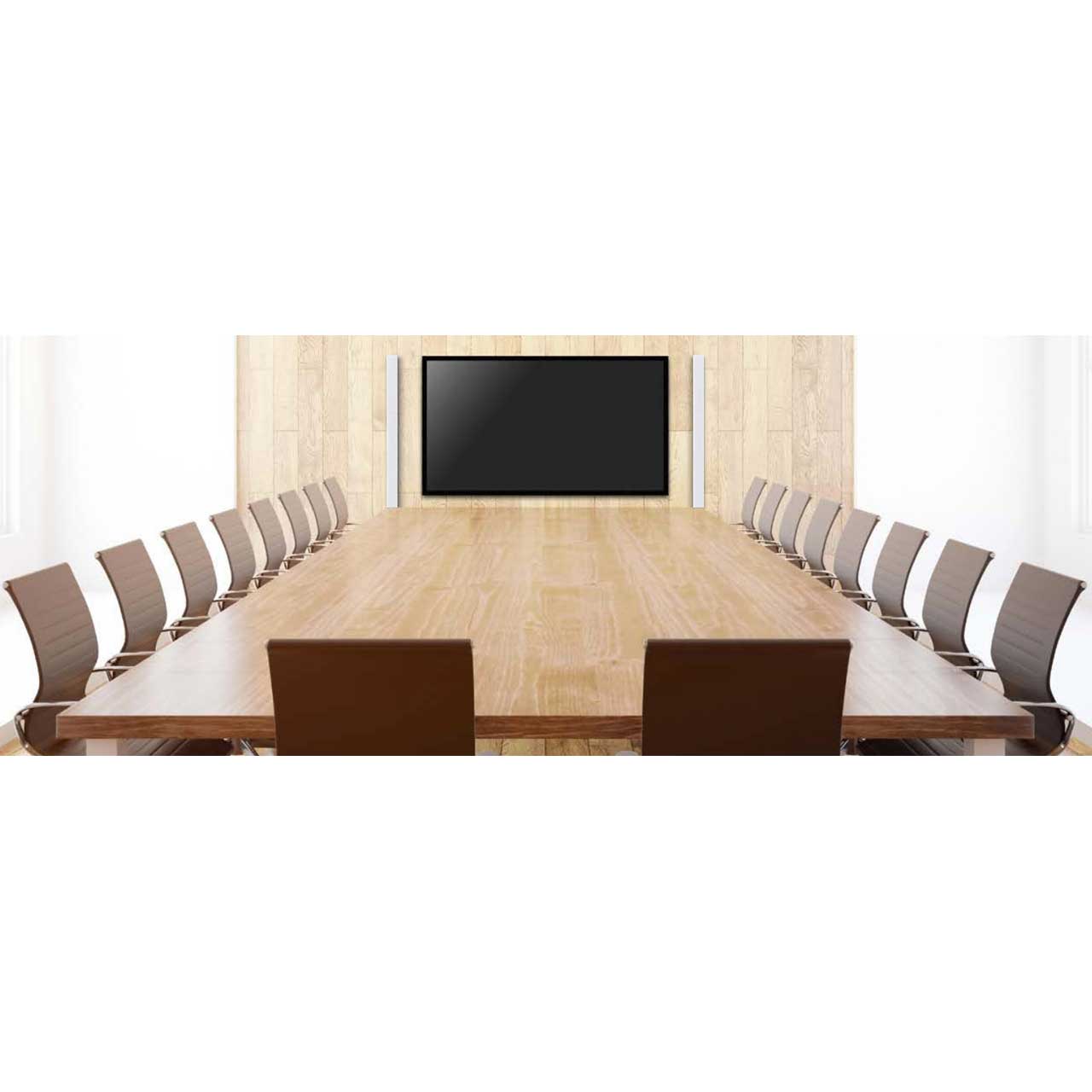

    The VXL1B-16P and VXL1W-16P support the "Dante" audio network, and use a slim line-array configuration, making them an easy fit perfectly for conference rooms (in the size range of 12m + 10m) that demand vocal clarity while imposing numerous constraints on space, and require both functionality and a sense of design.

    With audio distributed via a Dante network and PoE power* supplied from a PoE compliant L2 switch, the speaker system can be constructed as a network, allowing existing IT infrastructure to be effectively utilized. Simple wiring via LAN cables, easy installation, and no need for a power amp contribute to the flexibility of installation, allowing you to construct an elegant sound system that will not interfere with the design of the conference room.

    • Features:

      • 1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
      • Slim design complements any interior décor
      • Available in black or white
      • Enclosures can be painted to match surroundings
      • Wall mount bracket supplied
      • Optional hardware for a wide range of installation needs

    • Specifications:

      • Speaker type: Full-range, powered speaker, bass reflex
      • Frequency range (-10dB): 80Hz - 20kHz
      • Nominal coverage (H/V): 170° / 25° (+12.5° - -12.5°)
      • Effective coverage (-10dB) (H/V): 180° / 30° (+15° - -15°)

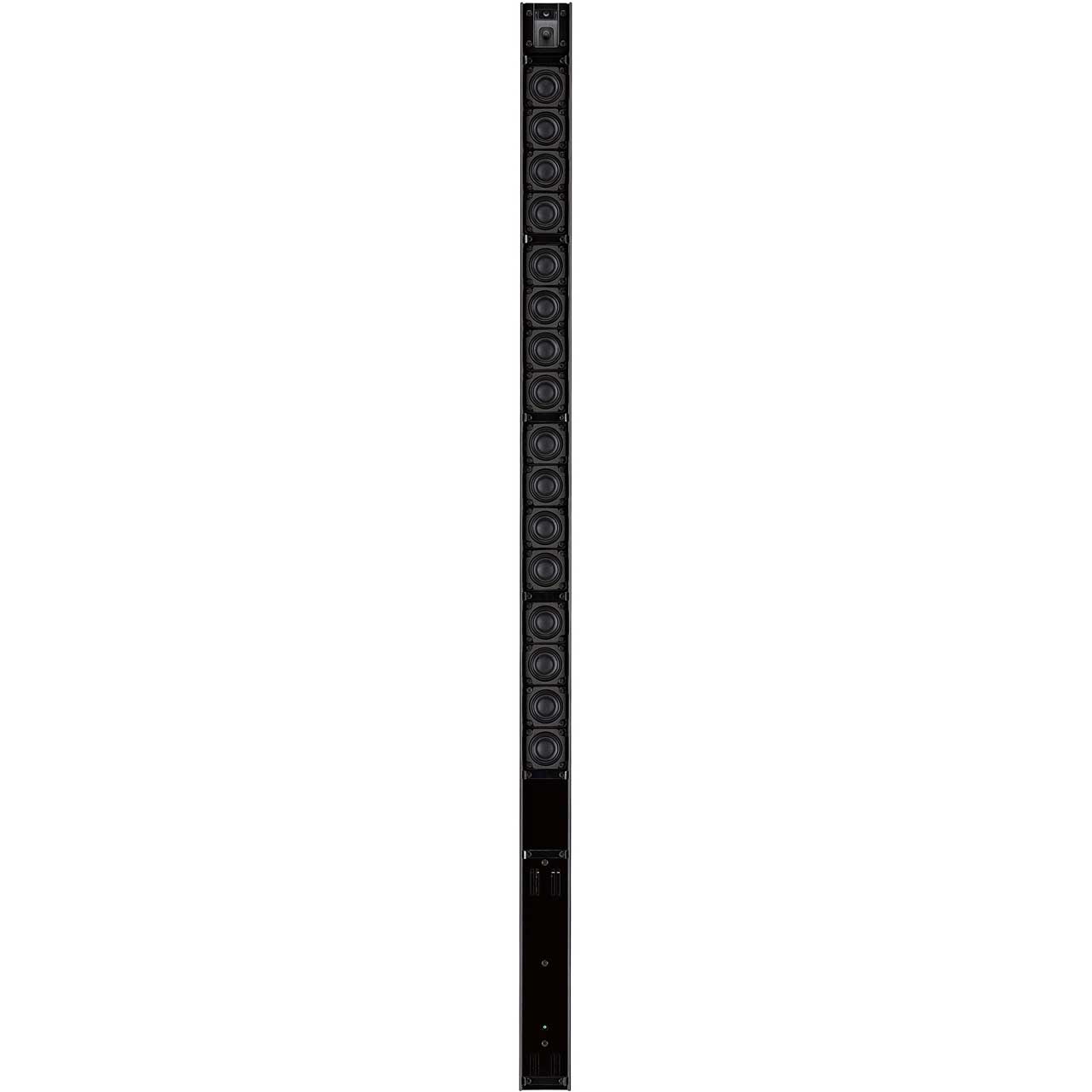

      • Components (LF-HF): 1.5"(3.75cm) Cone x 16
      • Maximum output level (1m; on axis): 102 dB SPL (when using PoE+(IEEE 802.3at))
      • Power rating (Dynamic/Continuous): 15W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af)) / 5W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
      • I/O connectors: RJ-45 (Dante) x1
      • Speaker processing: Clip limiting, Integral power protection
      • Amplifier protection: Over current protection, Over temperature protection, Under voltage lock out, DC detection, Clock detection
      • Power supply protection: Over load protection, Over voltage protection, Under voltage lock out
      • Cooling: Natural convection
      • Power requirements: PoE+(IEEE 802.3at), PoE(IEEE 802.3af)
      • Power consumption: Idle: 3W, 1/8(Pink Noise): 6W (PoE+(IEEE 802.3at)), 4.3W (PoE(IEEE 802.3af))
      • Finish: VXL1W-16P: White painting (approximate value: Munsell N9.0)
      • Dimensions (W x H x D): 54 mm x 1120 mm x 104 mm (2.12" x 44.09" x 4.09")
      • Weight: 5 kg (11.02 lbs)

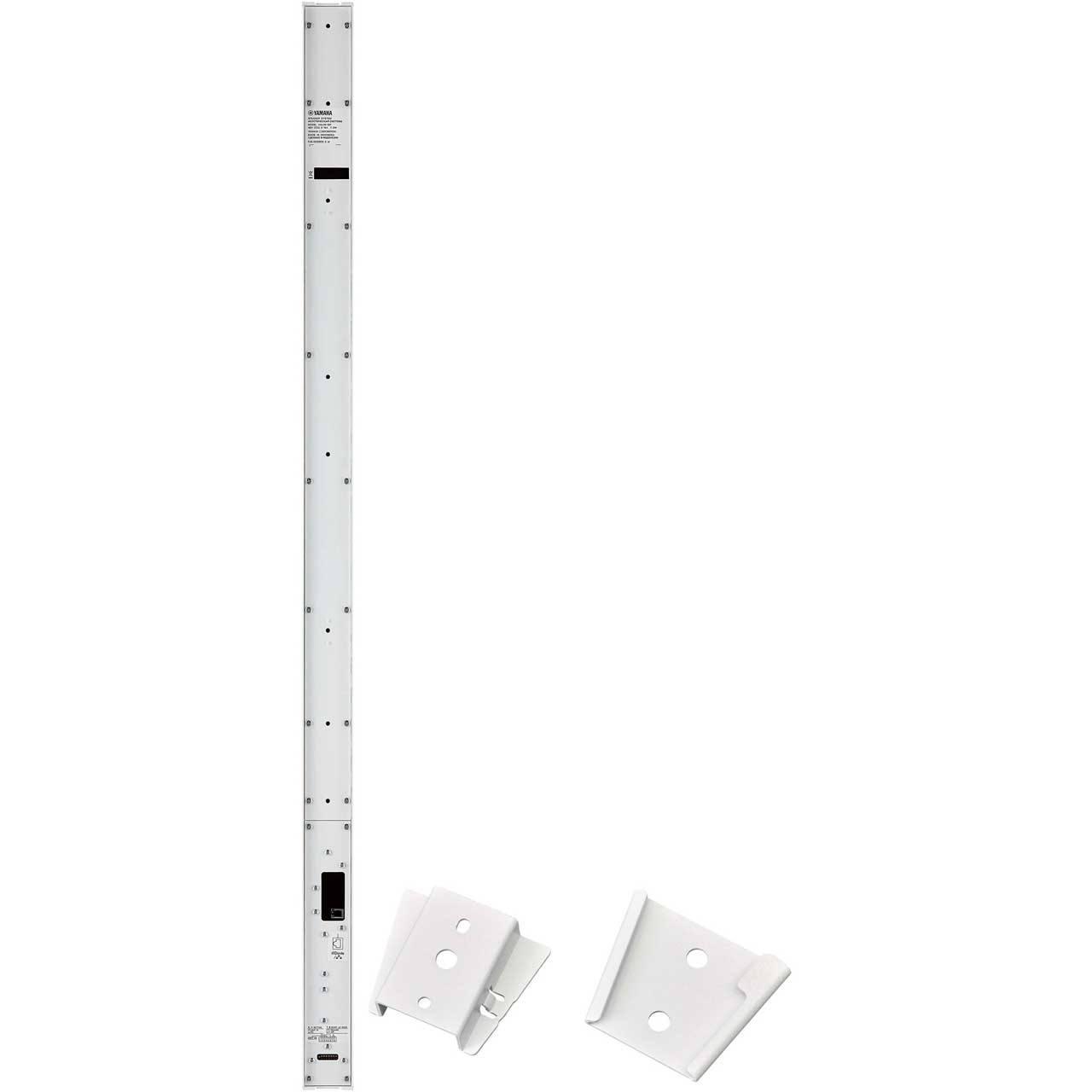

    • Item Includes:

      • Mounting bracket x2
      • Bracket base x2
      • Safety wire x1
      • Machine screws (M5x10) x2
      • Template x1
      • Owner's manual

    • GTIN:

      0889025119306
