Yuan High-Tech SC550N2-HDMI-M.2 M.2 PCIe x4 Form-Factor 2-Input HD 60p HDMI Capture Card

ITEM #: YN-SC550N2HDMIM2 MFG #: YN-SC550N2-HDMI-M.2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$375.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    YN-SC550N2-HDMI-M.2 - Overview

    Yuan High-Tech SC550N2 HDMI M.2, the perfect solution for adding an HDMI output to your computer. This compact and lightweight device is designed to fit into your computer's M.2 slot, providing a simple and efficient way to expand your display capabilities.

    The SC 550N2 HDMI M.2 supports 4K resolution and HDR, delivering stunning visuals for all your favorite content. With support for the latest HDMI 2.1 standard, you can enjoy smooth and fast video and audio transmission. It also supports HDCP 2.3, allowing you to watch protected content without any issues.

    This M.2 HDMI device is designed to be plug-and-play, making installation quick and effortless. It's compatible with a wide range of operating systems, including Windows, MacOS, and Linux, giving you the flexibility to use it with any computer.

    Whether you're a professional or just looking to expand your computer's display capabilities, the Yuan SC 550N2 HDMI M.2 is the perfect choice. It provides a reliable and fast HDMI output solution that is easy to install and use.

    • Specifications:

      • Main
      • Max. FPS: 1920x1200p@60/50fps in - 1920x1200p@30/25fps out
      • 1920x1080p@60/50fps in - 1920x1080p@60/50fps out
      • Recording Mode: Software Compression, Real-Time Mode

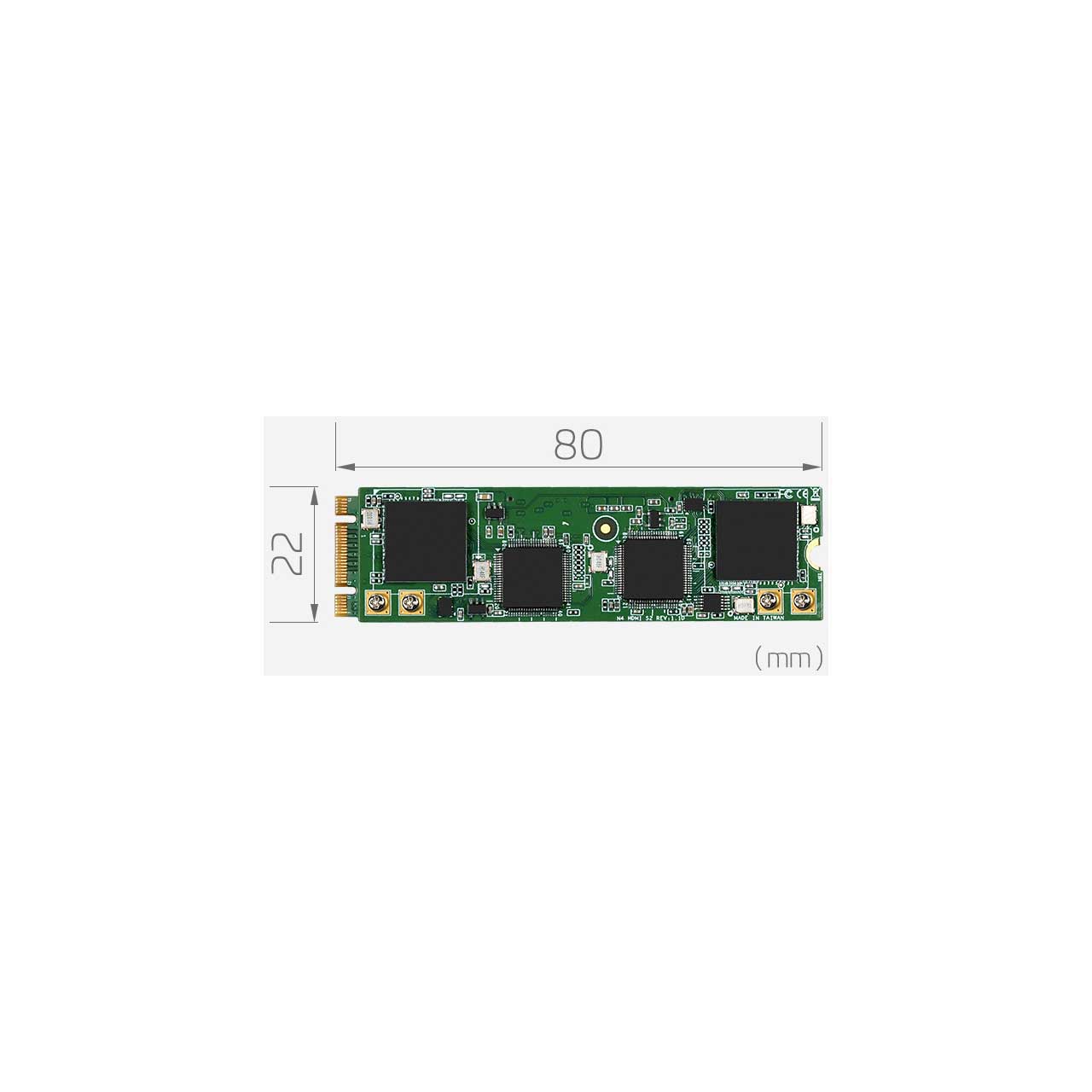

      • Dimension: 0.87 x 3.15" (22 x 80mm) M.2 Type B/M
      • Interface: M.2 ( PCIex1 )

        Video
      • Video Input: 2xHDMI
      • Display Video Format: YV12, NV12, YUY2, RGB24, RGB32
      • Video RAW Data Resolution:
      • 1920x1200p@30/25/24fps
      • 1920x1080p@60/50fps
      • 1920x1080p@30/25/24fps
      • 1920x1080i@60/50fps
      • 1280x720p@60/50fps
      • 1280x1024p@60fps
      • 1280x960p@60fps
      • 1024x768p@60fps
      • 800x600p@60fps
      • 640x480p@60fps
      • 720x480p@60fps
      • 720x576p@50fps
      • 720x480i@60fps
      • 720x576i@50fps
      • Recording Video Format: H.264 ( Software Compression )
      • Recording Video Resolution:
      • 1920x1200p@30/25/24fps
      • 1920x1080p@60/50fps
      • 1920x1080p@30/25/24fps
      • 1920x1080i@60/50fps
      • 1280x720p@60/50fps
      • 1280x1024p@60fps
      • 1280x960p@60fps
      • 1024x768p@60fps
      • 800x600p@60fps
      • 640x480p@60fps
      • 720x480p@60fps
      • 720x576p@50fps
      • 720x480i@60fps
      • 720x576i@50fps

        Audio
      • Audio Input: 2xHDMI Embedded Audio
      • Audio Format: Stereo / 16-bit / 32000 ~ 48000Hz
      • Multiple Cards: ∞
      • SDK: Support API: DirectShow, V4L2, FFmpeg, Gstreamer
      • Support Language: C++, C#, .NET, Visual Basic, Qt, Delphi

        System Requirements
      • OS Support: Windows 7 / Windows 8 / Windows 8.1 / Windows 10
      • Linux 2.6.14 or Higher ( 32-bit and 64-bit )

    • GTIN:

      0653559998764
