Zigen ZIG-DAC Digital Coax to Analog Converter - Dolby Digital and DTS Audio Downmix
  • Zigen ZIG-DAC Digital Coax to Analog Converter - Dolby Digital and DTS Audio Downmix
  • Zigen ZIG-DAC Digital Coax to Analog Converter - Dolby Digital and DTS Audio Downmix
  • Zigen ZIG-DAC Digital Coax to Analog Converter - Dolby Digital and DTS Audio Downmix

Questions? Ask a Markertek Expert:
800-522-2025 Email

Zigen ZIG-DAC Digital Coax to Analog Converter - Dolby Digital and DTS Audio Downmix

Manufacturer: Zigen Corp

Item #: ZIG-DAC   •   MFG #: ZIG-DAC




Our Price:$215.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

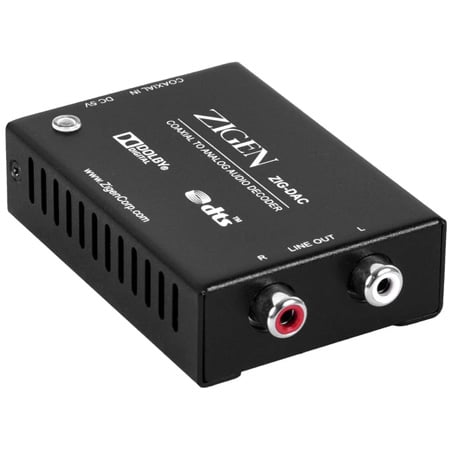

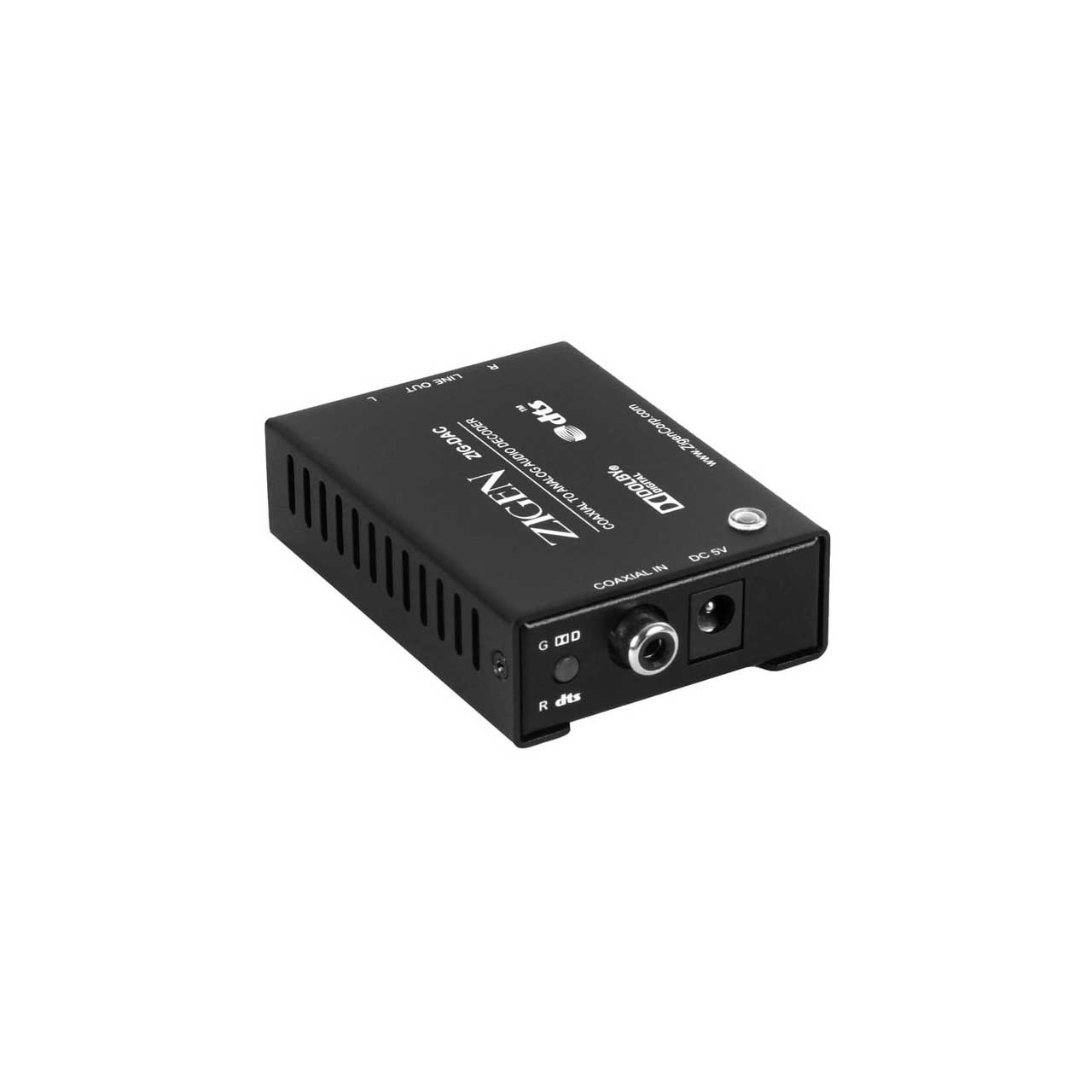

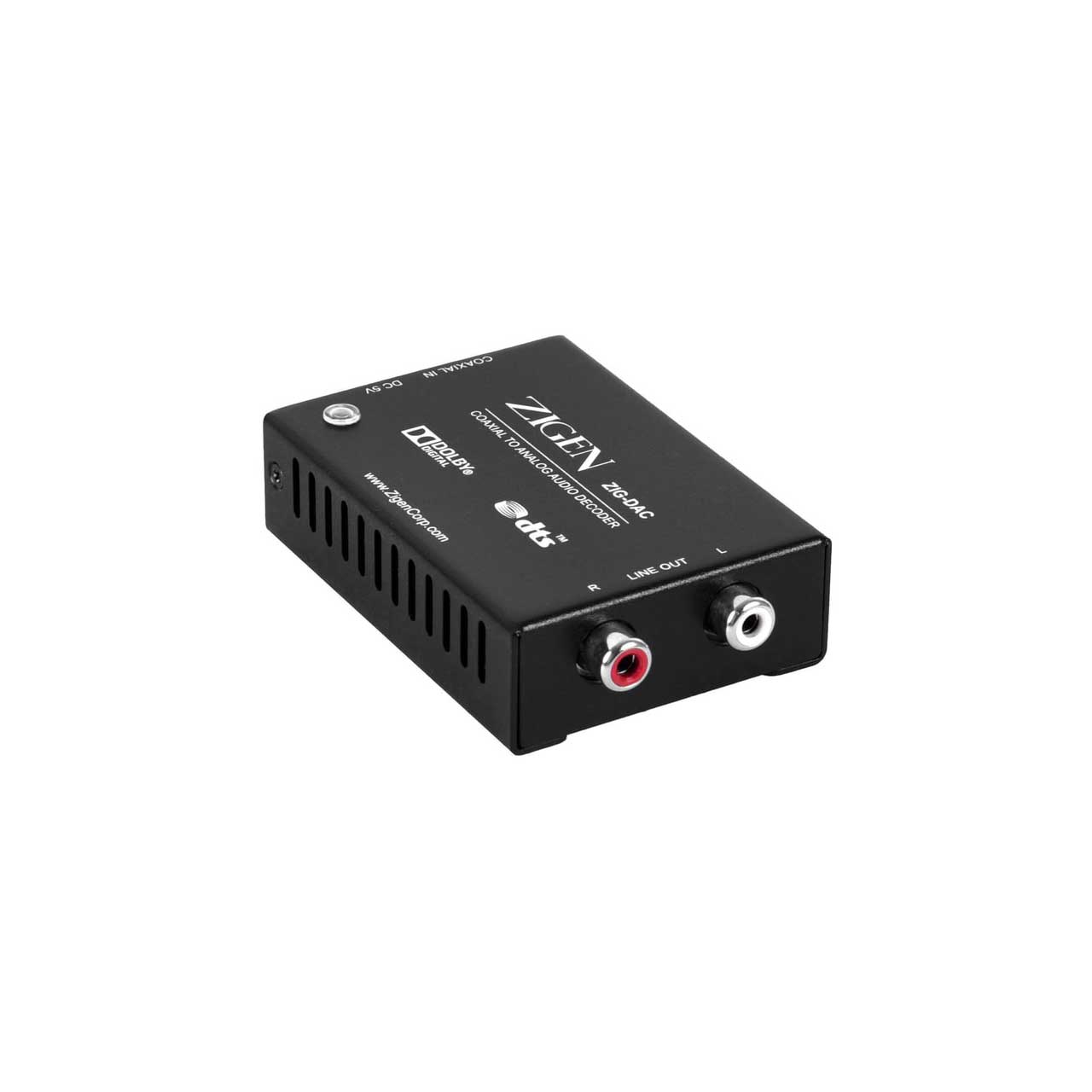

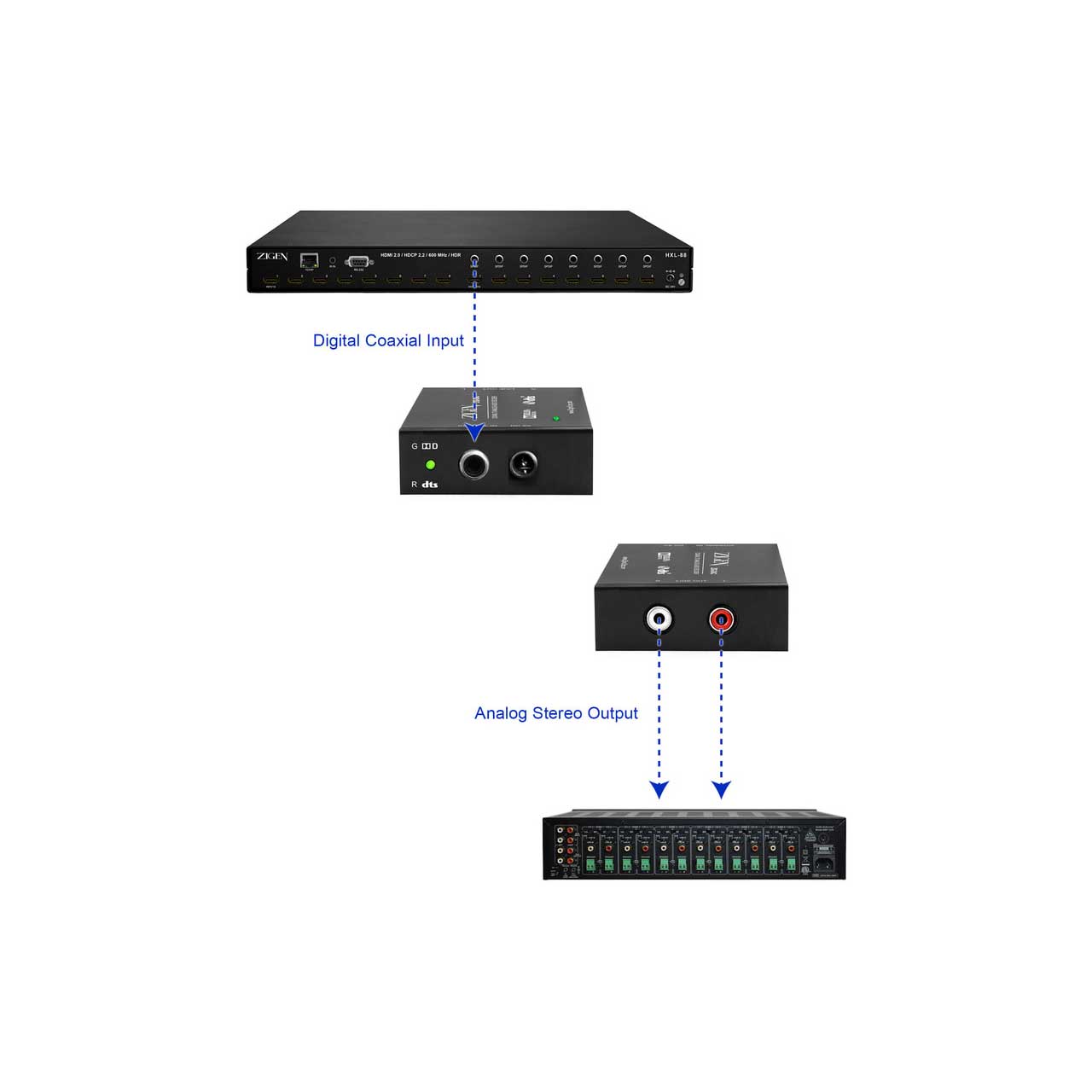

    The Zigen ZIG-DAC with Dolby® Digital & DTSTM 2.0 Decoder provides the ideal solution for converting a coaxial digital audio signal to analog stereo audio. It provides high quality sound conversion. The Dolby Digital & DTS 2.0 function guarantees that Dolby digital/DTS2.0 audio signals are down-mixed to analog stereo without loss of quality. This unit is perfect for use with HXL-88 and HXL-44 matrices routers.


    • Features

      • The ZIG-DAC takes a coaxial digital audio signal input in S/PDIF format and converts it into
      • analog audio signal L/R output
      • Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz)
      • Supports DTS 2.0 5.1CH audio sampling rates up to 96 kHz
      • Supports Dolby Digital 5.1CH audio sampling rates up to 48 kHz
      • Supports down-mixing all Dolby Digital & DTS 2.0 5.1 channels down to 2-channel audio
      • Supports S/PDIF bitstream 24-bit of data for the left and right channels
      • Compact, elegant design, and easy to install

    • Specifications

      • Input Port: 1 Digital RCA Input
      • Output Port: 1 pair of L/R Analog Outputs (2 RCA Individual Outputs)
      • Power Supply: 5V/1A DC (US/EU Standards, CE/FCC/UL certified)
      • Output Level: 2 Vrms ± 10%
      • THD+N: < 0.007%
      • Frequency Response: ±1 dB
      • SNR: > 100 dB
      • Crosstalk: < - 115 dB
      • Dimensions(W x D x H): with jacks: 2.16 inch x 2.97 inch x 0.8 inch (55 mm x 75.5 mm x 22.5 mm); Without jacks: 2.16 inch x 3.46 inch x 0.8 inch (55 mm x 86 mm x 22.5 mm)
      • Weight: 42 g / 1.48 oz
      • Chassis Material: Metal
      • Chassis Color: Black
      • Silkscreen Color: White
      • Operating Temperature: 0 - 40°C / 32 - 104°F
      • Storage Temperature: -20 - 60°C / -4 - 140°F
      • Relative Humidity: 20-90% RH (non-condensing)
      • Power Consumption: 1.7 W

    • Item Includes

      • 1x Coaxial to Analog Audio Converter with Dolby Digital Decoder & DTS 2.0 Decoder
      • 1x 5V/1.2A DC Power Adapter
      • 1x Operation Manual
