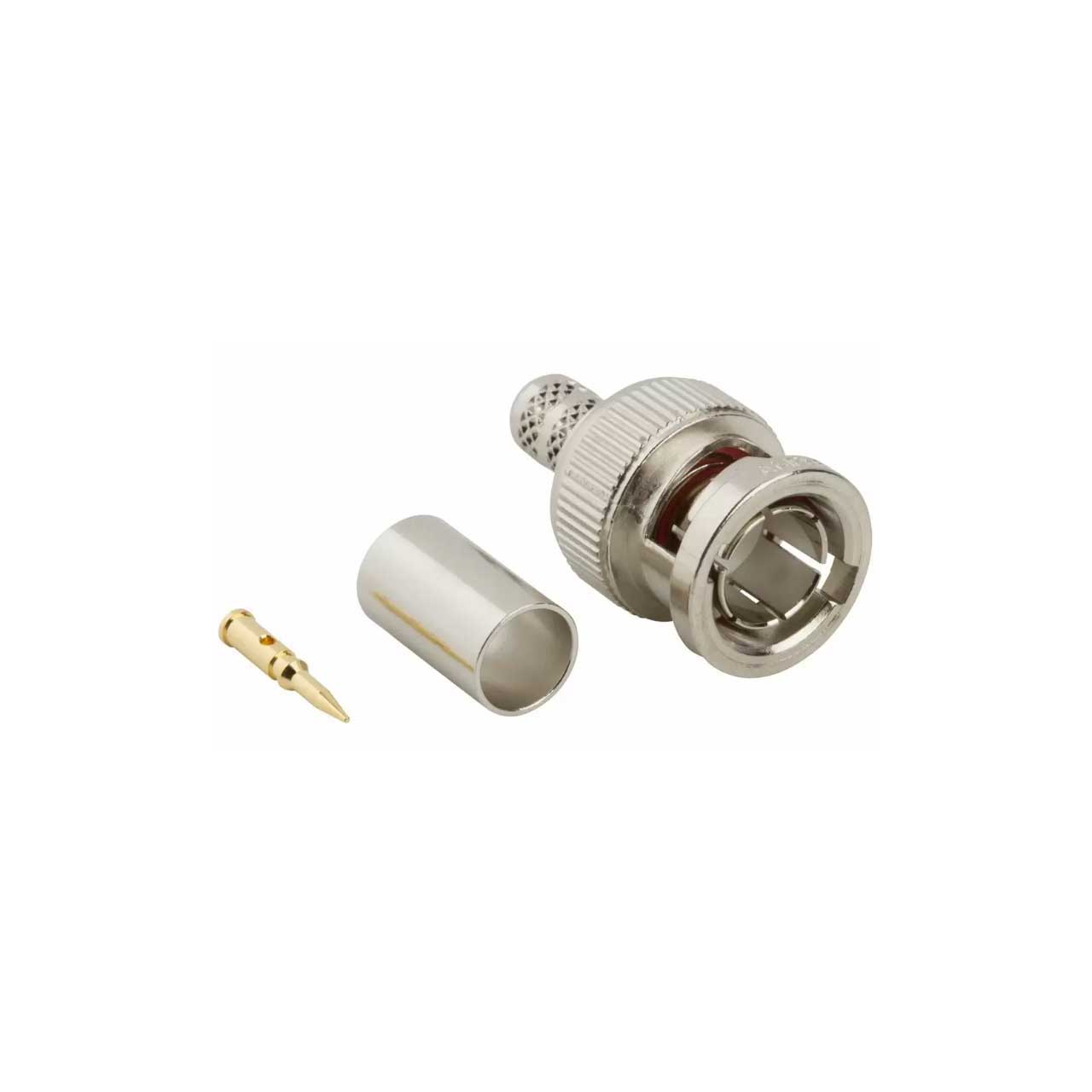

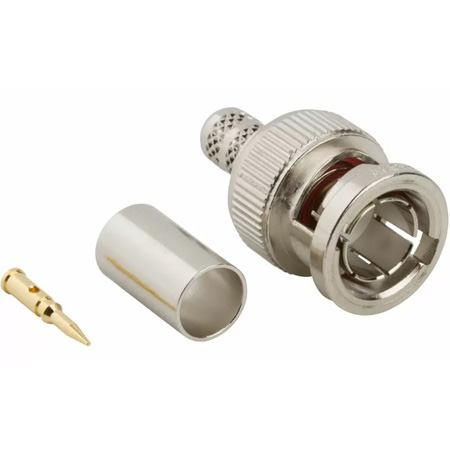

Amphenol 031-71008-1RFX 3-Piece Crimp BNC Plug for RG-59/1505A/9100/20 AWG

ITEM #: 031-71008-1RFX MFG #: 031-71008-1RFX

Primary Image
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    031-71008-1RFX - Overview

    Amphenol 031-71008-1RFX is an RF Connector BNC Straight Crimp Plug RG-59 RG-62 75 Ohm connector for, Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S

    • Features:

      • Body Plating: Nickel
      • Cable Group: E1
      • Cable Type: 20 AWG Center Conductor Belden 1505A, Belden 9100, RG-59
      • Connector Body Style: Straight
      • Contact Plating: Gold
      • Gender: Plug
      • Grade: Commercial
      • Impedance: 75 Ohm
      • RoHS Certificate: Yes


    • Specifications:

      • Body Finish: Nickel
      • Body Material: Brass
      • Cable Type (Terminates to): RG-59, RG-62, Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S
      • Contact Finish: Gold
      • Contact Material: Brass
      • Contact Termination: Crimp
      • Coupling Mechanism: Bayonet
      • Crimp Tool: CTL-8
      • Export Control Classification Number: EAR99
      • Frequency (Max GHz): 2
      • Gender: Plug
      • IP Rating: Not Rated
      • Impedance (Ohms): 75
      • Insulator Material: Delrin
      • Isolated: No
      • Low PIM: No
      • Mil Qualified: No
      • Non Magnetic: No
      • Orientation: Straight
      • Panel Mounting Feature: Not Applicable
      • Size Category: Miniature
      • Temperature Range: -85° to 329°F (-65° to 165°C)
      • Termination Style: Cable - Crimp
