VAC 12-131-114 Component RGB Video Distribution Amplifier

ITEM #: 12-131-114 MFG #: 12-131-114

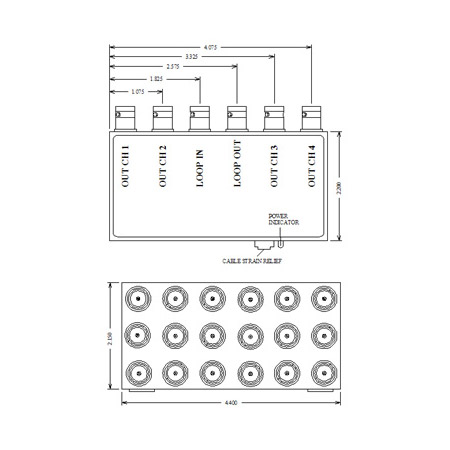

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the 12-131-114

12-131-114 - Overview

1X4 Component RGB Video DA, Loop-thru input, unity gain, BNC connectors, 12V AC

  • Specifications:

    • Bandwidth DC - 440 MHz
    • Input Signal Level 0.5 - 2.0Vpp (0V DC offset)
    • Input Configuration Loop-thru (high Z)
    • Input Coupling DC
    • Input Connectors BNC
    • Output Connectors BNC 4 Outputs
    • Gain Unity
    • Output Series Impedance 75 Ohms
    • Mounting Two threaded 6-32 inserts
    • Power Supply 12V AC
    • Power Connector Type P5
    • Power Status Power LED indicator
    • Temperature -40°C to 50°C
    • Humidity 0% - 95%
    • Dimensions 2.2" x 4.4" x 2.15"
    • 56mm x 112mm x 55mm
    • (Epoxy only without connectors)
    • Shipping Weight 3 lbs
    • 1.4 Kg
    • (Includes wall transformer)
