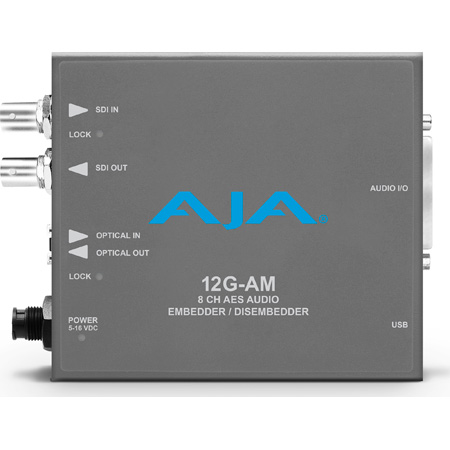

AJA 12G-AM 12G-SDI 8-Channel AES Audio Embedder/Disembedder with SFP Port

ITEM #: AJA-12G-AM MFG #: 12G-AM

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,245.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    12G-AM - Overview

    The AJA 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI inputs and outputs up to 4K/UltraHD.

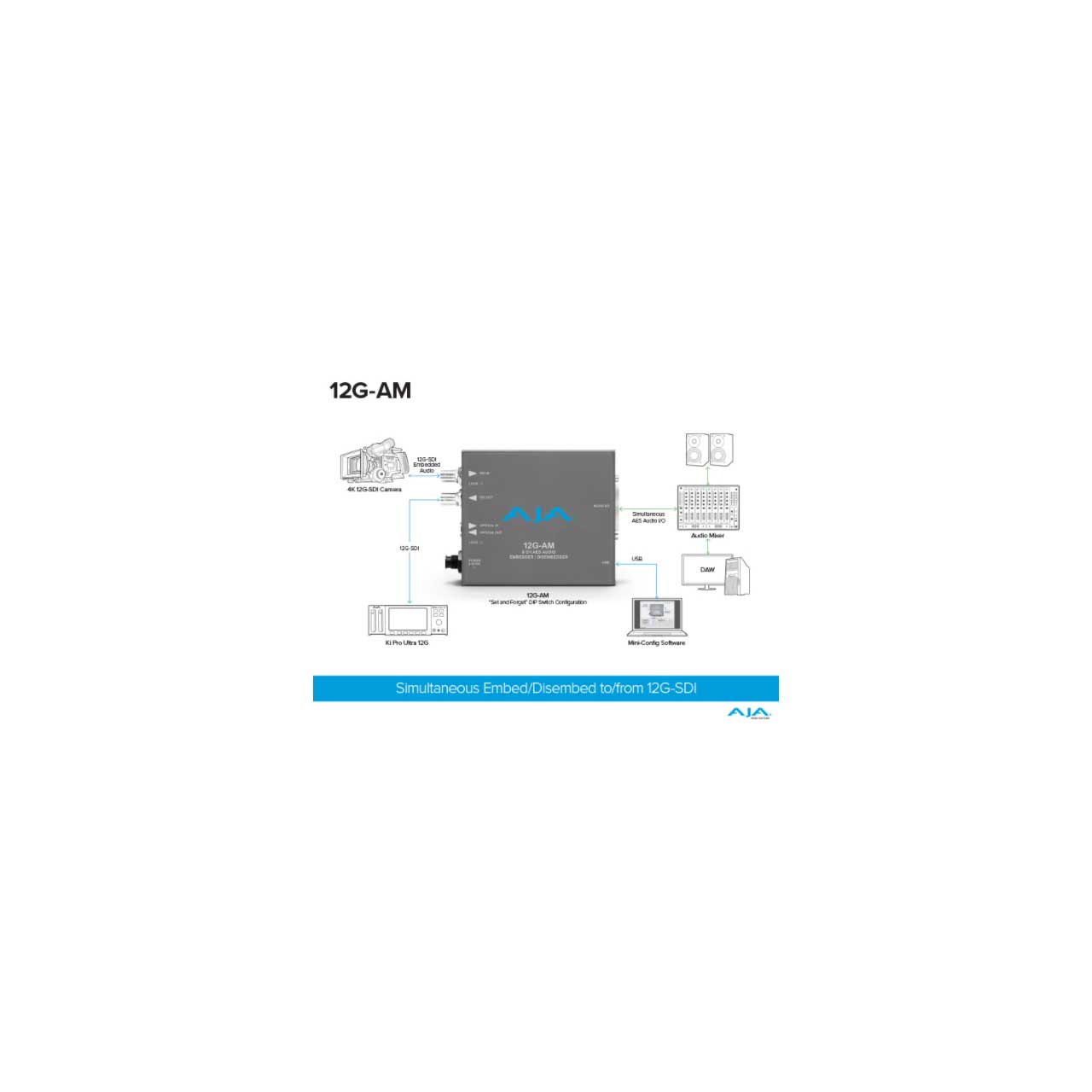

    AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable. The 12G-AM automatically detects and configures the input video standard.

    • Features:

      • 12G-SDI 8-Channel AES Embedder/Disembedder
      • 12G-SDI Input and Output up to 4K/UltraHD
      • 8-channel balanced AES audio Embedder/Disembedder with LC and ST Fiber model options.
      • AES audio Disembedding is always functional with four AES outputs
      • AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
      • Selectable AES audio levels
      • Automatically detects and configures the input video standard
      • Small form factor allows for a wide variety of installation locations
      • Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
      • USB connectivity via AJA Mini-Config software
      • Dipswitch configuration
      • 5-16 VDC Power

    • Specifications:

      • Video Formats
      • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30,50, 59.94, 60
      • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1920x1080i 50, 59.94, 60; 1280x720p 50, 59.94, 60*
      • (SD) 625i 50; 525i 59.94
      • RGB and YCbCr, 4:4:4/4:2:2, 10-bit
      • Note: Raster and frame rate dependent, please see 12G-AM Video Formats in Documents and Manual.

        Video Input Digital
      • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
      • Single Link SD/HD/2K/UltraHD/4K
      • Single Link 3G-SDI Level A or B-DL, SMPTE 425

        Video Output Digital
      • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
      • Single Link SD/HD/2K/UltraHD/4K
      • Single Link 3G-SDI Level A or B-DL, SMPTE 425

        Cable Equalization (Belden 1694A coax)
      • 12 Gbps, 65m
      • 6 Gbps, 125m
      • 3 Gbps, 190m
      • 1.5 Gbps, 200m
      • 270 Mbps, 405m

        Video Path Delay
      • Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.
      • Video Latency, time measured between video input and video output connector: 12G/6G/3G level A = 3.2 µsec, 3G level B-DL/HD (1.5 Gb) = 6.3 µsec, SD (270 Mb) = 17.2 µsec

        Audio Inputs and Outputs
      • AES PCM audio, 1x 25 pin D female connector on converter, 8-channels in, 8-channels out, selectable in pairs
      • Breakout cable provided with 1x 25 pin D male connector: 4x XLR female input breakout connectors (AES3 110 ohm), 4x XLR male output breakout connectors (AES3 110 ohm), Audio Data Formats, AES3-2003

        Embedded Audio
      • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
      • SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
      • Incoming embedded audio can be passed, removed, or overridden
      • Up to 16-channels supported
      • Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.

        Embed Path Audio Latency
      • (Time measured between audio input and video output connector): 1500 µsec (SRC ON), 400 µsec (SRC OFF)

        Disembed Path Audio Latency
      • (Time measured between video input and audio output connector): 210 µsec

        User Interface
      • External DIP switch
      • USB port used with Mini-Config software application to configure the device via PC/Mac

        General
      • Dimensions (WxDxH): 5.8 x 3.1 x 1.0 (147.3 x 78.7 x 25.4mm)
      • Weight: 0.6Lbs (0.3kg)
      • Power: +5-16VDC, 10 watts, power supply required, included with purchase
      • Operating Temperature: 0° to 40°C (32° to 104°F)
      • Storage Temperature: -40° to 60°C (-40° to 140°F)
      • Operating Relative Humidity: 10 to 90% non-condensing
      • Operating Altitude: <10,000' (<3,000m)

    • Warranty:

      • Five year warranty

    • GTIN:

      0812321032505
